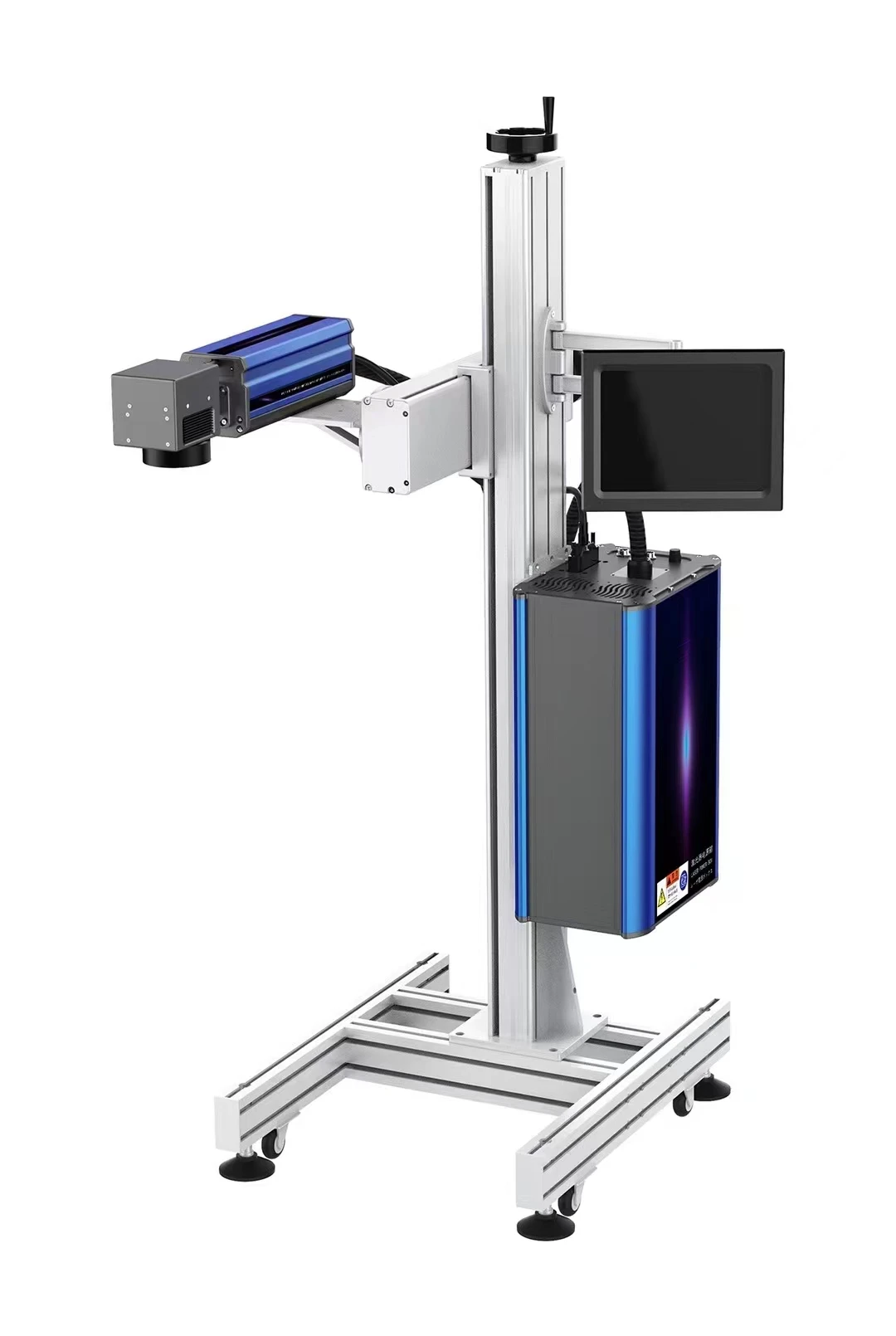

20W fiber flying laser marking machine

Fiber laser online marking machine is equipped with MAX (optional) laser source with stable performance,  fast processing efficiency and markiing speed on the production line. It can reach high speed up to 200 meters per minute (single-line 2MM-high numbers and letters) with high-yield application identification requirements. This machine mainly marking on metal materials and some non-metallic materials with surface treatment.

Applications:

 Fiber laser online marking machine is suitable for online marking of most metal materials and some non-metallic materials with surface treatment, such as metal products, PVC, HDPE, aluminum film, rubber and plastics.

 It is widely used in the production of personal care products, food and beverage packaging, wine, dairy products, electronic components, chemical building materials and other fields, and the expiration date, batch number, shift, manufacturer name and logo and other graphics and text markings.

 It also used in production date, anti-counterfeiting, medical and food packaging industries. This model supports functions such as automatic encoding, serial number, batch number, date, barcode, two-dimensional code, automatic number skipping, etc., to meet the needs of customers in different industries.

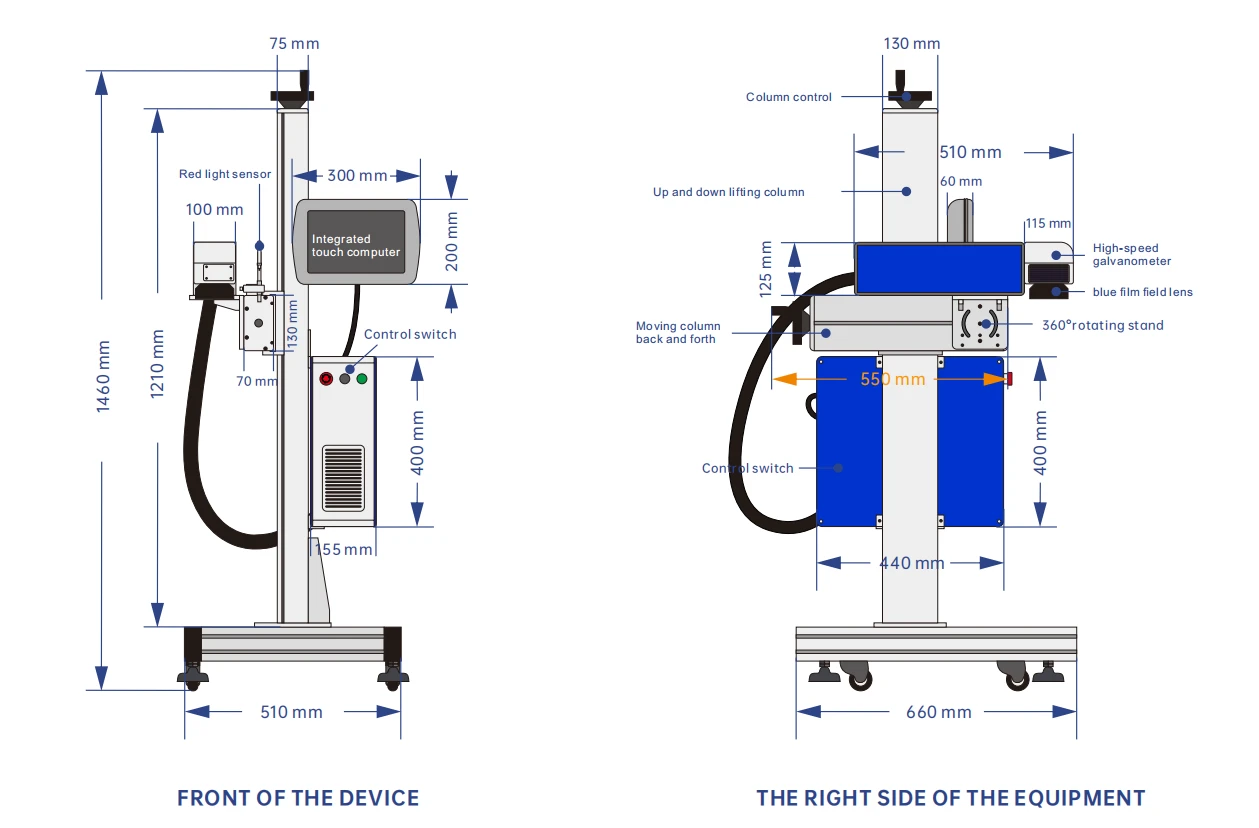

Product size

Main parameter

Laser parameter	Laser source model	MFP-20G/20X
	Output power	18.5W
	Beam quality M2	≤1.4
	Pulse repetition frequency	27-60 KHZ
	Laser wavelength	1064±5
	Output power stability	＜3%
	Working life	About 100000 working hours(non lifetime)
Optical properties	Marking range	100-300mm
	Engraving depth	≤1 mm (depending on power and time)
	Engraving speed	≤10000mm/s
	Repeat accuracy	±0.002
	Minimum marking line width	0.1mm
	Minimum character height	0.15mm
