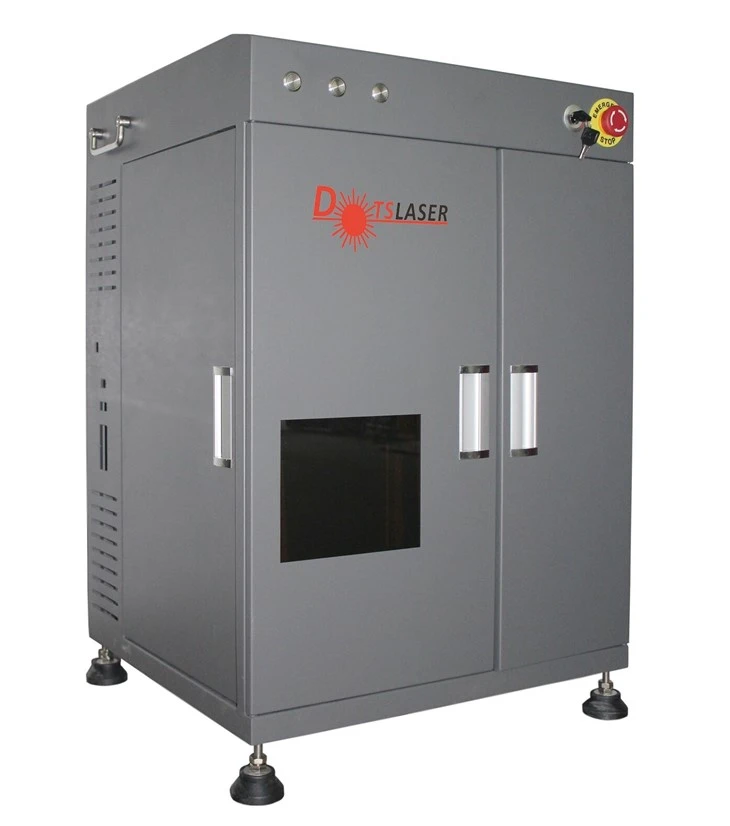

grey color (4)-

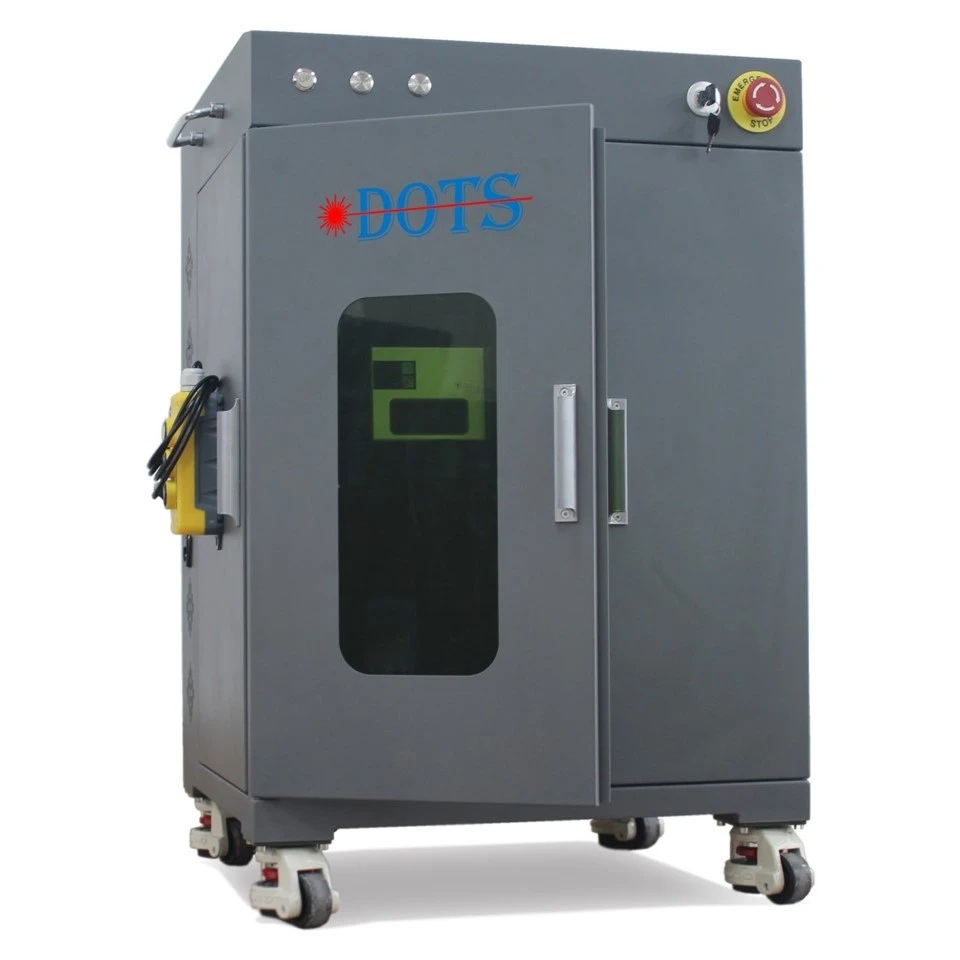

30W Fiber Laser Marking Machine

Fiber Laser Marking Machine has features with high electro-optical conversion efficiency, air-cooled cooling, small size, good beam quality, high reliability, high efficiency, long life and less maintenance, etc.

Send Inquiry

Product Introduction

30W Fiber Laser Marking Machine

Products Description

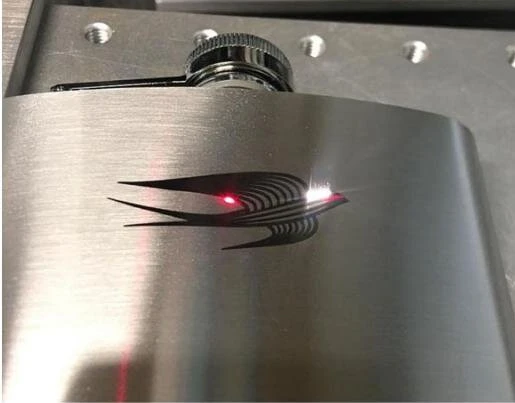

The 30W fiber laser marking machine uses a fiber laser source to output laser beam, and then realizes the marking function through a high-speed galvo system. It has features with high electro-optical conversion efficiency, air-cooled cooling, small size, good beam quality, high reliability, high efficiency, long life and less maintenance, etc., It is favored by users all the time.

Feature And Function

01/

A safe system with class 1 protection level.

02/

The doors are removable,more operating space.

03/

Auto focusing,make the work more easy and simple.

04/

Compatible with various laser source and power.

05/

Rotary,disk rotation,conveyor are optional.

06/

Unique appearance design.

parameters of Fiber Laser marking machine

products	marking machie	marking machine	marking machine	marking machine
Model number	DS-LM20	DS-LM30	DS-LM50	DS-LM80
Laser power output	20W	30W	50W	80W
Engraving depth	≤0.2mm	≤0.3mm	≤0.5mm	≤0.8mm
laser wavelength	1064±10 nm
Marking area(2D)	100×100mm/150×150mm/200×200mm
Marking area(3D)	150mm×150mm×40mm;200mm×200mm×40mm
Pulse frequency	20~80KHZ/1~600KHZ/1~4000
Max marking speed	8,000mm/s
Repeat accuracy	±0.001mm
Min.line width	0.01mm
Min.character size	0.2mm
Cooling	Air cooled
Working temp	10~35 ℃
Humidity range	< 70% No condensation
Power supply	AC220V±10%,50Hz or AC110V±10%,60Hz
