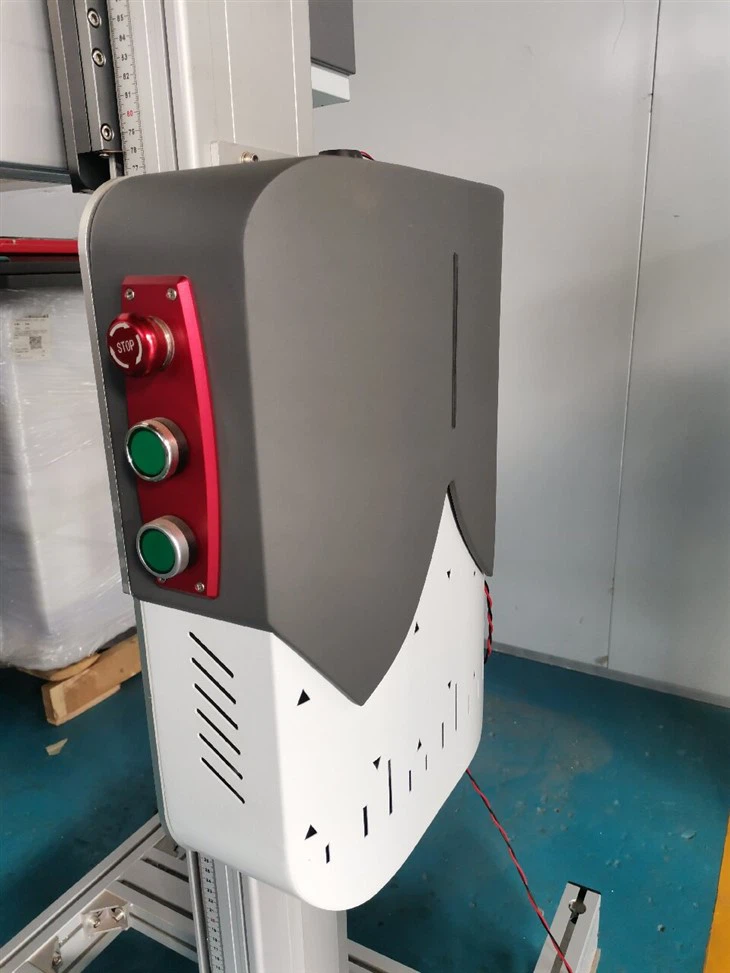

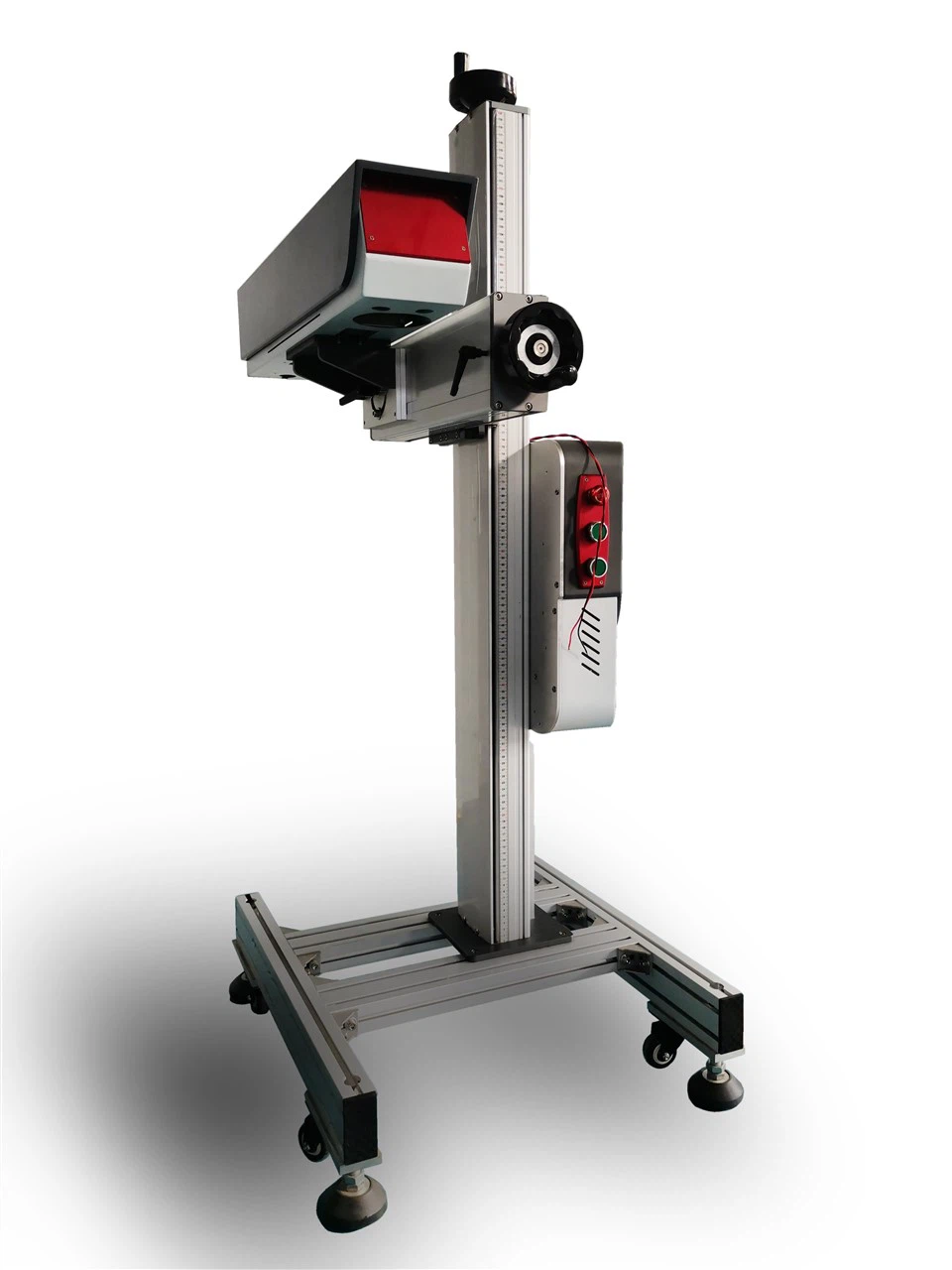

Bottle Fiber Laser Flying Marking Machine
Products Description
The bottle fiber laser flying marking machine of our company adopts the most advanced laser pumping technology in the world. It directly generates high-energy photons from the laser pumping, causing a large number of particle beam reversals in the laser medium. Under the action of the Q-switch, a giant pulse laser with a wavelength of 1064nm is formed. Then, the marking activity is carried out through the optical scanning galvanometer and the "F-θ" mirror group under the control of the computer marking software program. This high-speed galvanometer scanning system of the laser has the advantages of high peak laser power and fast scanning speed, and is particularly suitable for laser precision marking.This machine has a beautiful appearance, is easy to operate, has no consumables, low depreciation cost, can run without failure for a long time, requires no maintenance, and can fully meet the continuous working requirements of industrialization.
product features
automatic focusing
The bottle fiber laser flying marking machine adopts an integrated overall structure, is equipped with an automatic focusing system, and the operation process is user-friendly.
Stability
Protect the window of the fiber laser with imported isolators to enhance stability and the lifespan of the laser.
Save energy consumption
It features a high electro-optical conversion efficiency, with the entire machine consuming less than 500W of power, which is only 1/10 of that of a lamp-pumped solid-state laser marking machine, significantly reducing energy consumption costs.
High-Quality
The beam quality is much better than that of traditional solid-state laser marking machines, with fundamental mode (TEM00) output and a focused spot diameter of less than 20um. The divergence Angle is one fourth of that of a semiconductor-pumped laser. It is particularly suitable for fine and precise marking.
No maintenance required
It requires no maintenance, has a long service life, is small in size and suitable for working in harsh environments.
high speed
It adopts a high-speed flying laser control system, featuring a fast processing speed that is 2 to 3 times that of traditional marking machines, with a flight speed of up to 200m/min.
Parameter
| Engine Performance | performance parameter | Whole machine power |
0.5KW |
| Marking range | It varies depending on the focal length of the selected lens | ||
| F=254mm, marking range: 160mm×160mm | |||
| F=160mm, marking range: 100mm×100mm | |||
| Laser engraving speed | Linear scanning: 7000mm/s | ||
| minimum linewidth |
0.015mm |
||
| Single engraving depth |
≤0.05mm |
||
| repeated accuracy |
±0.01mm |
||
| Min character |
0.3mm |
||
| laser | laser power |
20W |
|
| single pulse energy |
＜0.1mJ |
||
| Beam quality M² |
＜1.3 |
||
| optical maser wavelength |
1064nm |
||
| Software control system | The control software is independently developed by our company. It works on the Windows platform, is easy to operate and learn, and has powerful functions. It is compatible with file formats such as PLT and BMP output by software such as AutoCAD, Coreldraw, and Photoshop. It can mark patterns, barcodes, and Chinese and English characters. The product serial number (with automatic number skipping) can be directly used in the software in SHX and TTF fonts. The size, spacing and arrangement of characters can also be adjusted very conveniently. | ||
Working Environment Requirements
Air pressure of the bottle laser flying marking machine: 86-106kpa.
Power supply grid requirements: 220V; 50Hz.
The ambient temperature is required to be between 15 and 40℃.
The humidity requirement is 40%-80%. If there is no condensation, a dehumidifier should be installed.
Power supply grid fluctuation: ±5%, and the grid ground wire complies with international requirements. In areas where the voltage amplitude exceeds 5%, electronic automatic voltage and current stabilizing devices should be installed.
There should be no strong electromagnetic signal interference near the installed equipment. Avoid having radio transmission stations (or relay stations) around the installation site.
Foundation amplitude: less than 50 μ m; Vibration acceleration: less than 0.05g. Avoid having a large number of stamping and other machine tools nearby.
The equipment space should be free of smoke and dust, and avoid working environments with severe dust such as metal polishing and grinding.
Anti-static floors and enhanced shielding should be installed in certain environments.
Sample Show
Shipping and package
Installation And Debugging
Before the bottle laser flying marking machine installation, we will provide a simple diagram of the basic structure of the equipment installation site. The installation and commissioning time of the equipment is approximately five working days. In the first three days, the connection and use of the system work will be carried out, and in the following two days, training on relevant maintenance procedures and the overall operation characteristics of the equipment will be conducted.
Process Support
We will provide customers with various scientific and reasonable laser process supports, assist them in engraving special materials, and enable users to easily solve the process problems encountered in production.
Service Support
If any component of the bottle laser flying marking machine system has problems during the warranty period, DOTSLASER can provide telephone consultation at any time. For all support services within the quality guarantee period, users can contact DOTSLASER directly.
Systematic Training
In order to enable the operators of your company to master the operation skills of this equipment proficiently, we will provide training on the operation programming of the machine tool, the maintenance and upkeep of the equipment, and related processes for your operators.
Why Choose DOTSLASER
Here Are Four Reasons Why You Choose Us
Provide personalized customized services
DOTSLASER laser has 18 years experience in industrial laser equipment, we are a professional laser equipment production base, all equipment are researched,developed,assembled by ourselves.
Our philosophy and purpose: as long as you want, we can definitely build up a product only belong to you, because we accept customized and personalized needs, we can OEM for you, you can also choose one of our product as an exclusive product in your area.
We do not only want to be a company that assemble equipment, but also a reliable partner that can bring you benefits, hope to work hand in hand with you and develop together.
