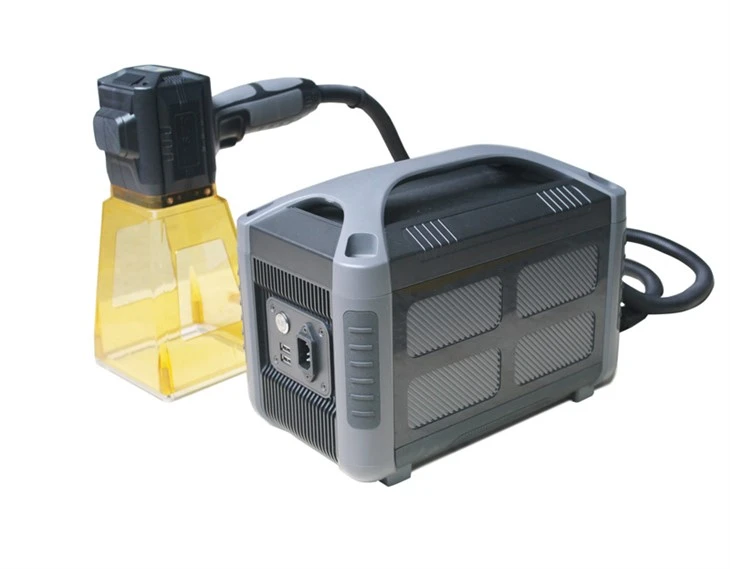

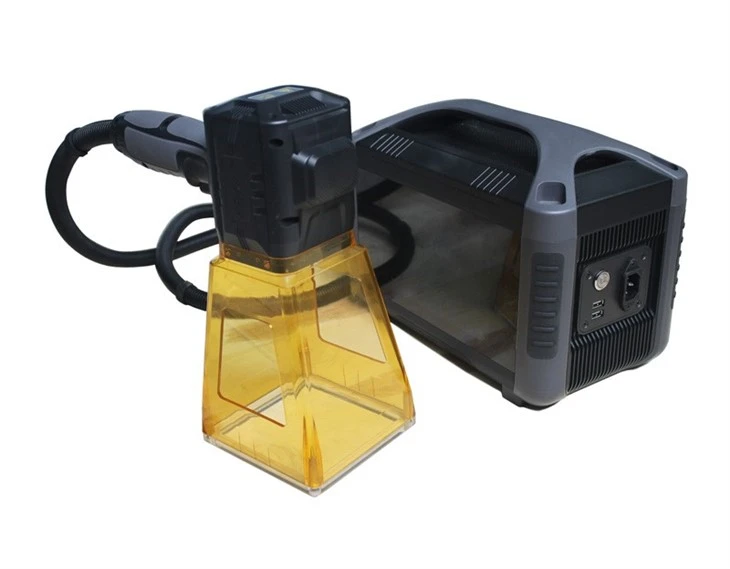

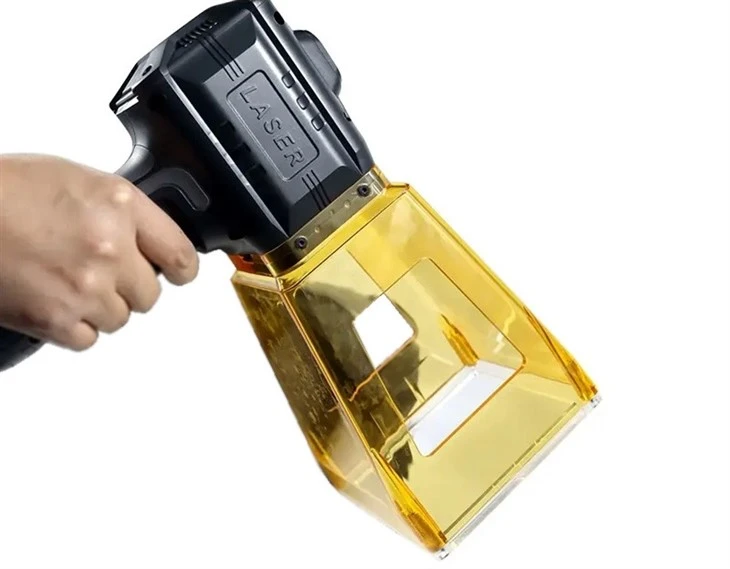

Handheld Fiber Laser Engraver
Handheld Fiber Laser Engraver
Products Description
Handheld fiber laser marking machine adopts advanced laser technology to achieve fast and high precision marking. Highly integrated design with small and lightweight body and removable battery design for unlimited use and improved work efficiency. The handheld laser marking equipment has a wider range of uses and greater flexibility to meet customers' daily needs.
Machine Features
Portability:exquisite in design, lightweight and easy to carry, moved and carried around easily.portable battery power is more suitable for various working scenarios.
High-quality Marks: The marks produced by lasers are high-contrast, durable, and resistant to wear, ensuring their longevity even in harsh environments.
High precision:laser beams for marking with high precision and detailed marking effects. They can achieve high-resolution, high-definition marking and are suitable for applications that require precise marking and patterning.
High Efficiency: marking speeds and high working efficiency enables the fast marking process with a long service life and stable performance.
Low maintence cost : Fibre laser marking machines usually use solid-state lasers, which have a long service life and stable performance. Saving maintence cost.

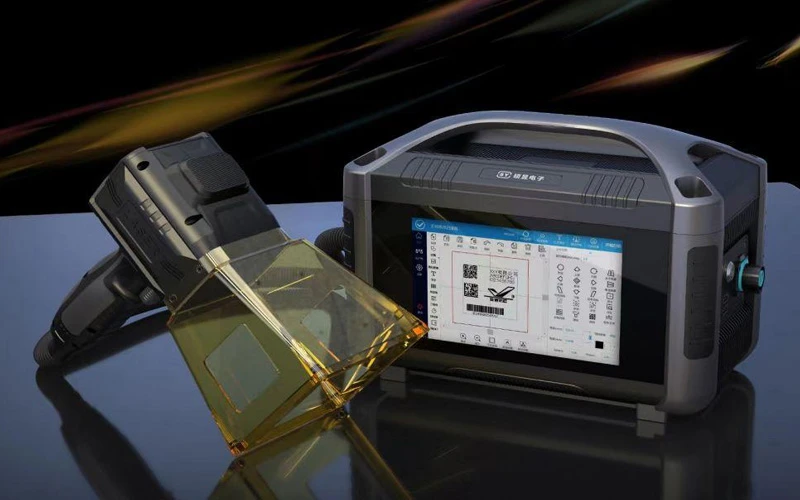

Customized designs:The device features a touch screen for easy operation and can be connected to a computer via USB for added convenience.The USB connection also allows for easy firmware updates and the ability to upload customized designs
Hand-held laser marking machine uses a laser beam to make permanent marks on the surface of various materials.
The effect of marking is to expose the deep material through the evaporation of the surface material, or to "carve" the trace through the chemical and physical changes of the surface material caused by the light energy, or to burn part of the material through the light energy to display the required etching patterns and characters.
With highly integrated design, the body is small and light, and the battery is detachable,which can provide unlimited endurance and improve work efficiency. Hand-held laser equipment has a wider range of use and higher flexibility, which can meet the daily needs of customers.
|
Parameter table |
|
|
laser source |
Fiber generator |
|
Output power |
18W,25W |
|
Marking range |
70x70mm, 100x 100mm ( O ptional ) |
|
Deflection seismoscope |
High - precision two -dimension scanning system |
|
Laser wavelength |
1064mm |
|
Focus lens |
130mm |
|
Marking speed |
<7000mm/s |
|
Master control |
Integrated motherboard, 8 -inch capacitance full -fit screen |
|
Operating system |
Linux system |
|
Marking line type |
Dot - matrix and vector all -in -one machine |
|
Line width |
0.03mm |
|
Repetitive positioning accuracy |
0.01mm |
|
Positioning method |
Red light positioning and focusing |
|
Number of engraved character lines |
Any line within the valid marking range |
|
Printing speed |
800 characters (related to material and printing content) |
|
Font |
Chinese and E nglish, digital, traditional Chinese and other standard font |
|
File format |
BMP, DXF, HPGL,JPEG, PLT |
|
Barcode |
CODE39,CODE128,CODE126. QR |
|
Source |
110V/220V AC. lithium cell(216wh) |
|
Overall power consumption |
145 -250W |
|
Operating temperature of the whole machine |
0 -40° |
|
Operating Weight |
6 ~6.8KG |
Products details

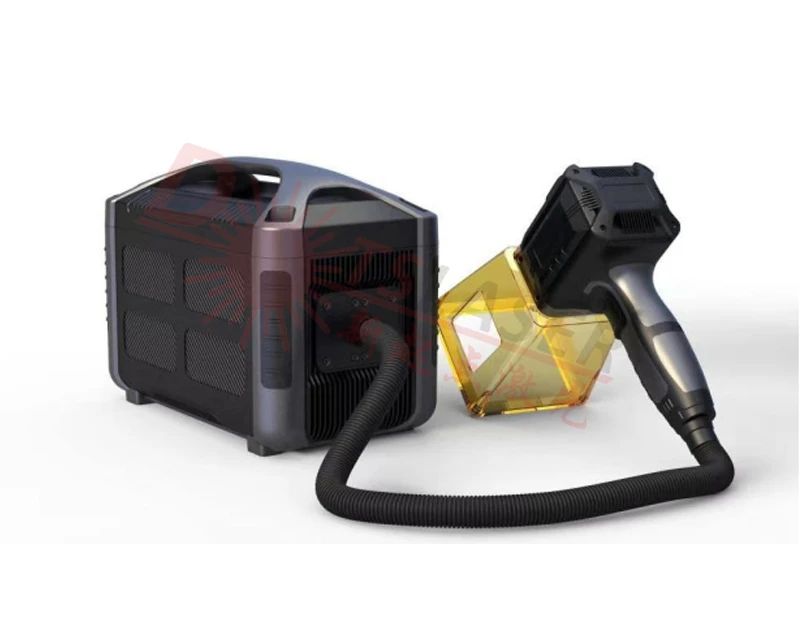

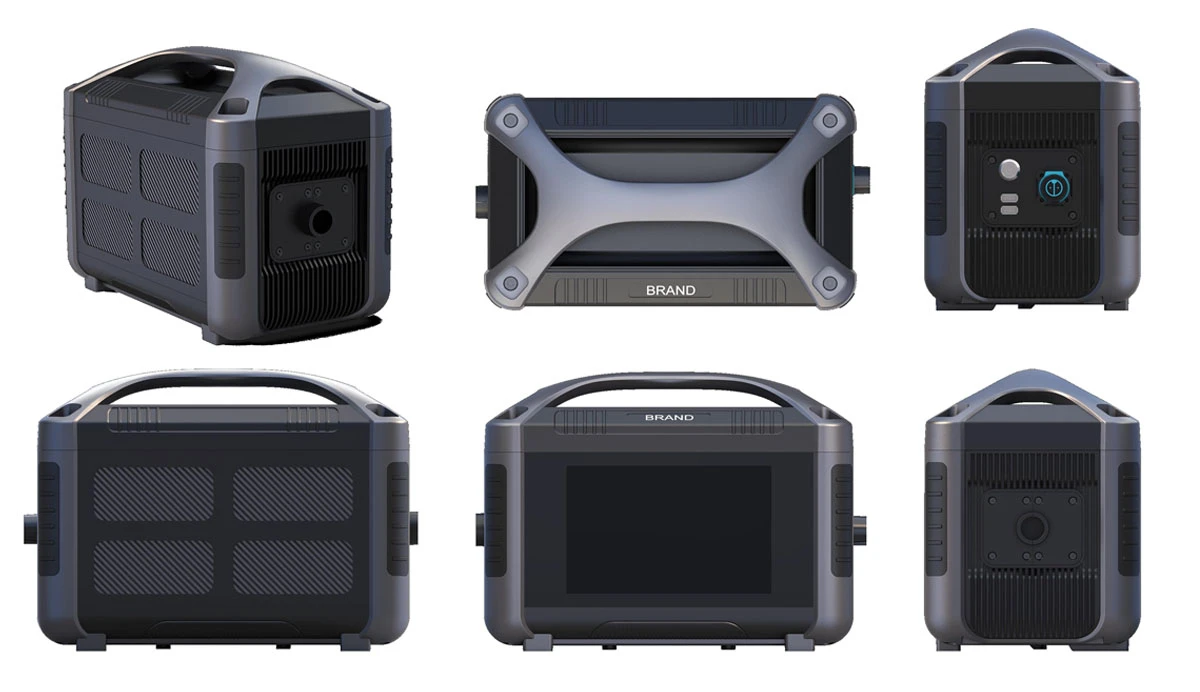

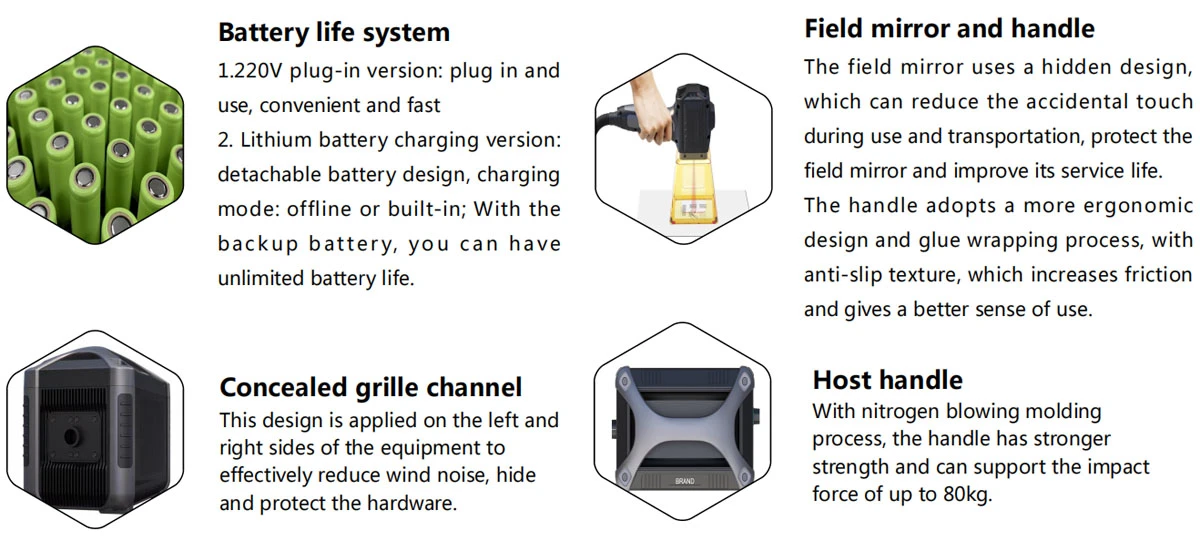

Partial display of equipment

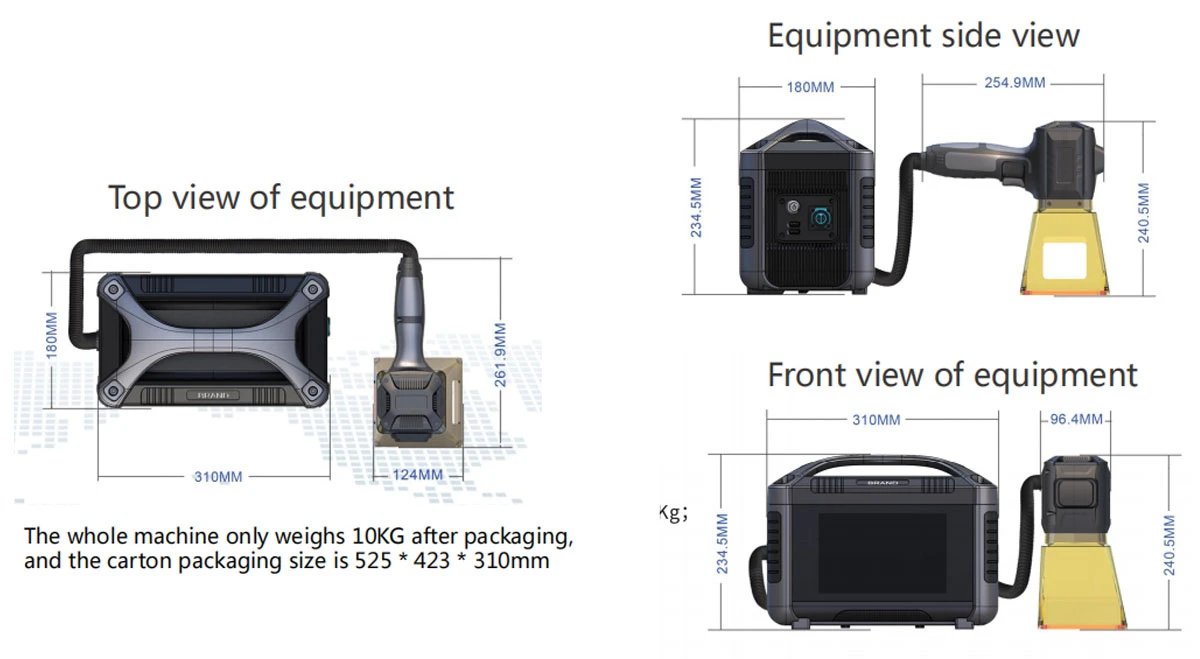

Size display
Software performance
Hardware performance
Quality advantages
Samples show
It is applicable to all kinds of metal materials, such as gold, silver, copper, steel, etc., and also to some non-metallic materials, such as paper, plastic, glass, etc. It can be used for trademark coding, bar code marking and other personalized customization.
The fiber laser technology used in this engraver ensures high precision and accuracy, allowing for detailed and intricate designs to be engraved with ease. The laser is also capable of marking on plastic materials like ABS, PEEK, and polycarbonate.
Hand-held laser marking machine is widely used in various industries: medical industry, electronic industry, food industry, plastic industry, hardware industry, mechanical parts, clothing leather, etc.
