Products Description
The ultraviolet laser marking machine belongs to a product in the laser marking machine series. It adopts a cold processing method, so it has made a great breakthrough in processing quality. Due to the minimal focusing spot and the small heat-affected zone, the ultraviolet laser marking machine can perform ultra-fine marking and marking with special materials. So it is the first choice for customers who have higher requirements for marking effects.
Parameter of 3d uv laser machine:
|
Maximum power consumption |
＜1000W |
|
Marking area |
100x100mm,180x180mm |
|
Min, line width |
0.01mm(According to the materials) |
|
Minimum character size |
0.3 mm (adjusted depending on the material) |
|
Laser |
|
|
Laser power |
5W |
|
Wavelength |
355nm |
|
Standard marking area |
180×180mm |
|
Max. Processing speed (characters / s) |
350@180×180 |
|
Min. Line width |
0.01mm(Adjusted according to the materials) |
|
Minimum character size |
0.3mm(Adjusted according to the materials) |
|
Repeatability |
±0.002mm |
|
Consumed power |
≤1000W |
|
Power supply |
Single phase 200-240VAC 50 / 60Hz |
|
Cooling |
Water |

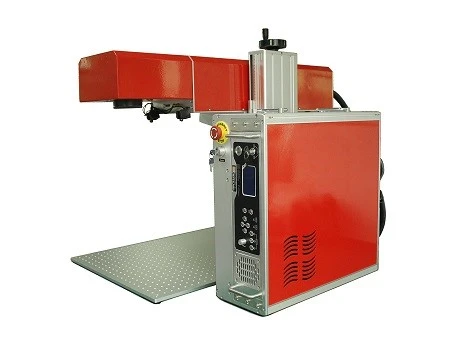

Machine's pictures
What materials can a uv laser machine do?
Marking some metals
Engraving and marking of all plastics
Glass marking
Marking and engraving of some stones
Paper marking
Leather marking and graving
Marking on fruits
Marking on wood
Ceramic marking
Garment marking
UV Applicable materials
Daily maintenance
● After finishing work, make sure the floor is clean. Then clean the machine including the surface of the machine, the case of the optical system, the surface of the monitor, the work table, and so on.
● Please turn off each part and main power supply when they are clean.
● Check the lens regularly for dust. When it's clean, use the cotton wool with greater than 95% medical grade alcohol to wipe clockwise from the center of the lens.
When you need to move the machine to avoid bumps. Check the connection cable according to the cable list.
