Laser Cleaning Application machine

Name: China Laser Cleaning Application machine Manufacturers, Suppliers and Factory - Customized Service - Dotslaser
Brand: DOTSLASER
SKU: 209979236

Laser Cleaning Application machine is a rapidly emerging technology that is gaining attention in various industries around the world. It is widely recognized for its efficiency, precision, and eco-friendliness. In this article, we will explore the application of laser cleaning in various industries and its benefits .

Send Inquiry

Product Introduction

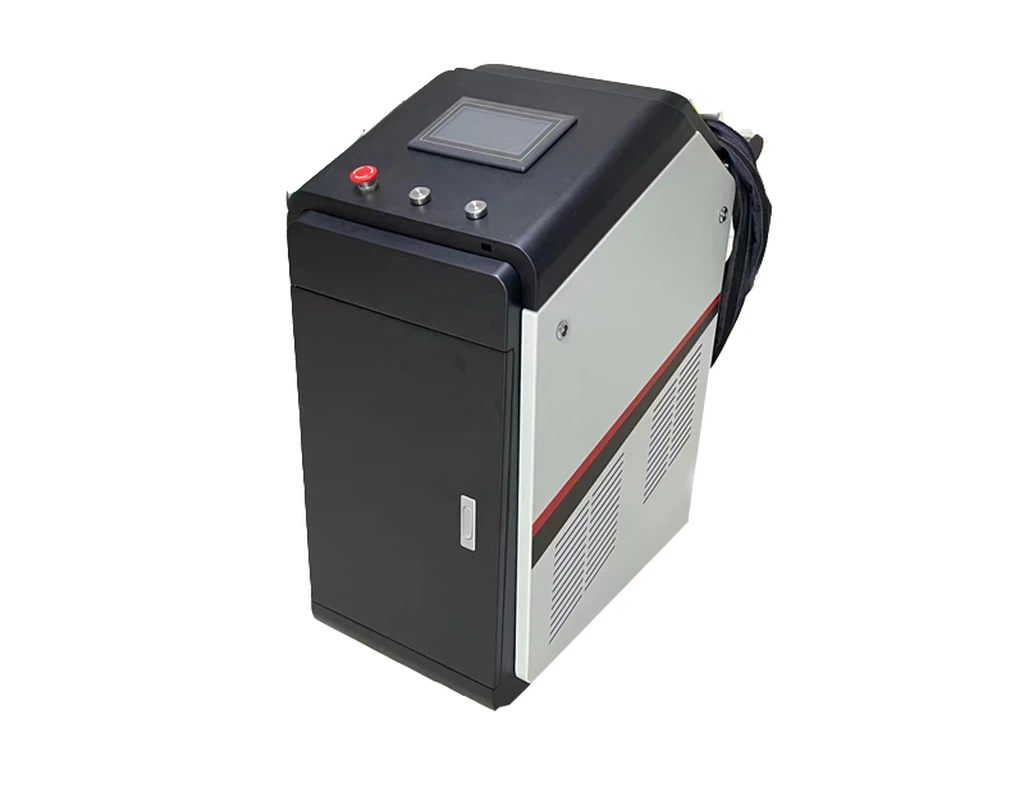

Laser Cleaning Application machine

Products Description

The Laser cleaning application machine is a cutting-edge tool that offers a wide range of applications for efficiently removing rust, paint, and other contaminants from different surfaces. This environmentally friendly and gentle cleaning tool guarantees the protection and preservation of the original material. By harnessing the power of high-intensity laser beams, the machine safely vaporizes surface layers without causing any harm to the underlying substrate.

Main Features

◎1. Non-contact cleaning, no damage to the part matrix;

◎2. Precise cleaning, which can realize selective cleaning of precise position and precise size;

◎3. No need for any chemical cleaning fluid, no consumables, safe and environmentally friendly;

◎4. Easy to operate, can be hand-held or cooperate with the robot to realize automatic cleaning;

◎5. Ergonomic design, the labor intensity of operation is greatly reduced;

◎6. High cleaning efficiency, saving time;

◎7. The laser cleaning system is stable and requires almost no maintenance;

Parameters

Operating environment
Model	DS-200W
Power supply	AC220V±10%,50/60Hz
Power consumption	<1200W/h
Working temperature	5℃～40℃
Working environment humidity	≤80%
Optical parameters
Laser Power	≥200W
Power rate	<5%
Working mode	Pulse
Pulse width	10-190ns
Single pulse energy	1.8mJ
Beam quality(M²)	＜1.6
Power range(%)	10-100(adjustable)
Frequency(kHz)	20-200(adjustable)
Fiber cable	8m
Cooling	Air

Laser cleaning machine VS Traditional method

Non-contact, machine can clean surfaces without causing any damage.

Very precise. They can remove contaminants with extreme accuracy, including rust, oil, paint, and even graffiti.

Environmentally friendly. They use very little energy and do not produce any chemical waste that can harm the environment or workers.

Easy to use, require minimal maintenance, and have a long lifespan.

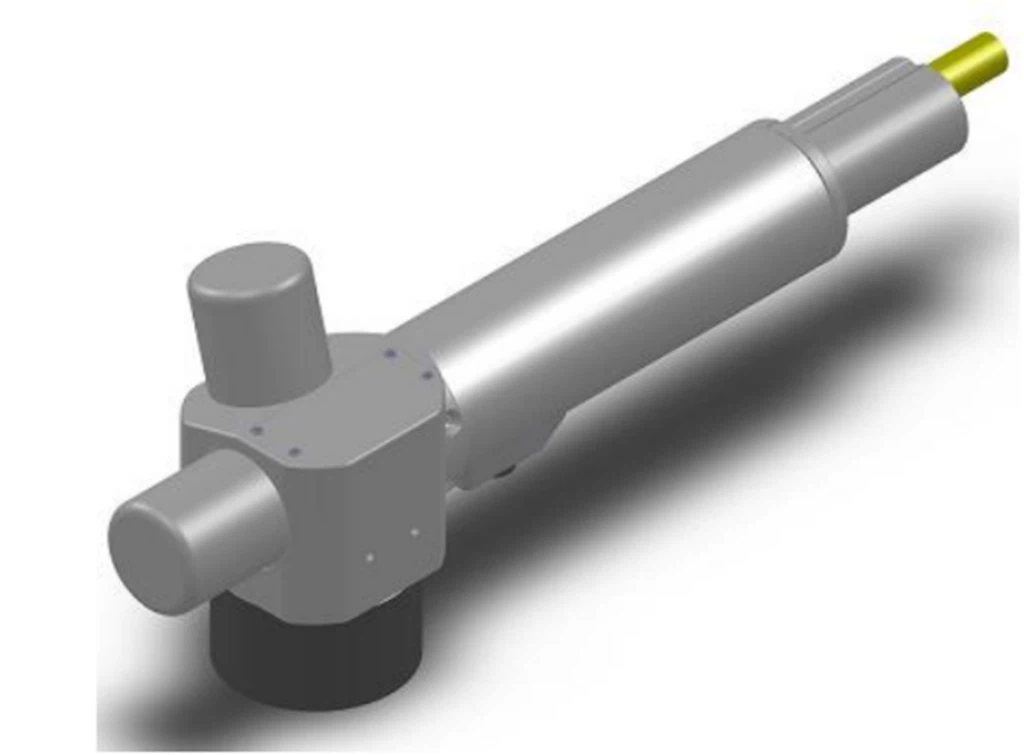

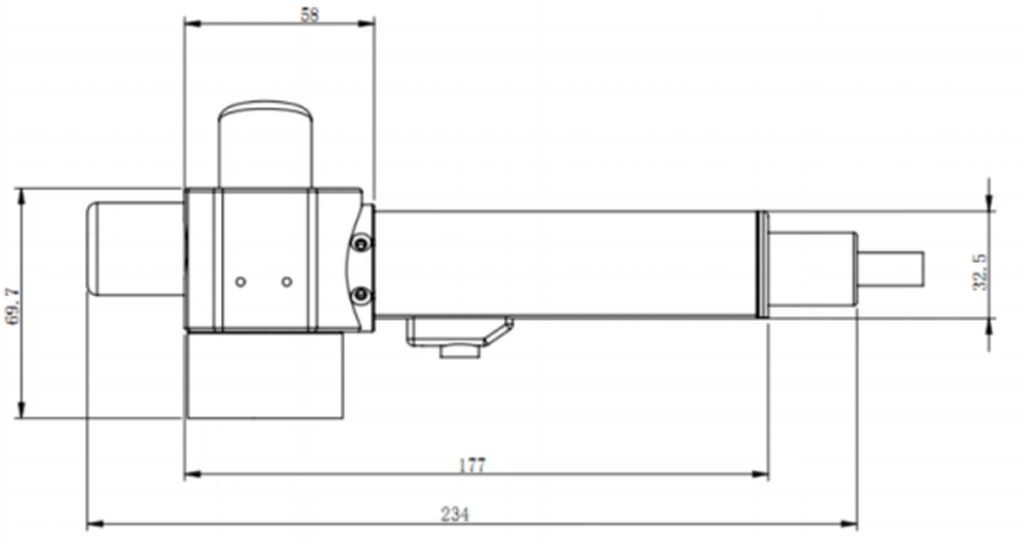

The cleaning head

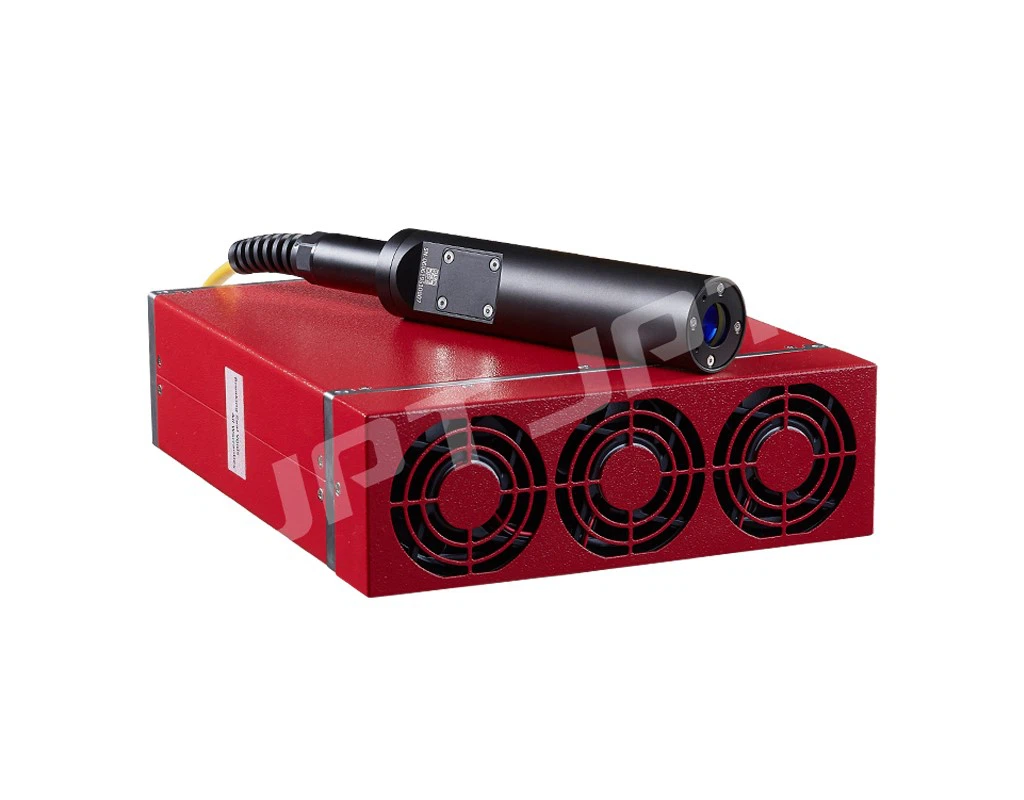

The laser source of Laser Cleaning Application machine

1. High stability: JPT pulse laser adopts advanced technology and has the characteristics of high stability and low noise. Its output power is very stable and has few fluctuations, so it can guarantee long-term continuous work and high-efficiency output.

2. High precision: The pulse width and other parameters output by the JPT pulsed laser can be precisely controlled and adjusted to meet the requirements of different applications. In addition, its repetition rate is also very high, up to 1MHZ, so it is suitable for many high-precision work and experimental research.

3. High efficiency: The conversion efficiency of JPT pulsed laser is very high, which can convert most of the input power into output power, so that the output power is larger and more stable.

4. Long life: JPT pulsed laser has a very long life, generally not less than 10,000 hours. It is easy to maintain and use, with low failure rate and maintenance cost.

JPT pulsed laser is very adaptable and can be applied to various material processing and experimental research. For example, using it for cutting and welding metal materials can achieve high precision, high efficiency, low cost and no damage. At the same time, it also has great application prospects in the treatment, imaging and research of biomedicine.

The advantages of JPT pulsed lasers include high stability, high precision, high efficiency, long life and strong adaptability. These characteristics make it widely used in various industrial fields and scientific research fields and market demands.

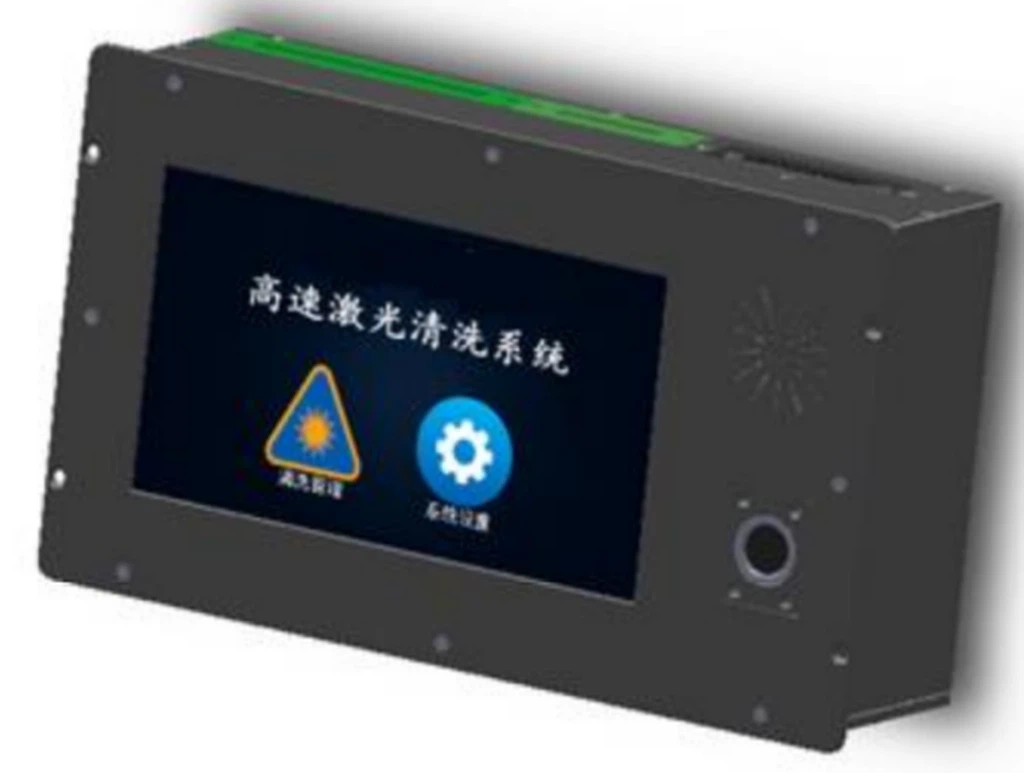

The controller of Laser Cleaning Application machine

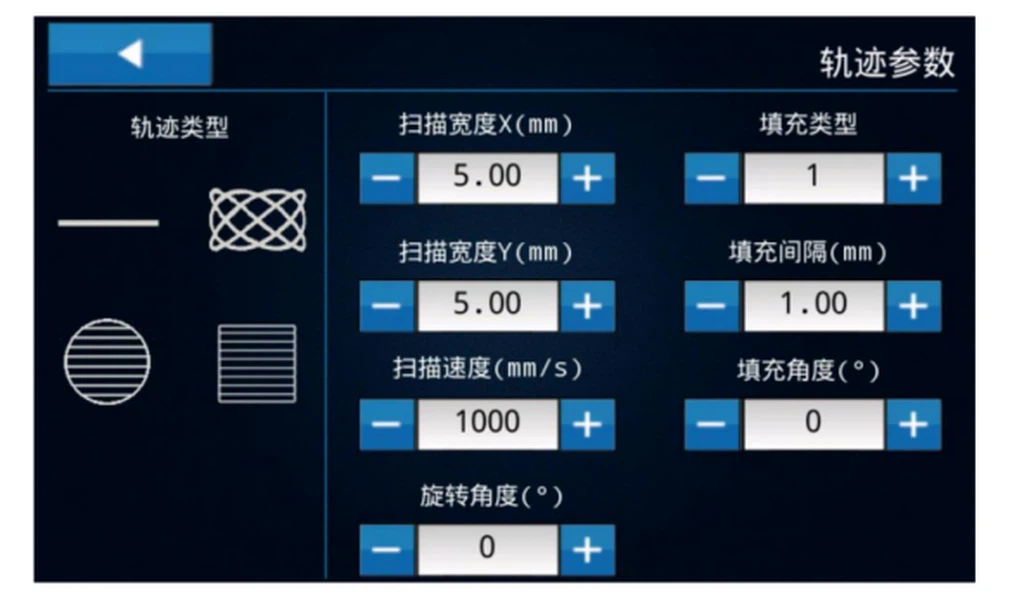

Laser Cleaning Application machine software working display

Applications

Electronics industry: It is useful in removing contaminants from electronic components without interfering with their functionality. This ensures that the components are safe and reliable, which is essential for the quality of the finished product.

Aerospace industry: Laser cleaning is used to clean engine components, such as turbine blades. It is also useful in cleaning aerospace structures, such as wing surfaces. The precision of laser cleaning ensures that the cleaning process does not damage the delicate components.

Food industry: It is useful in cleaning food processing equipment, such as conveyors, without causing any damage to the equipment. This ensures that the equipment is clean and hygienic, which is essential in the food production process.

Laser Cleaning Application Machine Samples

Shipping and Packing

Quality assurance and after-sales service

The warranty period of the equipment shall be 12 months since the equipment be used by the customers, the installation and debugging is completed and the equipment is accepted by the demander. Dotslaser attaches great importance to the after-sales service work of the product, once the product is delivered to the user, the company immediately established the user after-sales service file, and regularly track the user's product use status, solve and answer all the problems of the user, received the user's notification information about the equipment failure, the company's workers can make a rapid response within 2 hours. If the telephone guidance is difficult to troubleshoot, our company's technical staff can arrive at the customer site within 24 hours to provide support.
