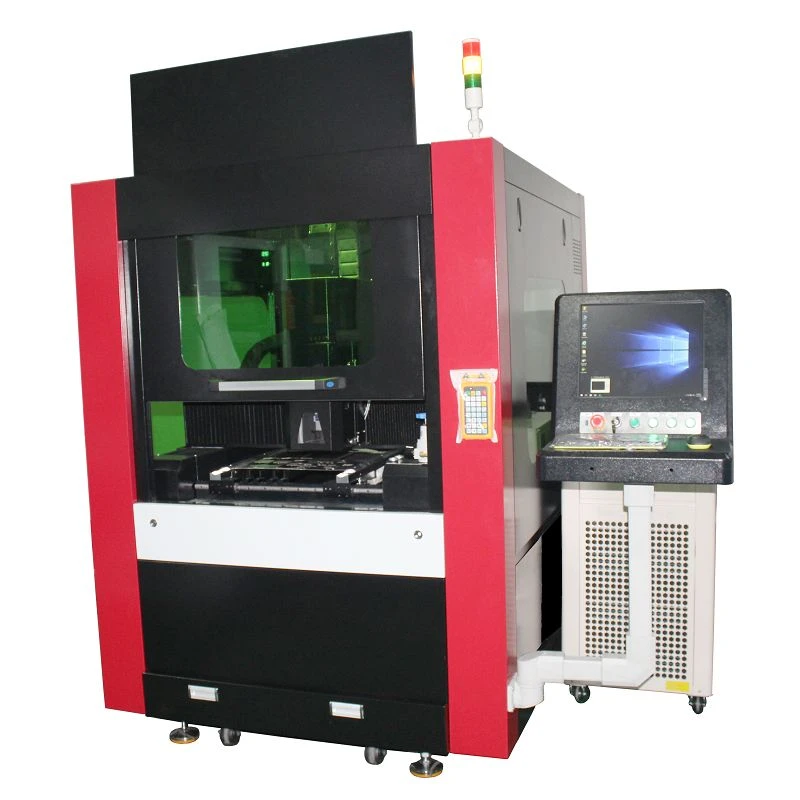

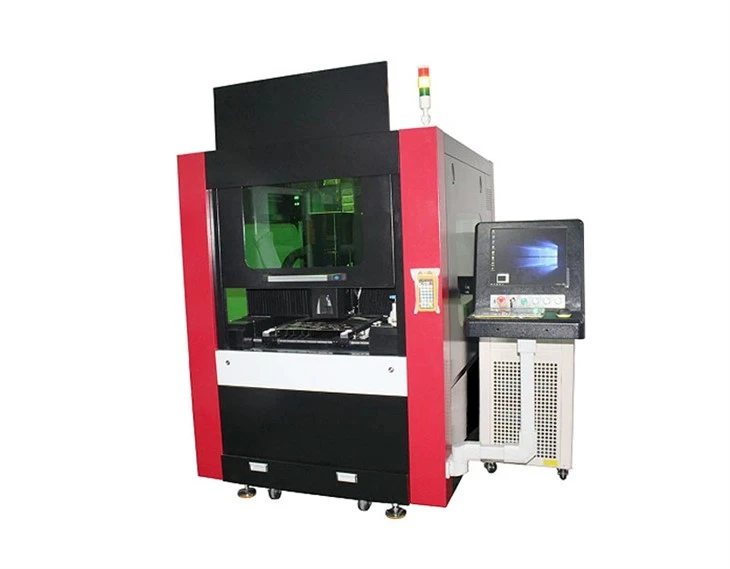

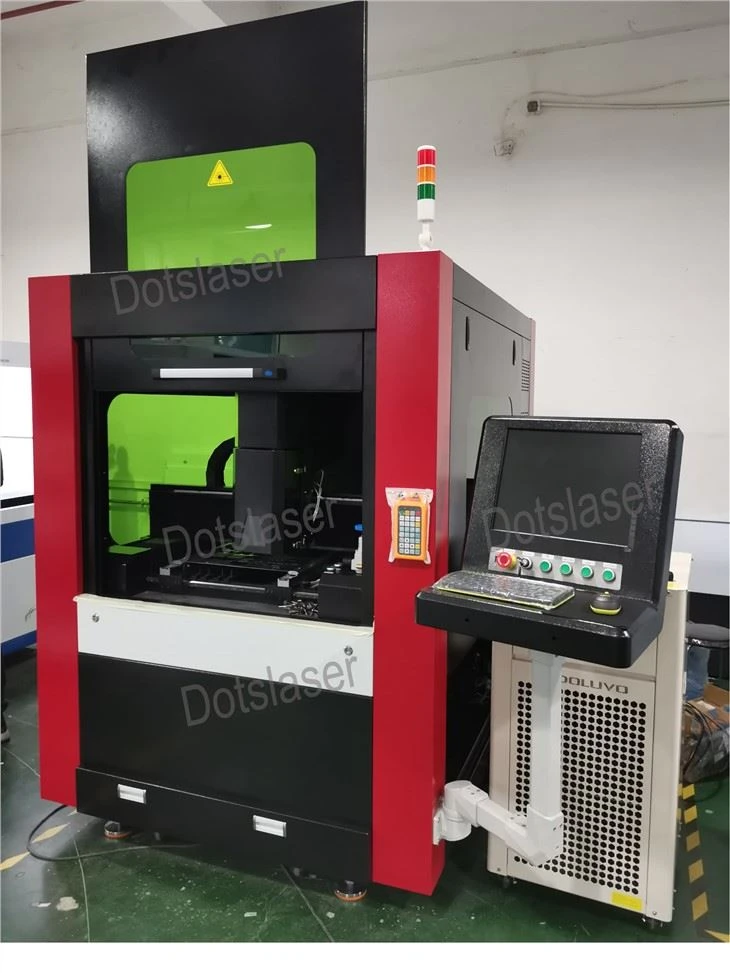

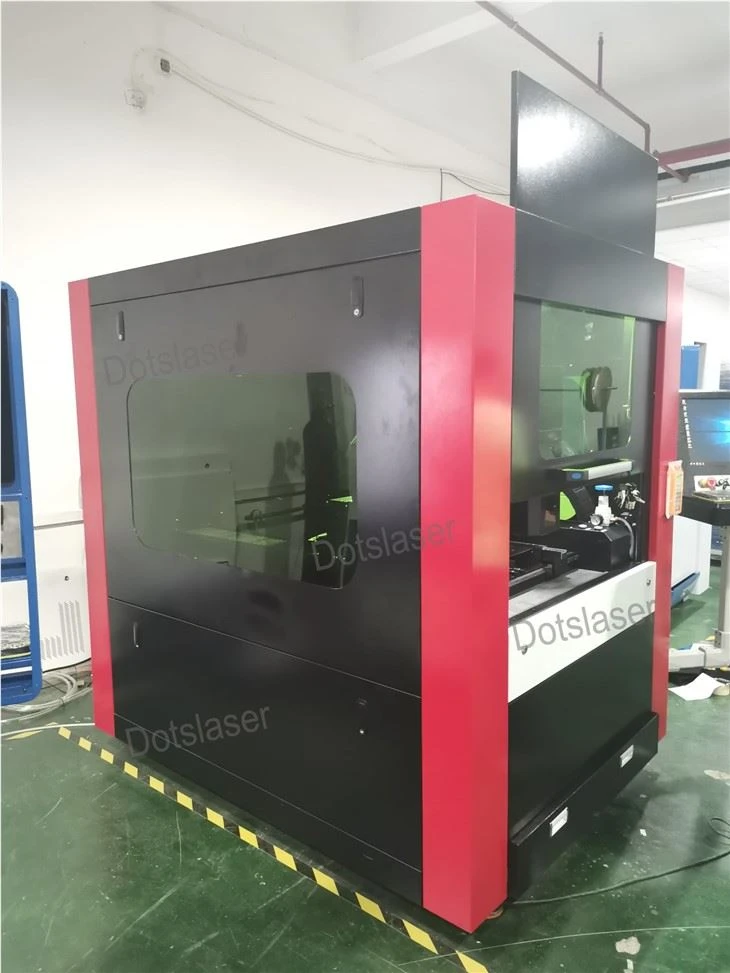

High Precision Fiber Laser Cutting Machine
High Precision Fiber Laser Cutting Machine
Products Description
Each part of the high-precision fiber cutter is processed by helpful machine tools or equipment, so the performance and accuracy of the whole machine will reach the standard. Its laser is to dop the pump into the optical fiber, and then through the semiconductor laser to emit a specific wavelength of laser coupling, and finally make the optical fiber generate laser light. The advantage of this kind of laser is that it simplifies the structure of the equipment, reduces the loss of accessories, more effectively increases the photoelectric conversion rate, and reduces the cost of use.
machine advantages
Speed: The DOTSLASER cutter is significantly faster than the CO2 laser cutting machine. This is due to the higher power density of fiber lasers, allowing them to cut thicker materials at a faster rate.
Precise cutting : Fiber laser cutting tools are precise and can cut shapes and designs with high precision. This is due to their small laser cutting head, spot size, and ability to maintain focus over long distances.
Enough value: Fiber laser cutters are more cost effective than CO2 laser cutters because they consume less energy, require less maintenance, and last longer.
Wide applications: Fiber laser cutters can cut a wide variety of materials, including metals, plastics, carbon steel, and ceramics, making them a versatile choice for many applications.
Automation: The fiber laser cutting machine can be fully automated to achieve continuous and uninterrupted production. They can also be integrated with other manufacturing processes, such as welding and bending.
Environmental protection: Compared with traditional CO2 laser cutting machines, fiber laser cutting machines produce less waste and consume less energy, so they are more environmentally friendly.
The application of fiber laser in cutting sheet metal is different in the external optical path, laser head, gas, etc.
1. The laser beam is transmitted directly to the laser head via the optical fiber, ensuring a stable optical path to guarantee uniformity in machine tool cutting across the entire frame. The machine tool utilizes a double drive mode for rapid and balanced operation.
2. Rack and pinion and servo motors are installed in a symmetrical manner on both sides, allowing for double pinion and rack drive as well as double servo motor drive. This setup ensures a balanced force on the beam and synchronized operation.
3. It also adopts helical gear rack transmission method, which is stable while working.
Parameters
|
Model |
DS-6060H |
|
Laser power |
1.5KW-3KW |
|
Laser wavelength |
1070~1080nm |
|
Working size |
600x600mm |
|
Cutting thickness |
1~2mm copper, brass,aluminum, 1~2mm gold, silver |
|
Photoelectric conversion efficiency |
25-30% |
|
Cutting accuracy |
±0.1mm |
|
Max Moving speed |
80000mm/min |
|
Max loading weight |
600kg |
|
Machine weight |
1400kg |
|
Laser life |
100,000hrs |
|
Cooling mode |
Water-cooled |
|
X axis travel |
600mm |
|
Y axis travel |
600mm |
|
Z axis travel |
60mm |
|
X Y Z axis positioning accuracy |
± 0.02mm |
|
X Y axis max position speed |
36m/min |
|
X Y axis max acceleration |
0.8G |
|
Installed capacity |
8 KVA |
|
Rated power voltage |
220V 50-60Hz |
|
Supported format |
PLT.DXF.DWG.AI |
|
Machine size |
1950*1650*2050mm |
| Mode of Operation | continuous wave |
| Machinery Test Report | Provided |
| Video outgoing-inspection | Provided |
| Warranty | 1 year |
|
Application: It can be applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries. |
How to maintain fiber laser cutting machine?
1. Clean the machine regularly
Dust, debris, and metal shavings can accumulate in the machine's working area, affecting the accuracy of the laser beam and damaging the machine's components. To prevent this from happening, you should clean the machine regularly using a soft cloth, compressed air, or a vacuum cleaner. Be sure to keep the working area clean and free of clutter, and remove any debris that may be present.
2. Check and replace the cutting head regularly
The cutting head is a critical component of the fiber laser cutting machine. It should be checked regularly for wear and tear, and replaced as needed. The cutting head should be cleaned with a soft cloth and lubricated according to the manufacturer's instructions.
3. Ensure the machine is properly aligned
The fiber cutting equipment should be checked for proper alignment on a regular basis. Misaligned machines can cause inaccurate cuts, which can lead to wasted materials and loss of production time. It is recommended that you have a professional technician check and align the machine if you are unsure how to do it yourself.
4. Keep the machine lubricated
The machine needs to be properly lubricated to prevent wear and tear on its moving parts. Be sure to use the correct lubricant and follow the manufacturer's instructions for lubrication.

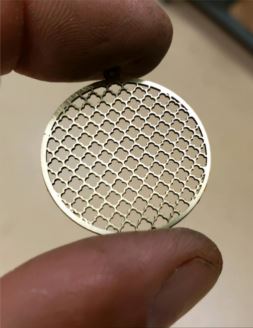

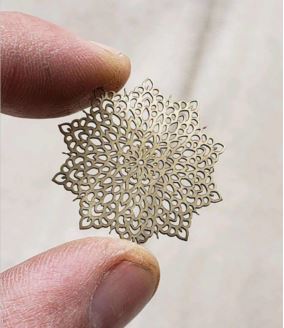

Samples
 |
 |
Shipping & Packing
Terms and conditions:
1. VCD training,Easy installation
2. lead time:7-10 working day
3. sea shipping and car shipping
4. TT/western union/ paypal/Ali trade assurance payment
5. 24 hours respond
FAQ
Q1: How does the package?
Q2: Will the package damaged during transportation?
Q3: How to install and run the machine?
Q4: How can i do if the machine goes wrong?
