CO₂ Laser Engraving Glasses On Sale
CO₂ laser engraving Glasses on sale
Products Description
CO2 laser marking machine apart from others is its ability to adjust the focal distance of the laser beam in real-time, ensuring consistent results regardless of any surface irregularities or variations in thickness. Additionally, this machine is incredibly versatile and can handle a wide range of materials, such as acrylics, wood, plastic, leather, and even metal.
Why Choose cO2 for glass engraving?
Delicate marking: CO2 laser marking with high precision and high accuracy, it especially suitable for detailed and intricate designs on glass surfaces.
Multifunction: The three dimension focus system make the machine has bigger working area and finer optical spot diameter. These lasers can handle a variety of glass types, including tumblers, bottles, and decorative pieces.
Non-Contact Process: The laser engraves without physical contact, reducing the risk of breakage or damage to the glass,increase processing speed and save a lot of labor's cost.
Customization: Customers can choose designs, logos, and text that they like, making them ideal for personalized gifts and promotional items.
Configuration
|
Laser tube parameters |
Max Output Capacity | 250W |
| Nominal Peak Powe | ≥450W | |
| Mode Quality | M2≤1.2 | |
| Duty Cycle Limit | ≤70% | |
| Laser Type | CO2 | |
| Laser Wavelength | 10.6μm | |
|
Marking performance |
Marking Format |
Pattern,Word,Bar code,QRcode,Date,Serial Number |
| Marking Character Types | Pattern and words of vectordiagram & bitmap | |
| Marking Area | 400X400-700X700(mmXmm) Adjustable | |
| Marking Depth | 0-5mm (According to the materials) | |
| Marking Speed | <7000mm/s | |
| Min Line Width | 0.3mm(According to the materials) | |
| Min Character | 0.4mm | |
| Repeat Positioning Accuracy | 0.01mm | |
| Machine information | Total Power | ＜6KW |
| Power Supply | AC220V/50Hz/30A | |
| Cooling Way | Constant temperature water cooling unit | |
| Working Temperature | 15-30℃ | |
| Working Humidity | <75 No condensation | |
| Working Environment | Without dust, without vibration | |
| Machine Packing Size | 1010*1340*1740mm | |
| Control cabinet packing size | 1060*660*1100mm | |
| Chiller packing size | 660*760*1080mm |
How's the procedures when you start engraving?
1. Choose the Right Laser Engraver
Based on your materials,you need to choose the right machine and its power best suitable for your engraving items.
2. Prepare Your Design
Please select your favorite designs before you start engraving,we offer famous EZCAD software for you.You can use it to create intricate patterns, logos, or text. Ensure the design fits well within the dimensions of the tumbler.
3. Clean the Item Surface
Before engraving, thoroughly clean the glass tumbler to remove any dust, oils, or residues that could interfere with the engraving process. Use a glass cleaner and a lint-free cloth to achieve a spotless surface.
4. Secure the Tumbler
Place the glass tumbler securely in the laser engraver's work area. Depending on your machine, you may need a rotary attachment to hold the tumbler in place and ensure even engraving around its circumference.
5. Adjust Laser Settings
Set the appropriate laser parameters, including power, speed, and resolution. These settings may vary depending on the type of glass and the desired depth of the engraving. As a general rule, start with lower power and higher speed to avoid cracking or chipping the glass.
6. Conduct a Test Run
Perform a test run on a similar piece of glass to fine-tune your settings and ensure the design will be accurately engraved. This step helps avoid mistakes and ensures optimal results.
7. Start Engraving
Once you are satisfied with the test run, proceed to engrave the actual tumbler. Monitor the process to ensure everything is running smoothly. The CO2 laser will create precise and clean engravings on the glass surface.
8. Clean and Inspect
After the engraving is complete, clean the tumbler again to remove any debris or residue from the engraving process. Inspect the design for accuracy and quality.

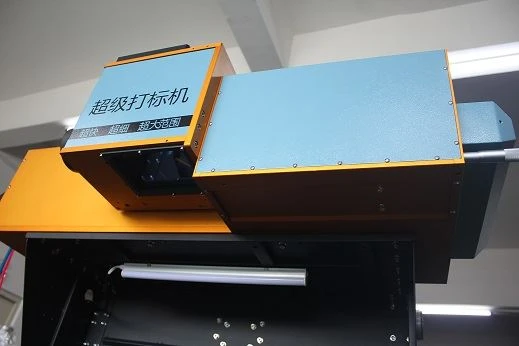

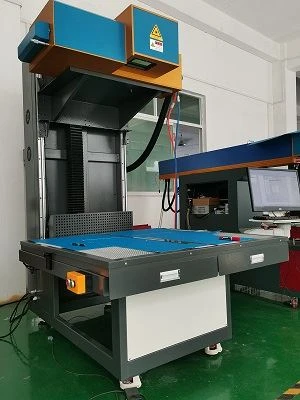

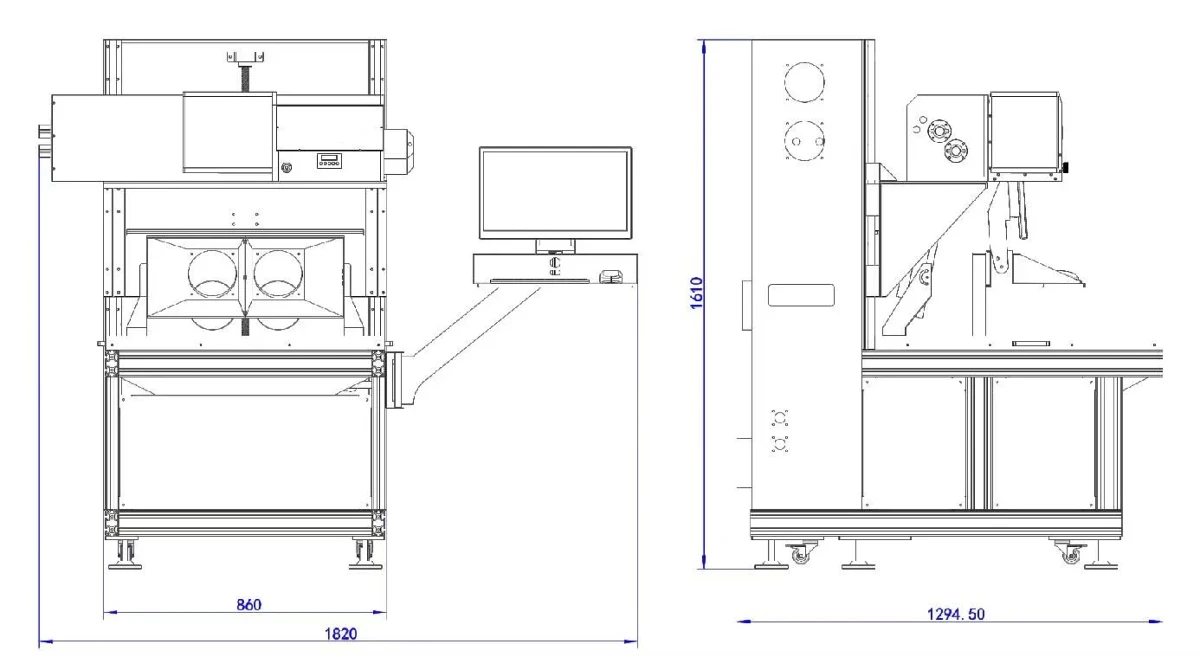

Machine's size

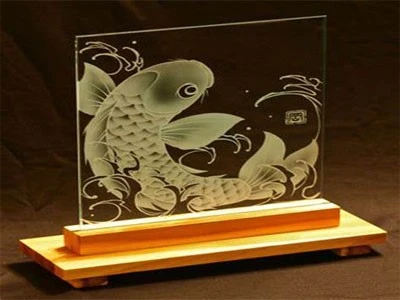

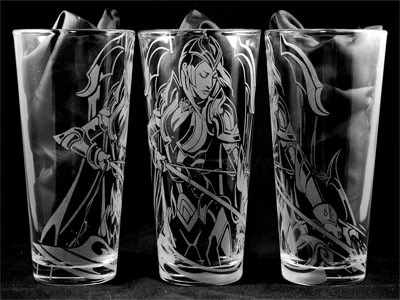

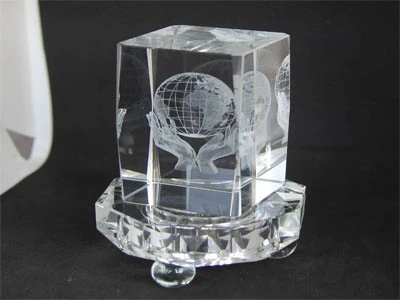

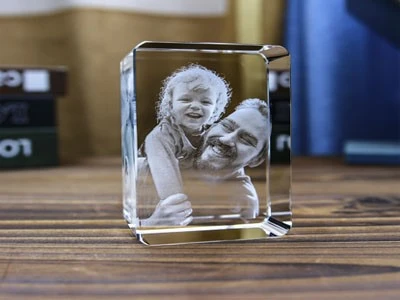

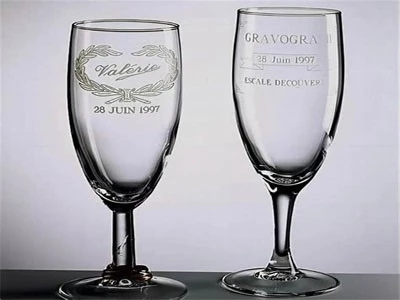

Glass Samples Of Laser Marking Machine

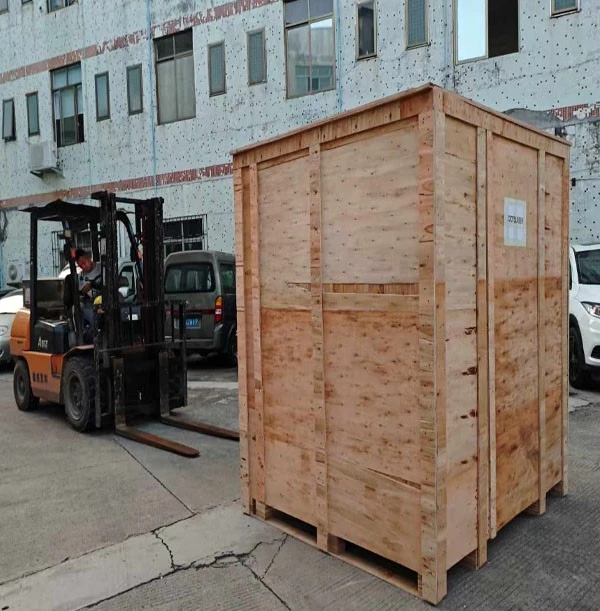

Shipping and package
FAQ
1. What glass can be laser engrave?
A: You can laser engrave flat materials such as window glass or mirrors, round workpieces such as wine or champagne glasses, and conical items like bottles.
2. How can i see where my graphic will be laserd?
A: You can see the exact position of your graphics in the Dotslaser independent researched and developed software
3. How to get the best effect of photo laser engraving on glass?
A: For optimal photo engraving on glass, utilize a grayscale matrix consisting of 70% black. This approach minimizes the amount of heat applied to the glass, resulting in a finer finished product.
