Color Marking on Stainless Steel
Products Description

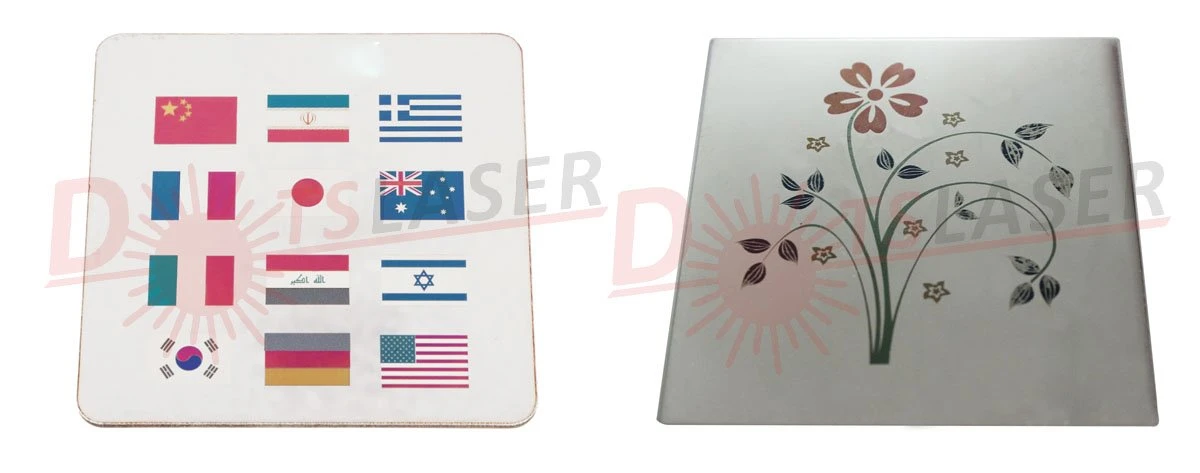

Stainless steel is a versatile material that is widely used due to its durability, strength and corrosion resistance. It is used in various industries including automotive, aerospace, construction, medical, and more. One important aspect of utilizing stainless steel is the ability to mark it with color. Color marking on stainless steel is critical for identification, branding, and aesthetic purposes. In this blog post, we will discuss color marking methods on stainless steel.
Four Methods
Laser Marking
Laser marking on stainless steel is a popular method because it is fast, precise and permanent. The laser beam removes the surface material and leaves a high-contrast, permanent mark. The color of the marking depends on the type of stainless steel and the laser parameters. For example, a dark laser marking is commonly achieved on chromium oxide rich stainless steel by using a fiber laser with high pulse energy and low repetition rate. The laser marking can also be filled with paint for improved visibility.
Chemical Etching
Chemical etching is a precise, clean and fast method for color marking on stainless steel. This method is ideal for complex designs, logos and small features. The process involves applying a photoresist to the surface of the stainless steel and then exposing it to UV light through a stencil. The exposed areas are removed by chemical etching, leaving a permanent and high-contrast mark. The color of the marking is determined by the type of stainless steel and the chemicals used in the etching process.
Electrochemical Marking
Electrochemical marking on stainless steel is a non-contact, permanent, and precise method that produces high-quality marks in a short time. The process involves applying an electrolyte solution to the surface of the stainless steel and then applying a voltage. The voltage oxidizes the surface, creating a colored mark in the oxide layer. The color of the mark depends on the electrolyte solution and the voltage applied.
Paint Filling
Paint filling is a simple and inexpensive method for color marking on stainless steel. The process involves engraving the design on the stainless steel and then filling the engraved area with paint. The paint can be cured by heat to ensure durability and permanence. This method is ideal for marking stainless steel tools, equipment and machinery.
Conclusion
Color marking on stainless steel is an important aspect of utilizing this material for identification, branding, and aesthetic purposes. The four methods discussed above provide different benefits and drawbacks that can be considered when choosing a method for a particular project. Laser marking and chemical etching are more appropriate for complex and precise designs, while electrochemical marking and paint filling are more suitable for simpler designs. Regardless of the method chosen, it is important to ensure that the marking is permanent, visible and durable for long-term use.
product parameters
| Wavelenth | 1064nm |
| Laser power | 20W,30W,50W,60W,80W,100W |
| Technical parameters | Marking depth ≦1.5mm |
| Marking speed | 250 English characters per second (character height=1mm) |
| Marking range: | 110mmx110mm, 170×170mm, 300×300mm |
| Minimum character | 0.2mm Repeatability 0.003mm |

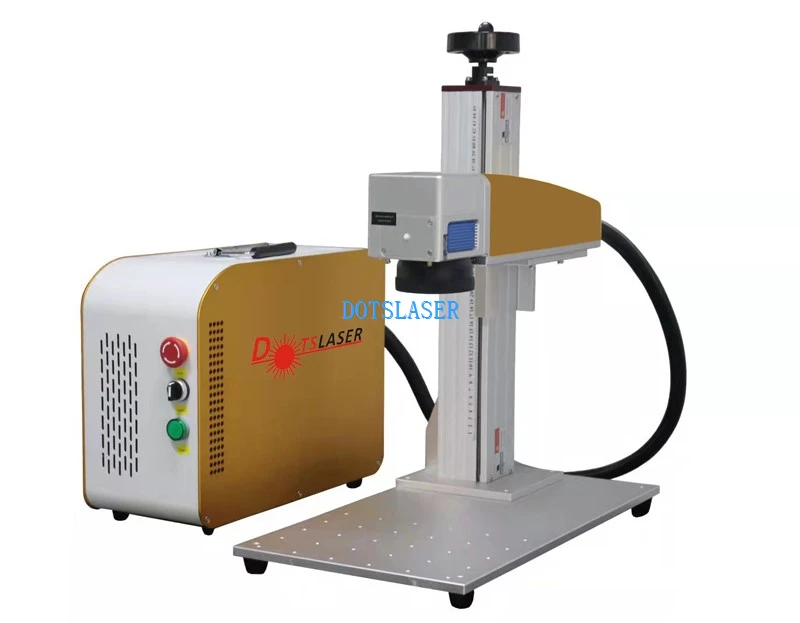

Laser color marking machines
Laser color marking machines have become increasingly popular over the years due to their precision, efficiency, and ability to produce high-quality marks. These machines use laser technology to engrave or mark different types of materials, including metals, plastics, and even wood.
One key advantage of laser color marking machines is their ability to produce permanent, high-contrast marks that are easy to read and identify. This is especially important in the manufacturing industry, where products need to be labeled with important information such as serial numbers, barcodes, and batch numbers. Laser marking also provides a durable mark that can withstand extreme temperatures and harsh environments.
Laser color marking machines
laser color marking machines are highly efficient and provide consistent results. With the use of computer-aided design (CAD) software, the machine can accurately mark the desired pattern or image onto the surface of the material with minimal error. This results in a faster and more cost-effective production process compared to manual marking techniques such as etching or stamping.
|
Applications: With the ability to mark a variety of materials, these machines can be used in a wide range of industries including automotive, aerospace, electronics, and medical equipment. They can also be used for decorative purposes, such as engraving logos, artwork, or personalized messages on jewelry, watches, or other high-end consumer goods. |
DOTSLASER service features
 1) Sample marking is free. |
| 2) Strict quality control of production,we have professional QC engineer for inspecting all products before shipping. |
| 3) Fast delivery time: 1-7 Days delivered after you making prepayment. |
| 4) 2~3 Years quality guarantee for laser source. 1year for main components. |
| 5) 7d/24h hours quick feedback & after-sales service. |
| 6) Free instruction or products installation. |
Shipment and Package
Daily maintenance:
● After finishing work, make sure the floor is clean. Then clean the machine including the surface of the machine, the case of the optical system, the surface of the monitor, the work table, and so on.
● Please turn off each part and main power supply when they are clean.
● Check the lens regularly for dust. When it's clean, use the cotton wool with greater than 95% medical grade alcohol to wipe clockwise from the center of the lens. When you need to move the machine to avoid bumps. Check the connection cable according to the cable list.
Unpacking caution:
Every marking machine has been rigorously tested at the factory, only qualified product for shipment. When you receive the freight, please check as follows. If you have any questions, please contact the agent or staff at DOTSLASER.
● Whether there is damage or deformation during transport.
● Confirm that all of the items on the packing list are correct.
● Confirm that the model of the product matches the nameplate(Operating voltage and KVA number).
● Make sure that all clamps are tight and that there are no foreign objects in the device.
● Confirm the operation buttons, switches are normal.
