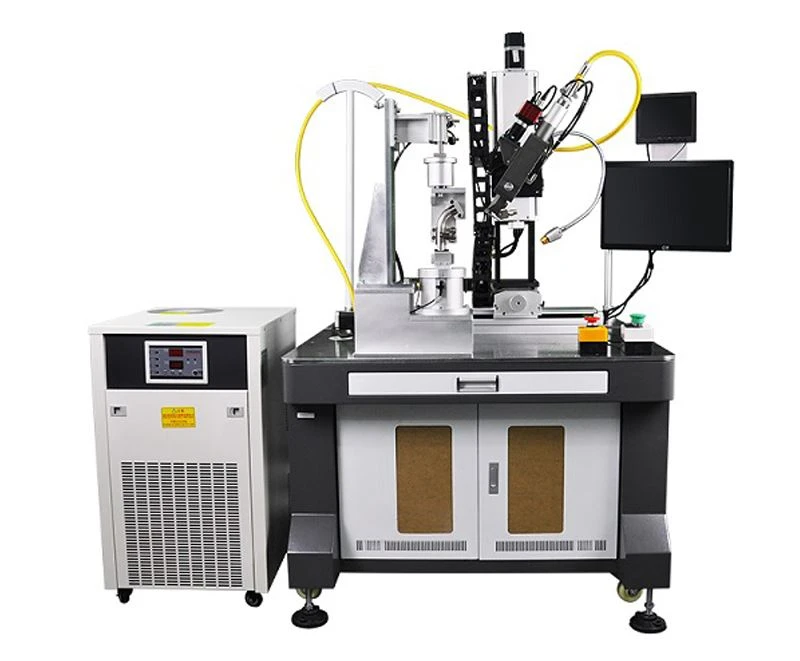

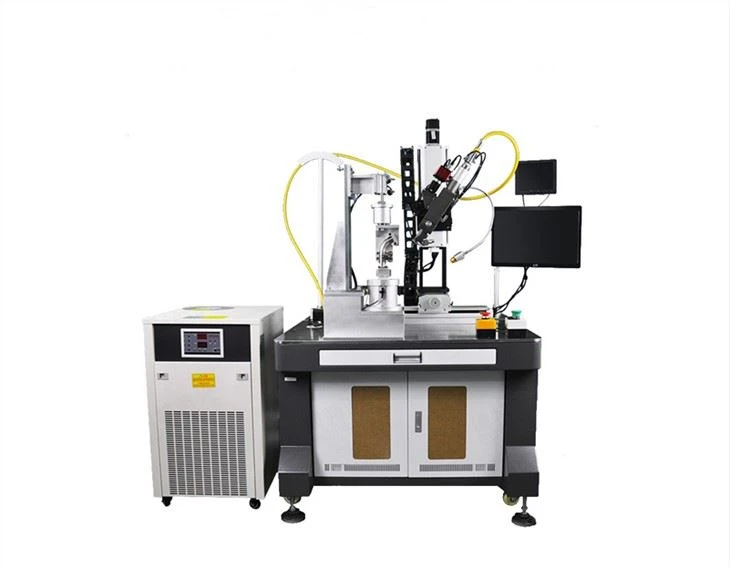

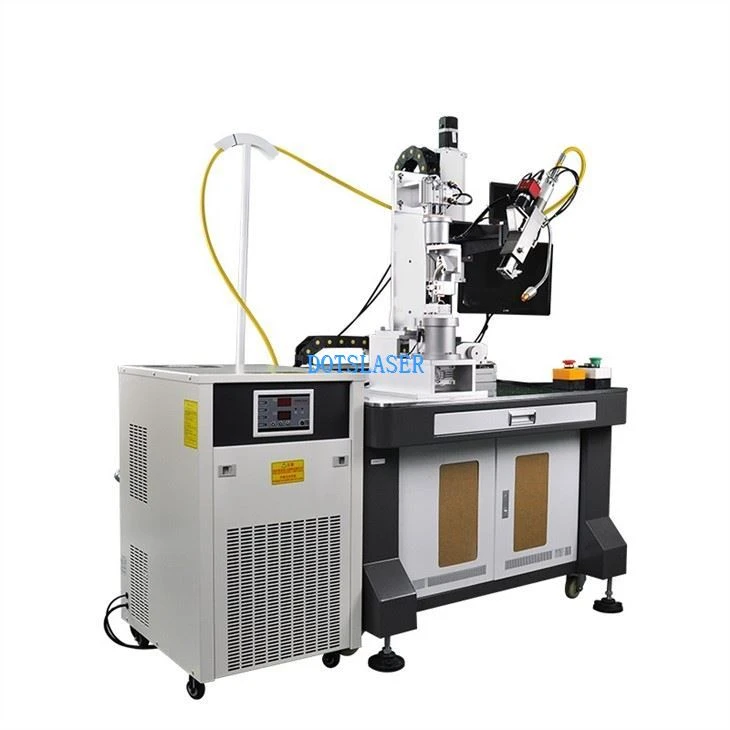

Stainless Steel Faucet Laser Welder
Stainless Steel Faucet Laser Welder
Products Description
Stainless Steel Faucet Laser Welder adopts laser welding technology, which makes the surface of welded parts smooth and beautiful. The laser welding machine of suitable power is selected to completely weld through the workpiece. It has instant super high temperature and fast condensation ability to squeeze out the excess air. It has a dense and high strength weld port with absolute sealing. It has a small heat-affected zone, accurate and precise, can weld small and precise geometric zone, fast, no color difference or small color difference after welding, no deformation of the substrate after welding, no annealing, no edge biting and no residual stress, without changing its metal tissue state.
Main features
1.Speed: The laser welding process is faster than traditional welding methods and produces clean, precise seams, making it ideal for high volume production. This machine also allows for greater flexibility in design options as it can weld intricate designs and patterns with ease.
2.More reliable: With the Stainless Steel Faucet Laser Welder machine, there is no need for filler metals or flux, making it easier to maintain a clean workspace. The high-speed welding process also reduces the risk of overheating, warping, and distortion, allowing for a more consistent and reliable finished product.
3. Easy to operate: Another advantage of this machine is that it requires less operator training and experience. The laser beam can be programmed to weld specific areas, making the process more automated and reducing the risk of operator error.

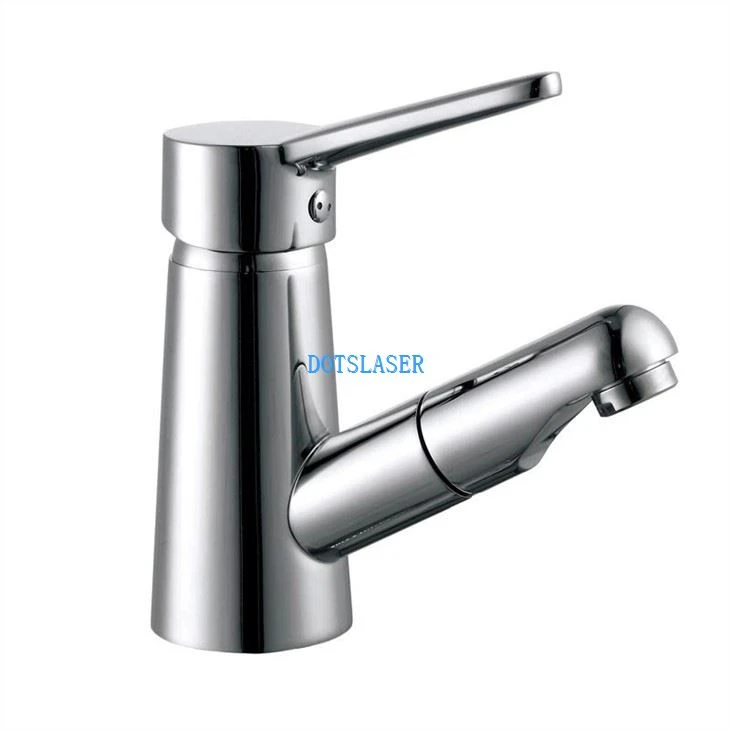

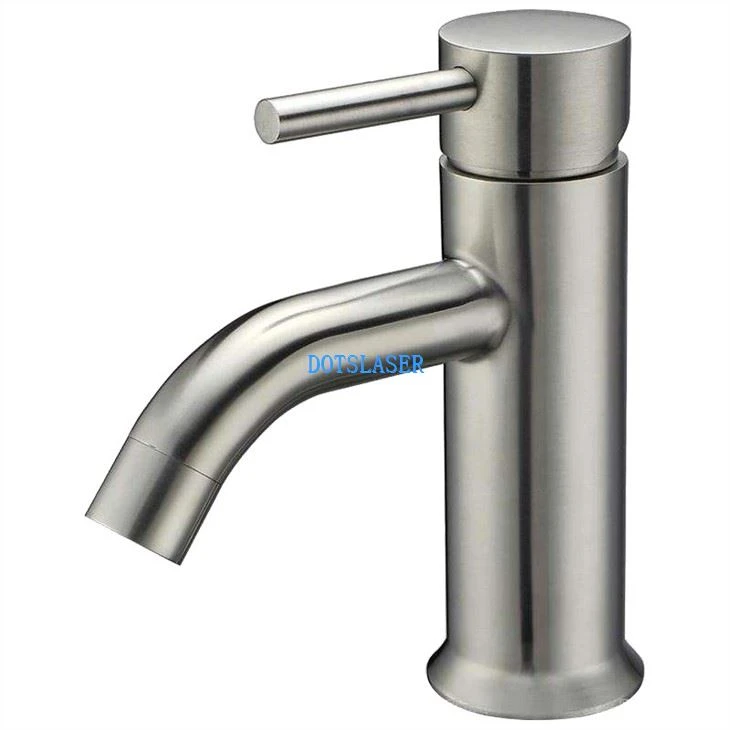

The structure of the faucet is unique, especially the welding at its turn, which is a difficult point in the welding process.

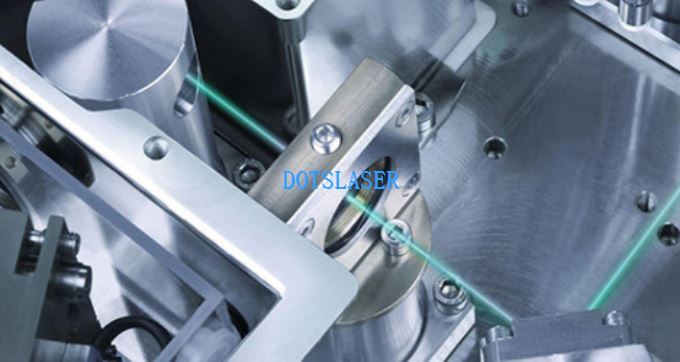

The stainless steel faucet laser welding machine uses high-energy pulsed lasers to weld objects. The xenon lamp is pulsed by the laser power source, and the light waves of a certain frequency and pulse width are radiated to the Nd3+:YAG crystal through the condenser cavity. The crystal emits 1064nm pulsed laser after resonance, and then expands, reflects, and gathers the laser beam for welding.
Parameter
| Model | DS-LW500,DS-LW800 |
| Laser wavelength | 1064nm |
| Max.pulse energy | 50j |
| Peak power | 4.5KW |
| Pulse width | 0-15ms |
| Repeat frequency | 1-50HZ |
| Split laser beam method | Precision energy splitted or high-speed time spectroscopy |
| Closed loop feedback control method | Arbitrary waveform real-time control power negative feedback |
| Energy volatility | 〈±3 |
| Positioning | Red light pointer |
| Number of light splitters | ≤4 |
| Cooling | water cooling |
| Power consumption | 4KW |
| Power supply | AC220V±15% 50/60HZ |
| Dimension | 1060mm*500mm*800mm |
Production Details
Simple equipment operation
New technology, 360 degree rotation

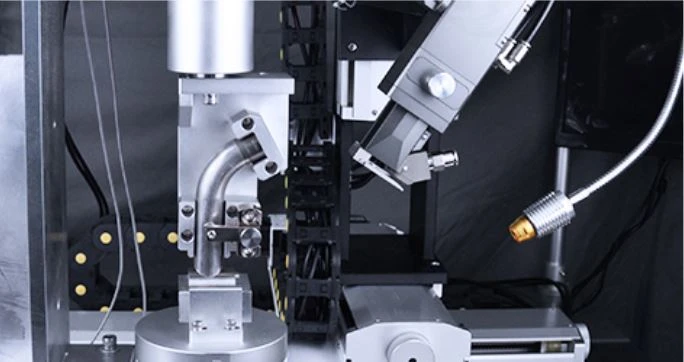

Precision multi-axis system
High welding precision
Low power consumption
Save lots of cost
Long lifetime span,100,000hours.
High photoelectric conversion rate
No power coupling loss
Save operating costs
Maintenance-free
DOTSLASER`s laser source is small and flexible,compact structure.
The optical fiber has a high surface area/volume ratio and good heat dissipation effect. It can work in harsh environments, such as normal operation under high impact, high vibration, high temperature, and dusty conditions, low energy consumption.

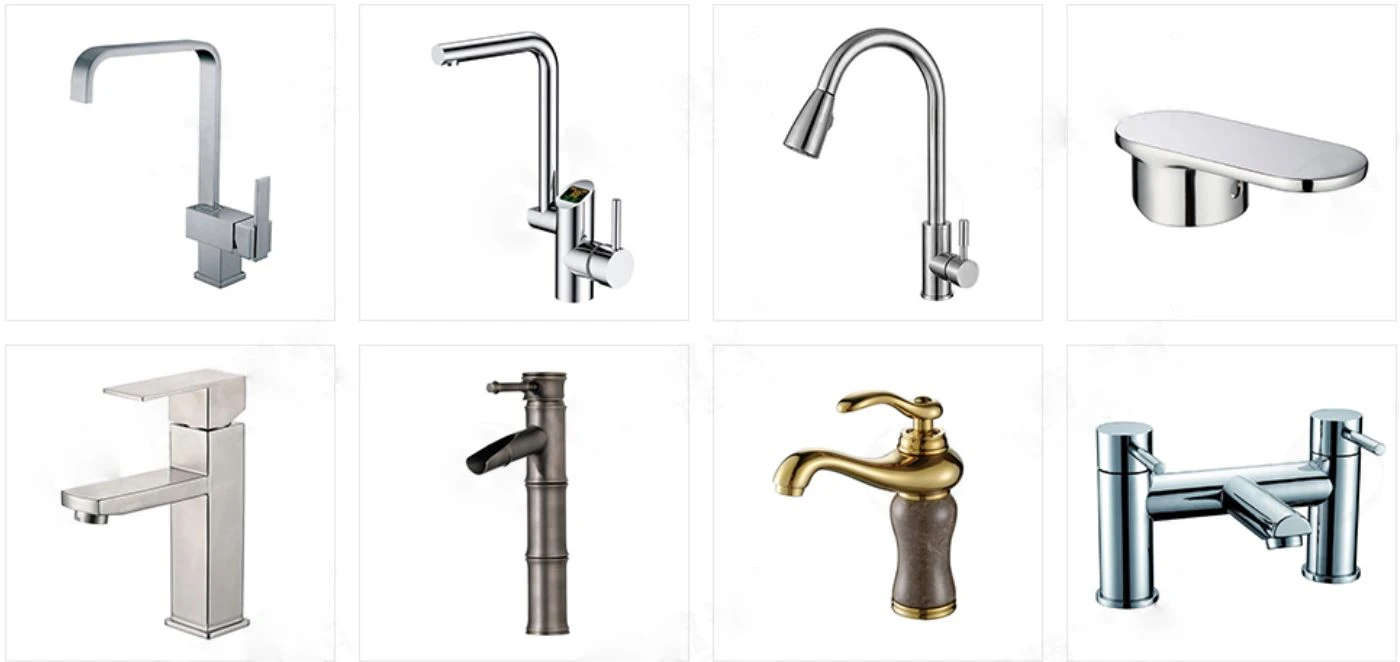

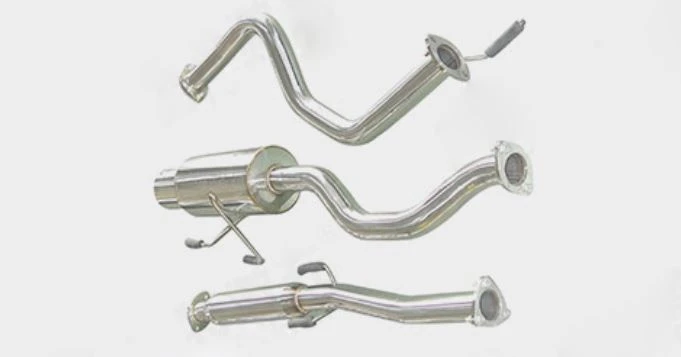

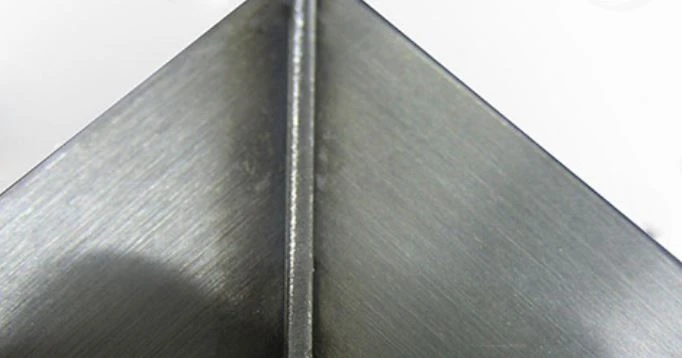

Samples show
