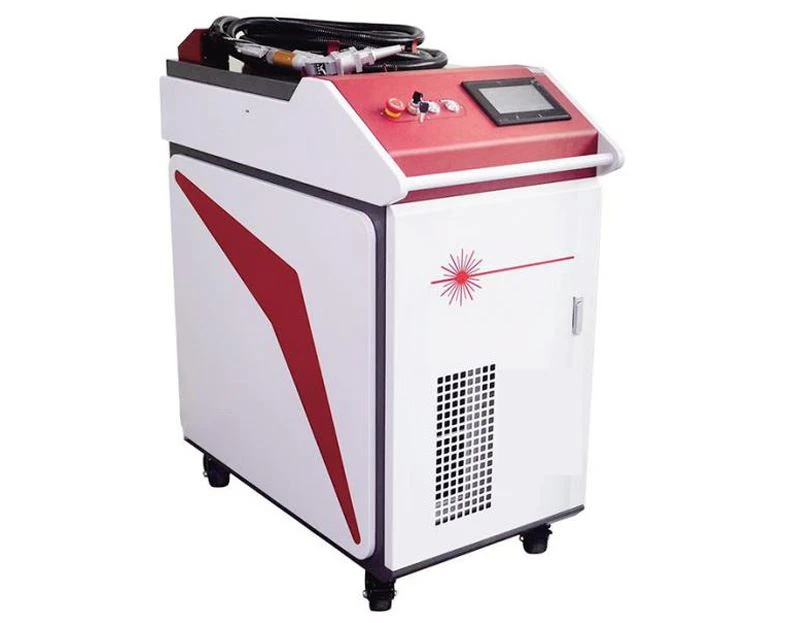

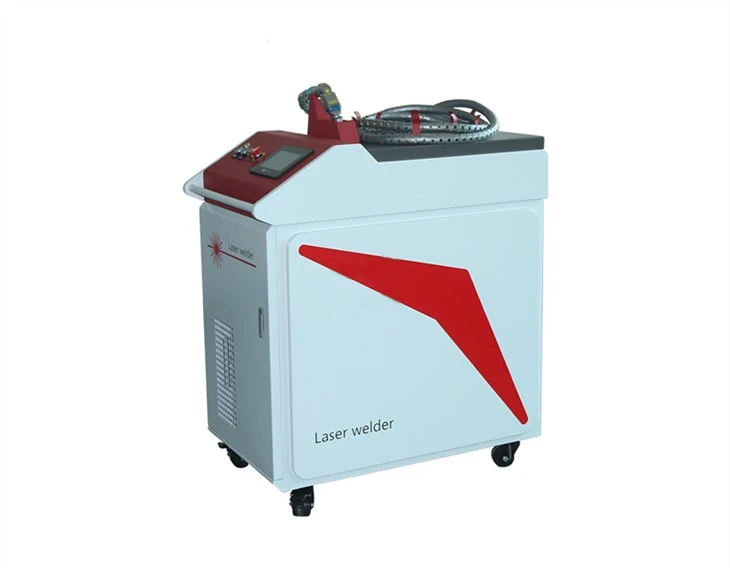

Handheld Fiber Laser Welding Machine
Handheld Fiber Laser Welding Machine
Products Description
Handheld Fiber Laser Welding Machine is a new generation of laser welding equipment, which belongs to non-contact welding. The operation process does not require pressure. Its working principle is to directly irradiate a high-energy intensity laser beam on the surface of the material through the interaction of the laser and the material. , The material is melted inside, and then cooled and crystallized to form a weld. It overturns the working mode of the traditional laser welding machine, replaces the previous fixed optical path with a handheld type, is flexible and convenient, and has a long welding distance. It also makes it possible for laser welding to operate outdoors.
Machine Features
1. No consumables (no lamps), maintenance-free.
2. The average power consumption is less (about 5.6 kWh per hour at full power).
3. The range of melting wire is wider (effective wire melting: stainless steel 0.1-1.2mm), the laser is more stable and does not run out of light.
4. Equipped with a special water machine with dual temperature and dual control, which can meet the long-term work, and the welding stability of high-power is better.
5. The objective lens is equipped with a water cooling system, which can better protect the objective lens when working with high power for a long time.
6. The welding depth is large, the welding is more firm, the welding part can be fully melted, there are no pores and trachoma, and the repair marks are more beautiful.
7. The laser head can be easily rotated 90 degrees and can be slid back and forth to facilitate repair welding on any side.
8. Smaller size, small footprint, convenient for door-to-door welding business.
Parameters
|
Model |
DSW |
|
Laser power |
500W/1000W/1500W/2000W |
|
Laser wave |
1070±5nm |
|
Laser Type |
Fiber (Max or Raycus) |
|
Output power stability |
≤2% |
|
Frequency |
50HZ-5KHZ |
|
Beam quality |
1.1 |
|
Adjustable power |
5%-95% |
|
Optimal operating |
Temperature 10-35 ° C, humidity 20% -80% |
|
Cooling Mode |
Water Cooling |
|
Output fiber length |
5/10/15m (Optional) |
|
Power request |
220v 50Hz 5ph |
|
Dimensions |
93*60*88cm |
|
Working temperature |
0-38℃ |
|
Weight |
200kg |
|
Power consumption |
≤5000W |
Application
This machine is suitable for welding of gold, silver, titanium, nickel, tin, copper, aluminum and other metal and its alloy material, can achieve the same precision welding between metal and dissimilar metals, has been widely used in aerospace equipment, shipbuilding, instrumentation, mechanical and electrical products, automotive and other industries.
Equipment maintenance must be stopped first, cut off the power supply, and work after 3 minutes, otherwise there will be danger of electric shock. When the ambient temperature is lower than 2 ℃, the internal water must be drained when the machine is shut down for a long time.

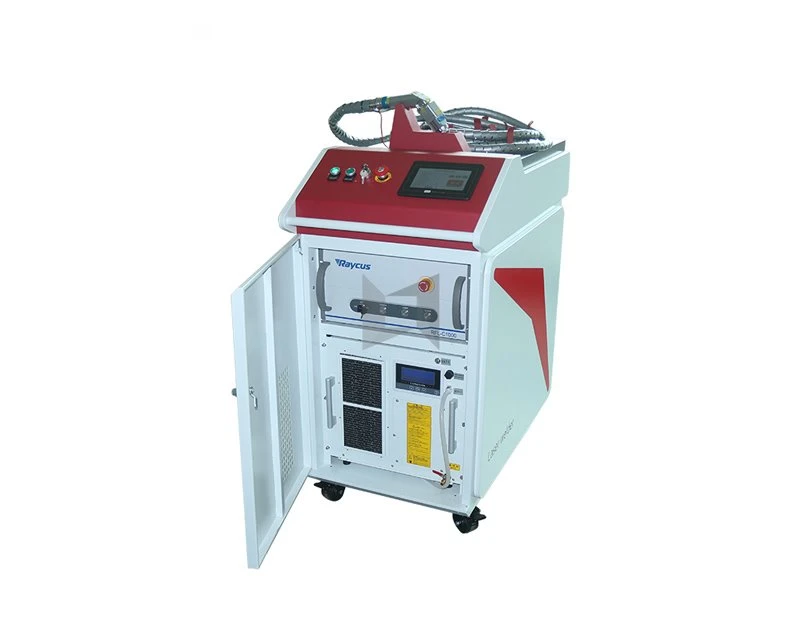

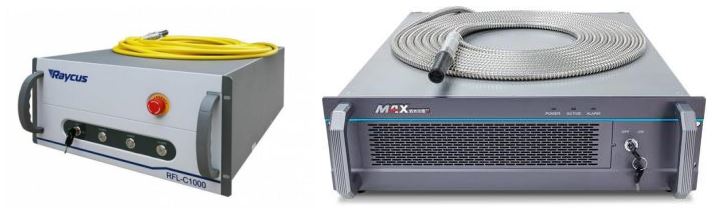

Single module CW Fiber Laser source

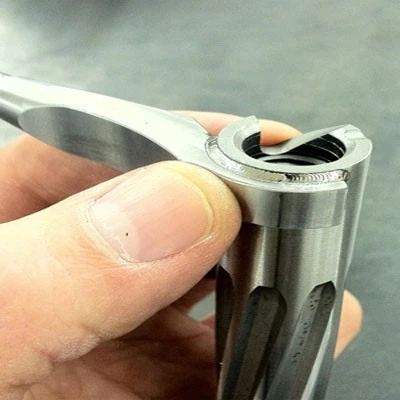

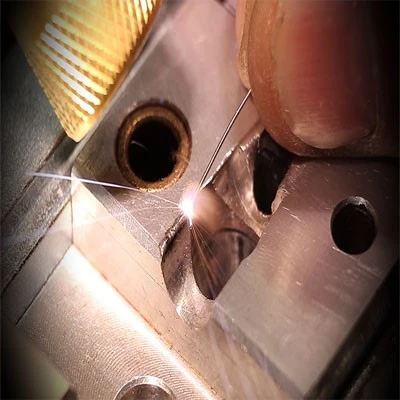

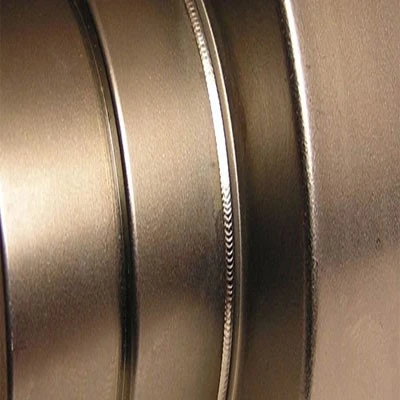

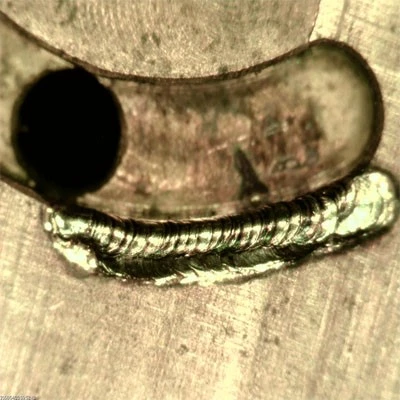

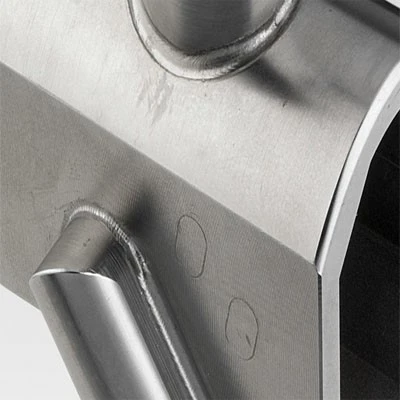

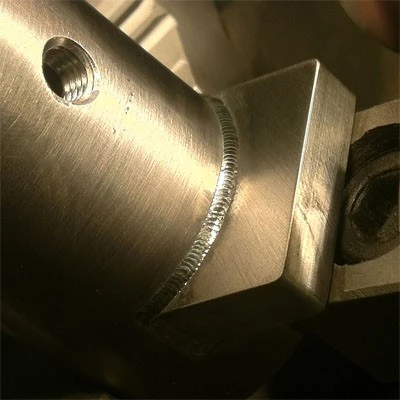

Samples
Service
DOTSLASER has specially set up a marketing management center, with more than 100 offices across the country, to provide customers with comprehensive pre-sale, in-sale and after-sale support and services. Where there are new starting point laser products, there is the high-quality service of new starting point company!
1. Free technical consultation, software upgrade and other services;
2. The response time of customer service is within 24 hours;
3. Provide maintenance services for life.
