Coating Painting Laser Cleaning Machine
Coating Painting Laser Cleaning Machine

Coating Painting Laser Cleaning Machine

coating painting laser cleaning machine is used for coating, paiting, rust removing

Send Inquiry

Product Introduction

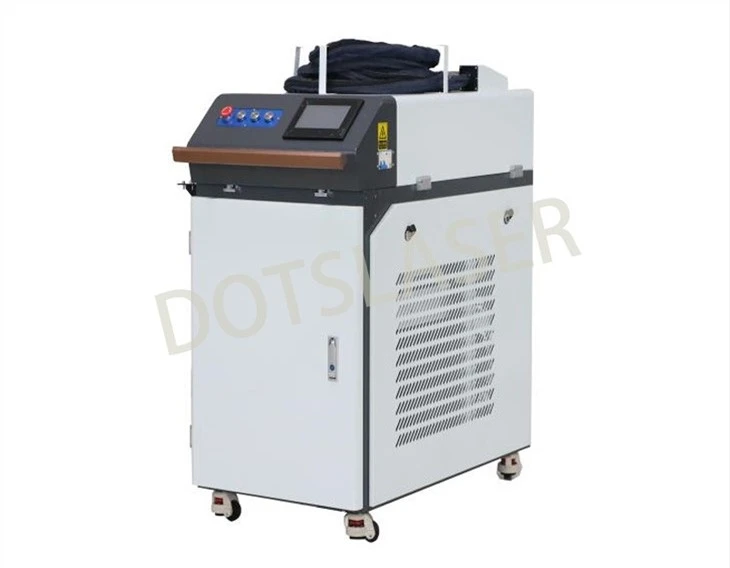

Coating Painting Laser Cleaning Machine

Products Description

The Coating and Painting Laser Cleaning Machine is a state-of-the-art solution for removing coatings, paint, and other surface contaminants from a wide range of materials. This environmentally friendly and highly efficient technique uses powerful laser technology to clean surfaces without causing harm to the substrate or generating hazardous waste. It is ideal for industries like automotive, aerospace, shipbuilding, restoration, and general manufacturing.

Key Features

Precision Cleaning

Utilizing advanced laser technology, the machine selectively removes paint, coatings, or contaminants from the surface with minimal impact on the underlying material, preserving the integrity of the part or structure.

Non-Destructive

Laser cleaning is a non-contact and non-abrasive process, making it the ideal method for working with sensitive materials or delicate parts that could be damaged by traditional cleaning methods.

Environmentally Friendly

The laser cleaning machine generates no hazardous waste, chemical residues, or toxic emissions, supporting sustainable operations while promoting worker health and safety.

High Efficiency

The Coating and Painting Laser Cleaning Machine can quickly and effectively remove contaminants from large surfaces or tricky areas with ease, reducing cleanup time and improving overall efficiency.

Versatility

Suitable for various surfaces, including metal, glass, ceramic, stone, and plastic, this laser cleaning machine is ideal for a vast range of applications across diverse industries.

Applicable industry of coating painting laser cleaning machine

Automotive Industry: Efficiently strip paint, remove rust, or clean weld seams before repainting or applying corrosion protection.

Aerospace: Clean sensitive aircraft surfaces, engine components, or electronic systems without affecting performance or causing damage.

Maritime & Shipbuilding: Remove marine growth, rust, paint, or coatings from ship hulls, storage tanks, or other maritime structures.

Restoration: Prepare surfaces for repainting or refinishing, removing old paint layers, graffiti, or other contaminants from buildings, vehicles, or artifacts.

General Manufacturing: Perform surface treatments, pre-coating preparations, or maintenance tasks without disrupting production workflows.

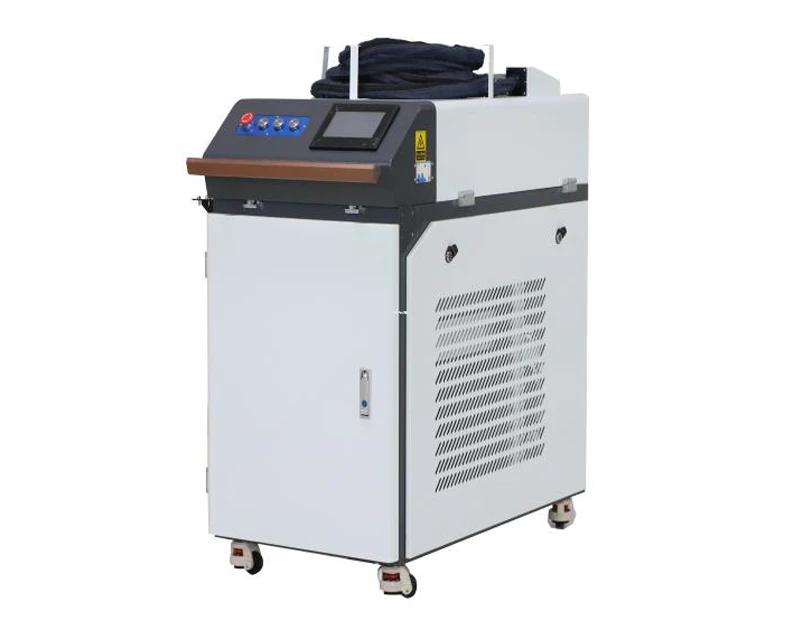

Laser rust removal machine

Applicable material of coating painting laser cleaning machine

* Metal or glass surface coating removal, rapid paint removal

* Quick rust and various oxides removal;

* Grease, resin, gum, dust, stains, and produce residue removal;

* Roughening of metal surface;

* Mold cleaning, such as tire mold, electronic mold, food mold and etc.;

* Treatment for precision parts, oil removal;

* Quick cleaning of nuclear power unit maintenance;

Advantages of coating painting laser cleaning machine

* High-tech laser cleaning without any contact, no damage to workpiece.

* Auto-focusing, hook cleaning, precision and no dead ends cleaning ability.

* No consumables and cost effective.

* No cleaning medium, water and chemical is needed.

* Automatic and easy operation, with electricity, handheld or automation cleaning.

* Portable with light cabinet and universal wheels.

* High cleaning efficiency, time saving.

* System stable, free maintenance.

* No consumables and cost-effective

Parameter of coating painting laser cleaning machine

Model:DS-LC1000,DS-LC1500,DS-LC2000

Laser Power:1000W,1500W,2000W

Wavelength: 1070±5nm

Mode: CW

Frequency: 1000HZ

Diameter of fiber optical:50-100um

Length of fiber cable:10m

Rated power:3.5KW/4.5KW

Cooling of chiller:1.5P/2P

Power supply: 220V±5V

Coating painting Laser cleaning machine Comparison with Traditional Clean Methods

Comparison	Laser Cleaning	Chemical Cleaning	Mechanical Grinding	Dry ice cleaning
Washing Method	non-contact cleaning	contact cleaning	Abrasive contact cleaning	non-contact cleaning
Harm to base material	None	Yes	Yes	None
Washing Efficiency	High	Low	Low	Mid.
Consumable	Power	Chemical Detergent	Abrasive paper, grinder, abrasive stone	Dry Ice
Washing result	Very good, very clear	Medium, uneven	Medium, uneven	Good, uneven
Precision Washing	Accuracy controllable. High precision	Uncontrollable, low precision.	Uncontrollable, medium precision.	Uncontrollable, poor precision.
Safety/Environment	No pollution	Chemical pollution	Dust pollution	No pollution
Operation	Easy to operate, portable or automation optional.	Complicated process, higher technical requirement of the operator. Pollution prevention measures required.	Need more time & manpower. Pollution prevention measures required.	Easy to operate, portable or automatic.
Investment	High investment on machine. But no consumable, low maintenance cost	Low investment on machine. But expensive consumables	Medium investment on machine. High man-power cost.	Medium investment on machine. High consumable cost.

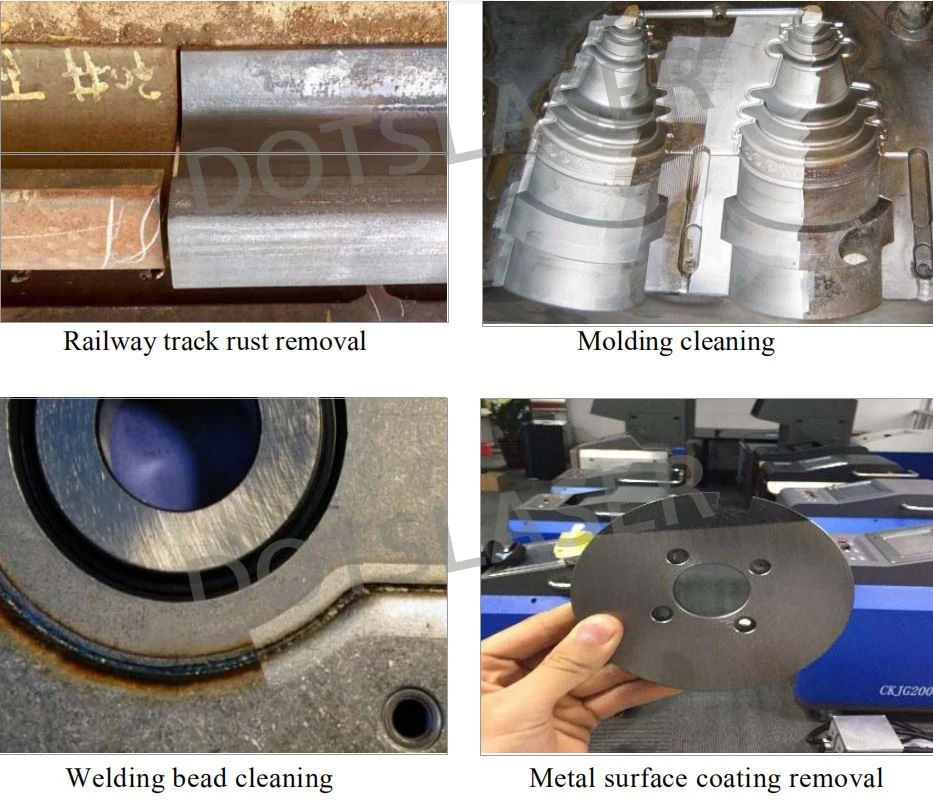

Sample show of coating painting laser cleaning machine

RUST removing

FAQ

Q1: Can we get quotation?

A: We can usually quote you within 12 hours after we get your detailed requirement. If you are very urgent to get the price, please call us or text us by whatsapp,wechat instant chatting tool ,so that we can offer you a quick quotation.

Q2: Can I buy demo unit?

A:Yes.if you want to be dealer, we can discuss, Please feel free to contact us.

Q3: What is your lead time?

A:It depends on the order quantity and the season you place the order.

Usually we can ship within 3-5 days for small quantity, negotiable for large quantity.

Q4: How do you make our business long-term and good relationship?

A:-1. We ensure high quality and cost effective price to ensure our partners benefit ;
-2. We regard every partner or customer as our friend and we sincerely do business and make friends with them, no matter where they`re from.
