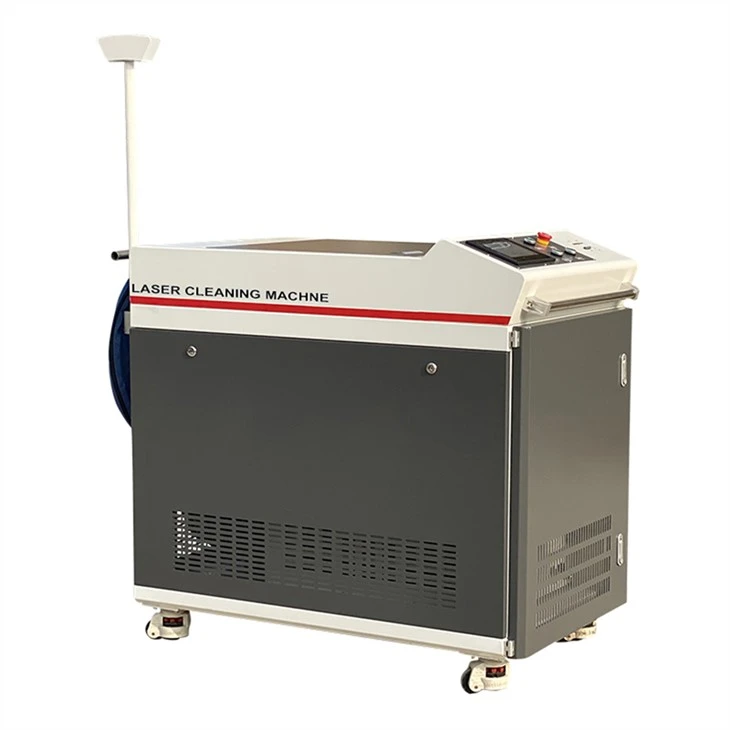

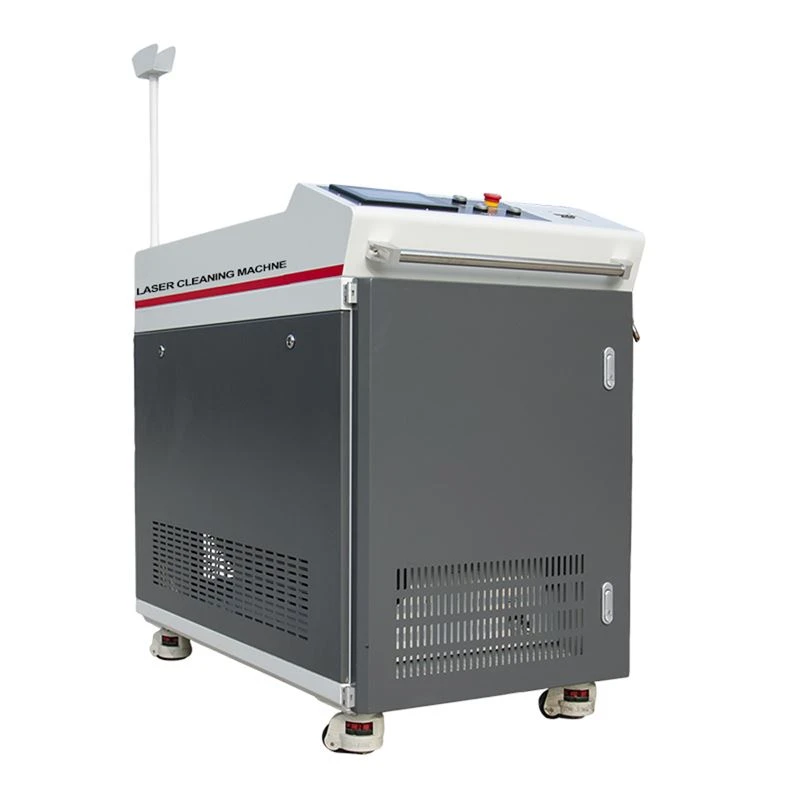

Handheld Rust Removal Laser Machine
Handheld Rust Removal Laser Machine
Products Description
A handheld rust removal laser machine is a portable, easy-to-use device that uses laser technology to remove rust, paint, and other coatings from various metal surfaces without causing damage to the underlying material. These machines are particularly useful for cleaning and restoring metal parts, equipment, and surfaces in various industries, including automotive, marine, construction, and manufacturing.The rust removal process works by using a high-powered laser to heat the rust or other contaminants on the metal surface. This causes the rust to vaporize, leaving a clean, bare metal surface behind. The process is non-abrasive, eco-friendly, and efficient, as it doesn't require chemicals or abrasive materials.
What is the characteristics?
(1) Handheld Rust Removal Laser Machine is a "dry" cleaning, and does not require cleaning fluids or other chemical solutions, and the cleanliness is much higher than chemical cleaning processes;
(2) The range of cleaning dirt and the range of applicable substrates are very wide ;
(3) By adjusting the laser process parameters, it is possible to effectively remove contaminants without damaging the surface of the substrate, so that the surface is new.
(4) The laser equipment can be used for a long time and the operating cost is low; Laser cleaning can be easily automated;
(5) The laser cleaning technology is a "green" cleaning process, and the eliminated waste is solid powder, small in size, easy to store, and basically does not pollute the environment;
how to choose a handheld rust removal laser machine?
Handheld rust removal laser machines are ideal for small- to medium-sized projects, but may not be suitable for large-scale industrial applications or heavy-duty work. Choose the best machine for your need , welcome to visit DOTSLASER factory!
Laser power
Higher-powered lasers are more effective at removing rust and coating materials and are typically faster.
However, they tend to be larger and more expensive.
Portability
Handheld units are suitable for on-site work and are easier to maneuver around large or irregularly shaped objects.
However, they may be less stable and precise compared to larger, stationary rust removal systems.
Scanning area
The scanning area dictates the size of the area the laser treats in a single pass. Larger scanning areas will remove rust more quickly
But they may require larger, heavier machines.
Cooling system
High-powered lasers generate a significant amount of heat, which must be dissipated to prevent damage to the machine or the material being treated.
Opt for a unit with an adequate cooling system to ensure the longevity of your rust removal laser machine.
Safety features
To protect operators from potential harm, make sure the rust removal laser machine is equipped with necessary safety features, such as an emergency stop button and safety goggles or glasses to protect against harmful laser exposure.
Price and cost of ownership
Handheld rust removal laser machines can be relatively expensive initially, but the low operating costs over time might make them a more economical choice compared to other rust removal methods.
Technical parameters
|
Product Name
|
Handheld Laser Cleaning Machine
|
|
Laser Type
|
Fiber Laser
|
|
LaserSource
|
Raycus/MAX/JPT/BWT
|
|
Laser Power
|
1000W/1500W/2000W/3000W
|
|
BeamWidth
|
0-200/0-300mm
|
|
Output Power Tunability
|
10-100%
|
|
Fiber LaserOpticLength
|
standard10m/support15m 20m
|
| Output Method |
QBH
|
|
Cooling Way
|
Water-coolingchiller
|
|
Laser Head
|
Chaoqiang/Relfar/Others
|
|
LaserSystem
|
Chaoqiang/Relfar/Others
|
|
Voltage
|
220V/380V/Customized
|
|
Working EnvironmentRequirements
|
0℃~40℃,humidity﹤70%
|
| Applicable Industries | Hotels, Garment Shops, Food & Beverage Factory, Restaurant, Home Use, Retail, Food Shop, Food & Beverage Shops |
Why choose a laser cleaning machine?
Laser cleaning VS Traditional cleaning
| Item | Laser cleaning | Chemical cleaning | Mechanical grinding |
| Working principle | Laser | Chemical Cleaner | Sandpaper/grinding Wheel |
| Contactless | √ | × | × |
| No damage to workpiece | √ | × | × |
| Cleanliness | High | Uneven | Uneven |
| Cleaning efficiency | High | Low | Low |
| Accuracy |
Controllable (High Accuracy) |
Uncontrollable (Poor Accuracy) |
Uncontrollable (Poor Accuracy) |
| Environmentally friendly | √ | × | × |
| Manual operation | Simple | Complex | Protective Measure Required |
| Consumables | No | Yes | Yes |
| LASER CLEANING | TRADITIONAL CLEANING |
 No contact,no grinding,little damage to the substrate |
 Mechanical cleaning easily cause damage to the substrates |
| No consumables,no chemical pollution |
Chemical corrosion cause serious pollution |
| High cleanliness and uniformity |
Uneven and slow |

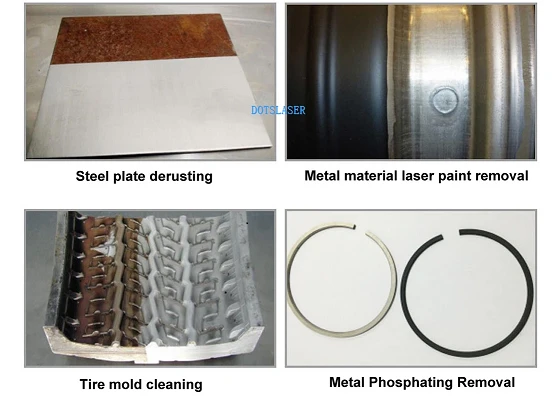

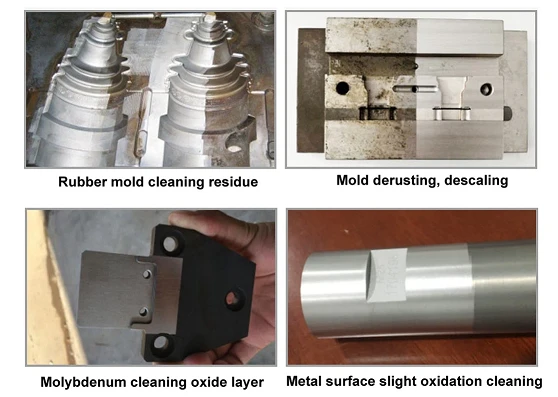

Samples show
FAQ
Which model should we select?
+
-
Please tell us your needs and requirement, such as your Materials and cleaning demand, we will recommend you suitable model based your description.
This machine need consumables?
+
-
Yes, the protective lenses is consumable part, we will give you 1-year consumption, you can buy more.
What is the delivery time?
+
-
Usually 2-5 business days after receiving the payment.
Customized models 10-15 days.
What shipping method is better for me?
+
-
Depends on your budget and need it urgently or not. normally it can be shipped by sea, air, express, truck, or rail.
different method, different cost.
How should I operate it when I got it?
+
-
We've already tested the machine before shipping, just follow our instructions for a simple step-by-step adjustment.
If you have any question, our engineers will support you.
Shipping and package
1. Quality assurance and after-sales service
The warranty period of the equipment shall be 12 months since the equipment be used by the customers, the installation and debugging is completed and the equipment is accepted by the demander. Dotslaser attaches great importance to the after-sales service work of the product, once the product is delivered to the user, the company immediately established the user after-sales service file, and regularly track the user's product use status, solve and answer all the problems of the user, received the user's notification information about the equipment failure, the company's workers can make a rapid response within 2 hours. If the telephone guidance is difficult to troubleshoot, our company's technical staff can arrive at the customer site within 24 hours to provide support.
2. Installation and debugging
Before machine installation, our factory will offer you a basic structure installation file,the good need 2 weeks delivery to you there , the engineers of Dotslaser will arrive at your site and inspect the machine again. Comfirm all the conditions meet the installation and commissioning requirements of the equipment, the equipment will transport in time. The installation and commissioning time of the equipment is about five working days, the first three days are connected to the use of the system, and the system is operational after the service project. The engineer will train qualified operators on basic maintenance procedures and general operating characteristics of the equipment in the next two days
3. Service support
If there has any problem with any part of the system during the warranty period, Dotslaser well-trained service engineers are ready to provide cellphone call or begin on-site service,if the machine has any problem during the warranty period,please contact us directly !
