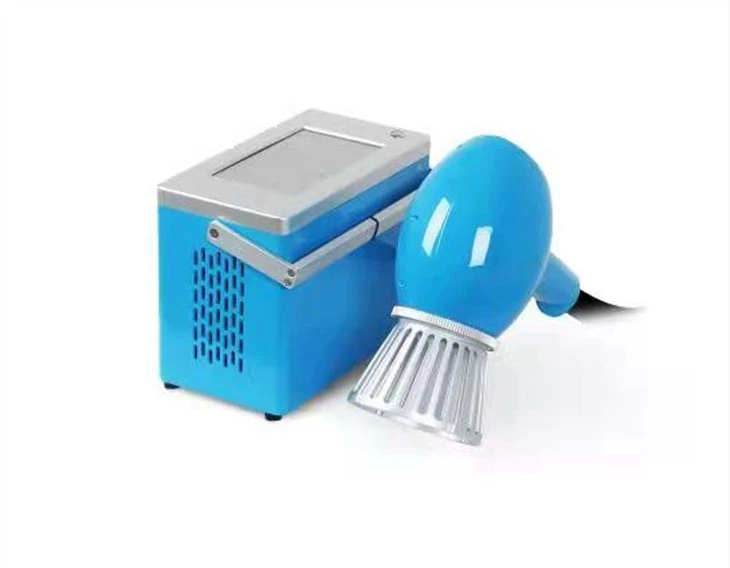

Handheld Wireless Laser Marker
1.Handheld wireless Laser Marking
2.Smart laser marking.
3.Very small,light weight,easy to move around.
4.Operator can bring it everywhere and mark.
5.Wireless,just charge is ok.You can also mark while plugging in
6.Touch screen to edit marking pattern

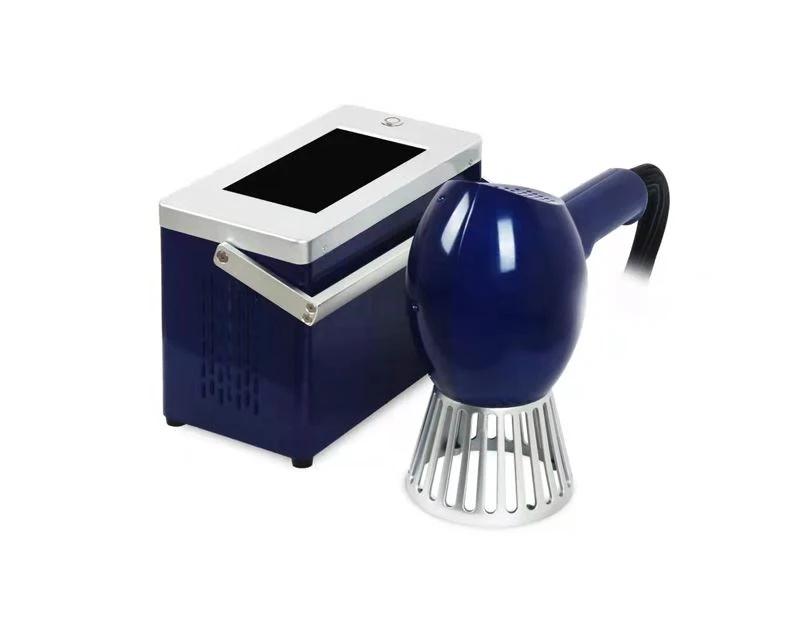

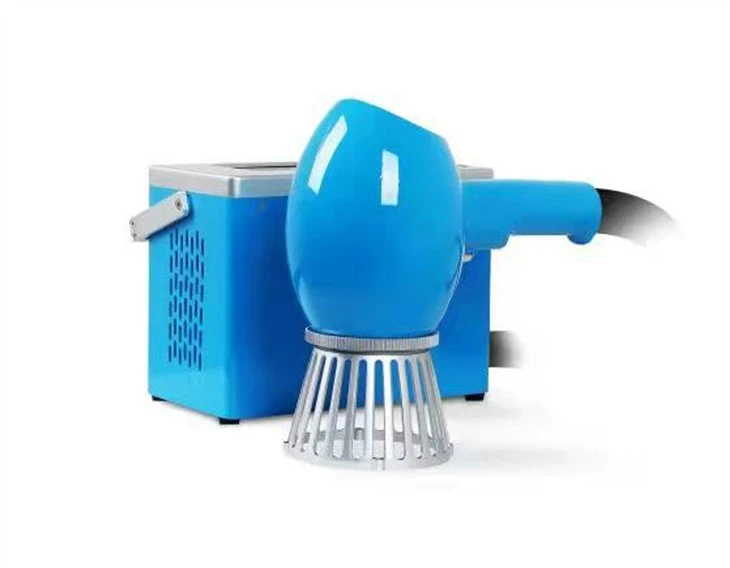

Handheld wireless laser marker
Products Description
The handheld wireless laser marking machine is a portable, battery-powered, fully automatic marking machine. Due to its powerful 24V rechargeable lithium battery power supply system, it can maintain 6-8 hours of work under normal use, with strong endurance, no cable dragging, and avoiding the embarrassment of sudden power failure during use. With its light weight and multiple functions, it is especially suitable for perfect marking on large, heavy or difficult-to-move workpieces.
Product advantages
1. Wireless marking
★It is equipped with 24V lithium battery to achieve complete wireless.
★It can keep working for 6-8 hours under normal use and has strong endurance.
★Automatic start-stop design, automatic shutdown after 60 seconds of standby, saving power and reducing consumption.
2. 100% portable.
★The weight of the whole machine is 6KG; the marking head is only 1.25KG; it is small and light, and can be printed anytime and anywhere.
★It is especially suitable for marking large, heavy or difficult to move workpieces.
★Special luggage is convenient for transportation.
3. High-quality light source
★Using advanced fiber 20W laser
★High electro-optical conversion efficiency, good output beam quality and high reliability.
★It can be flexibly applied to non-metallic materials and some non-metallic materials
4. Friendly operation page
★DOTSLASER independent coding system, powerful function, simple operation.
★It supports text, patterns, QR codes, barcodes, serial numbers, graphics, etc.
★The host adopts linux system, which is safe, stable and reliable.
Laser Parameter
| Model | Q8 |
| Laser source model | DS-20X |
| Outputpower | 20W |
| Beam quality M2 | ≤1.4 |
| Pulserepetition frequency | 27-60kHz |
| Laser wavelength | 1064±5 |
| Output power stability | <3% |
| Workig life | About 100,000 hours(Non-lifetime) |
Optical properties
| Marking area | 80mm*80mm |
| Engraving depth | ≤1mm(Depending on power and time) |
| Engraving speed | 10000m/s |
| Repeataility | ±0.002 |
| Min mark line width | 0.1mm |
| Minimum character height | 0.15mm |
Use environment
| Battey life | It can work for 6-8 hours under normal use in one day |
| Coling way | Built-in aircoling |
| System power supply | 500W / 100-240V /50/60Hz |
Other parameters
| Operating system | linux system |
| Fileformat | The software supports text,pattern, two-dimensional code, barcode, serial number, graphics and other marking content (standard USB input) |
| Dimension | Control chassis:250X135X195 mm Marking head:250X120X260 mm |
| Machine weight | Machine 6kg, Marking head 1.25kg |
Average output power:20W
6~8 hours long battery life

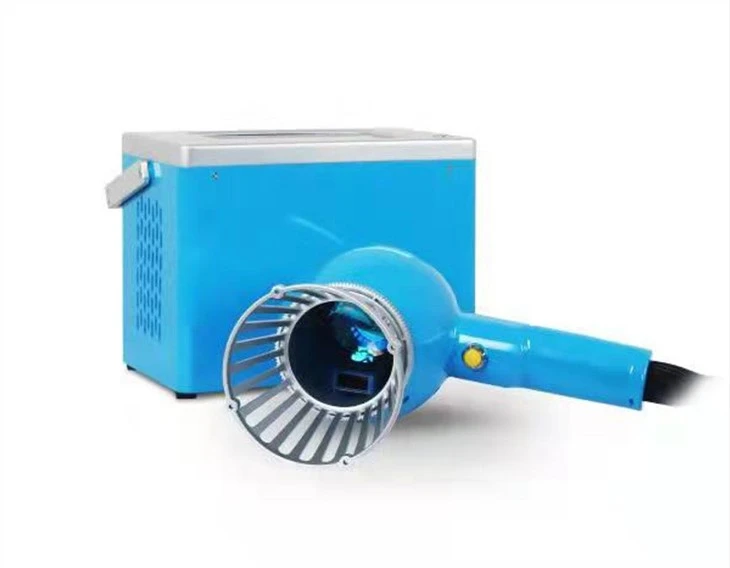

Q8 is powerful, sturdy and reliable. The weight of the machine is 6 kg. Its marking head is only 1.25 kg.
It has an ergonomic handle, which is comfortable to hold and easy to operate.
It supports rear USB interface. The software supports marking content such as text, pattern, two-dimensional code, bar code, serial number, and graphics.

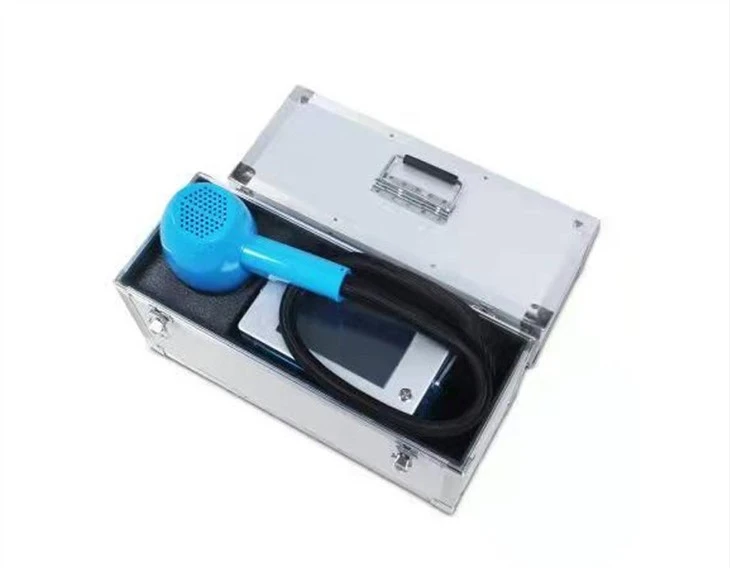

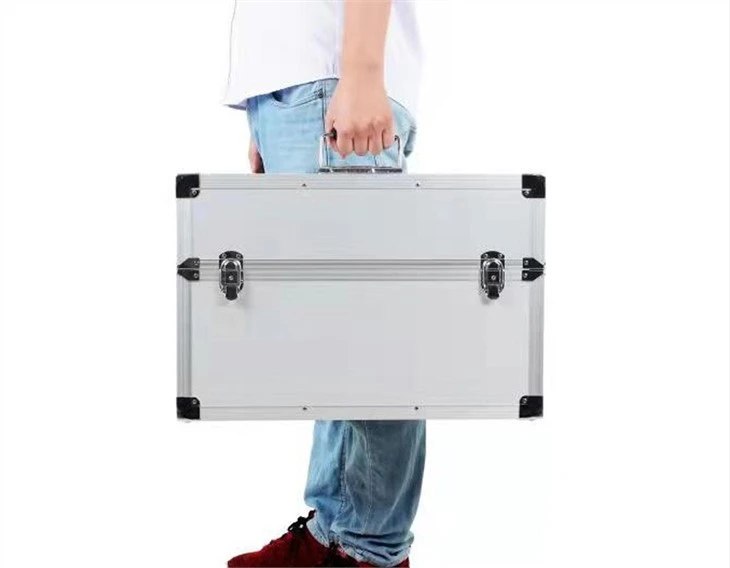

Q8 has a special box for easy storage and can be carried to different places. It is one of the smallest rechargeable laser marking machines on the market.

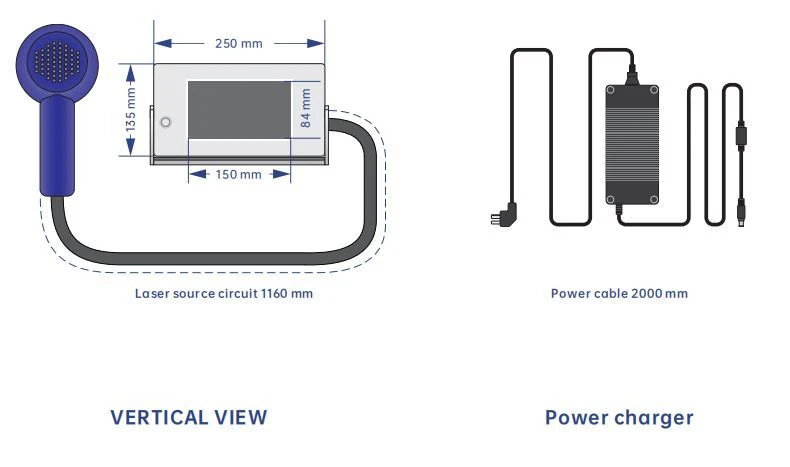

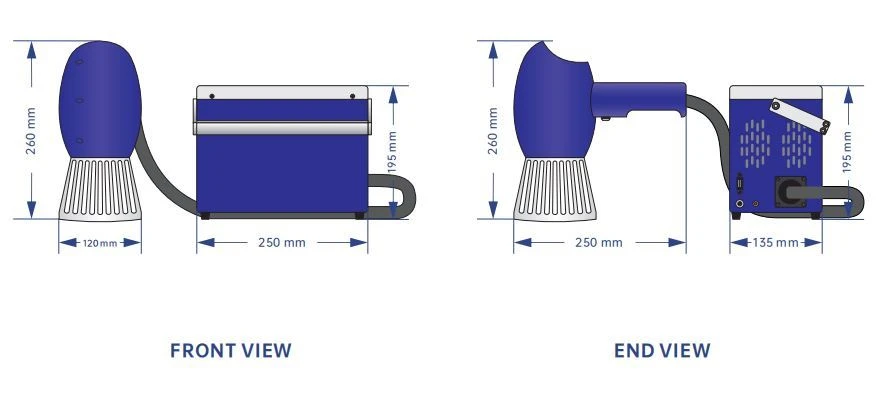

Product size
Applications:
aerospace industry
automobile manufacturing industry
construction machinery industry
energy industry
household appliance industry
Metal processing industry
Product characteristics
Automatic Start And Stop Design, Saving Electricity And Reducing Consumption
Added automatic start-stop design, it will automatically stop after 60 seconds of standby and restart by tapping the screen;The standby time can be customized to effectively save unnecessary power consumption.

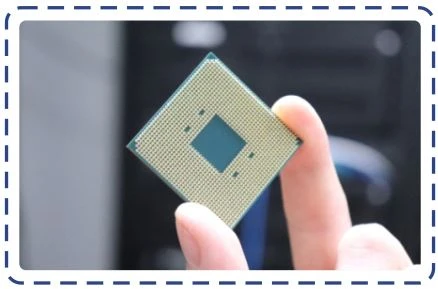

Eight-core Cpu, Configure Linux System
The host adopts an 8-core processor and is equipped with a Linux system with a high security level. It has stable performance, fast response speed and is not easy to be poisoned and downtime.
Diversified Marking Content, Support Language Customization
Rear USB interface, software support: text, pattern, QR code, barcode, serial number, graphics and other marking content. It supports operating system language customization.
Customized Logo
The boot page of the operating system and the LOGO in the upper left corner can be customized.

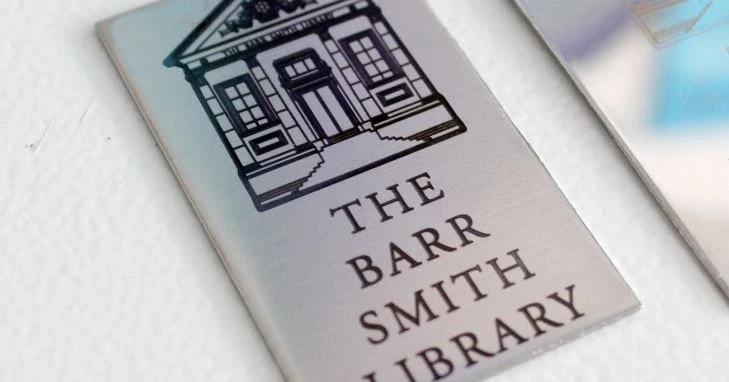

Marking Effect

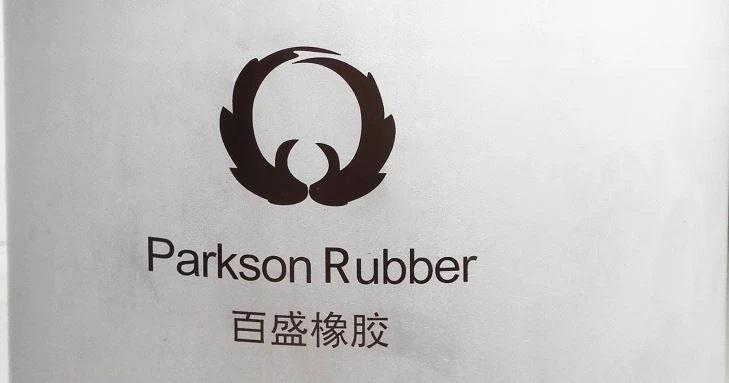

Metal aluminum

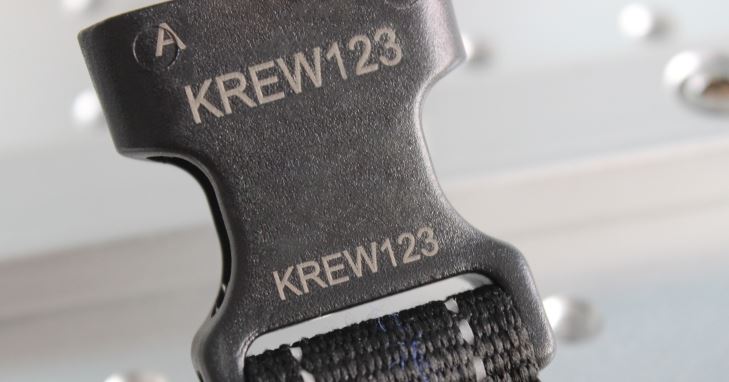

Hard plastic

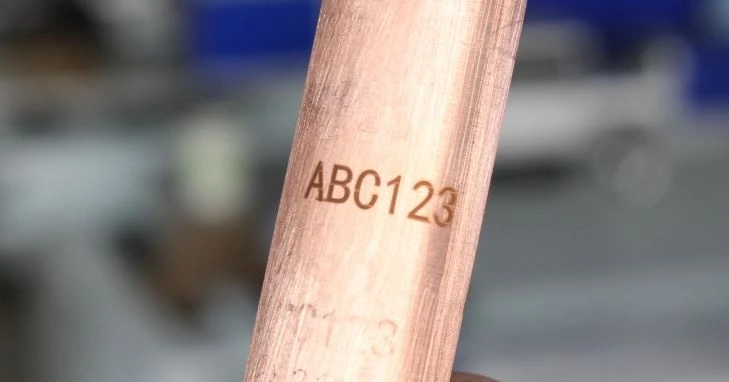

Metal copper

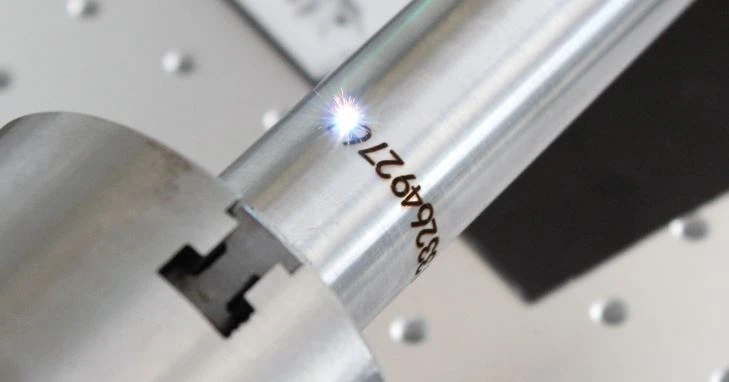

Metal steel
Metal steel

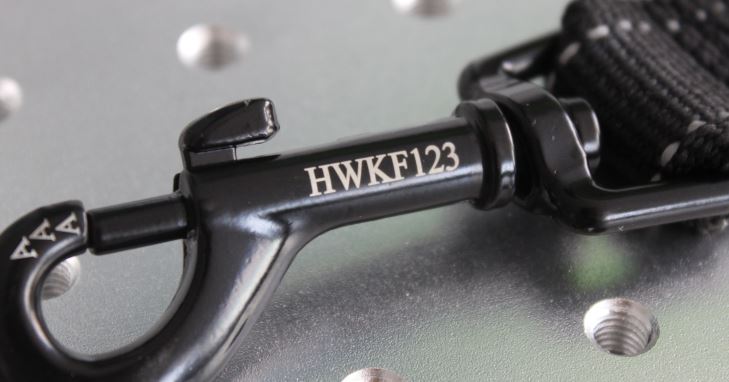

Painting material
Shipping & Package
