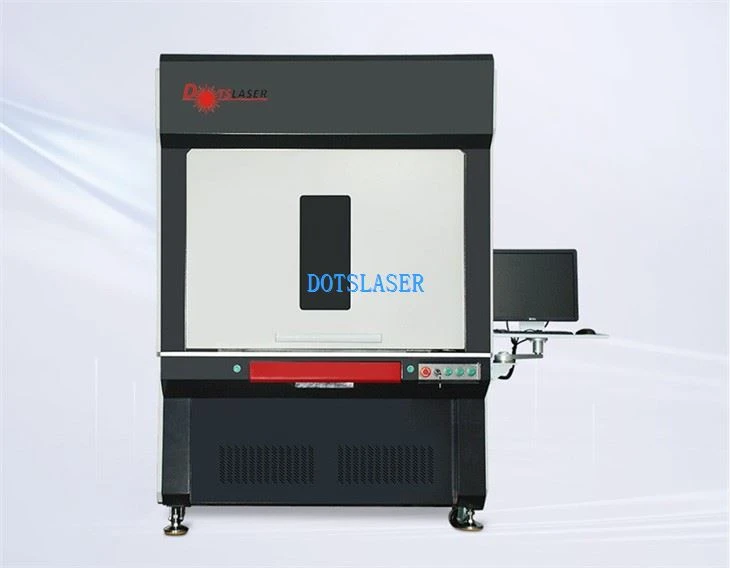

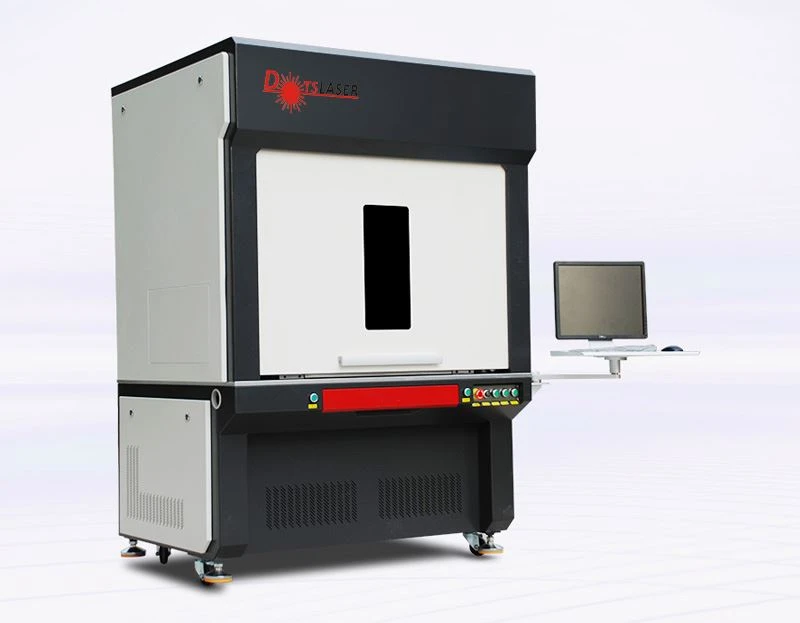

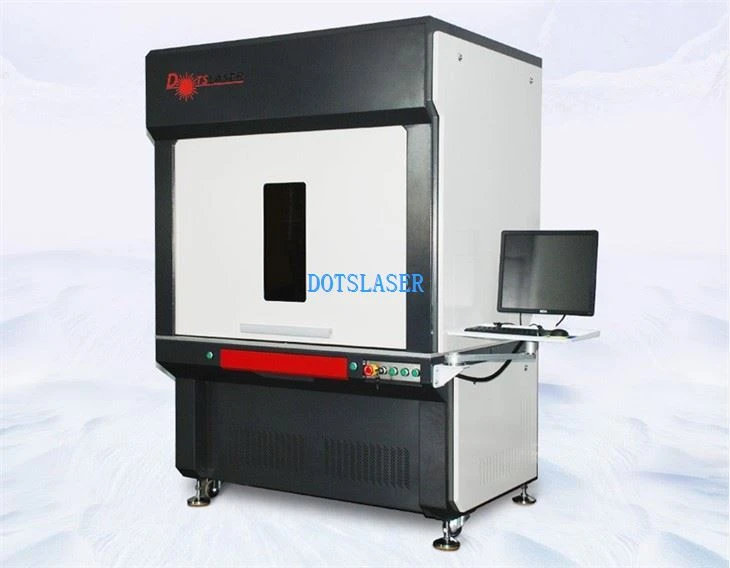

Precious Metal Laser Cutting Machine
Precious Metal Laser Cutting Machine
Products Description
Precious Metal Laser Cutting Machine can customize the imported laser and cutting head according to the jewelry industry, it has excellent laser beam quality for cutting precious metals such as gold, solid gold, 9K-24K gold, 925 silver, sterling silver, etc. The unique optical design and anti-high reflection laser isolator can make this precious metal laser cutting machine easily cut pure gold, sterling silver and other highly reflective materials without easily damaging the laser.
Features
Precious Metal Laser Cutting Machine can be equipped with an optional rotary axis for easy cutting of bracelets, rings, round tubes, etc.
It adopts a professional dust recovery device with a unique fully sealed design to prevent the loss of gold powder, minimum loss.It has high laser power, the cutting slit has high depth to width ratio, small heat affected area, small deformation and fast cutting speed.
1. Minimal distortion on parts due to a small heat affected zone
2. Intricate part cutting
3. Narrow kerf widths
4. Very high repeatability
Advantages

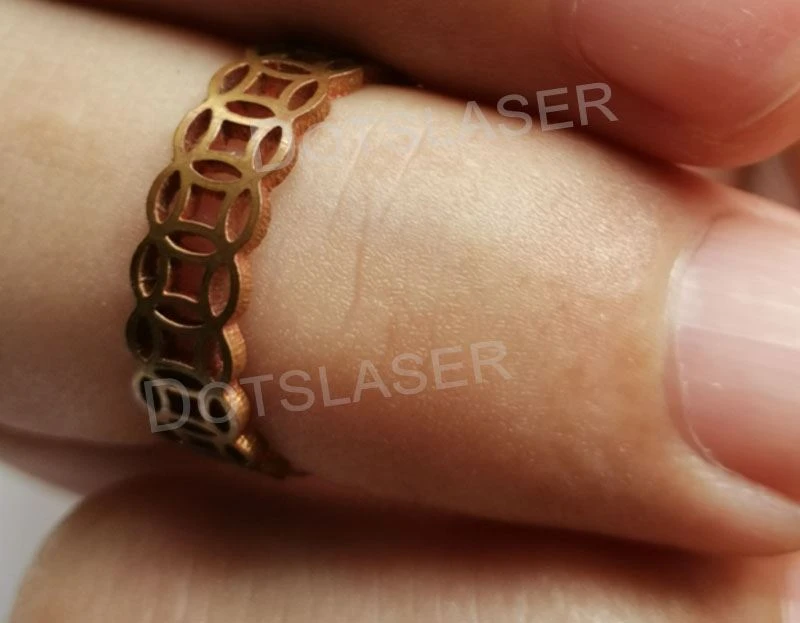

Rotary index is optional, which makes round parts,like bracelets, rings or other jewelry can be cut easily.
Fast cutting speed, compared with low power cutting or other solution, the cutting time is 5~20times less.
The cutting edge is smooth,no cutting burrs, no need polising after cutting.
Cutting thickness is more wide, maximum can cut 3mm high reflective material, such as gold,silver,aluminum, 6mm for stainless, steel material.
Support PLT,DXF,AI format file, which makes the work more flexible.
Imported laser generator, cutting head and servo motor and customized high precision motion modular, to make sure best cutting quality.
Imported high-progress capacitive sensor, detecting the height between head and worktable, and focusing the head automatically.
Long lifetime, the life span of key part laser source can be 100,000 hours maximum, the machine is very stable, almost maintenance-free.
Intelligent travel protection:automatically detect the operating range of moving parts, and when an abnormality occurs, the system sensitively feedbacks and quickly sends instructions to stop operation, ensuring equipment safety.
System smart alarm:equipment self-inspection, the main interface abnormal alarm prompts, reduce hidden dangers, and improve the efficiency of equipment abnormality investigation.
Date sheet
| Product Name | Precious metal laser cutting machine |
| Model | DS-3040H,DS-6060H |
| Laser power | 1500W/2000W/3000W |
| Laser wavelength | 1070±10nm |
| Cutting field | 300mm*400mm/600mm*600mm |
| Cutting seam | Maximum 0.15mm(depends on the material) |
| Cutting thickness | Maximum 3mm |
| Idling speed | Maximum 250mm/s |
| Worktable accuracy | ±0.03mm |
| Rated power consumption | Main body ≦10KW |
| Power supply | Main body 380V/50Hz |
| Supported file | DXF,PLT,AI ,etc |
| Weight | Approximate: 1200KG |

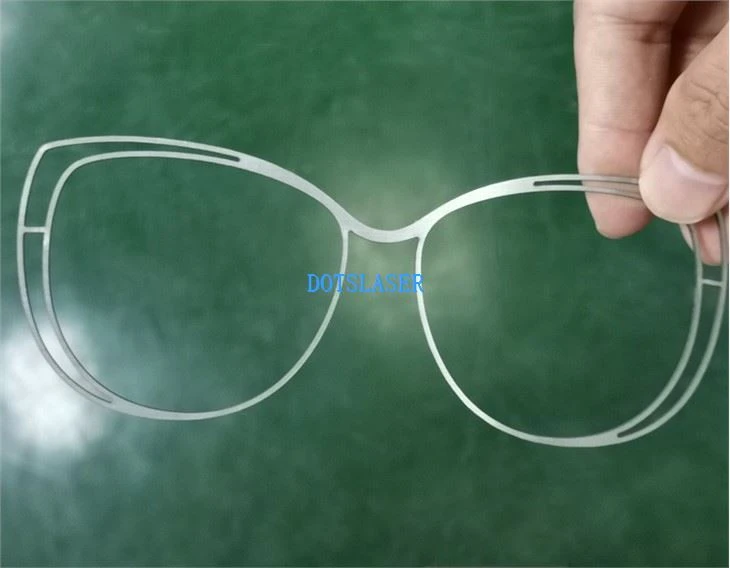

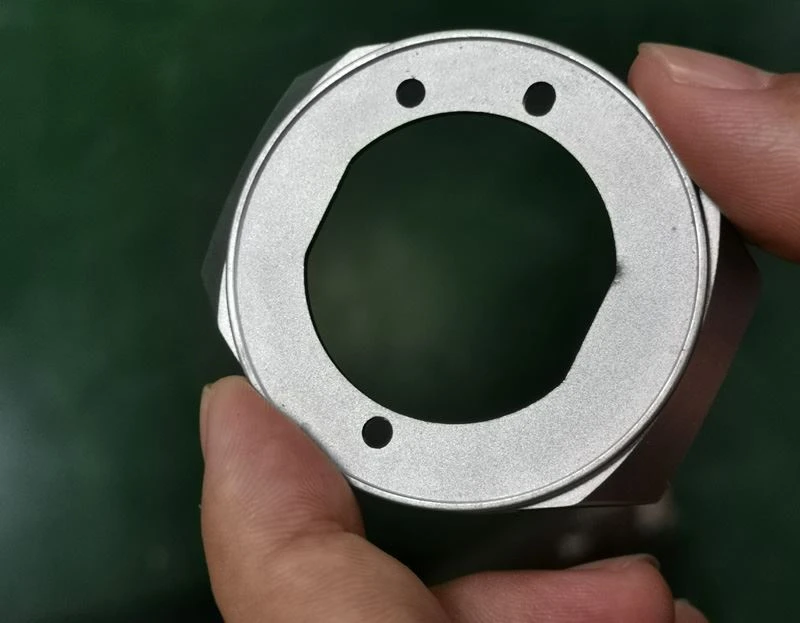

Used in the cutting of precious metals such as gold and silver, hardware, jewelry, glasses frames, copper and aluminum substrate PCBs, auto parts, mobile phone structural parts, metal mobile phone shells, metal audio shells, metal watch frames, etc.

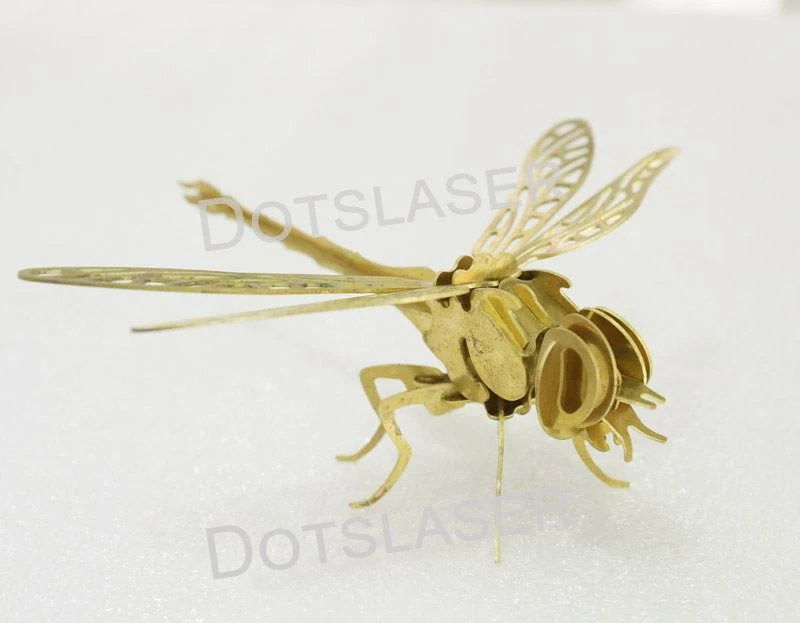

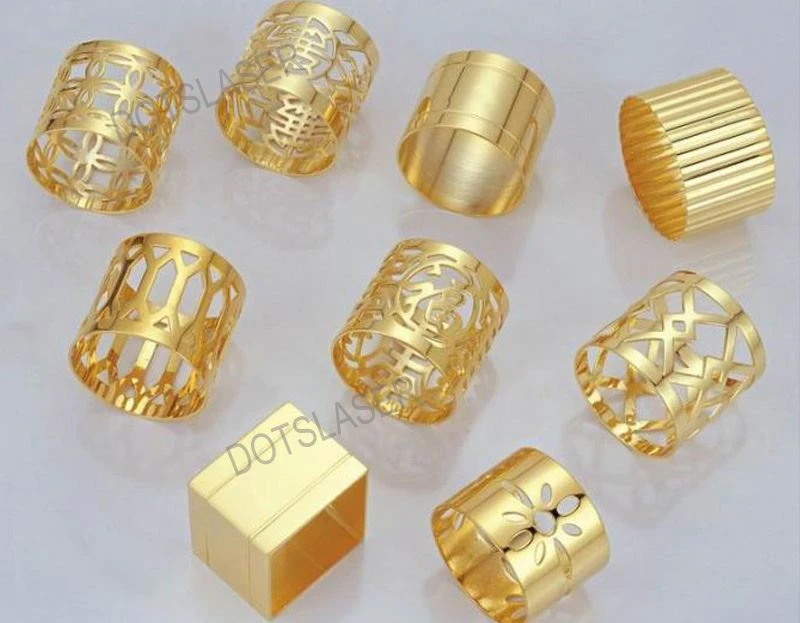

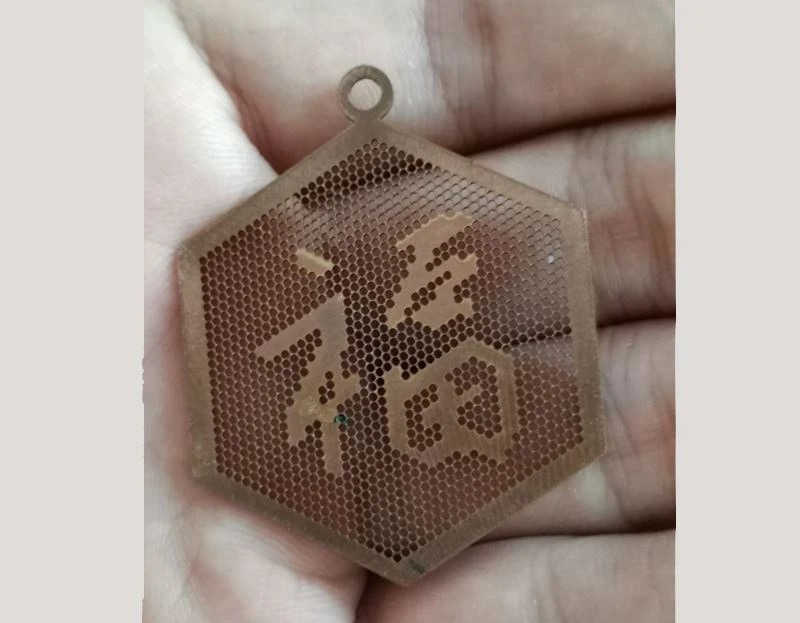

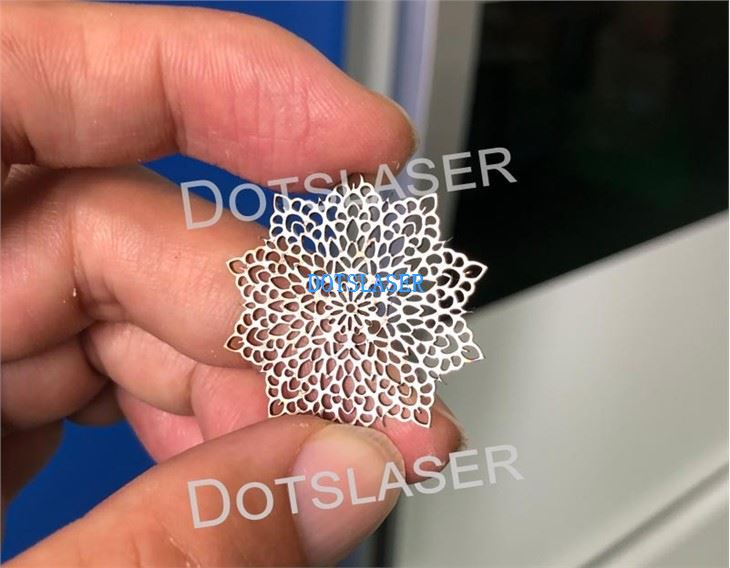

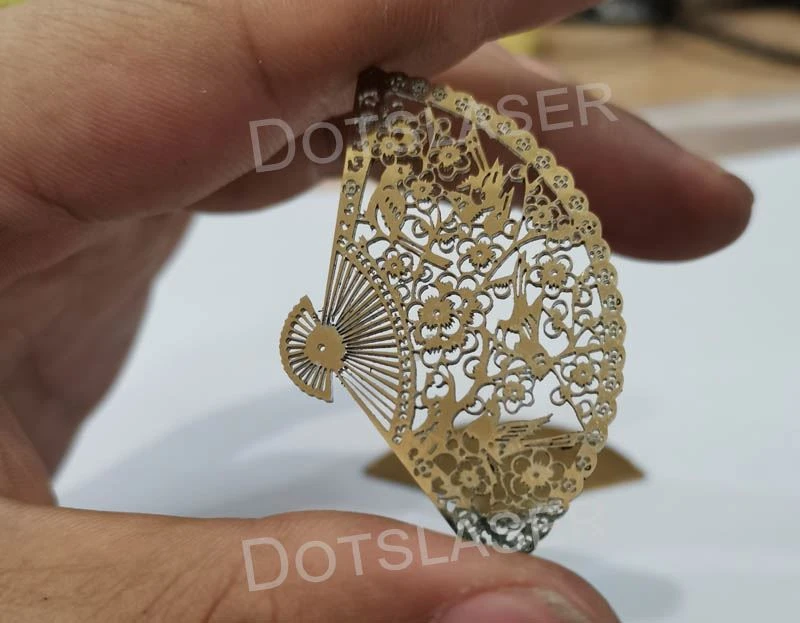

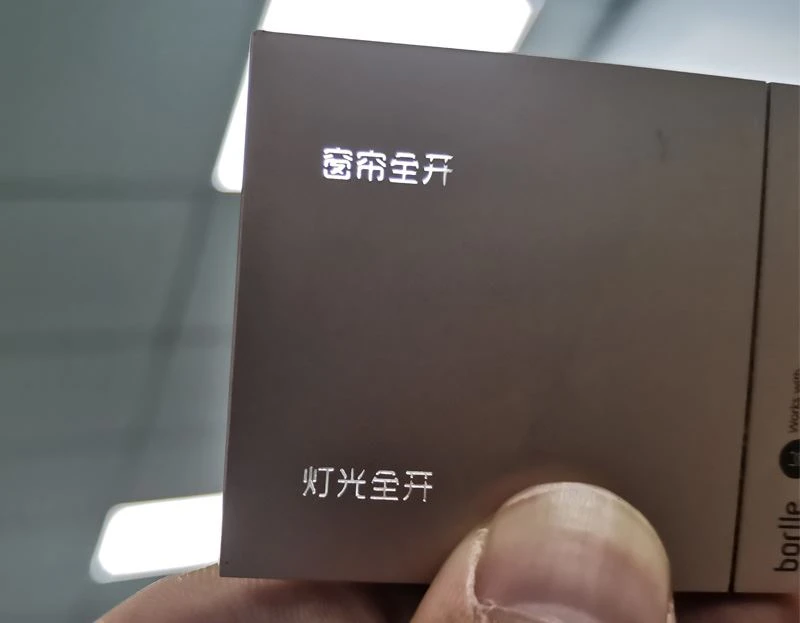

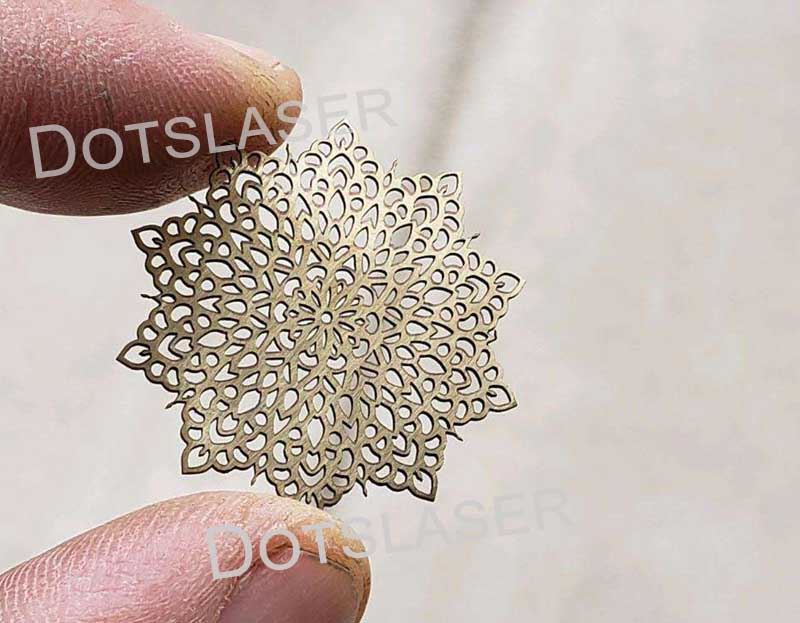

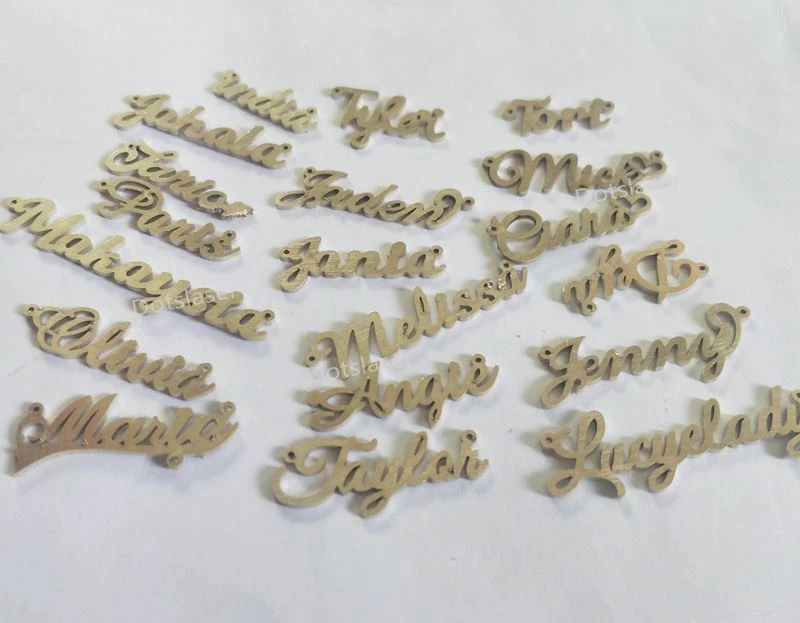

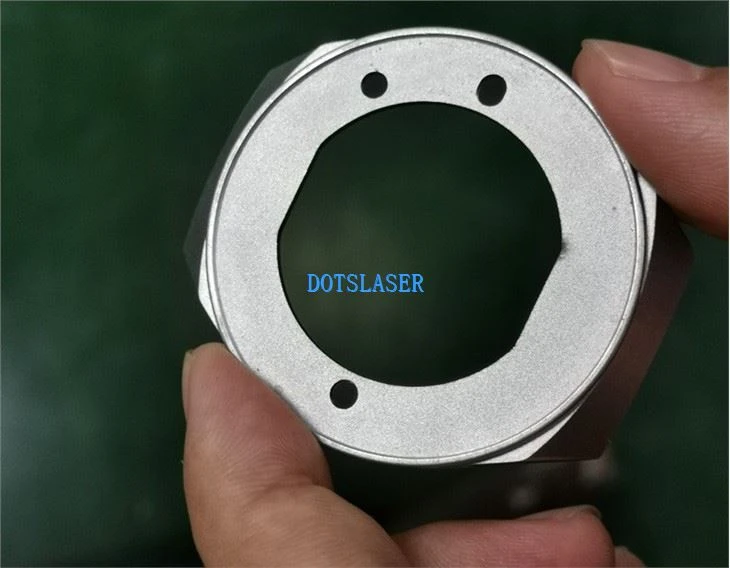

Samples show
Package
