Gold Silver Jewelry Cutting Machine
Gold Silver Jewelry Cutting Machine is made of high-quality raw materials, has high stability and precision, and can effectively eliminate the shock caused by high-speed cutting.
Products Description
Gold Silver Jewelry Cutting Machine is made of high-quality raw materials, owns high stability and precision, and can effectively eliminate the shock caused by high-speed cutting. Our product has high-quality fiber lasers, with good spot quality, stable output power, long service life, and a variety of power options. Gold Silver Jewelry Cutting Machine is widely used for cutting hardware, consumer electronic components, various meters, machinery, glasses, jewelry, sheet metal processing, etc.
Why we need to use this machine to cut gold, silver or jewelry?
planning cepteur sint occaecat planning cepteur sint occaecat
Narrow cutting seam, small cutting heat affected zone,less deformation of the plate.
Cutting seam:0.05~0.15mm
High precision and better repeatability
The machining accuracy is small, the repeatability is good, and the surface of the material is not lost.
Accuracy: ±0.02mm
Suitable materials:Gold, silver,copper,brass,aluminum,stainless steel,steel,iron,various alloy,etc.
Applicable range
High-precision, fast cutting gift like gold,silver,jewelry or others, precision metal processing,3C electronic products,glasses frame cutting, watch frame cutting,PCB board cutting,etc.
Detail display

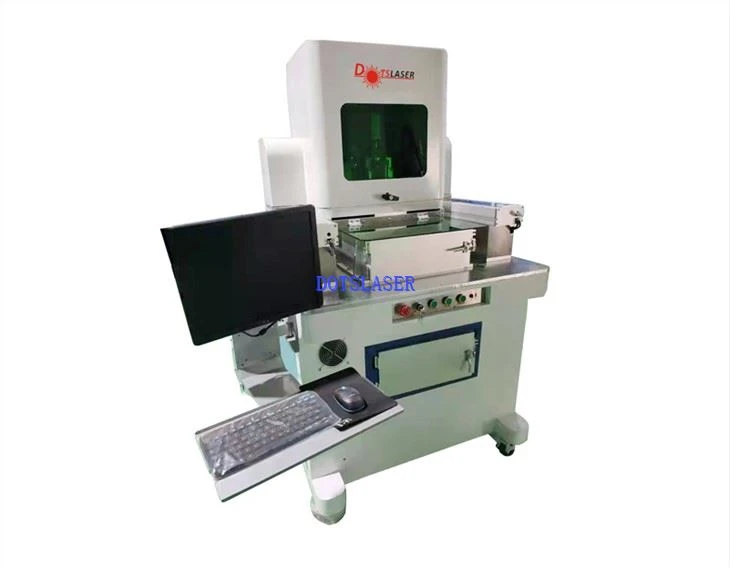

Gold silver jewelry cutting machine.

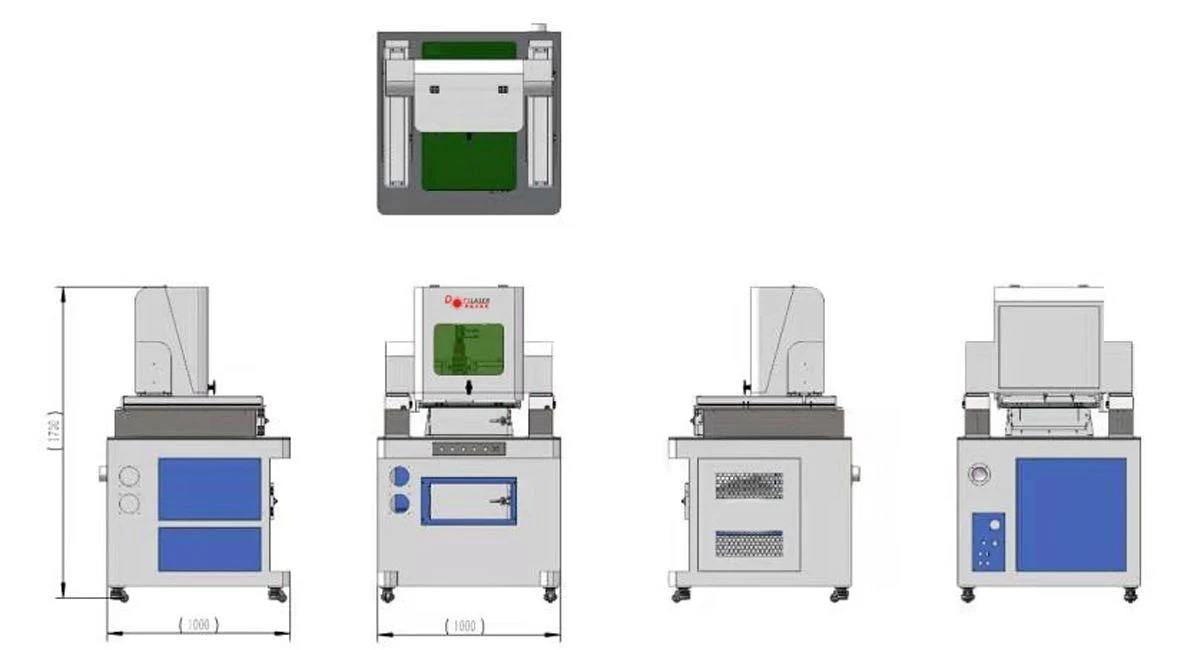

Machine look: small and compact structure, less space occupied,and less freight charge.

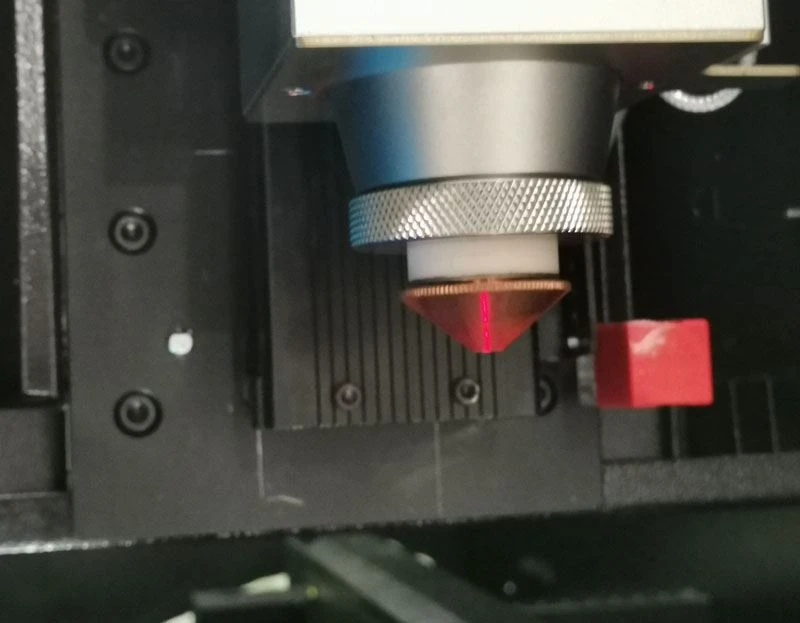

High speed cutting head
Strong beam stability,
Fast cutting speed,
Good cutting edge quality,
Objects has small deformation, smooth and beautiful appearance.

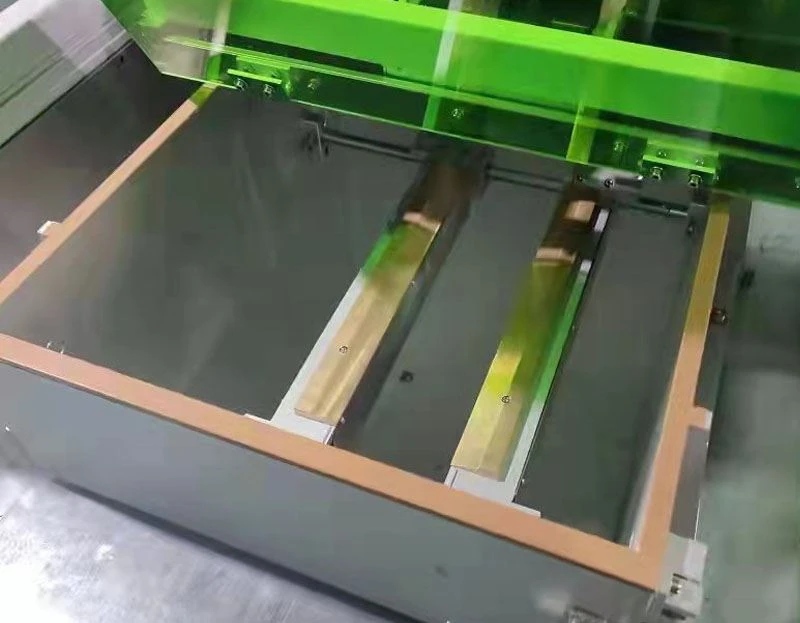

Linear motion stage
Fast speed,
No wear, suspended structure,ensure a perfect and fast precision cutting work.

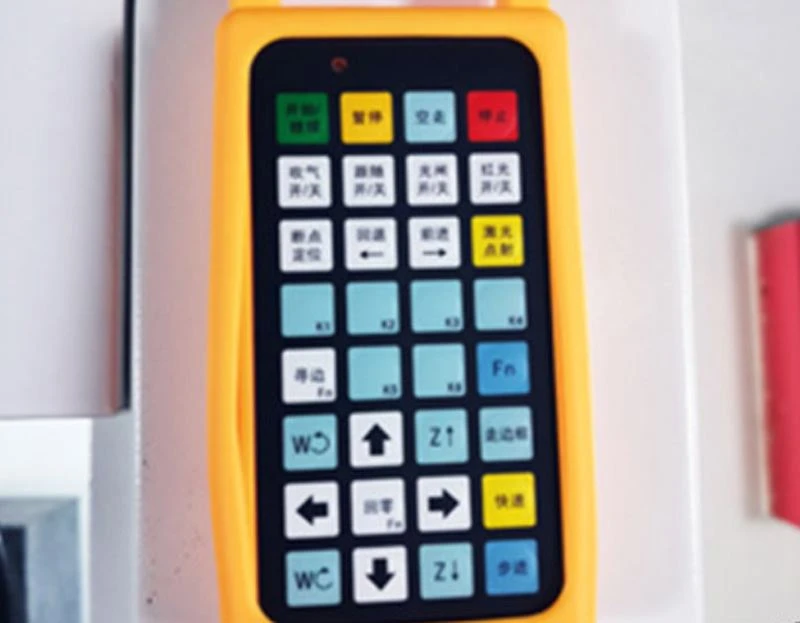

Control box
Precise adjustment, precise alignment.

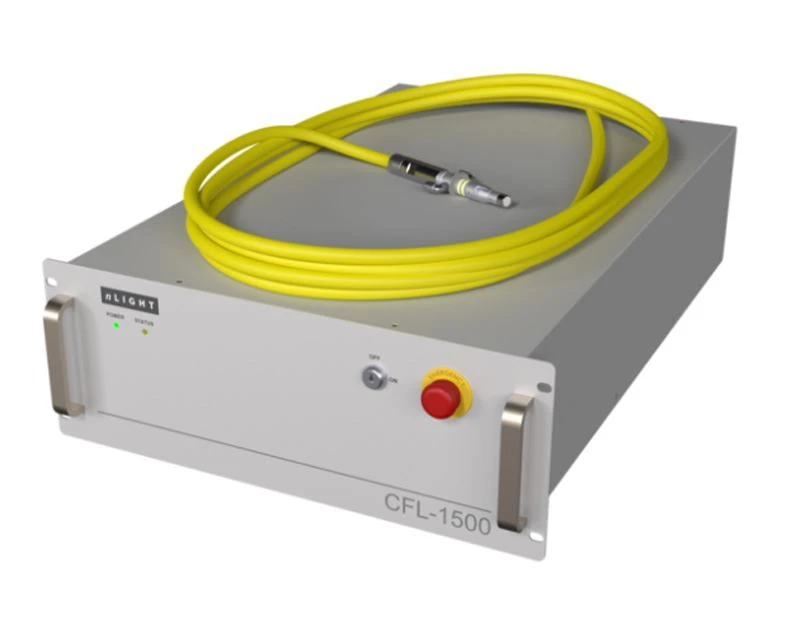

Laser generator
High laser power output, Humanized control,high-quality beam quality, high electro-optical conversion efficiency, good for cutting high-reflective materials.
Main parameter
| Machine name | Gold silver jewelry cutting machine |
| Model | DS-4060H/DS-6060H/DS-6080H |
| Cutting field | 400*600mm,600*600mm,600*800mm |
| X axis travel | 400mm,600mm,800mm |
| Y axis travel | 600mm,800mm |
| Z axis travel | 50mm |
| Positioning accuracy of X,Y axis | 0.02mm/m |
| X, Y axis repeatability | ±0.02mm |
| Max.speed | 20m/min |
| Max.ACC | 0.5G |
| Max.Load-bearing | 30kg |
| Power supply | 220V, 50/60Hz |

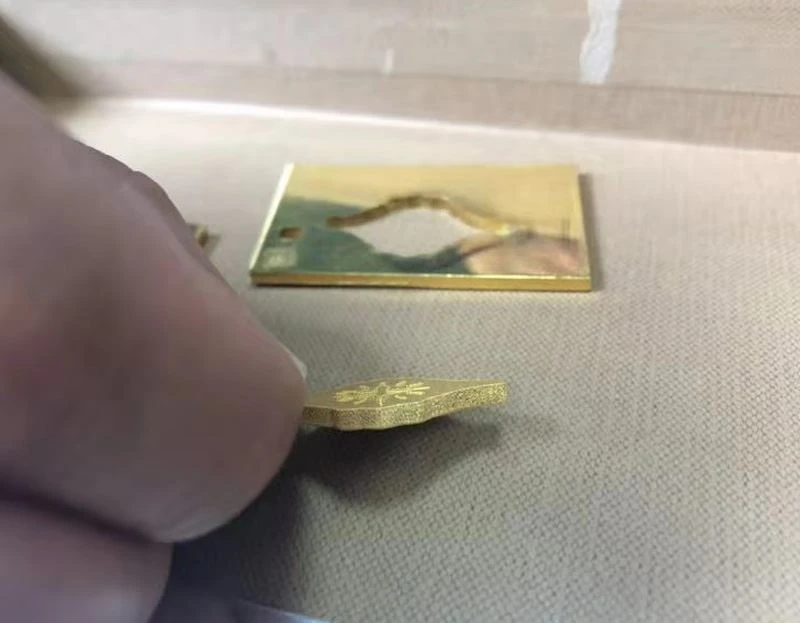

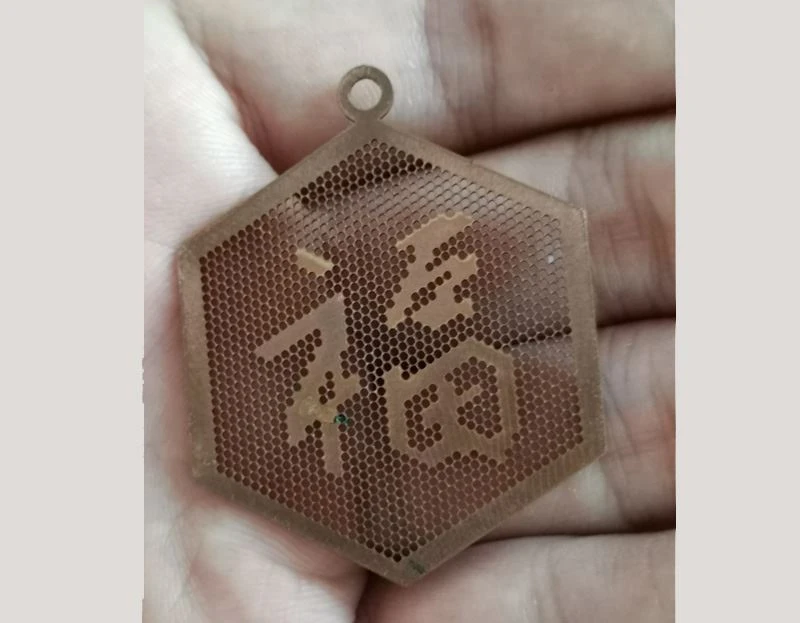

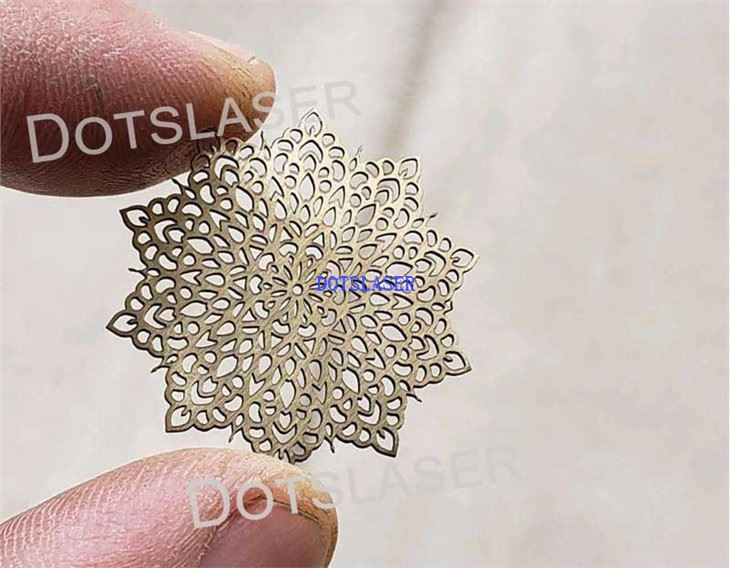

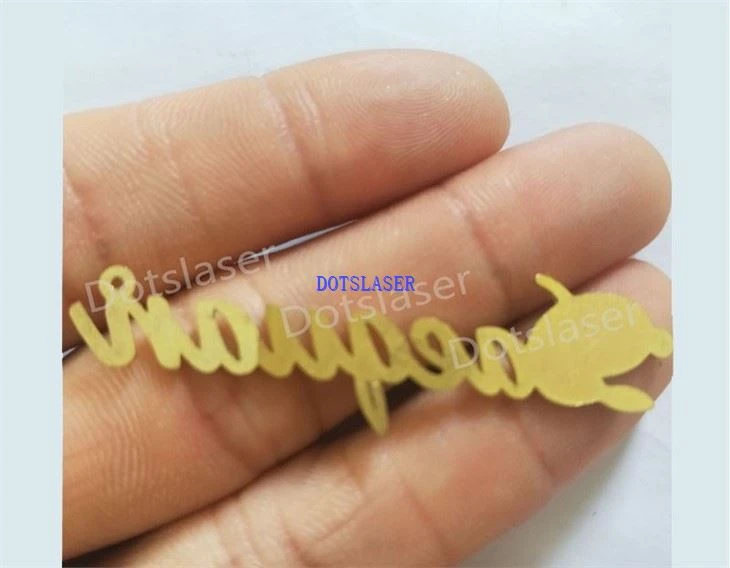

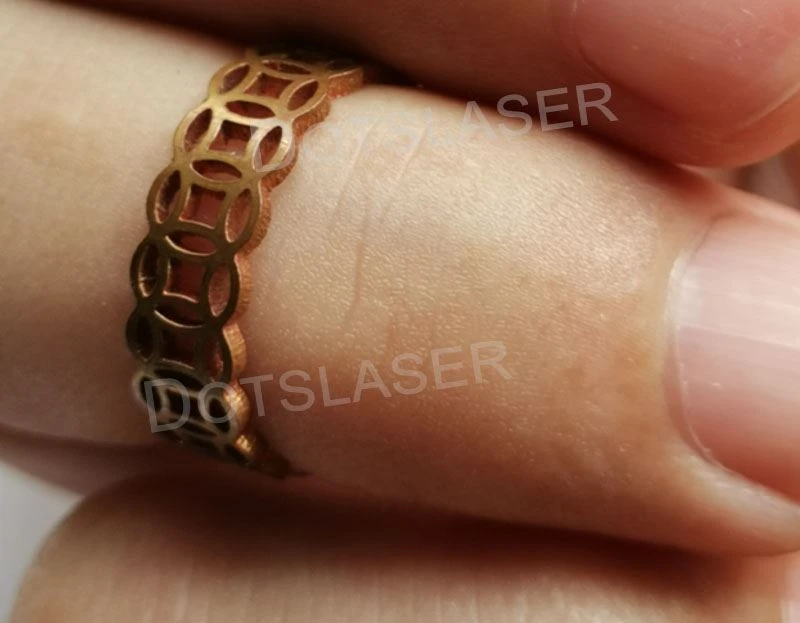

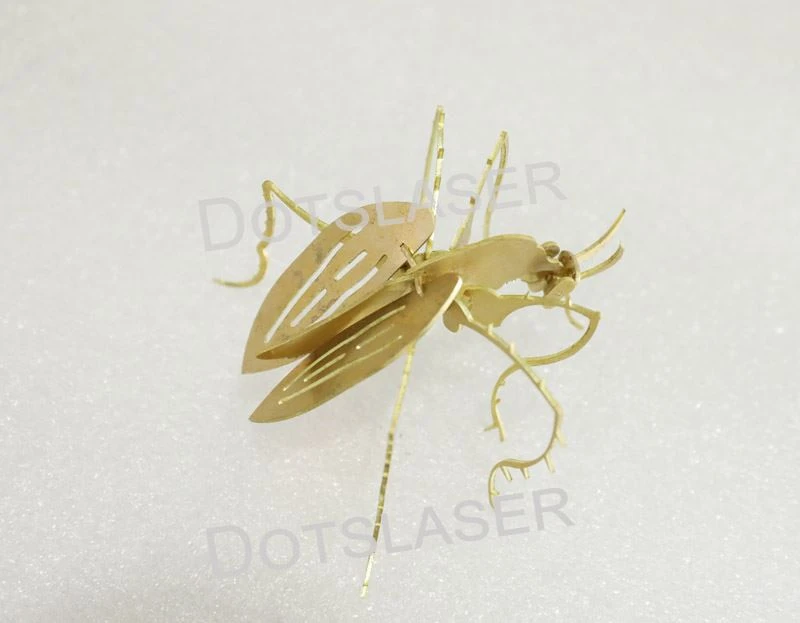

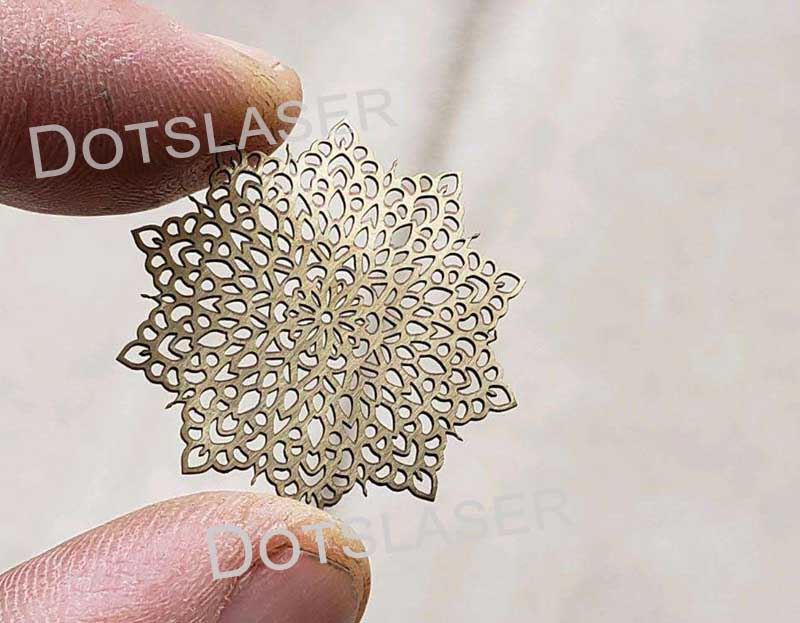

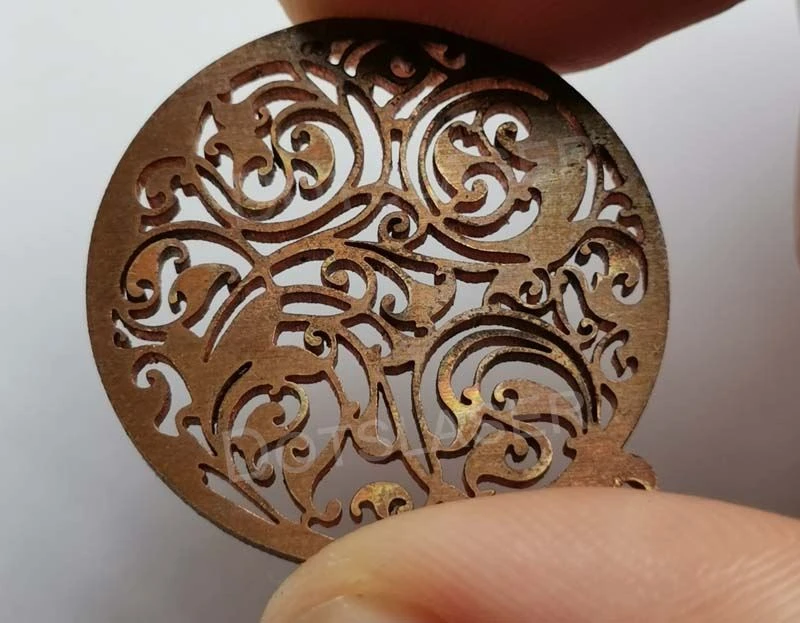

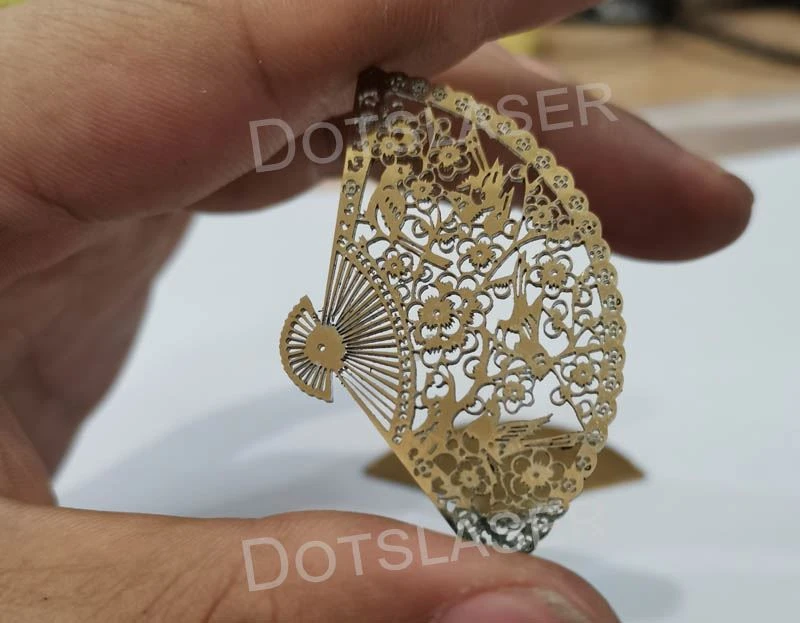

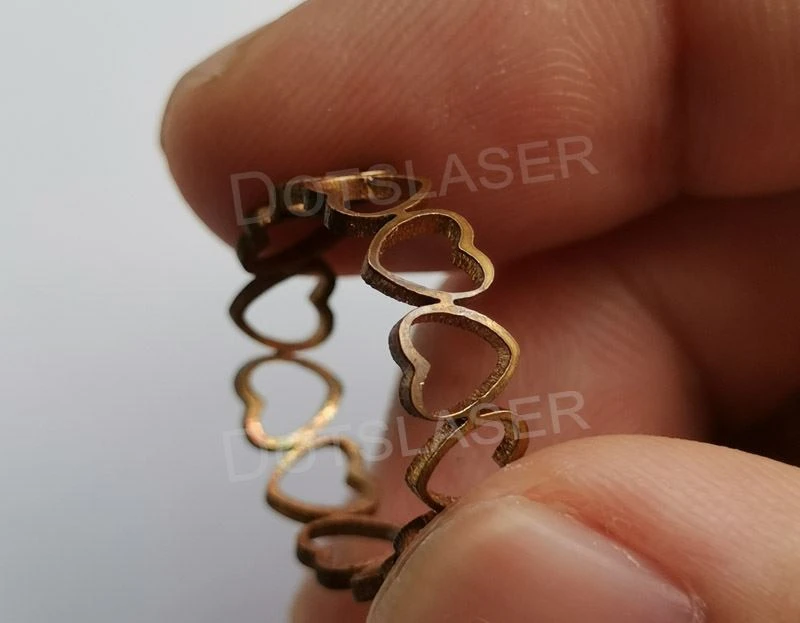

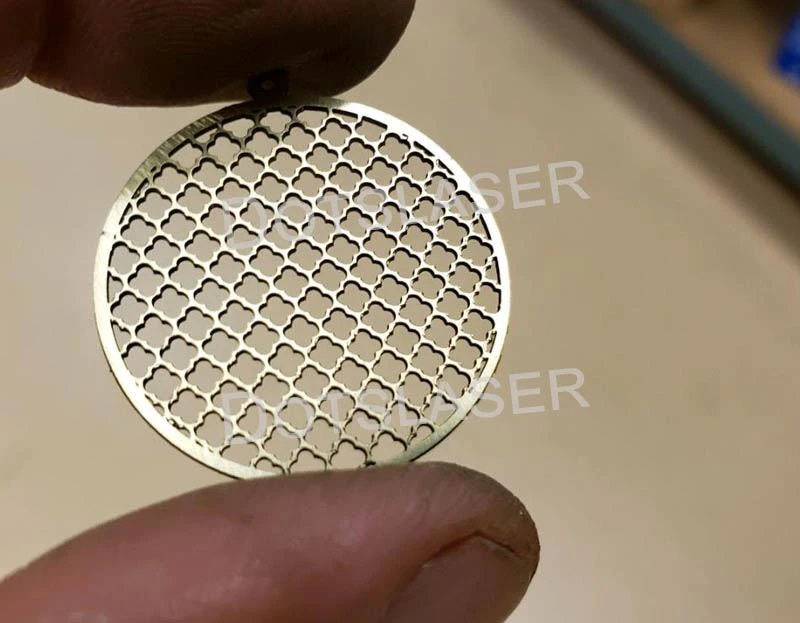

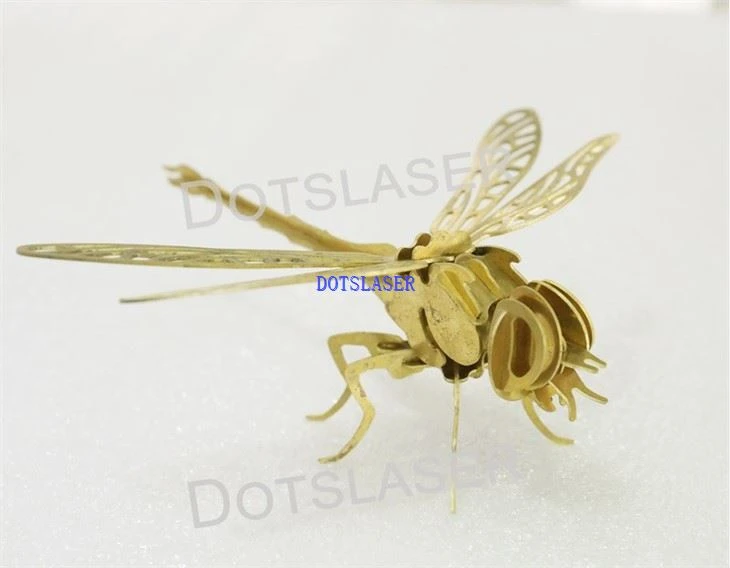

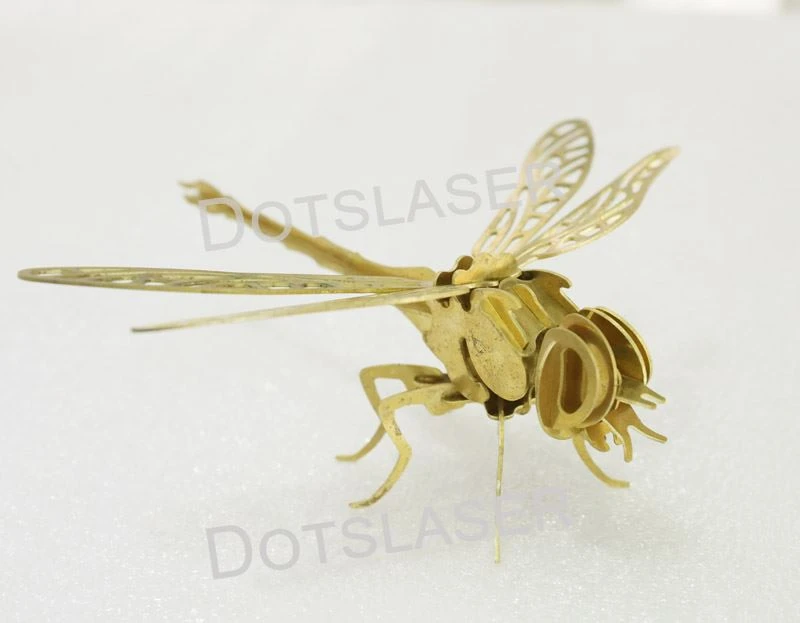

Sample shows
Shipment and package
