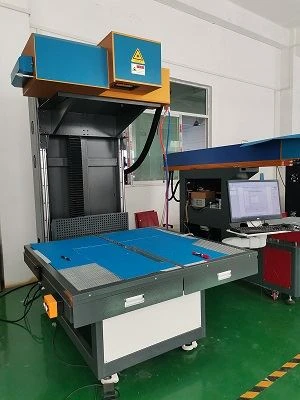

Ceramic CO₂ Laser Marking
Ceramic CO₂ laser marking
Products Description
Ceramic laser engraving is the process of using a laser marking machine to engrave a ceramic product. Because ceramic can easily be broken, with one crack quickly leading to the destruction of the entire material, laser marking ceramic materials is often a safe option. Unlike older engraving choices for ceramic, a laser does not make forceful contact with the ceramic. Laser machines remove ceramic material through high heat absorption, leaving behind a marked design.
machine features
Strong accuracy: Ceramic CO₂ laser marking allows for precise and accurate marking on various materials, resulting in high-quality results.
Durable machine: The marks made with a ceramic CO₂ laser are highly durable, ensuring longevity and resistance to wear and tear.
Fast engraving: The marking process with a ceramic CO₂ laser is fast and efficient, making it an ideal option for large projects or mass production.
Flexibility: Ceramic CO₂ laser marking can be done on a variety of materials, from metal to plastic, making it a versatile marking option.
Customization: With ceramic CO₂ laser marking, customization is easy and can be done with a high degree of accuracy, ensuring that each product is unique and personalized.
Parameter
|

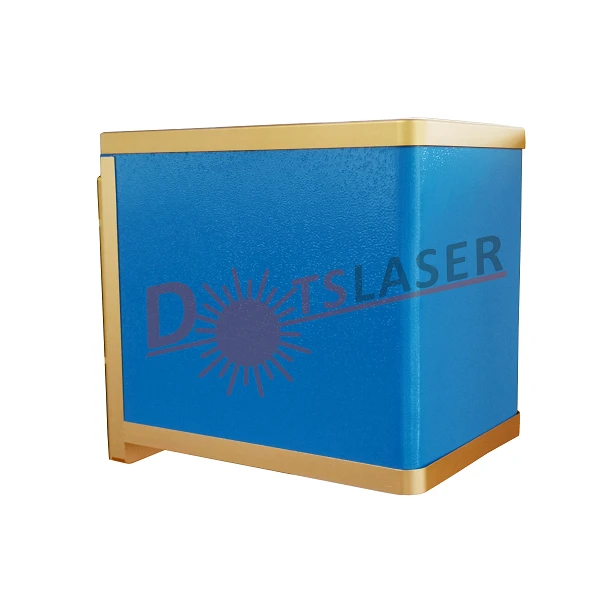

Laser tube parameters |
Max Output Capacity | 250W |
| Peak Powe | ≥450W | |
| Mode Quality | M2≤1.2 | |
| Duty Cycle Limit | ≤70% | |
| Laser Type | CO2 | |
| Laser Wavelength | 10.6μm | |
|
Marking performance |
Application |
Pattern,Word,Bar code,QRcode,Date,Serial Number |
| Marking Character Types | Pattern and words of vectordiagram & bitmap | |
| Marking Area | 400X400-700X700(mmXmm) Adjustable | |
| Marking Depth | 0-5mm (According to the materials) | |
| Marking Speed | <7000mm/s | |
| Min Line Width | 0.3mm(According to the materials) | |
| Min Character | 0.4mm | |
| Repeat Positioning Accuracy | 0.01mm | |
| Machine information | Total Power | ＜6KW |
| Power Supply | AC220V/50Hz/30A | |
| Cooling Way | Constant temperature water cooling unit | |
| Working Temperature | 15-30℃ | |
| Working Humidity | <75 No condensation | |
| Working Environment | Without dust, without vibration | |
| Machine Packing Size | 1010*1340*1740mm | |
| Control cabinet packing size | 1060*660*1100mm | |
| Chiller packing size | 660*760*1080mm |
Three Axis Dynamic CO2 Laser Marking Machine is widely suitable for the industries, such as heat transfer film (paillette, TPU materials, reflective transfer film, etc.), leather, wooden box, paper card, clothes denim, illuminator,mobile communications, mould, precision machinery, IT digital shell, military aviation components, handicrafts, advertisement decoration, etc.
Classification of Ceramics by Application:
|
Applications |
Types |
properties |
Examples |
|
Glasses |
Container,window, mirror,lenses |
Non crystalline silicates, influenced by oxides such as CaO,Na20,k20, andA1203, unique response to heating |
Bottles, camera lenses, smart phone screens |
|
Clay products |
Structural products (bricks, tiles,sewer pipe, whitewares porcelain,chinaware, pottery) |
Made from abundant clay material ease of production |
Roof tiles, dinnerware, bath room fixtures |
|
Refractories |
High temperature resistance.inertness in severe environments.thermal insulation |
Capable of withstanding extreme temperatures without melting or decomposing |
Kiln linings, furnace walls, space shuttle heat shields |
|
Abrasive ceramic |
Hardness, wear resistance, toughness,refractories |
Used for grinding, cutting, or wearing away other materials |
Grinding wheels, sandpaper, cutting tools |
|
Cement |
Form a slurry that sets and hardens when mixed with water, can be used as bonding phases |
Virtually any shape can be formed when mixed with water |
Concrete, plaster of paris, mortar |
|
Advanced ceramic |
Newly developed and manufactured for specific applications exploiting electrical, magnetic, and optical properties |
Electrical, magnetic, and/or optical properties capable of being fine tuned for specific applications |
Heat engines, ceramic armors,electronic packaging |

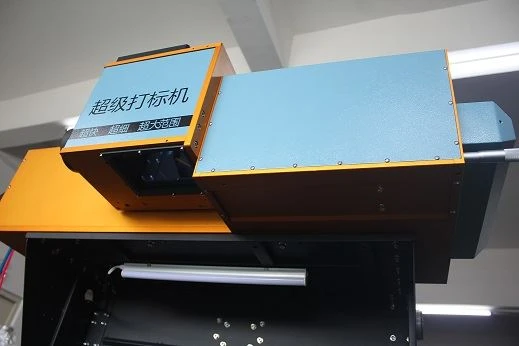

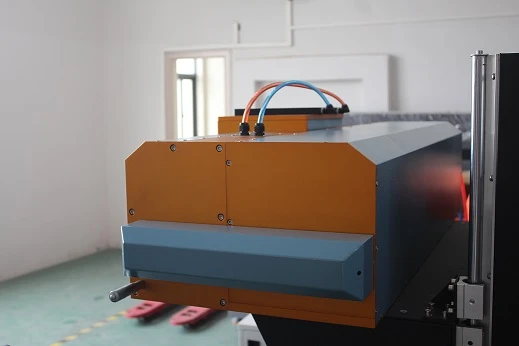

Machine's size

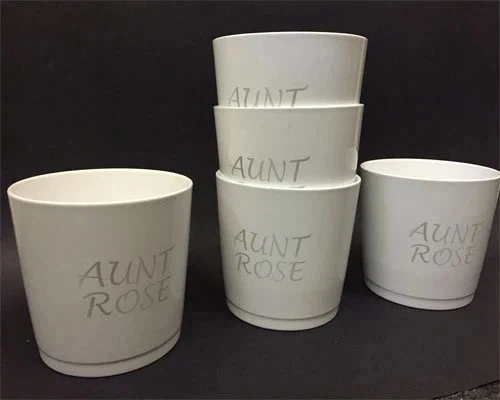

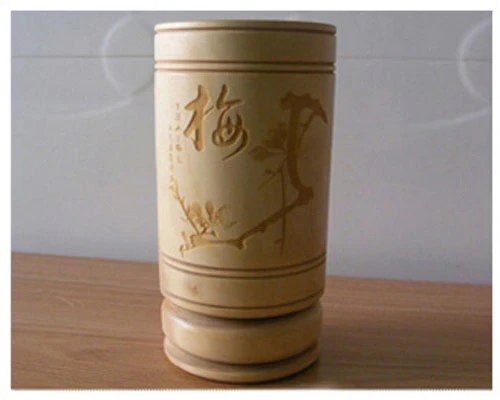

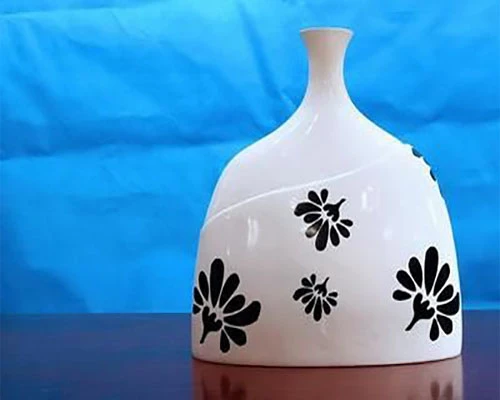

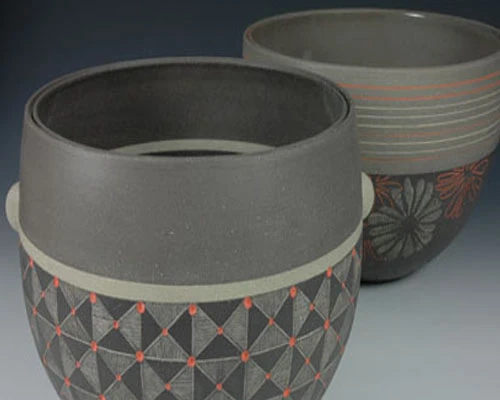

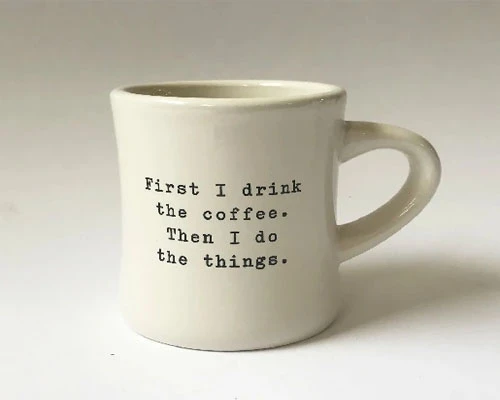

Samples Of Laser Marking Machine

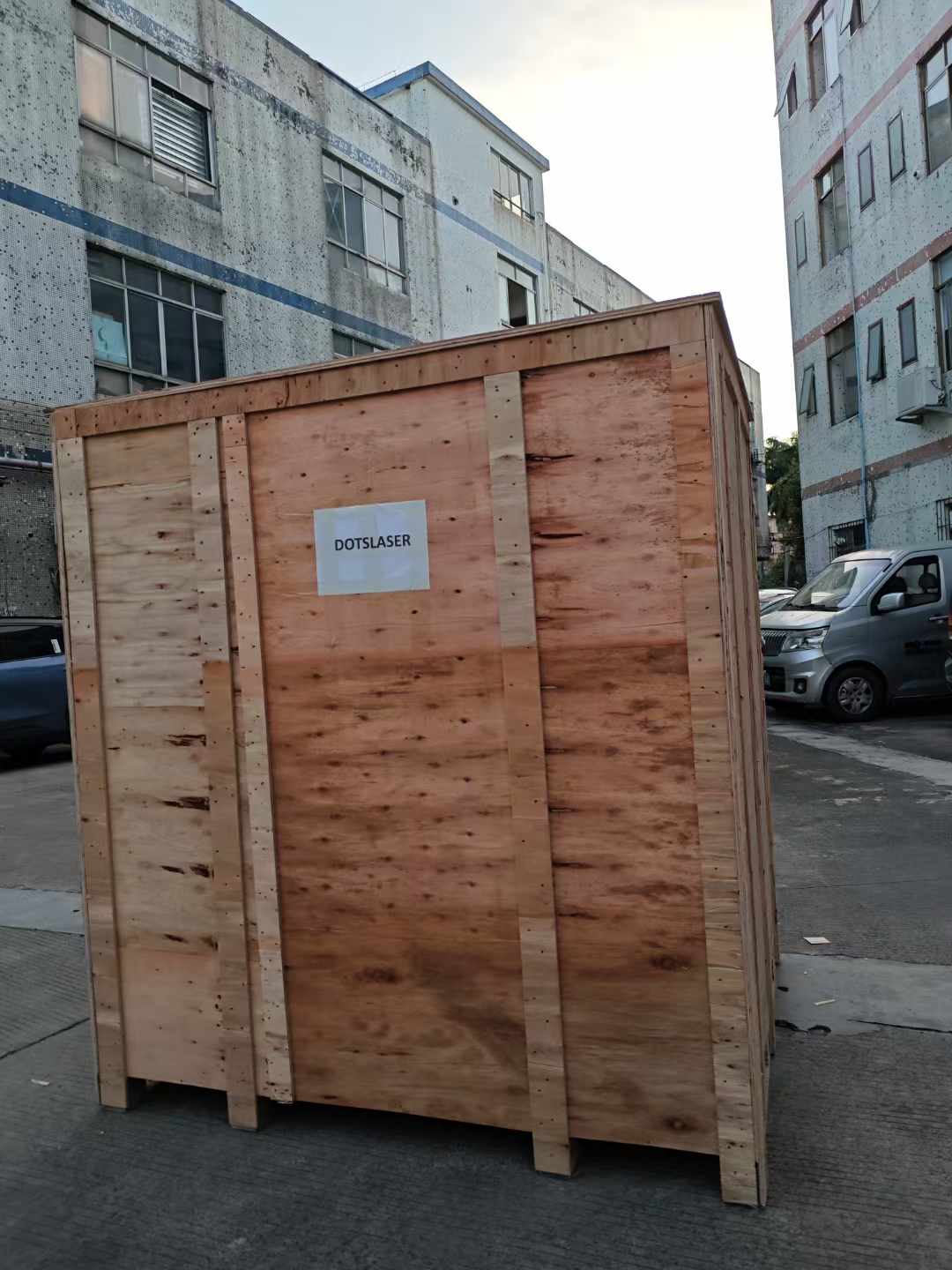

Shipping and package
1. Quality assurance and after-sales service
The warranty period of the equipment shall be 12 months since the equipment be used by the customers, the installation and debugging is completed and the equipment is accepted by the demander. Dotslaser attaches great importance to the after-sales service work of the product, once the product is delivered to the user, the company immediately established the user after-sales service file, and regularly track the user's product use status, solve and answer all the problems of the user, received the user's notification information about the equipment failure, the company's workers can make a rapid response within 2 hours. If the telephone guidance is difficult to troubleshoot, our company's technical staff can arrive at the customer site within 24 hours to provide support.
2. Installation and debugging
Before machine installation, our factory will offer you a basic structure installation file,the good need 2 weeks delivery to you there , the engineers of Dotslaser will arrive at your site and inspect the machine again. Comfirm all the conditions meet the installation and commissioning requirements of the equipment, the equipment will transport in time. The installation and commissioning time of the equipment is about five working days, the first three days are connected to the use of the system, and the system is operational after the service project. The engineer will train qualified operators on basic maintenance procedures and general operating characteristics of the equipment in the next two days
3. Service support
If there has any problem with any part of the system during the warranty period, Dotslaser well-trained service engineers are ready to provide cellphone call or begin on-site service,if the machine has any problem during the warranty period,please contact us directly !
