3D laser marking machine is suitable for 3D curved surface and stereo laser marking function, which can focus the fine spot within the height range of 60mm, so that the laser marking effect is consistent;

Send Inquiry

Product Introduction

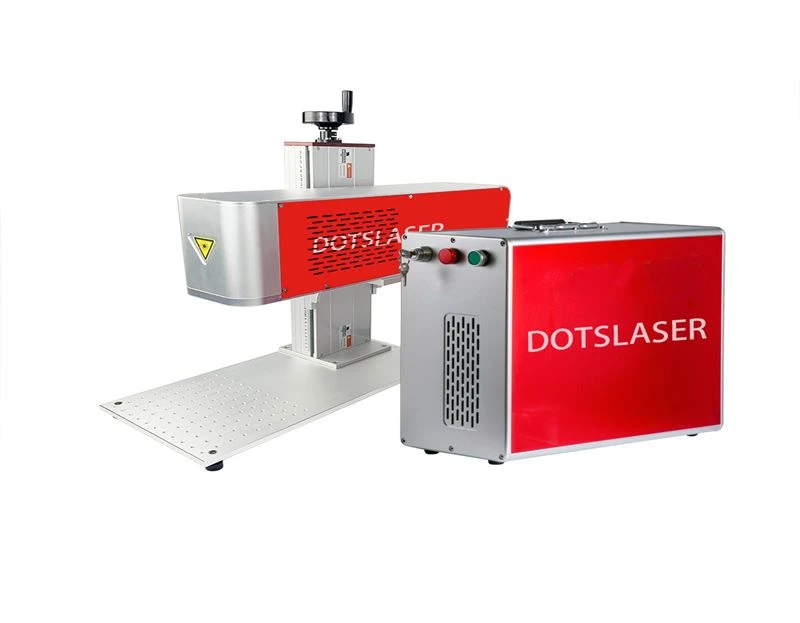

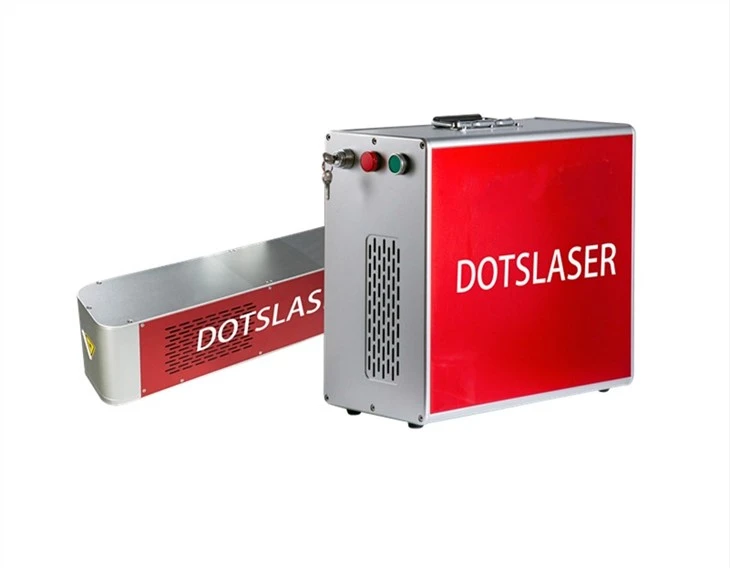

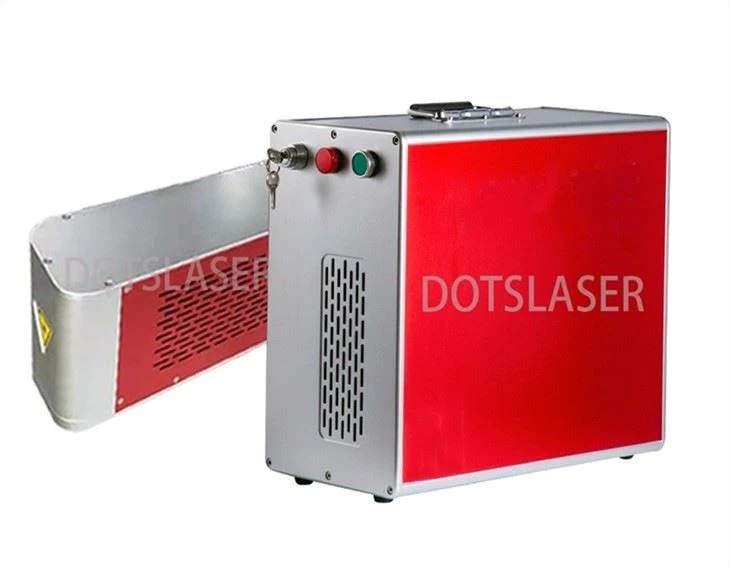

3D Laser Marking Machine

Products Description

The 3D Laser Marking Machine is suitable for 3D curved surface and three-dimensional laser marking functions. It can focus the fine spot within the height range of 60mm, so that the laser marking effect is consistent. It is also capable of large-format laser marking, marking any layer within a height of 60mm, with fine spot, and the same effect of long and short distance laser marking. At the same time, it can also complete difficult tasks such as deep engraving, color engraving, concave-convex marking, free-form surface engraving, etc.

Advantages

Many years of experience in the import and export of 3D Laser Marking Machine has laid the foundation for our understanding of domestic and foreign product standards and quality. We look forward to improving business relationships with customers and partners from different regions and expanding our business to serve more communities around the world. We build the company's famous brand and corporate image. The details determine the success or failure, we are in line with the attitude of starting from the details and take providing high-quality services for the society as the foundation of our development.

Features

Our 3D Laser Marking Machine adopts three-axis dynamic focus technology, digital three-axis dynamic focus technology, arbitrary zoom, real-time control, equipped with high-performance fiber laser, thickened marble table, so that the performance of the whole machine is stable. The marking speed is fast, and the marking effect is good.

Parameters

Model	DS-LM60-3D
Laser power	60W
Pulse Repetition Frequency	1-1000kHz
Beam quality(㎡	<1.6
Depth of engraving(depend on material)	<5mm
Power consumption	≤800W
Operating voltage	Single phase AC 220V/110V 50/60HZ 5A
Laser wavelength	1064nm
Working area	100×100×60mm,150×150×60mm,300×300×60mm
Repetition precision	±0.003mm
Max engraving speed	≤8000mm/s
Minimum line width	0.01mm
Marking method	Stationary Marking , Flying Marking , Rotary Marking
Character size	0.5-110mm
Cooling System	Air Cooling
Direction of Installing equipment	Any
Cable of Length	3m (5m optional)
Working Temperature Range	5-38℃
Working Humidity	20%-80%
Net Weight of machine	46kg
Dimension of Main Body(L×W×H)	480mm×215mm×450mm700mm×320mm×700mm

Why Choose 3D Laser Marking Machine?

Versatility:

Excellently marks not only flat surfaces but also curved, concave, convex, and irregular shapes, greatly expanding the variety of products that can be marked.

Marking Effect:

Specializes in both deep engraving and intricate relief work, adding significant depth and rich texture to markings, enhancing both functionality and aesthetics.

Marking Scope:

Capable of handling larger marking areas and dynamically focusing across surface height variations, ensuring consistent marking quality over diverse shapes and sizes.

Efficiency:

Offers unparalleled precision and efficiency, ideal for complex and detailed marking requirements where quality cannot be compromised.

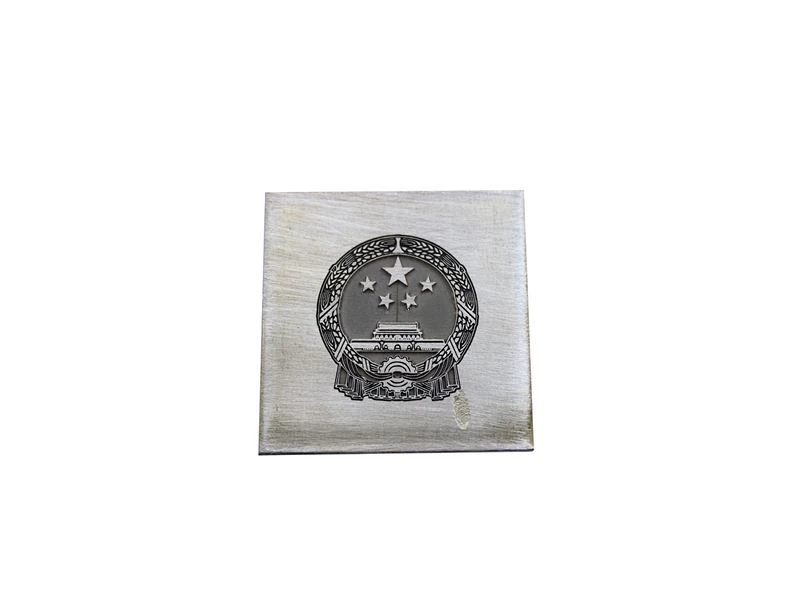

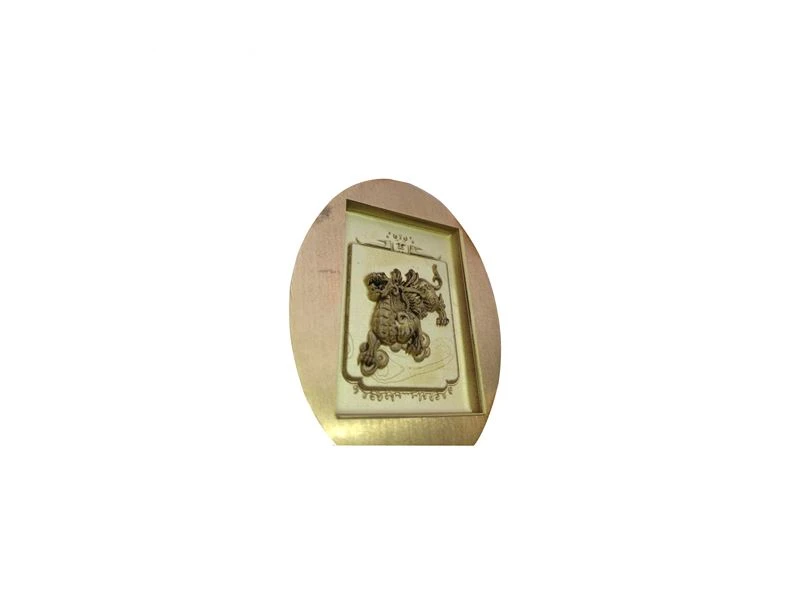

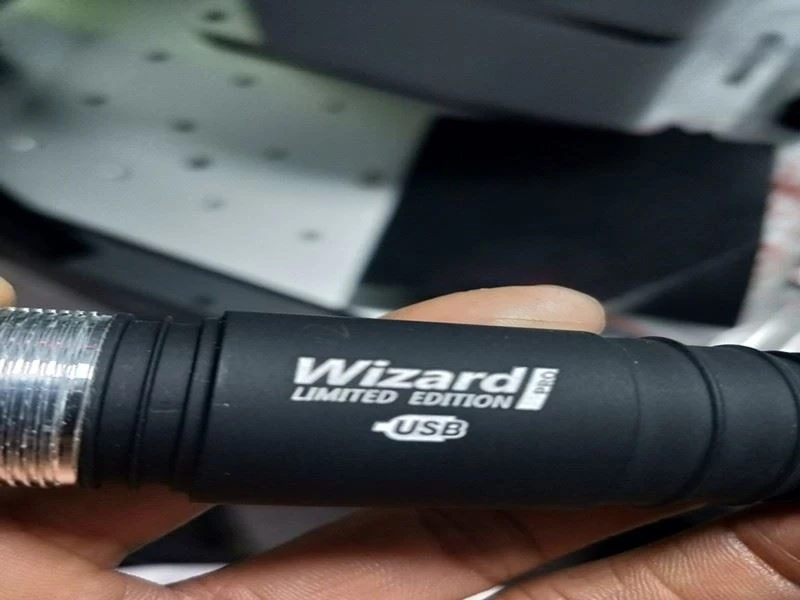

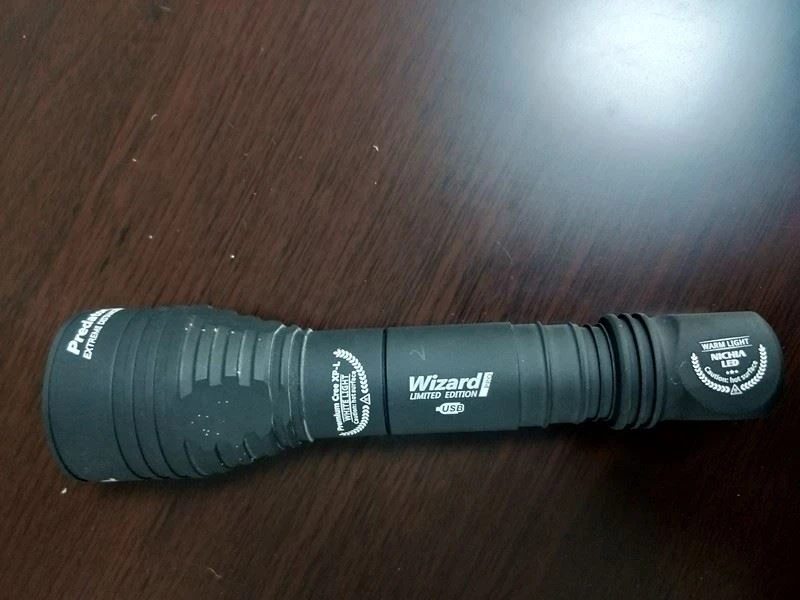

Samples

Packages

FAQ

Q1:What is the principle behind laser markers?

A: Laser light is amplified by reciprocating motion between reflection mirrors in the oscillator. The amplified laser light is emitted from the output mirror, and focused on a target surface through the fiber laser lens. The laser marker works by moving the focal point on the X-Axis, Y-axis with individual scanners.

Q2:Can laser markers create color contrast on marked parts?

A: Depending on the type of material, color contrast can be achieved. YAG/YVO4 lasers are advantageous over CO₂ lasers in color development, although it depends also on compatibility with the resin material.

Q3: What's consumables of laser marking machine?

A: It does not have consumable. It's very economical and cost effective.

Q4:How is the shipping way?

A: As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the machine to your office as per your requirement .
