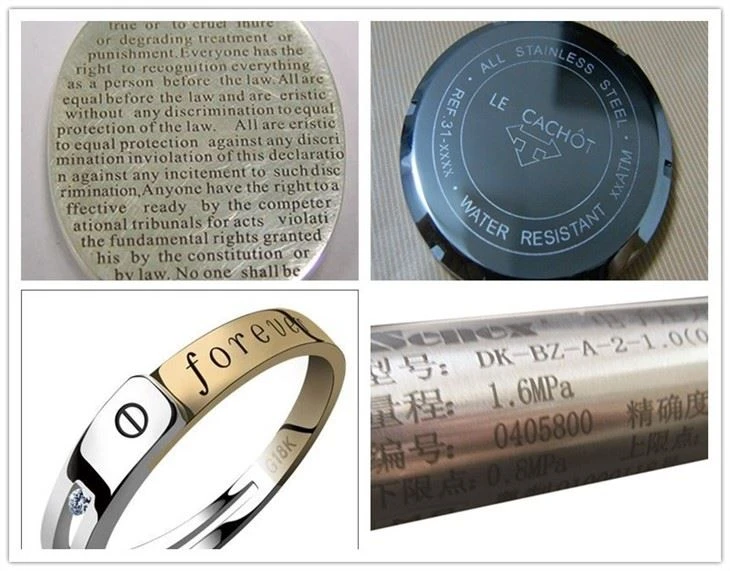

Laser Etcher For Metal is widely used for metal engraving, such as stainless steel, iron, aluminum, copper, etc. It does not produce mechanical extrusion or mechanical stress on the material, which is non-toxic, and rarely causes environmental pollution.

Send Inquiry

Product Introduction

Laser Etcher For Metal

Products Description

A laser etcher for metal is a type of laser marking system specifically designed to engrave or mark metals, such as aluminum, stainless steel, brass, copper, titanium, and other alloys. Metal laser etching uses either fiber lasers or CO₂ lasers.

Machine advantages

High precision: With high-quality beam characteristics, fiber lasers engrave or mark metals with high resolution and narrow line widths, even can deal with the smallest and most intricate details.

Speed: Due to short pulse durations and high peak powers, fiber lasers can achieve fast marking speeds, reducing production time and enhancing productivity.

Flexibility: Fiber lasers can create various types of marks, such as engraving, annealing, or color change, depending on the metal's properties and the desired outcome.

Low maintenance: Fiber lasers have a long lifespan and require very little maintenance, making them cost-effective for long-term use.

Minimal heat damage: Fiber lasers produce a minimal heat-affected zone (HAZ), thus maintaining the integrity of the surrounding material.

To choose a suitable laser etcher for metal, consider factors such as the type of metal to be marked, the desired marking effect, production volume, available budget, and any specific industry requirements, like following certain industry standards or regulations.

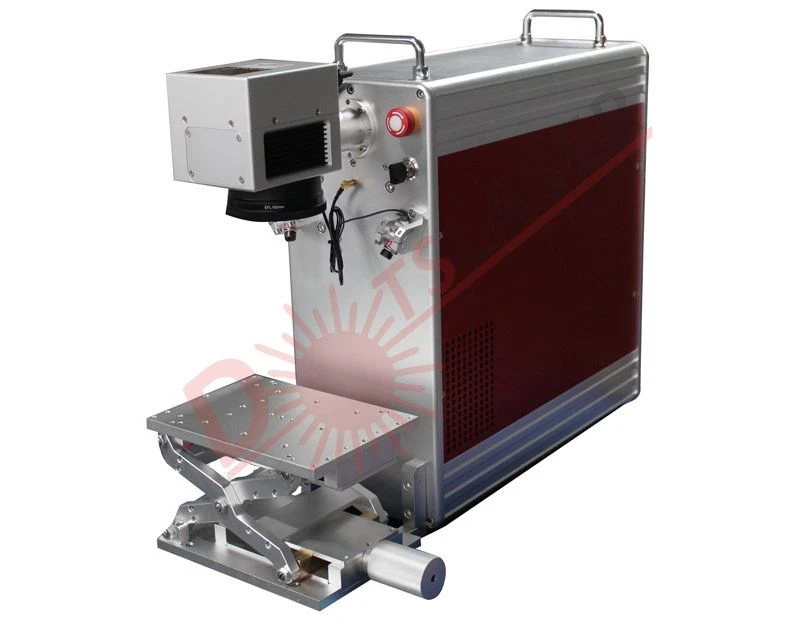

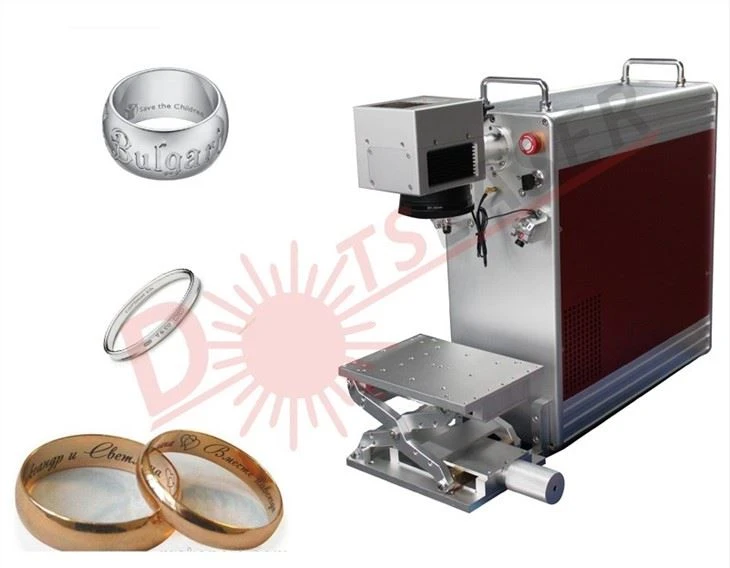

Protable laser

Technical Parameters

NO.	Name	Laser etcher for metal machine
1	Machine model	DS-LM20/DS-LM30/DS-LM50/DS-LM60/DS-LM80/DS-LM100
2	Laser power	20W/30W/50W/60W/80W/100W
3	Laser wavelength	10640 nm
4	Laser level	Class 4
5	Repeat accuracy	±0.001mm
6	Min.line width	0.01mm
7	Min.character size	0.15mm
8	Max marking speed	8000mm/s
9	Working area	100x100mm(standard)/200x200mm
10	Cooling	Air cooled
11	Working environment temperature range	5~35 ℃
12	Humidity range of working environment	< 70% No condensation
13	Working voltage	220V,50/60Hz

Main Components

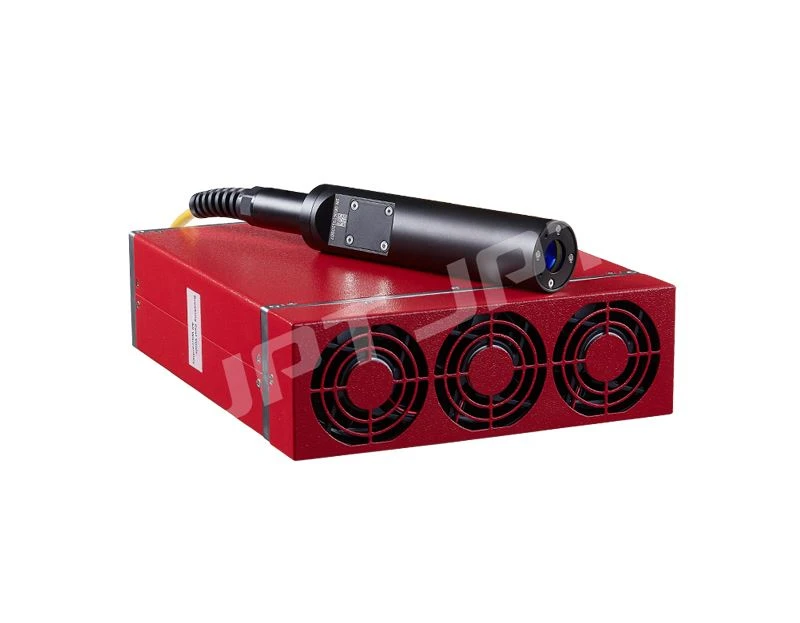

Mopa JPT lasers

JPT/Raycus/MAX laser source widely used for laser engraving with high quality and nice engraving result. It uses optical fiber transmission, with better energy transmission, good stability, good beam quality, stable output power, strong anti-interference, suitable for use in different environments.

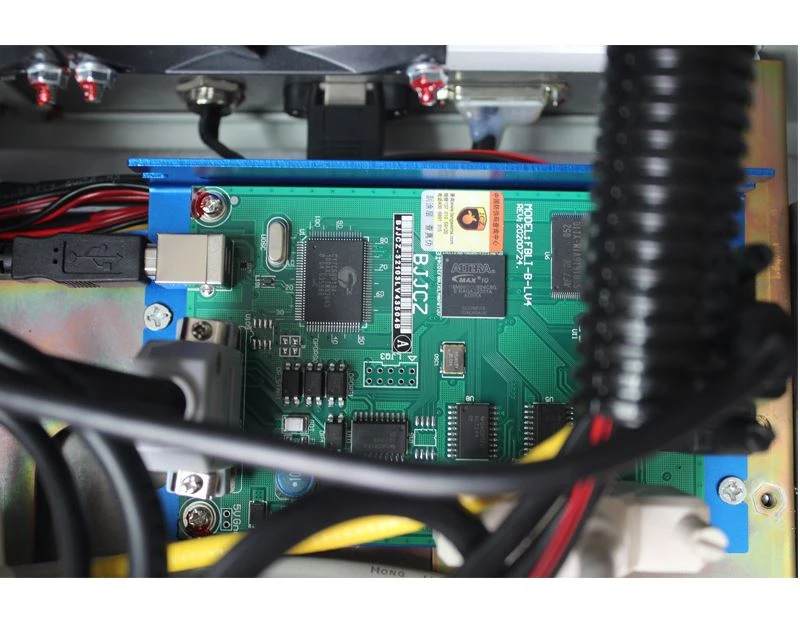

Digital control board enables smart input output to control laser working, stable and easy to connect. The control card is professionally produced by a domestic top brand company, with more than ten years of experience in the production of laser processing cards, with good product stability and easy integration.

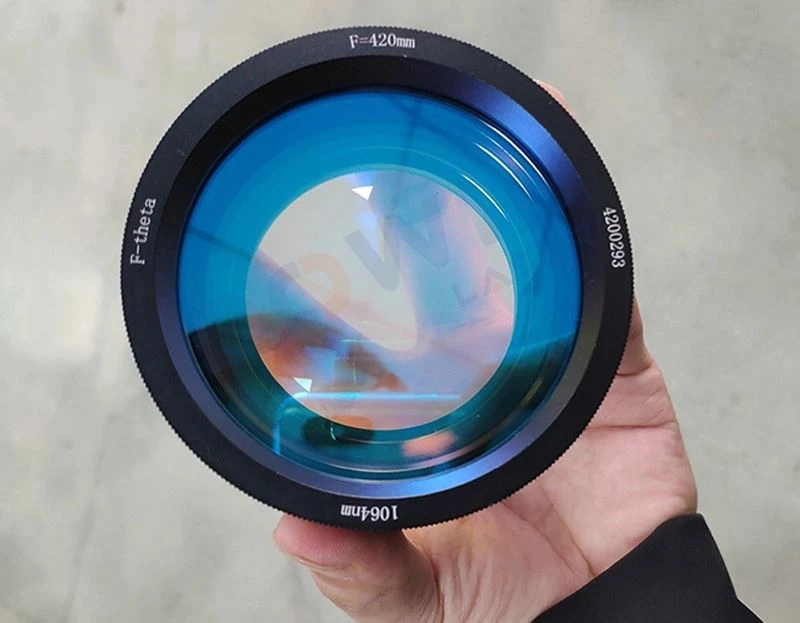

Laser Etcher For Metal can attach with different size lens, giving the customer different engraving area for small item or big parts. Using imported raw materials, the coating process is cumbersome, so that the lens has a better laser divergence angle and can withstand higher power.

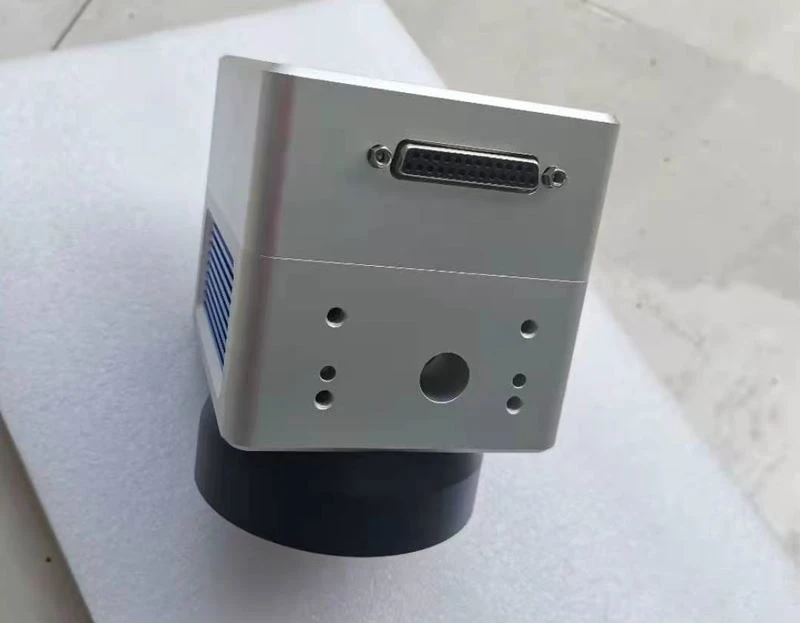

Speedy digital scan head: our machine is equipped with top brand scan head, and the marking speed can reach 8000mm/s, also the fly speedy scanner is feasible. Using high-power and high-speed motor, the swing angle is more accurate, and the imported driver card is used to make the communication more stable, scanning speed will be more stable, accurate and fast.
