CO 2 flying laser marking machine Products Description Dotslaser CO 2 flying laser marking machine adopts the most advanced closed continuous carbon dioxide laser source. The life of the laser tube exceeds 20,000 hours, which is especially suitable for laser marking, engraving and cutting....

Send Inquiry

Product Introduction

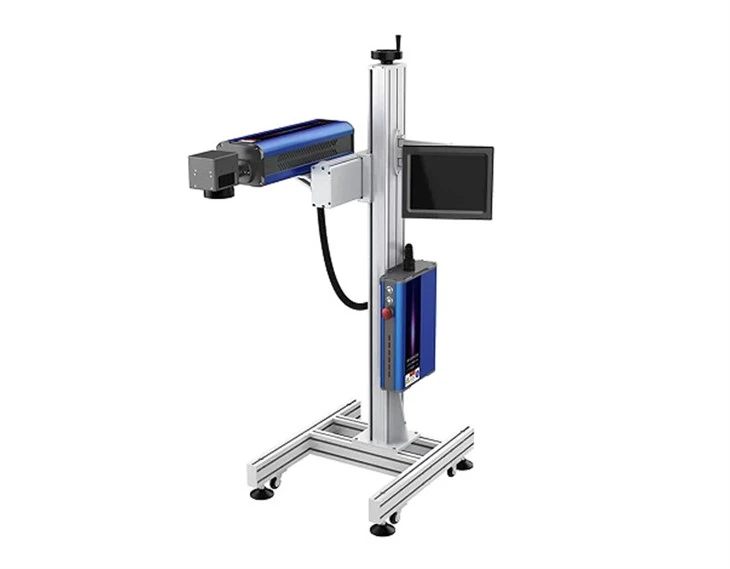

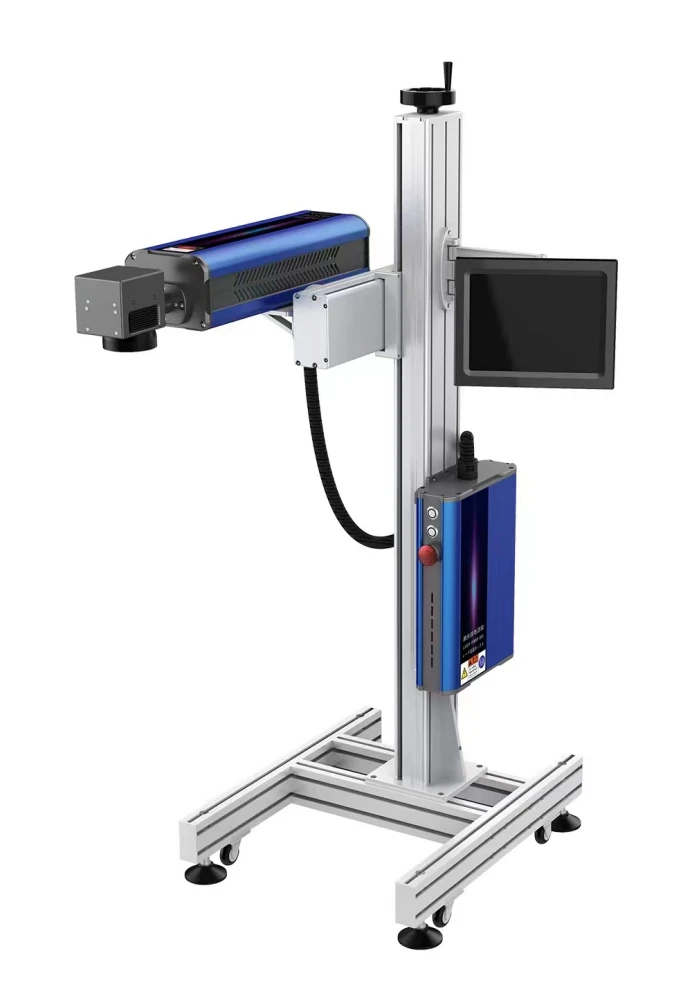

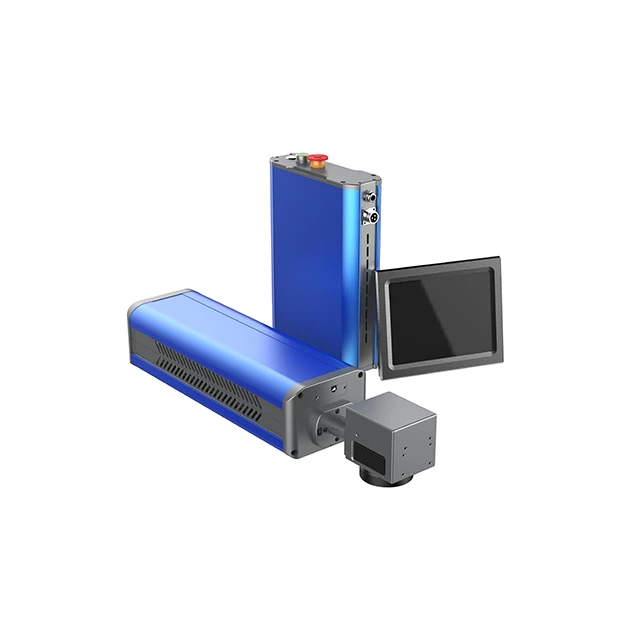

CO₂ flying laser marking machine

Products Description

Dotslaser CO₂ flying laser marking machine adopts the most advanced closed continuous carbon dioxide laser source. The life of the laser tube exceeds 20,000 hours, which is especially suitable for laser marking, engraving and cutting. Equipped with a dedicated encoder to realize online speed feedback. According to different parts, equipped with various optical fiber sensors for detection ,inductors, printed circuit boards, integrated circuits,electrical plug-incards,various instruments and control panels.

machine features

01/

Precise marking

CO₂ flying laser machine is equipped with high-performance high-speed galvanometer scanning system, so the marking

accuracy is high and the processing speed is fast.

02/

Wide applications

CO₂ laser machine mostly use in non-metallic materials,such as wood, paper,bamboo,stone,rubber, cloth,arcylic,plastic,ceramic,etc.

03/

Low Operational Costs

Ultra-fast response speed: port response time is nanoseconds, galvanometer and laser hardware control, real-time response,suitable for mass production.

04/

High efficiency

Flying laser marking Can achieve continuous and various total array coding, and can be edited arbitrarily.

Parameter

Model	DS-LMC30
Laser power output	>30W
Laser wavelength	9.3μm/10.6μm
Marking area	100x100mm(standard)
Pulse frequency	1~100KHZ
Max marking speed	12,000mm/s
Font format	Dot,single line,True type
Code format	Most 1D&2D codes available
Supported interface	USB,TCP/IP,RS219 for encoder and sensor
Beam quality	M²＜1.3
Repeat accuracy	±0.001mm
Min.line width	0.1mm
Min.character size	0.2mm
Cooling	Air cooled
Working temp	5~35℃
Power supply	AC220V±10%, 50HzorAC110V±10%,60Hz
Gross weight	90KG

Applicable industries：

Fly Marking on surface of various non-metallic materials and products, such as plexi glass,ceramics, plastics, synthetic materials, wood, rubber leather, paper products; Electronic industry: laser fly marking of capacitors.

How does flying laser machine work?

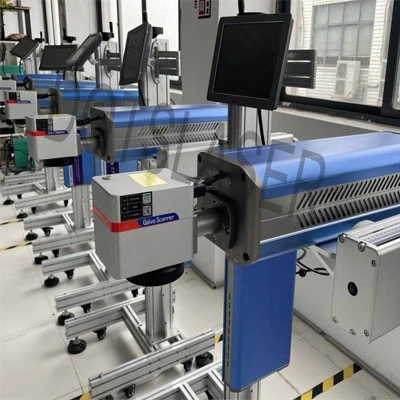

Flying laser marking means placing the products on the conveyor belt to follow the assembly line, cooperating with industrial automation, allowing them to pass through the laser machine and then automatically induction marking, It does not need manual loading, which is a manifestation of automation.

As the conveyor belt starts, the workpieces are conveyed one by one to the predetermined marking positions. During this process, the speed and positioning accuracy of the conveyor belt are crucial to ensure that each product arrives at the marking area within the appropriate time window.This can save much processing time and save a lot of labor cost just need one CO₂ flying laser mahine.

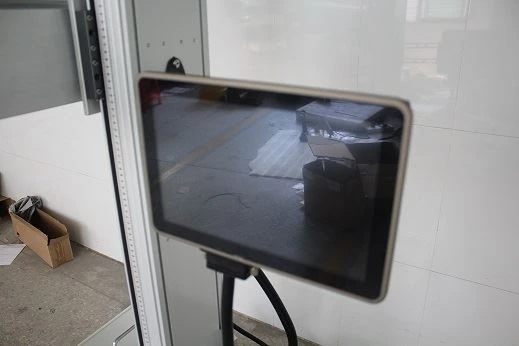

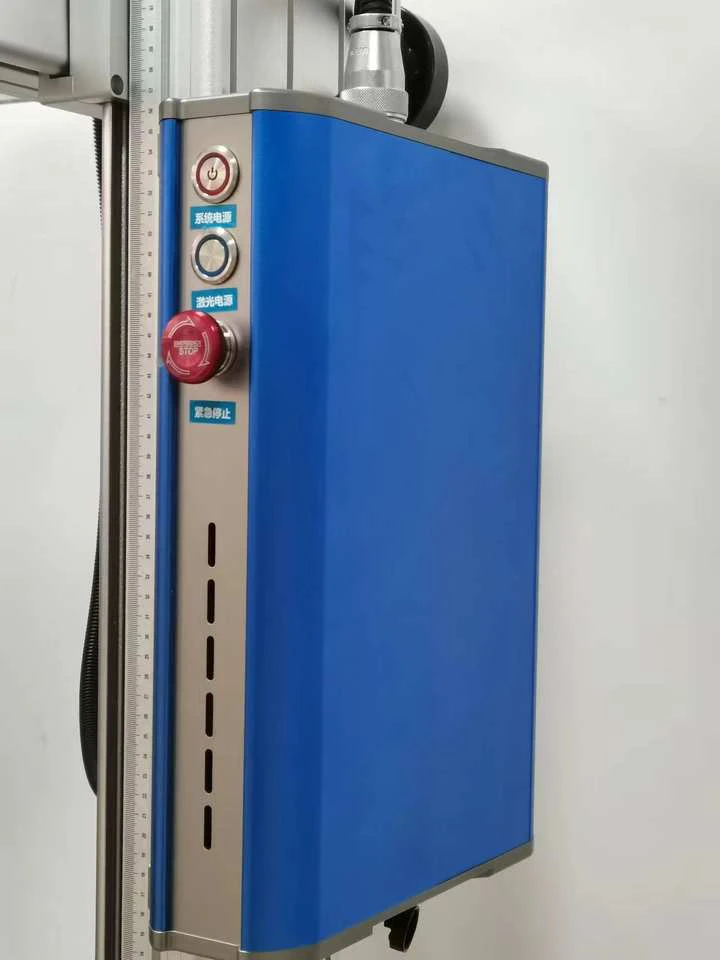

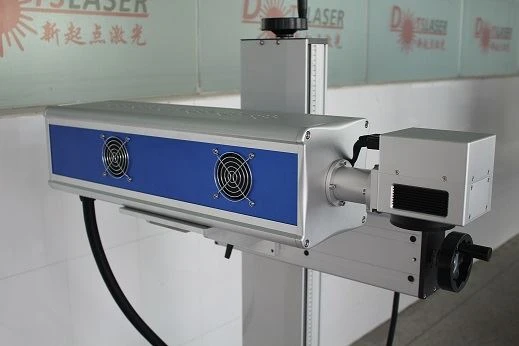

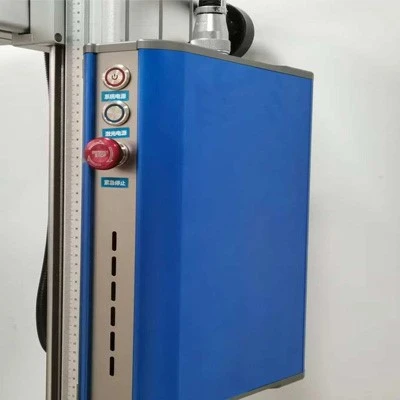

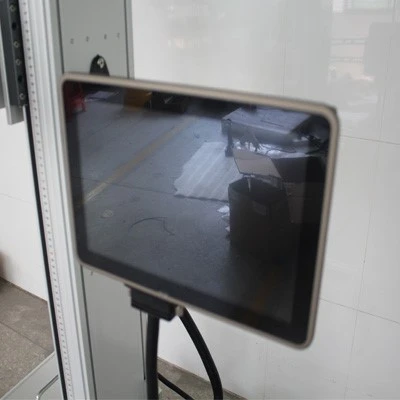

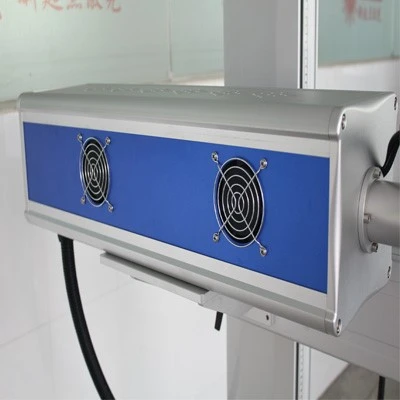

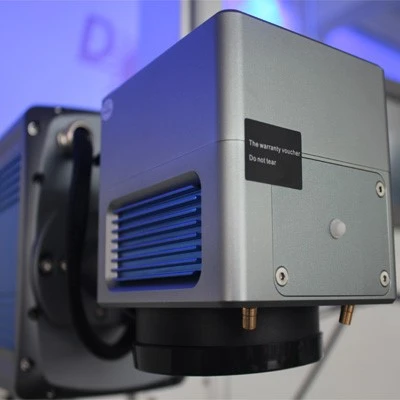

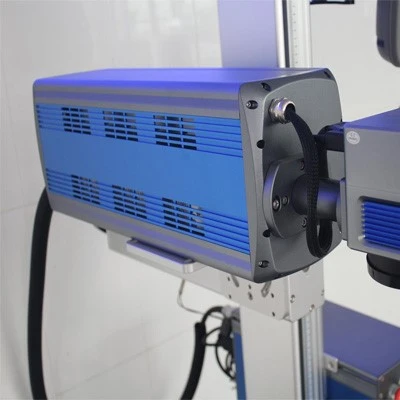

Machine components

Samples Of CO₂ Flying Laser Marking

Shipping and package

What's the superiority of flying laser machine ?

CO₂ flying laser marking machine is a high-speed continuous marking model designed to improve productivity. It uses COHENRENT industrial-grade metal RF CO₂ laser tube. It has good optical modes and fast processing efficiency. The marking speed of the production line is up to 200m/min ( Single-line 2MM-high numbers and letters), it provides high-speed, high-yield application identification requirements, it mainly used in production date, anti-counterfeiting, medical and food packaging industries.

This model supports functions such as automatic encoding, serial number, batch number, date, barcode, two-dimensional code, automatic number skipping, etc., to meet the needs of customers in different industries.
