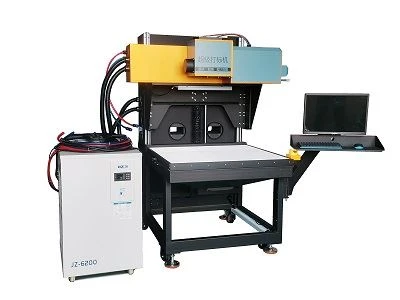

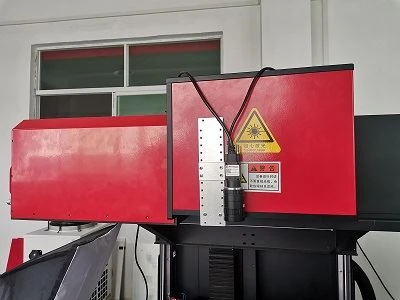

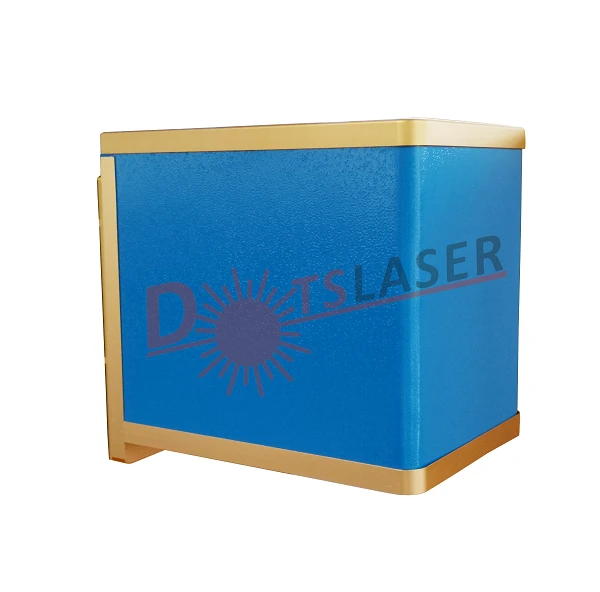

CO2 Laser Marking On Acrylic Products
CO2 laser marking on acrylic products
Products Description
The CO2 laser marking machine creates accurate and long-lasting markings on acrylic materials. It simplifies the labeling, identification, and branding of products as we incorporate a top-quality laser source and super galvanometer scanner. The laser marking process is environmentally friendly, as it eliminates the need for harmful ink or chemicals that may cause harm to the surroundings.
Basic feature
| Versatile: CO2 lasers are versatile tools that are capable of cutting, engraving, and marking a wide range of materials. |
| Precise: CO2 lasers produce clear, precise engravings with a frosted white finish,it is increase processing efficiency and save many labor cost. |
| High-quality: CO2 lasers can create high-quality, high-resolution, sharp images and other shapes items. |
| Customizable: Laser engraving enables high levels of customization, which makes it possible to create unique and personalized items. It's a special way to start engraving some meaningful gifts for your friends and family. |
| Durable: Laser marking creates permanent marks that can provide product authentication and reliability. |
| Large bed sizes: CO2 lasers often have large bed sizes and can work on materials that are even larger than the bed of the machine,this is suitable for producing mass production. |
Parameter
|
Laser tube parameters |
Max Output Capacity | 250W |
| Nominal Peak Powe | ≥450W | |
| Mode Quality | M2≤1.2 | |
| Duty Cycle Limit | ≤70% | |
| Laser Type | CO2 | |
| Laser Wavelength | 10.6μm | |
|
Marking performance |
Marking Format |
Pattern,Word,Bar code,QRcode,Date,Serial Number |
| Marking Character Types | Pattern and words of vectordiagram & bitmap | |
| Marking Area | 400X400-700X700(mmXmm) Adjustable | |
| Marking Depth | 0-5mm (According to the materials) | |
| Marking Speed | <7000mm/s | |
| Min Line Width | 0.3mm(According to the materials) | |
| Min Character | 0.4mm | |
| Repeat Positioning Accuracy | 0.01mm | |
| Machine information | Total Power | ＜6KW |
| Power Supply | AC220V/50Hz/30A | |
| Cooling Way | Constant temperature water cooling unit | |
| Working Temperature | 15-30℃ | |
| Working Humidity | <75 No condensation | |
| Working Environment | Without dust, without vibration | |
| Machine Packing Size | 1010*1340*1740mm | |
| Control cabinet packing size | 1060*660*1100mm | |
| Chiller packing size | 660*760*1080mm |
The Three Axis Dynamic CO2 Laser Marking Machine is widely used in the arts and crafts, leather products, glasses, clothing, bamboo and wood products industry, packaging, advertising decoration, and architectural modeling.
Magnifying glasses and lenses: Nothing can compare to their transparency, and they are cheaper than glass, making them a cost-effective option for transmissive optical devices.
Security barriers: Acrylic panels are used as an alternative to glass barriers for security purposes. However, acrylic bulletproof sheets typically have low UL ratings, typically ranging from 1 to 3. If the protection against ballistics is the top priority, another plastic material should be considered.

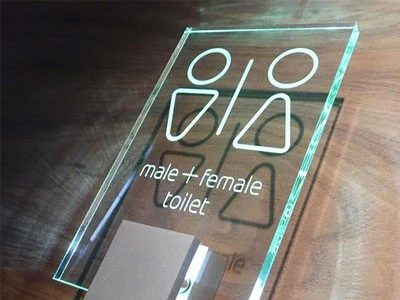

Signages: Acrylic blanks are often used to create signs, nameplates, displays, and plaques..
Windows: In addition to lenses, acrylic panels are utilized for the creation of windows, enclosures, skylights, and tanks.
Displays: Custom displays can be achieved using acrylic as it's inexpensive compared to polycarbonate and other plastics.

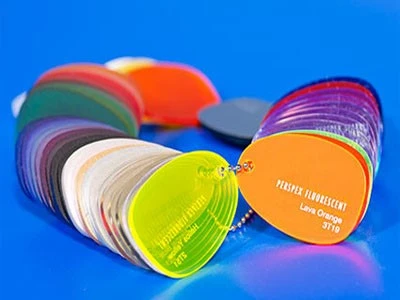

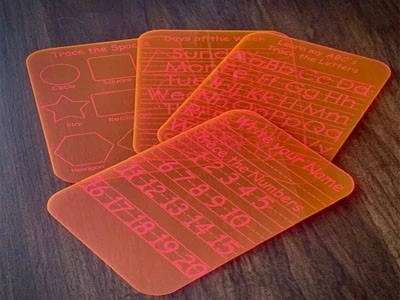

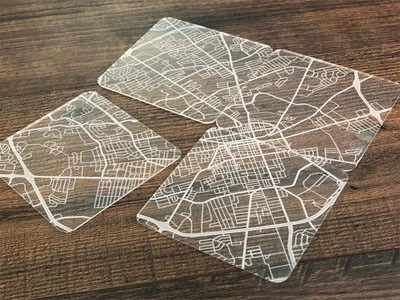

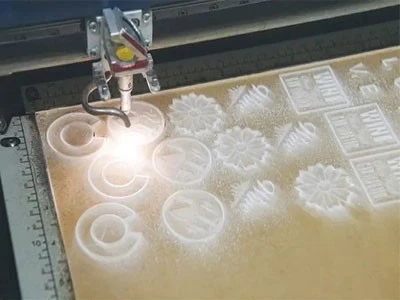

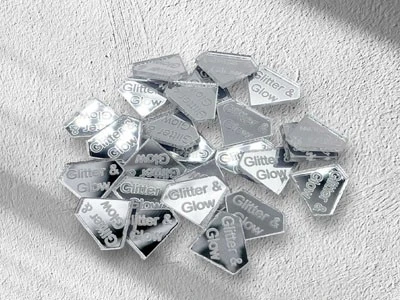

Samples Of Laser Marking Acrylic products

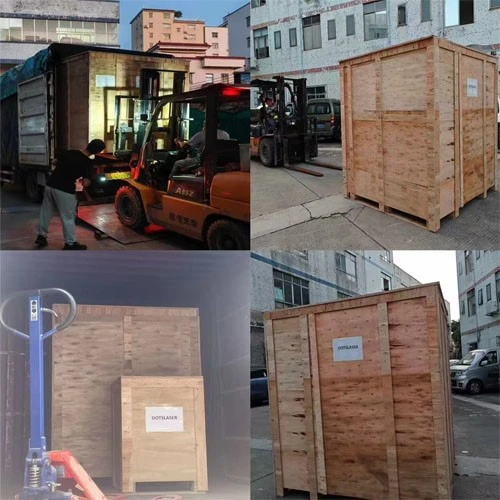

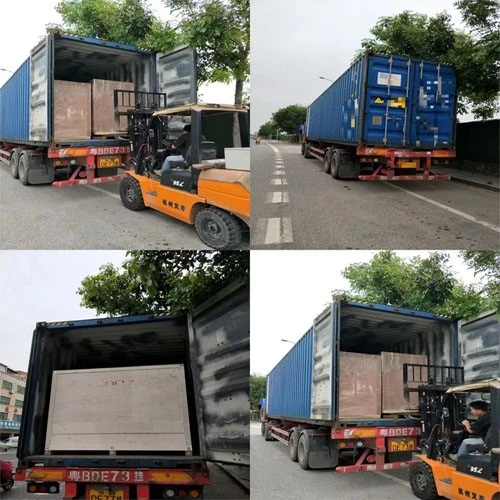

Shipping and package
Unpacking caution:
Every marking machine has been rigorously tested at the factory, only qualified product for shipment. When you receive the freight, please check as follows. If you have any questions, please contact the agent or staff at DOTSLASER.
● Whether there is damage or deformation during transport.
● Confirm that all of the items on the packing list are correct.
● Confirm that the model of the product matches the nameplate(Operating voltage and KVA number).
● Make sure that all clamps are tight and that there are no foreign objects in the device.
● Confirm the operation buttons, switches are normal.
