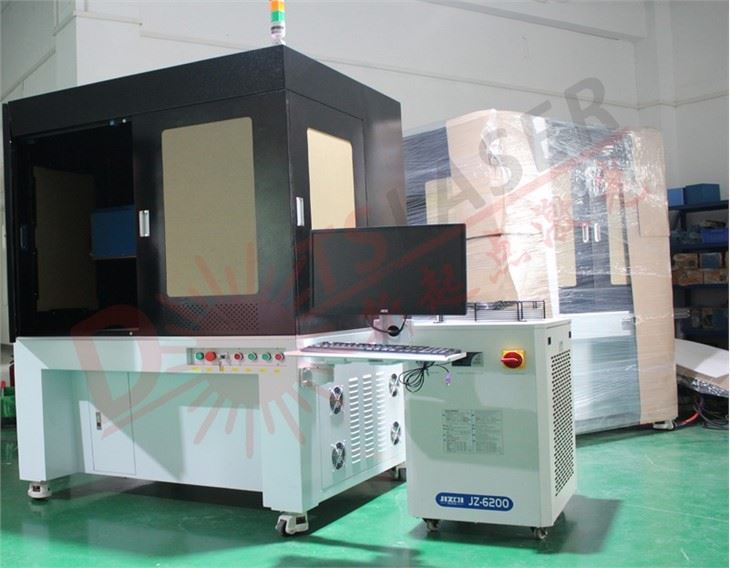

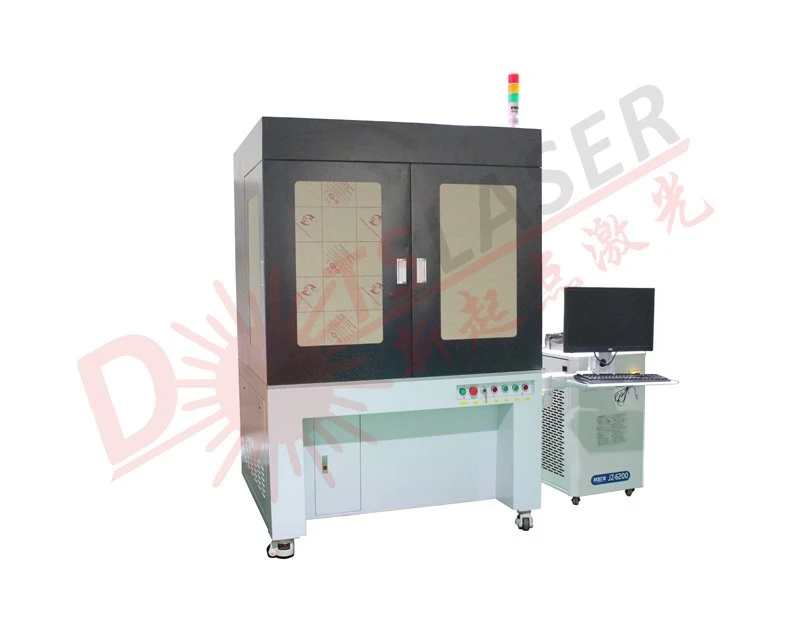

CO₂ Galvo Laser Cutter
CO2 Galvo Laser Cutter
Products Description
The CO2 Galvo Laser Cutter is a high-end laser cutting machine that is used across various industries for precision cutting tasks. The machine utilizes the latest CO2 laser technology and high-speed galvanometer scanning heads to deliver unmatched cutting performance and accuracy.
Basic features
|
1. High-Speed Galvanometer Scanning Heads The CO2 Galvo Laser Cutter is equipped with high-speed galvanometer scanning heads that enable it to deliver faster cutting speeds compared to other laser cutting machines. The scanning heads are capable of moving at a speed of up to 20 meters per second, ensuring that the machine can handle even the most complex cutting tasks easily. |
|
2. High-Precision Cutting The CO2 Galvo Laser Cutter is designed to deliver high-precision cutting with a maximum accuracy of 0.01mm. The machine is capable of cutting through a wide range of materials, including acrylic, wood, leather, fabric, and more. The high-precision cutting capabilities of the machine make it ideal for use in industries such as fashion, footwear, and automotive. |
|
3. Large Cutting Area The CO2 Galvo Laser Cutter features a maximum cutting area of 1200 x 1200mm, making it ideal for cutting large sheets of material. The machine also comes with a honeycomb table that offers excellent exhaust performance, ensuring that there is no residue from the cutting process left on the material. |
|
4. Easy to Operate The CO2 Galvo Laser Cutter is easy to operate, making it accessible to both novice and experienced users. A user-friendly interface that allows users to control its various functions easily. It also has automatic focusing and calibration, which eliminates the need for manual adjustments, saving time and effort. |
|
5. Durable and Reliable The CO2 Galvo Laser Cutter is built to last, with a sturdy frame made from high-quality materials. The machine's components are also of excellent quality, ensuring that it delivers consistent performance over a long time. Additionally, the machine's engraving and cutting capability can last up to 30,000 hours. |
The CO2 Galvo Laser Cutter is an advanced laser cutting machine that delivers exceptional performance and accuracy. Its high-speed galvanometer scanning heads, large cutting area, and user-friendly interface make it an excellent choice for anyone looking for a reliable and efficient laser cutting machine.
Configurations details
1. Advanced CO2 RF laser tube
Common CO2 lasers are divided into glass tube CO2 lasers and metal RF tube CO2 lasers. Our equipment uses metal RF tube CO2 lasers. Metal RF tube CO2 lasers use sealed CO2 lasers, the so-called sealed CO2 lasers. , refers to the light-through hole of the laser (that is, the place where the plasma is formed and the laser is generated) and the working gas are sealed in the same tube, which is different from the flowing gas laser system with higher output power, which requires an external Air tank, air pump and filter.
Dotslaser adopts an all-metal structure for the first time. Its laser tube and electrodes are all made of aluminum and then welded. This structure design has low manufacturing cost, long-term stability and reliability, and also the earliest metal tube lasers.

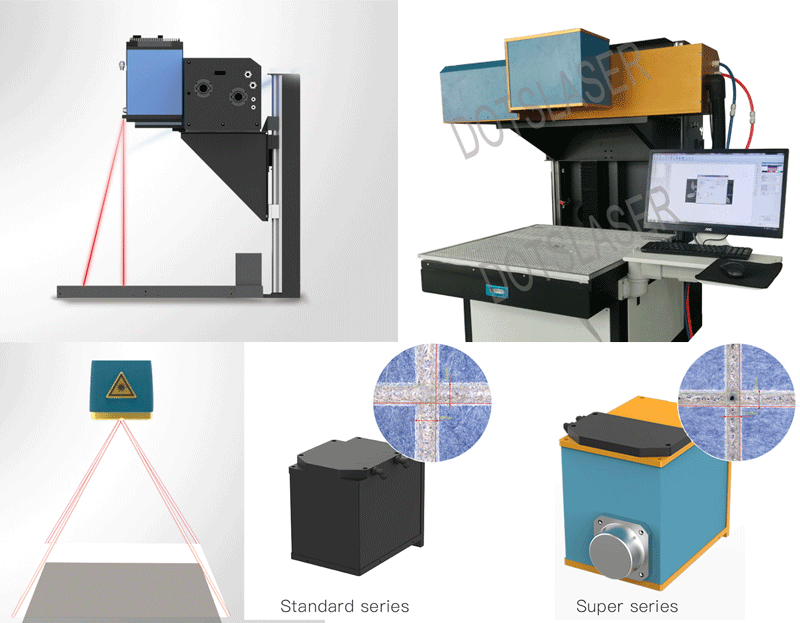

2: dynamic scanning head system and optical system
DOTSLASER employs a complete digital control system to operate the galvanometer mode with high stability and durability. It features a powerful motor and large galvanometer optics, which produce a smoother beam with superior quality. Additionally, the three-axis dynamic focusing system enables processing of broader, more uniform, and flawless lines.
The dynamic focusing system works by coordinating the XY galvanometer to collimate and expand the laser beam and modulate the focal length, achieving precise focusing of three-dimensional space coordinate points. This enables real-time laser processing with dynamic focusing capabilities.

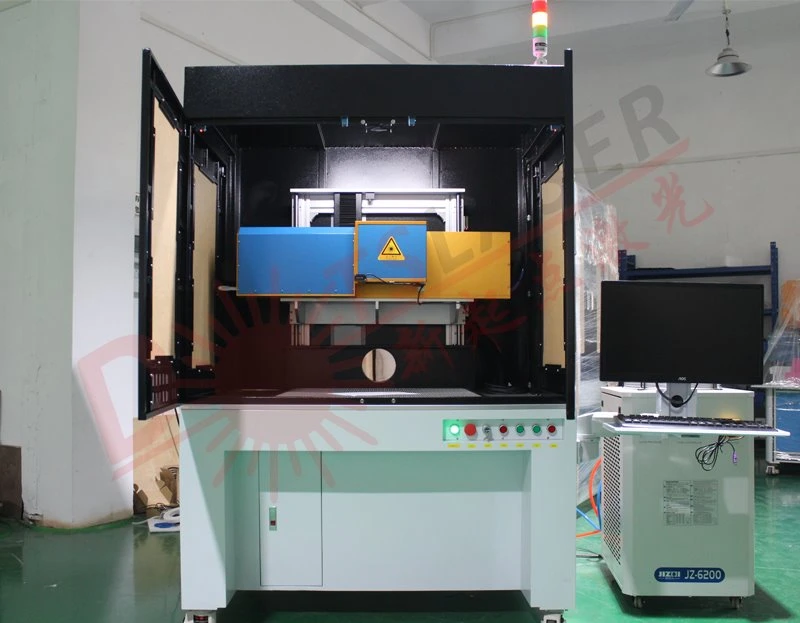

3: Perfect ergonomically designed Class 1 safety cover
The patented installation cover, exclusively designed by DOTSLASER, offers a spacious usage area, safety doors on all sides, and large viewing windows for operators to easily observe the machine's working status.
Outstanding accessories support:
product key technologies
Red point positioning system
The Red Point Positioning System is a helpful visual alignment tool for operators to accurately position the laser prior to engraving or cutting. It projects a red dot pointer onto the material, making it easy for the operator to visually confirm the precise location and alignment of the laser beam.
Galvo field lens
The Galvo field lens plays a crucial role in the Galvo laser system, as it focuses the laser beam onto the material for optimal engraving quality with maximum intensity. This lens is designed to effectively focus the beam over a large working area, which makes it ideal for high-speed marking or large-area engraving applications that require consistent performance.
stable and easy-to-learn operating software system
The laser equipment software developed independently by Dotslaser for dynamic system control is suitable for multiple languages and equipment, supports secondary development, and seamlessly integrates with external equipment. The software is easy to operate, stable, and user-friendly. The article should remain positive, avoiding negative content.
Main parameters
|
NO. |
Name |
DS-LMC series Galvo laser system |
|
1 |
Machine model |
DS-LMC250/DS-LMC350 |
|
2 |
Max laser power |
250W/350W |
|
3 |
Laser wavelength |
10.6μm |
|
4 |
Beam quality |
＜1.2㎡ |
|
5 |
Duty cycle limit |
≤60% |
|
6 |
Min.line width |
0.22mm(depend on the material) |
|
7 |
Min.character size |
0.4mm |
|
8 |
Max marking speed |
≤8,000mm/s |
|
9 |
Working area |
1200x1200mm |
|
10 |
Cooling |
Water cooled |
|
11 |
Working environment temperature range |
5~35 ℃ |
|
12 |
Humidity range of working environment |
< 70% No condensation |
|
13 |
Power supply |
220V,50/60Hz |
|
14 |
Power consumption |
＜6KW |
1. A CO2 laser is a high-powered laser that operates using Carbon Dioxide gas. These lasers are used for a wide range of applications across many different industries.
2. CO2 lasers widelu use in the realm of industrial cutting and welding. The powerful beams generated by these lasers can cut through a variety of materials with high precision, including metals, plastics, and even wood. They are also used by artists and craftsmen to engrave materials with intricate designs and patterns.
3. CO2 lasers are also effective in scientific research, particularly in the fields of physics and chemistry. They can be used to excite atoms and generate light, which can then be analyzed to gain insights into the properties of matter at the atomic level.
Samples show
|
Common Materials: All Metals,Ceramic,Coated Stainless Steel,Fabric. Glass,Leather, Paper, Wood
Industrial Uses: Automotive Accessories Electronic Components Household Products Industrial Manufacturing Medical Device Textile Machiner Aerospace Industry Shoemaking Industry Woodwork Industry Advertising Industry
|
