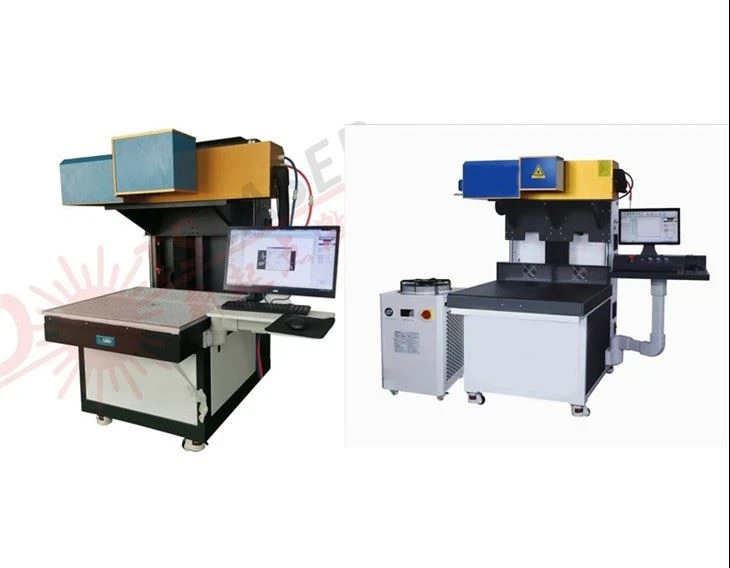

Large Frame CO₂ Laser
Large Frame CO2 Laser
Products Description
A large frame CO2 laser is a professional-grade, industrial laser cutting and engraving machine, that has been designed for applications involving larger materials and more complex designs. They are typically larger, more powerful, and feature higher precision compared to smaller, desktop lasers.
Basic feature
| A. High-Power, Rapid Marking This high-performance marking machine is powered by a laser source that delivers strong and consistent output, making it perfect for quickly marking and engraving even the most challenging surfaces. Thanks to its lightning-fast speed, this CO2 laser marking machine streamlines production and boosts process efficiency, helping to get the job done at a rapid pace. |
| B. Advanced Beam Quality The high-quality beam enhances the machine's precision and control over both depth and accuracy. This improved beam quality enables detailed marking with minimal surface distortion and ensures consistent outcomes. |
|
C. Adjustable Focal Length and Adjustable Power The CO2 laser marking machine boasts a versatile range of capabilities, including adjustable power settings and focal length, that can be customized to fit the unique needs of any project. With this level of flexibility, users can enjoy precise control and adaptability across a multitude of tasks and industries. |
| D. User-Friendly DOTSLASER Software The machine comes with intuitive, feature-rich software that simplifies the design and marking process. The software is compatible with numerous file formats and offers advanced options like serial numbering, QR code generation, and geometric shape creation. |
| E. Reliable Cooling System Equipped with water or air cooling systems, the CO2 laser marking machine maintains optimal performance even during prolonged usage. This built-in cooling capability allows for reduced downtime, making the machine ideal for high-volume production environments. |
Main paramters
| Model: | DS-LMC150,DS-LMC250,DS-LMC350 |
| Aperture of galvo head: | 30mm/50mm |
| Wavelength: | 10640nm |
| Laser power: | 150W/250W,350W |
| Working area: | 400x400mm/500x500mm/600x600mm/750x750mm |
| Max marking speed: | 8000mm/s |
| Repeat accuracy: | ±0.001mm |
| Min.line width: | 0.22mm |
| Min.character: | 0.35mm |
| Cooling: | Water cooling |
| Power supply: | 220V±10%,50/60Hz |

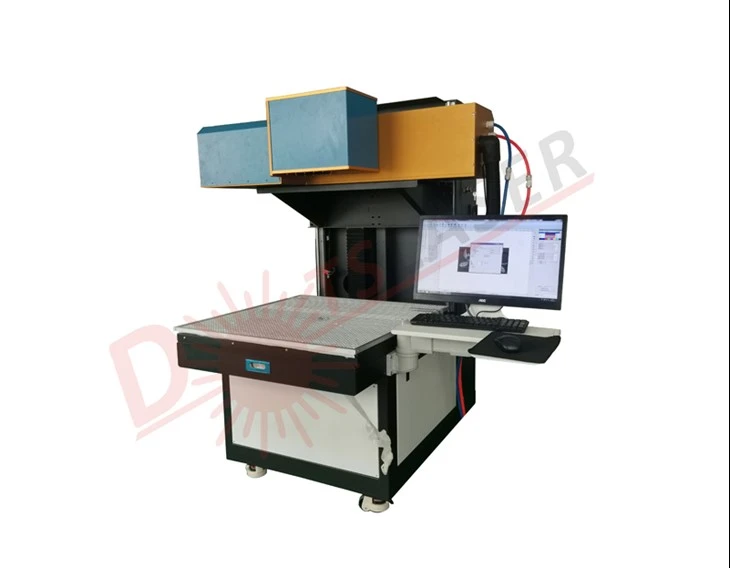

large frame CO2 laser machine
Professional machine Work principle:
The principle behind a CO2 laser is pretty simple, focusing on the relationship between light and heat. The CO2 Laser works by directing a beam of light through a series of mirrors, finally focusing it through a lens, onto the material to be cut.
As the beam hits the material, it heats it up to the point where it vaporizes, leaving behind a precise cut. In other instances, the beam is used to engrave designs (such as lettering or logos) into the material.
What Materials Can it Cut?
A large frame CO2 laser can easily cut through a variety of materials, including leather, wood, acrylic, rubber, plastic, and even some metals (such as stainless steel).
This versatility makes it perfect for a wide range of applications, including sign making, industrial prototyping, branding and organizational materials, among others.
A large frame CO2 laser comes with a variety of benefits, including precision, accuracy, and speed. These machines are highly efficient when it comes to cutting large sheets of material, making them ideal for industrial use. The precision levels of a large frame CO2 laser are unparalleled, rendering fine details accurately onto the material being used.
In summary, a Large Frame CO2 Laser is an essential piece of equipment that is required in many modern industries such as manufacturing, architecture, and signage. The precision, accuracy, and speed of the machine make it a sought-after tool for handling large projects.
Samples show
DOTSLASER SERVICE
custom service
Email: dotslaser@info.com
Tel/whatsapp/wechat:+86 15920503408
high quality
Our business tenet is: "Customer First, Quality First, Reputation First". Customer's satisfaction is our greatest driving force. We always think about what customers think and what customers want, and provide customers with perfect products as much as possible to maximize their benefits."
Shipping and Package
Daily maintenance
● After finishing work, make sure the floor is clean. Then clean the machine including the surface of the machine, the case of the optical system, the surface of the monitor, the work table, and so on.
● Please turn off each part and main power supply when they are clean.
● Check the lens regularly for dust. When it's clean, use the cotton wool with greater than 95% medical grade alcohol to wipe clockwise from the center of the lens. When you need to move the machine to avoid bumps. Check the connection cable according to the cable list.
