Laser Engraving Transfer Film
Laser Engraving Transfer Film
Products Description

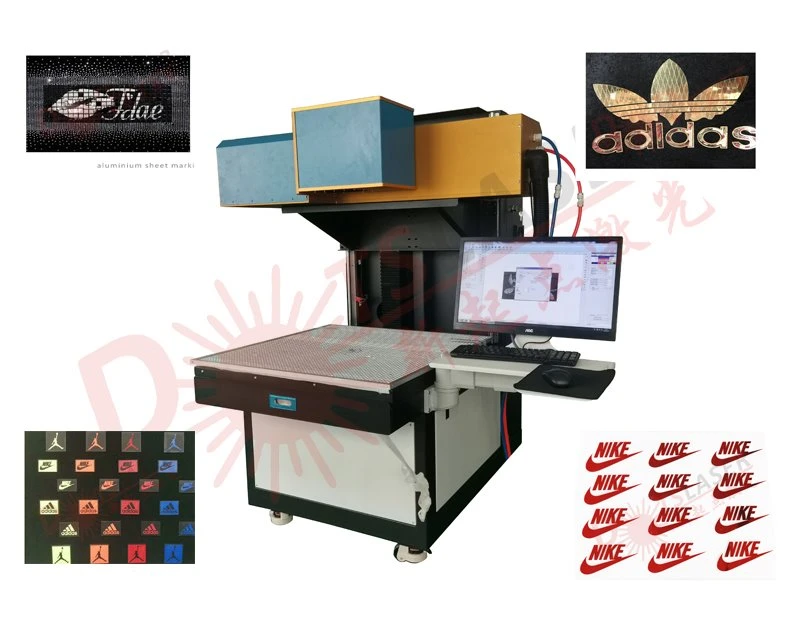

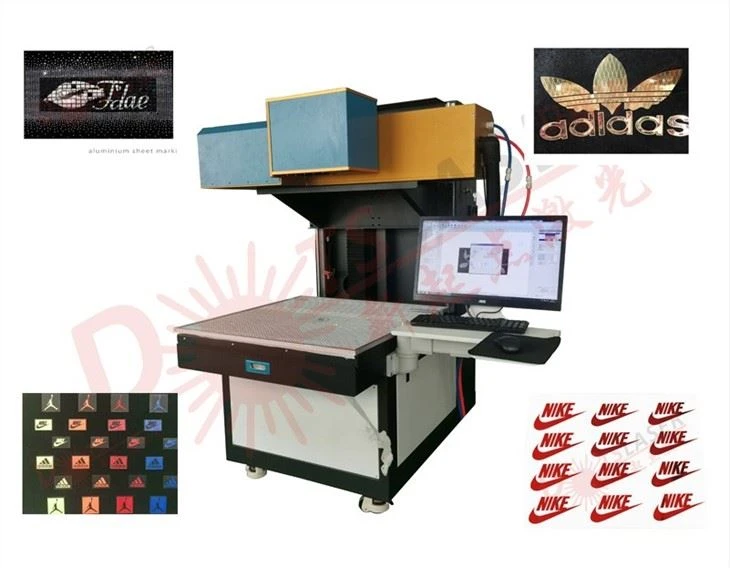

Laser engraved heat transfer film is a popular heat transfer material. It is completely different from the traditional screen printing mode. It has simple process, no plate making and high environmental protection standards. It has been widely used in jersey printing, personalized T-shirts, and advertising shirts. Painting, clothing, garment printing and other industries. The lettering film laser marking machine has good stability, adopts a fully enclosed optical path, imported CO2 RF laser, and the laser power is stable; the quality is reliable, and the service life is more than 20,000 hours. Strict multiple protection control design to ensure the overall stability of the equipment.
Products Advantages
|
High Stability：Assembly with top brand accessories, such as laser source, galvo head, controller, product quality is highly stable. |
|
High Efficiency：Good beam quality, high conversion efficiency. |
|
Simple To Use：Easy to operate and learn. |
|
Customizable：We can research and develop design as you need. |
|
Dynamic：Dynamic focus to ensure engraving on complex objects. |
|
Large Working Area：Can be 400x400mm~1200x1200mm |
parameters of machine for Laser Engraving Transfer Film
|
NO. |
Name |
DS-LMC series Galvo laser system |
|
1 |
Machine model |
DS-LMC250/DS-LMC350 |
|
2 |
Max laser power |
250W/350W |
|
3 |
laser wavelength |
10.6μm |
|
4 |
Beam quality |
＜1.2㎡ |
|
5 |
Duty cycle limit |
≤60% |
|
6 |
Min.line width |
0.22mm(depend on the material) |
|
7 |
Min.character size |
0.4mm |
|
8 |
Max marking speed |
≤8,000mm/s |
|
9 |
Working area |
1200x1200mm |
|
10 |
Cooling |
Water cooled |
|
11 |
Working environment temperature range |
5~35 ℃ |
|
12 |
Humidity range of working environment |
< 70% No condensation |
|
13 |
Power supply |
220V,50/60Hz |
|
14 |
Power consumption |
＜6KW |

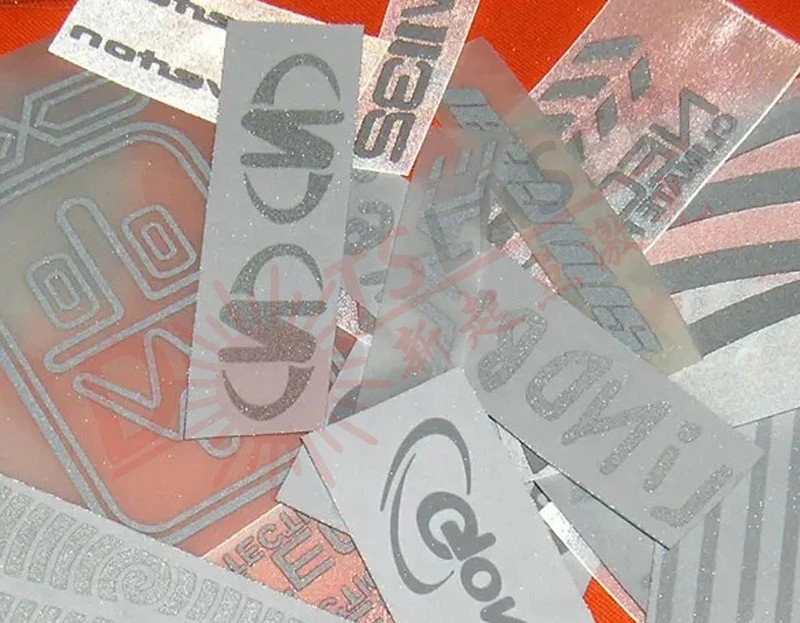

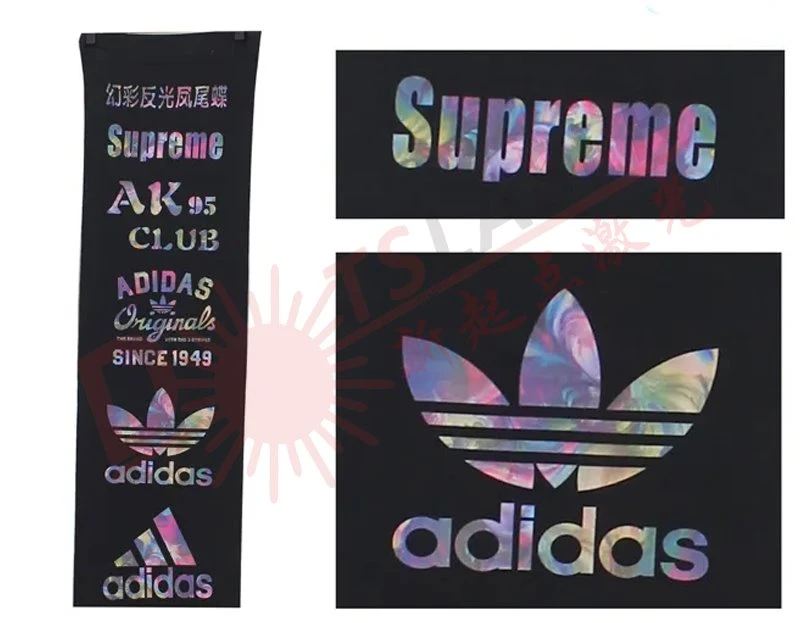

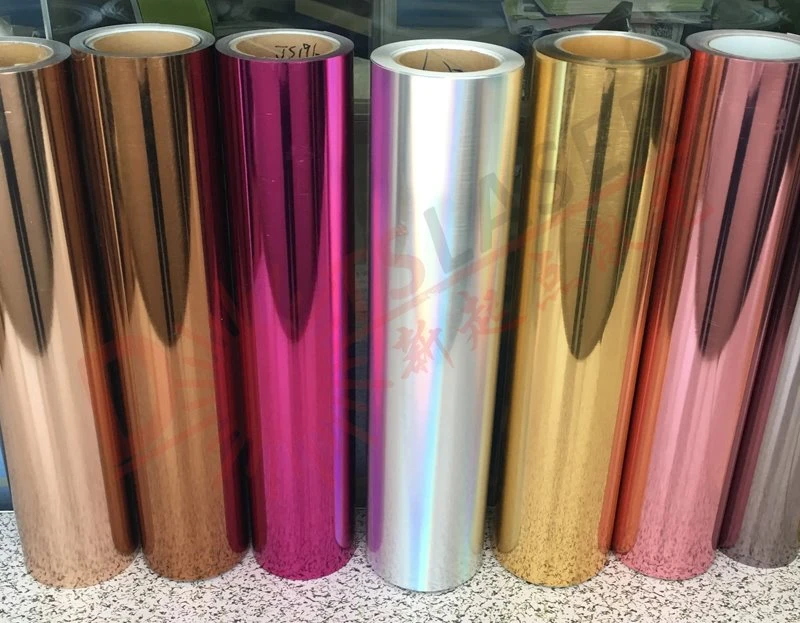

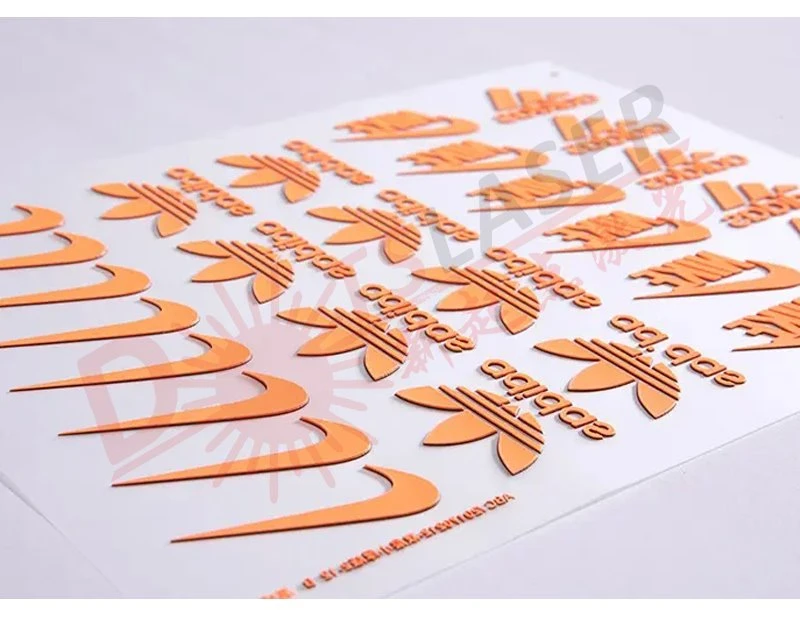

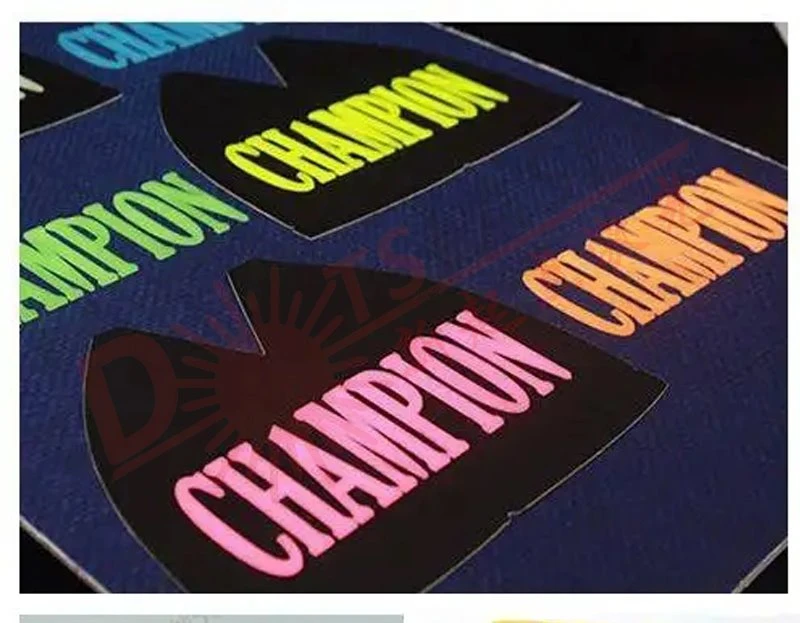

Samples show
Warranty and after-sales service
| 1. One year for laser source,and other accessories,such as motors inside galvo head,control board,power supply,consumable parts are not in warranty,such as lens, keyboard and mouse. |
| 2. DOTSLASER promises to maintain products which are produced and sent according to a formal contract,and guarantees every repaired machine will function good if used properly. |
| 3. DOTSLASER has the rights to repair or replace a product in warranty period if it has a material or technical problem. We will charge for the maintenance under normal circumstances. It will be free if the machine has special problems. |
|
4. DOTSLASER will not provide free warranty service in following cases: a: product or parts are damaged because of modification ,dismantlement ,improvement without permission ; b: product or parts are damaged because of emergency or negligence;product or parts are damaged because of lack of preservation ……customers have the responsibility to learn the directions on the user guide and operate the machine properly. Damages resulted in abnormal operation will not get warranty services. Accessories are not in warranty. |
| 5. Customers should make a written request in 30days as soon as they found a problem which is in the warranty range , no third party should be involved in the maintain process and products or part that are not produced by DOTSLASER should also not be included. |
| 6. Customers should make a written request in 30days as soon as they found a problem which is in the warranty range , no third party should be involved in the maintain process and products or part that are not produced by DOTSLASER should also not be included. |
| 7. All products waiting for repair or replacement should be placed in cases DOTSLASER provides,otherwise DOTSLASER will charge for the damage it may cause |
| 8. When customers receive DOTSLASER`s products, please check if the product is damaged and whether accessories is complete or not. |
| 9. DOTSLASER keeps on developing new products, information and parameters in this file may change. All technical parameters are subject to the contract. |
