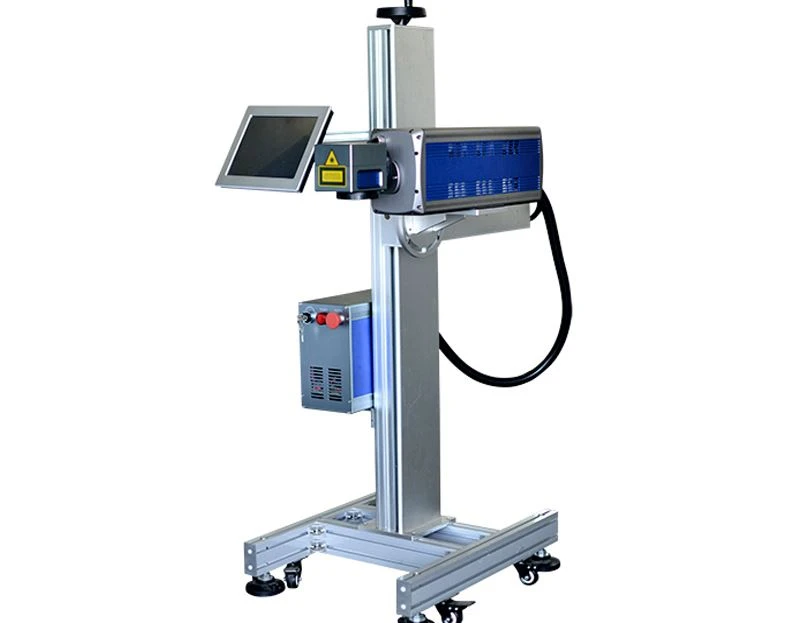

Fiber Laser Inkjet Printer

Name: China Fiber Laser Inkjet Printer Manufacturers, Suppliers and Factory - Customized Service - Dotslaser
Brand: DOTSLASER
SKU: 158494190

Fiber Laser Inkjet Printer is a necessary equipment for coding on the assembly line. The principle of this device is mainly to vaporize a layer of material on the surface of an object.

Send Inquiry

Product Introduction

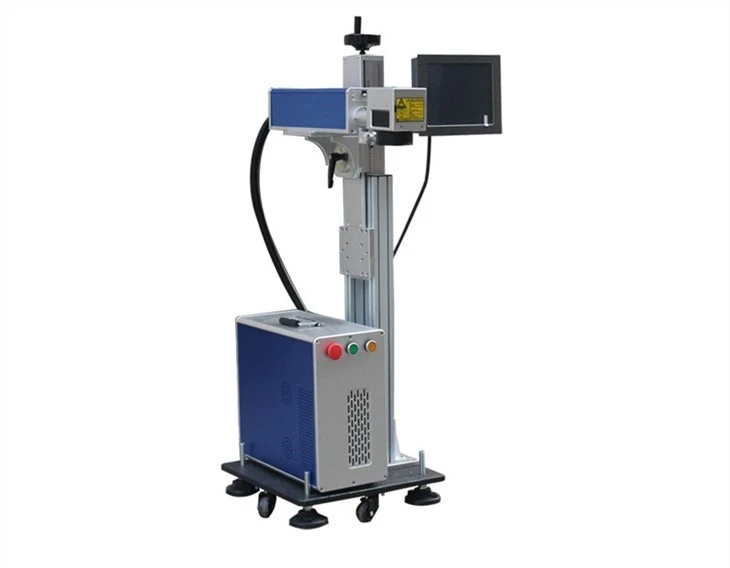

Fiber Laser Inkjet Printer

Products Description

Fiber Laser Inkjet Printer is a necessary equipment for coding on the assembly line. The principle of this device is mainly to vaporize a layer of material on the surface of an object. Our product has a simple and compact structure, adopts a simple control system, and has the characteristics of no loss, no pollution, and low operating cost. It prints clear and beautiful handwriting and is not easy to erase. Fiber Laser Inkjet Printer is mainly used for resin spraying, metal spraying, rubber spraying, etc.

Let us see the video of how does fiber laser inkjet printer work.

Products Features

why choose our products?

1.Easy to operate: It supports languages exchange, and also supports single-line characters, double-line characters, artistic characters, dot matrix characters and other fonts. Special fonts can also be edited according to actual needs.

2. Convenient: Support editing letters, numbers, dates and other information, and have powerful graphic editing functions.

3. Non contact: It adopts the internationally popular online non-stop high-speed laser marking technology, non contact and pause. It is suitable for high-speed fiber lasers for various metal packaging materials and some non-metal packaging materials. Two-dimensional code, bar code machine.

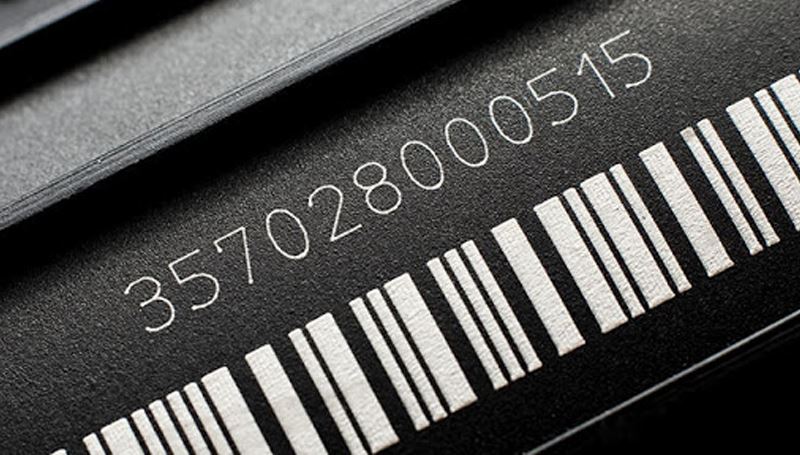

4. Versatility: can play a certain anti-counterfeiting and anti-crossing function. It is widely used in wine, medicine, video, various papers, plastics, and so on.

Performance and parameter

Performance	Performance and paras	Model	DS-LM series
		Type	fiber laser inkjet printer

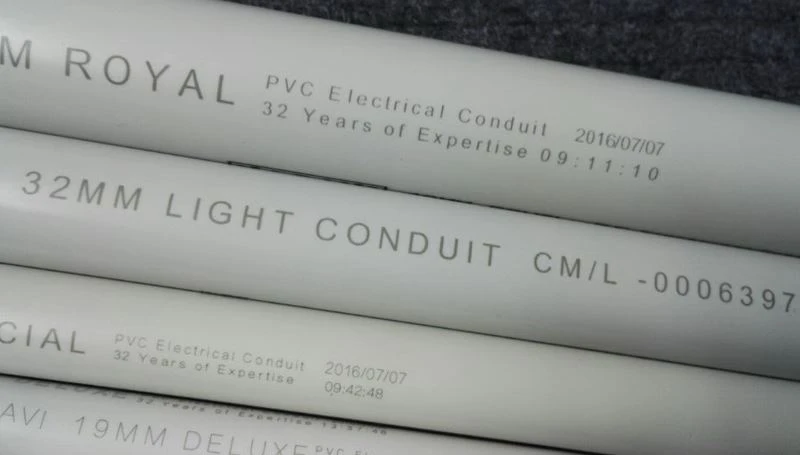

		Applicable industry	Food, beverages, alcohol, medicine, pipes and cables, daily chemicals, packaging, electronics, etc.
		Marking material	PET, acrylic, glass, leather, plastic, fabric, paper box, rubber, etc., such as mineral water bottles, edible oil, red wine bottles, food packaging bags, etc.
		Gross power	0.5KW
		Marking area	Depending on the focal length of the selected lens
			F=254mm marking area：160mm×160mm
			F=160mm marking area：100mm×100mm
		scaning speed	12,000mm/s
		Min.line width	0.15mm
		Single engraving depth	≤0.05mm
		Repeatability	±0.03mm
		Minimum character	0.3mm

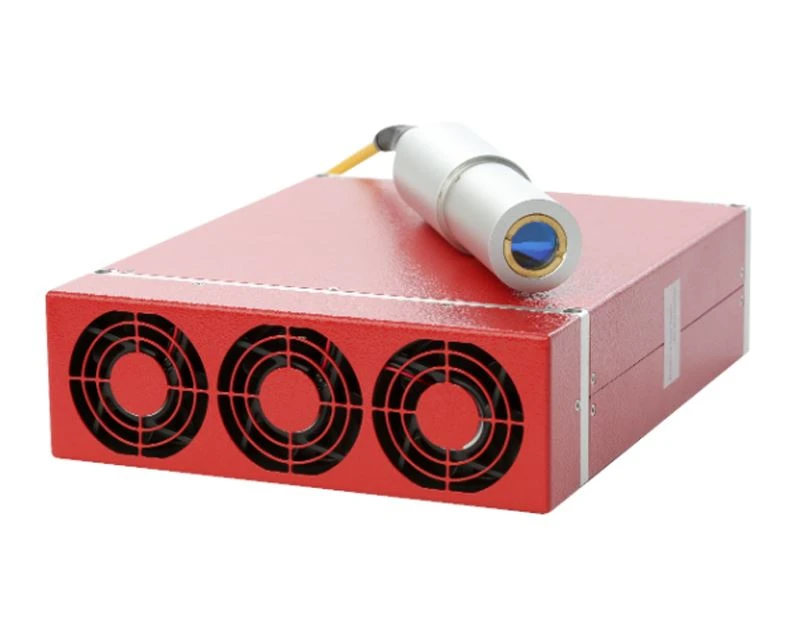

	Laser source	Laser power	20W/30W/50W/60W
		cooling	Air cooling
		Max Flying speed	200m/min
		Wavelength	1064nm
software	The control software is developed specially. The control software works under the Windows system. The operation is simple and easy to learn. It is powerful and compatible with the file formats such as PLT and BMP output by AutoCAD, Coreldraw, Photoshop, etc. It can mark patterns, barcodes, Chinese and English characters. , product serial number (automatic jump number), and can directly use SHX, TTF fonts in the software, can also be very convenient to adjust the size, spacing and arrangement of characters.

When using a Fiber Laser Inkjet Printer, you should do....

1. It is important to properly adjust the settings of the printer, including the laser beam power and wavelength. This should be done based on the type of material being printed on, as different materials require different laser settings. It is also important to ensure that the ink being used is suitable for the printer and the material being printed on.

2. Proper maintenance and cleaning is essential for the printer to perform at its best. This includes keeping the printer and its components clean and free from any excess ink or debris, as well as ensuring that the laser beam is properly aligned. Regular cleaning and maintenance will extend the lifespan of the printer and ensure that it continues to produce high-quality prints.

3. It is recommended to have a trained professional operate the printer, particularly when using more complicated settings or dealing with delicate materials. This helps to reduce the risk of damage or errors occurring, and ensures that the printer is being used to its full potential.

Features of DOTSLASER' s fiber laser inkjet printer
