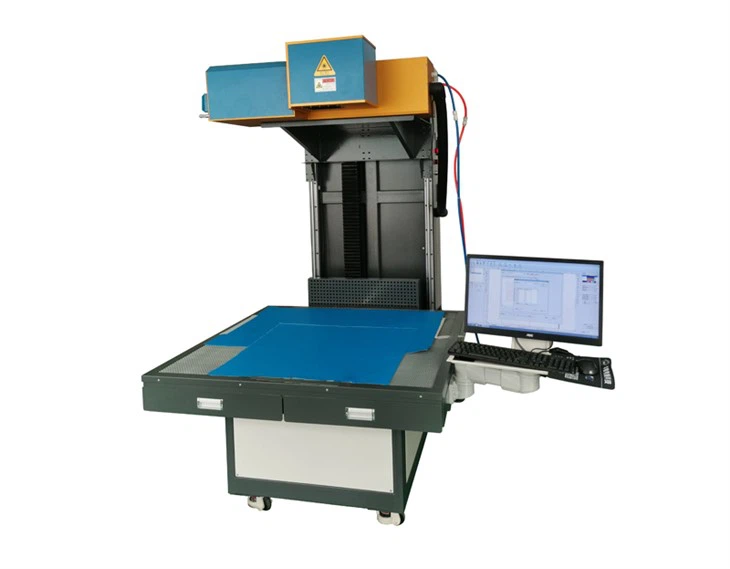

Super Dynamic Galvo Laser Engravers
Super dynamic galvo laser engravers
Products Description
Laser marking machines are high-tech devices that use laser technology to mark or engrave on different materials, including metals, plastics, ceramics, glass, and leather. They are widely used in various industries, including automotive, aerospace, electronics, medical equipment, and jewelry.
Features of super dynamic galvo laser engravers
High-Speed Scanning: The galvo scanner motors used in these engravers can achieve exceptionally fast scan speeds, allowing for quick and efficient engraving or marking on various materials.
Precision and Accuracy: Super dynamic galvo systems deliver high resolution and repeatability, making it possible to create very precise and detailed markings or engravings on the target material.
Versatility: These engravers can work with different types of lasers, like CO₂, fiber, and ultraviolet (UV) lasers, providing flexibility in choosing the right laser for the application and material.
Advanced Control Electronics: The control systems implemented in super dynamic galvo engravers enable real-time adjustments and modulation of laser power, speed, and other parameters, ensuring optimal performance and results.
Large Working Area: The improved mirrors, lenses, and aperture size in these systems often provide a larger working or marking area,maximum area can be 1200x1200mm,even more wide area. permitting high productivity and flexibility in designs and applications.
Software Compatibility: These advanced engravers typically support a wide range of industry-standard software and file formats, allowing seamless integration with existing workflows or systems.
When considering a super dynamic galvo laser engraver for your application, make sure to evaluate factors like speed, precision, laser compatibility, and software integration, as well as consulting expert advice to find the most suitable system for your specific needs.
Main Technical Parameters
| Model | DS-SUPER150 | DS-SUPER250 | DS-SUPER350 |
| Laser power | 150W | 250W | 350W |
| Marking area | 400x400mm/550x550mm/650x650mm/800x800mm | ||
| Min.line width(depend on material) | 0.2mm | ||
| Line marking speed | ≤9,000mm/s | ||
| Wavelength | 10640nm | ||
| Optional configurations | Motorized up/down; auto focus; CCD visual positioning; roll to roll; coveyor; shuttle table; enclosed cover | ||
| Control method | XYZ axis dynamic system | ||
| Power supply | 220V, 50Hz/60Hz | ||
| Power consumption | 4.5KW | 5.5KW | 7KW |
Advantages of Super dynamic galvo laser engravers
Ultra-fast speed: using radio frequency lasers tube imported from the United States,The digital drive system is imported from Germany. Strong driving ability,
Good anti-interference ability and super fast speed.
Ultra-fine line: more optimized optical system, using zinc oxide lens and high-power coating, the light transmittance is over 99%. High light transmittance and low thermal expansion coefficient to ensure stable beam and finer laser lines.
Super large format: the most advanced three-axis dynamic system in China, 3D relief technology, to ensure fine and stable engraving within the range of 800X800, and the range can be adjusted freely within the maximum range, and the roundness of the hole is over 95%.
Drawing of enclosed type
|
Applications
Laser cutting of clothing lettering film Leather drilling,cutting or marking laser engraving of fabric and leather marble lettering or engraving wooden products and bamboo products laser lettering, LOGO, patterns. denim engraving and cutting metal product surface paint removal greeting card cutting advertising light box panel management, etc.
|
Mechanical display
- SUPER galvo head VS Ordinary galvo head
DOTSLASER adopting SUPER galvo head to get a finer lines, faster speed, wider working area. this is better too much than competitors.
- Laser tube
DOTSLASER adopts American brand imported laser RF tube. competitors normally use China common tube, this is one of the core components, imported laser tube can guarantee a finer beam output and less failure rate.
- Controller
DOTSLASER asemble the system with our own developed controller or international top brand controller, it has better optimization result and calculating speed. extremely improve the working efficiency.
- Wiring standard
DOTSLASER has a international standard for wiring connection, it can make sure the system works well for long time and easier for maintenance work.
Sample show
- Heat transfer vinyl film cutting
- Heat transfer vinyl film cutting
- Clothing and fabric
- Leathers
