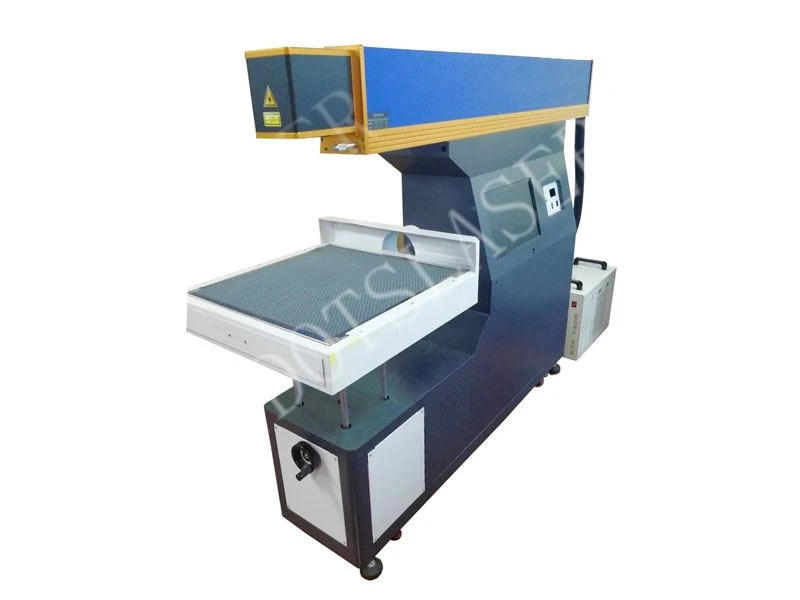

Products Description
Laser engraving machine, as the name suggests, is an advanced equipment that uses laser to engrave materials that need to be engraved. Laser engraving machines are different from mechanical engraving machines and other traditional manual engraving methods. Mechanical engraving machines use mechanical means, such as diamonds and other extremely hard materials to engrave other things. It is suitable for laser engraving and cutting of various craft gift materials, such as wood products, paper, plastic, jade, acrylic, etc. It is widely used in the advertising industry, maker space, educational institutions, craft gift industry and other applications.
1. The laser is excited by the laser power source, and a uniform and delicate beam appears on the surface of the cloth and leather. The background color is evaporated by strong light or hollowed out by high temperature into any shape, thus showing different color effects, textures and magical patterns of different shades and textures.
2. It adopts the original motion spraying technology to completely solve the problem of small spraying size of traditional models, and perfectly combines the high-speed galvanometer system with the precision mechanical design.
3. The software has powerful functions and supports multiple graphic formats, which can meet the engraving and hollowing process at the same time.
Parameters
|
Model |
DS-LMC100 |
|
Laser power |
100W |
|
Laser wavelength |
10640nm |
|
Working size |
400x400mm,500x500mm,600x600mm |
|
Engraving thickness |
Paper,leather ,Pu ,wood etc |
|
Engraving max speed |
8000mm/s |
|
Engraving accuracy |
±0.003mm |
|
Machine weight |
400kg |
|
Size |
230X118X175 cm |
|
Cooling mode |
Water-cooled |
|
Power consumption |
≤5KW |
|
Rated power voltage |
220V 50-60Hz |
|
Supported format |
PLT.DXF.DWG.BMP,JPG |
|
Warranty |
One year |
Sample
Our factory & workshop
Shipping
Common problems and solutions of laser engraving machine.
1. No laser output of laser engraving machine :
a. Check whether the optical path of the laser resonator is shifted? That is, open the light path and adjust the full half mirror lens.
b. Check whether the connection between PWM signal and Q drive signal on the laser marking control card is disconnected? Wiring .
c. Check whether the control card is damaged? Replace the card .
d. Check whether the drive mode of the up-to-standard software is correct
e. Check whether the computer is faulty .
f. Check whether the laser power supply is damaged? Change the power supply .
g. Check whether the laser is damaged?
h. Check whether the laser, and full half-reverse are connected.
2.The output laser is very weak during laser marking.
a. Check whether the lens is burned or not ?
b. Check whether the focal length of the marking workpiece is correct?
c. Check whether the water temperature of the laser chiller is too high or too low .
d. Check whether the water temperature of the power supply is working properly or not ?
e. Check whether the lenses are scratched?
f. Check whether the beam path is not adjusted properly?
g. Check semiconductor lasers, full half mirrors .
