Beverage Bottles Flying Laser Marker

Beverage bottles flying laser marker is a machine which is designed for marking bottles with plastic material or metallic material with coating. It has advantages of high speed,long time mark result,save cost, and so on.

Send Inquiry

Product Introduction

Beverage bottles flying laser marker

Products Description

Beverage bottles flying laser marker is a cutting-edge and innovative technology that uses lasers to mark and label beverage bottles as they travel through the production line. This technology is increasingly being adopted by beverage companies as it offers numerous benefits over traditional methods of labeling. It is suitable for metal or non-metal products marking, as long as it is wood, leather, mineral water and other plastic products marking, marking effect is good, you can customize the online flying mark mode, you can also connect it and give signal to the production line to do flying mark.

Technical features

1, fine processing, high pass-rate;

2, no consumables, low use and maintenance costs;

3, high processing stability and other advantages;

4, easy identification of products to achieve anti-counterfeiting identification;

5, the laser processing way, the precision is high;

6, the whole machine performance is stable, may long-term operation.

7. Can print a variety of Chinese and English fonts, vector graphics PLT, DXF files, BMP files, bitmap graphics, stream number, bar code, two-dimensional code, in the plane, curved surface and cylinder marking.

Applications

There are all kinds of non-metallic materials and product surface marking, such as plexiglass, ceramics, plastics, wood, rubber, leather, paper products;
Electronics industry: laser marking for capacitors, inductors, printed circuit board, integrated circuits, electrical connectors, various instruments and control panels.
Daily necessities and clothing industry: buttons, cosmetics packaging, food packaging, stationery, handicrafts and other marking. Surface oxidized or painted metal (such as aluminum profiles) , seals, crafts, electronic components, hairy crabs, clothing fabrics, building models, wood products, leather, crystal products, two-color panels, rubber plate plate, acrylic products, bamboo and wood crafts, ceramics, marble images.

Basic parameters of equipment

Laser output power	20W/30W/50W
Marking range	110*110
Lifting height	300mm
Minimum line width	0.01mm
Minimum focus spot	0.01mm
Minimum marking characters	0.03mm
Repeatability	±0.002mm
Power adjustment range	10 ~ 100%
Repetition frequency adjustment range	20~80KHZ
Marking depth	0.01~0.2mm
Scanning speed	7000mm/s, 1mm high English letters 150 characters/s
Printing direction	up, down, left, right, arc printing can be adjusted arbitrarily
Number of fonts	more than 140 fonts, customers can add their own fonts according to customer requirements
Two-dimensional code printing	QRCode, Code 39, Code 128, PDF417, DatyaMatrix (dot type and square type) and other 21 types
Laser service life	100,000 hours
Continuous working time	24 hours
Cooling system	air cooling, no need for water cooler
Input power	220V±15%, 50 Hz±3%, power consumption <500W
Rotation	The worktable can be rotated or the laser can be rotated when printing the workpiece

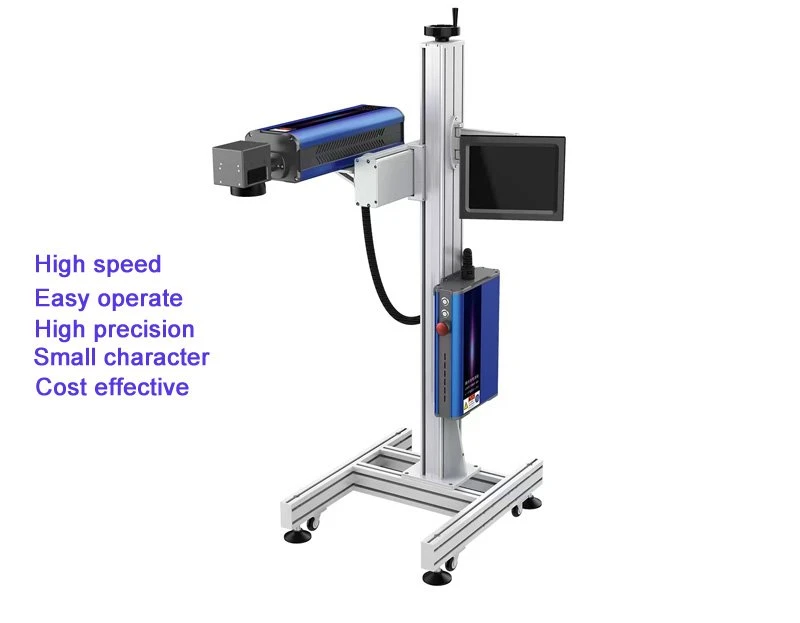

Beverage bottle flying laser marker

Samples show

products of CO<sub>2</sub> laser marking

laser marking sample

Shipping and Package
