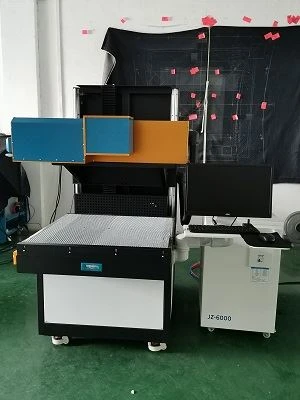

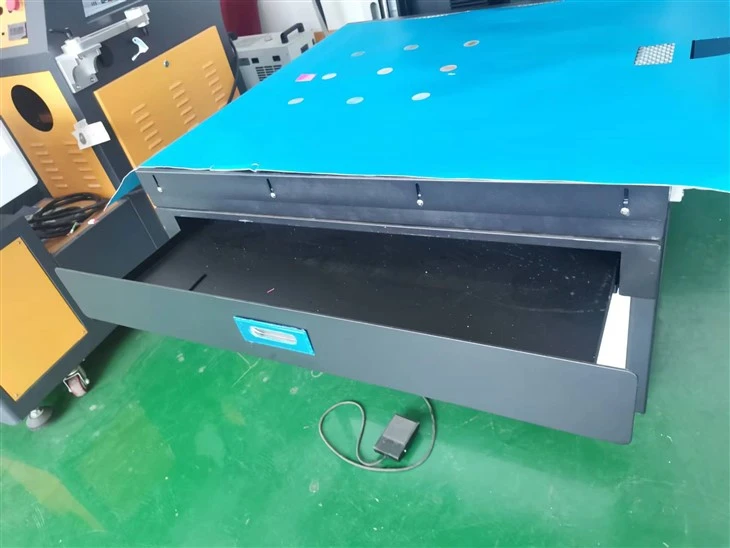

CO2 Laser Engraving On Shoes Products
CO2 laser engraving on shoes products
Products Description
CO2 laser engraving technology has revolutionized the shoe industry by providing a cost-effective and efficient way of customizing footwear. This machine utilizes a high-powered laser beam to burn or engrave intricate designs onto various shoe materials such as leather, rubber, and synthetic fabrics. The CO2 laser engraving machine offers a superior level of accuracy and precision, allowing for the creation of highly detailed and complex designs that were previously impossible to achieve. It also speeds up the production process, reducing manufacturing time and costs while enhancing product uniqueness and personalization.
machine features
The marking software is powerful, with rich drawing and graphic editing tools, among which the quick sorting function greatly improves the marking efficiency
Large laser power, high cutting efficiency, especially suitable for cutting thick leather, cutting efficiency than the same type of equipment on the market more than twice faster
Machine structure man-machine design, such as: the appropriate height of the workbench, reduce the operator's long-term operation fatigue, etc.
Fast focusing, digital indicating the height of the main beam, high-precision digital display focal length
The laser mode is single mode, single pulse peak power and energy are high, the thermal effect on the material is small, and it is not easy to burn the edge
Red Light preview for easy alignment of laser marking or cutting position
Parameter
|
Laser tube parameters |
Max Output Capacity | 250W |
| Nominal Peak Powe | ≥450W | |
| Mode Quality | M2≤1.2 | |
| Duty Cycle Limit | ≤70% | |
| Laser Type | CO2 | |
| Laser Wavelength | 10.6μm | |
|
Marking performance |
Marking Format |
Pattern,Word,Bar code,QRcode,Date,Serial Number |
| Marking Character Types | Pattern and words of vectordiagram & bitmap | |
| Marking Area | 400X400-700X700(mmXmm) Adjustable | |
| Marking Depth | 0-5mm (According to the materials) | |
| Marking Speed | <7000mm/s | |
| Min Line Width | 0.3mm(According to the materials) | |
| Min Character | 0.4mm | |
| Repeat Positioning Accuracy | 0.01mm | |
| Machine information | Total Power | ＜6KW |
| Power Supply | AC220V/50Hz/30A | |
| Cooling Way | Constant temperature water cooling unit | |
| Working Temperature | 15-30℃ | |
| Working Humidity | <75 No condensation | |
| Working Environment | Without dust, without vibration | |
| Machine Packing Size | 1010*1340*1740mm | |
| Control cabinet packing size | 1060*660*1100mm | |
| Chiller packing size | 660*760*1080mm |
Three Axis Dynamic CO2 Laser Marking Machine is widely suitable for the industries, such as Heat Transfer film (paillette, TPU materials, Reflective transfer film, etc.), leather, wooden box, paper card, clothes denim, illuminator,Mobile communications, mould, precision machinery, IT Digital shell, Military aviation components, handicrafts, Advertisement decoration, etc.

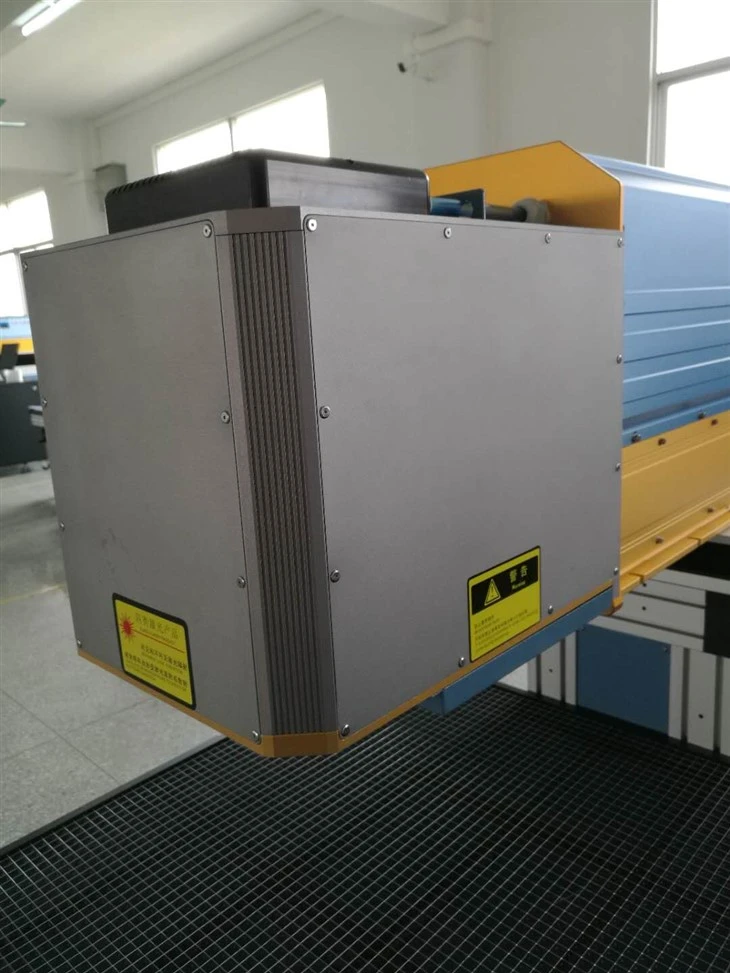

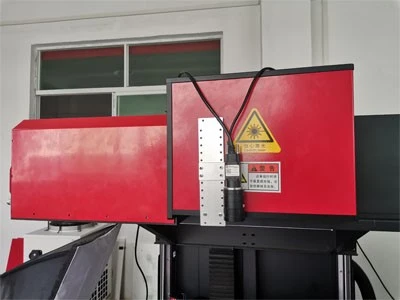

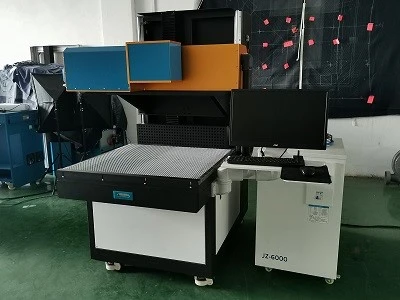

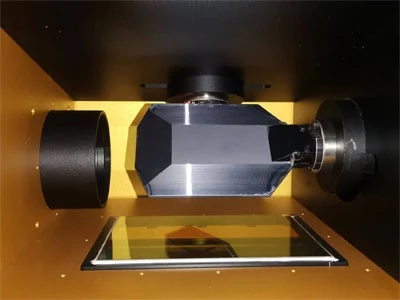

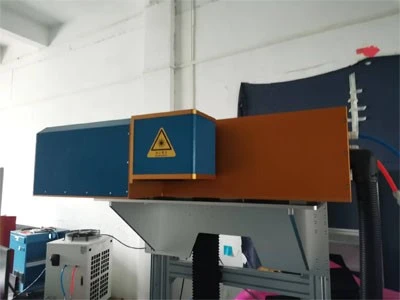

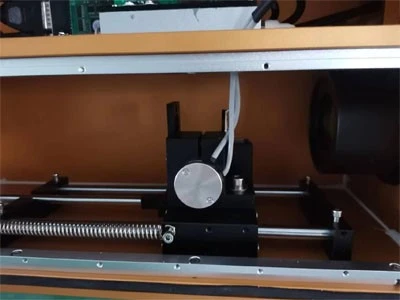

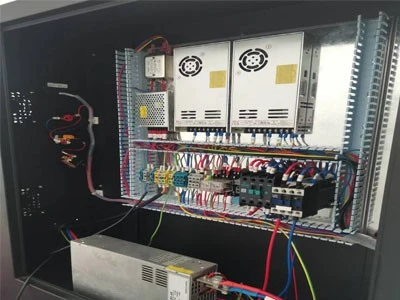

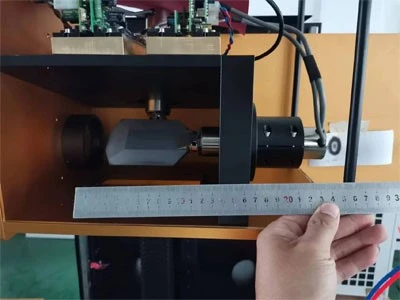

Main components:
Versatile engraving technology
1. CO2 laser cutter for any shoe components;
2. Galvanometer laser marking/engraving/perforating/hollowing/ /cutting solution for any special customized effects and unique creativity;
3. Auto line marking solution(replace traditional silk screen printing line);

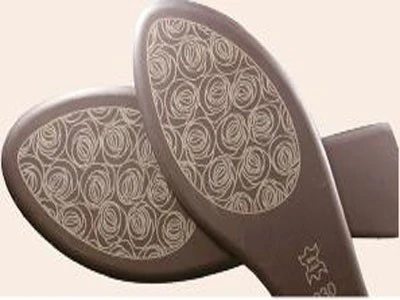

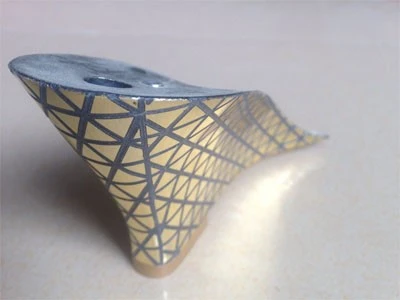

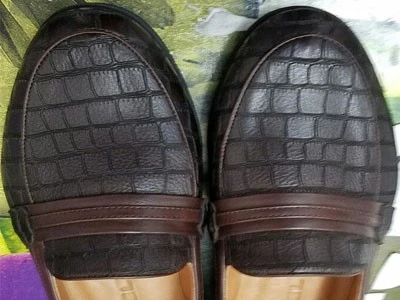

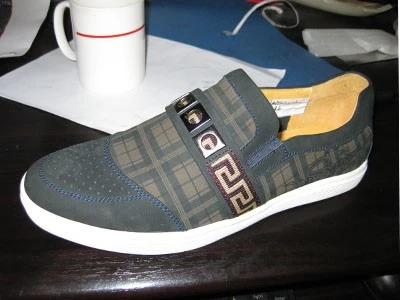

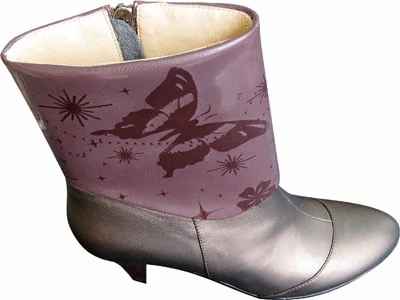

Samples Of Laser Marking Machine
How To Use Co2 Laser Marking On Shoes Products：
1. Logo branding: Engraving brand logos on the shoe upper or sole.
2. Personalized designs: Adding custom names, initials, or patterns to create unique shoes.
3. Decorative accents: Etching intricate designs on the leather for a stylish aesthetic.
4. Size markings: Marking shoe sizes on the inside of the shoe.
