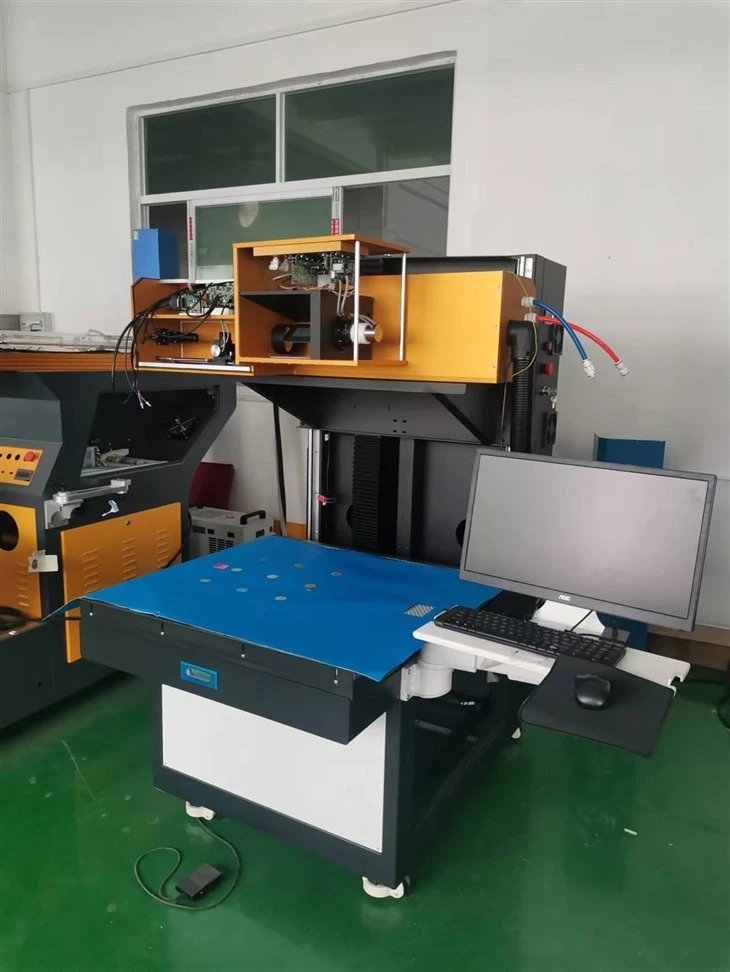

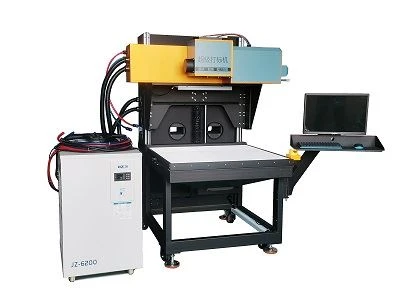

LED Lights Laser Engraving Machine
LED lights laser engraving machine
Products Description
The LED lights laser engraving machine has revolutionized the industry by offering more efficient and environmentally friendly technology. These machines are widely used in various applications such as signage, promotional products, and personalized gifts. With their precision and accuracy, LED lights laser engraving machines ensure a high-quality finish that meets the demands of modern consumers. This machine is user-friendly and can easily be customized to handle different materials and designs. Overall, the LED lights laser engraving machine represents a significant advancement in technology that is poised to transform the manufacturing industry.
machine features
High Speed: high quality scanning system makes the scanning speed is up to 7000mm/s.
Long Lifetime: Dotslaser's machine can ensure working lifetime reach 100,000 hours.
Compact: The high-tech product, which is combined of laser device, auto controller and precision machinery.
High Precision: Re-position precision is 0.003mm,Red Light preview for easy alignment of laser marking or cutting position:
Versatile marking: Special design fiber laser integrated structure, this LED laser marking machine not only marking several LED Lamp bulb, but also can marking on flight surface, no optical pollution, no power of the coupling loss, compact structure compact, air cooling, two adjusting pillar,one machine several function.
Easily Operating: Afford the specific marking software based on Windows, which is real-time adjust the laser power and pulse frequency. You can input and output by computer according to edit in the both of the specific marking software and the graphic software such as AutoCAD, CorelDRAW or Photoshop.
Parameter
|
Laser tube parameters |
Max Output Capacity | 250W |
| Nominal Peak Powe | ≥450W | |
| Mode Quality | M2≤1.2 | |
| Duty Cycle Limit | ≤70% | |
| Laser Type | CO2 | |
| Laser Wavelength | 10.6μm | |
|
Marking performance |
Marking Format |
Pattern,Word,Bar code,QRcode,Date,Serial Number |
| Marking Character Types | Pattern and words of vectordiagram & bitmap | |
| Marking Area | 400X400-700X700(mmXmm) Adjustable | |
| Marking Depth | 0-5mm (According to the materials) | |
| Marking Speed | <7000mm/s | |
| Min Line Width | 0.3mm(According to the materials) | |
| Min Character | 0.4mm | |
| Repeat Positioning Accuracy | 0.01mm | |
| Machine information | Total Power | ＜6KW |
| Power Supply | AC220V/50Hz/30A | |
| Cooling Way | Constant temperature water cooling unit | |
| Working Temperature | 15-30℃ | |
| Working Humidity | <75 No condensation | |
| Working Environment | Without dust, without vibration | |
| Machine Packing Size | 1010*1340*1740mm | |
| Control cabinet packing size | 1060*660*1100mm | |
| Chiller packing size | 660*760*1080mm |

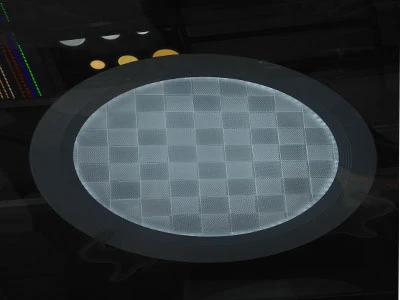

We first create an arrangement of precise dot patterns that are laser etched towards the edge of the panel closer to the led strips. As you move further from the LED light source, the distance of the dot pattern gradually becomes more narrowly spaced creating an even distribution of light. These patterns act as "channels" helping to distribute the spread of light evenly across the entire LED light panel. This approach towards creating dot matrix diffusion patterns guarantees a 100% even-lit illumination across every LED light panels.

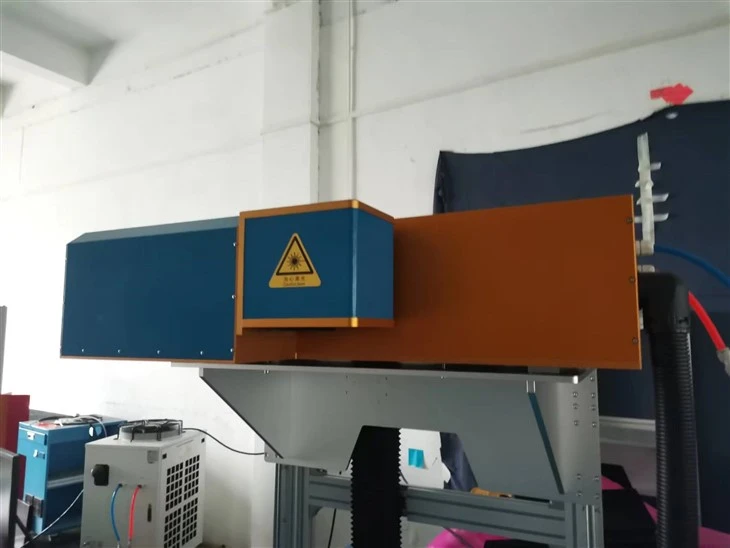

Machine's size

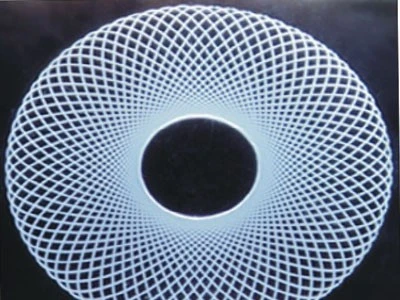

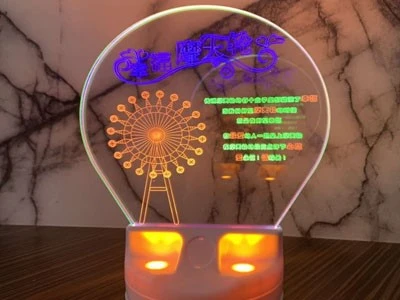

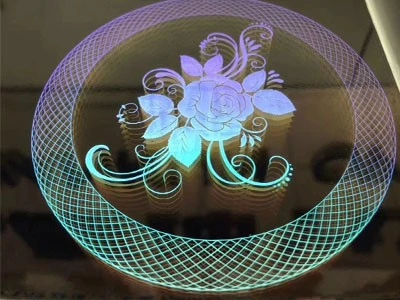

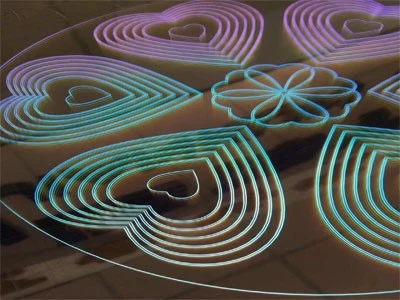

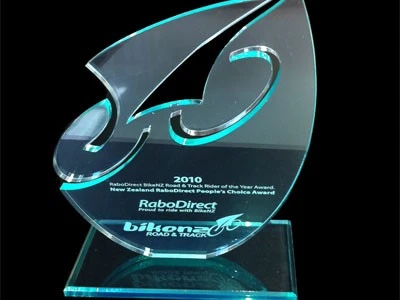

Samples Of Laser Marking Machine
Shipping and package
FAQ
Q1: How does the package?
Q2: Will the package damaged during transportation?
Q3: How to install and run the machine?
Q4: How can i do if the machine goes wrong?
