Products Description

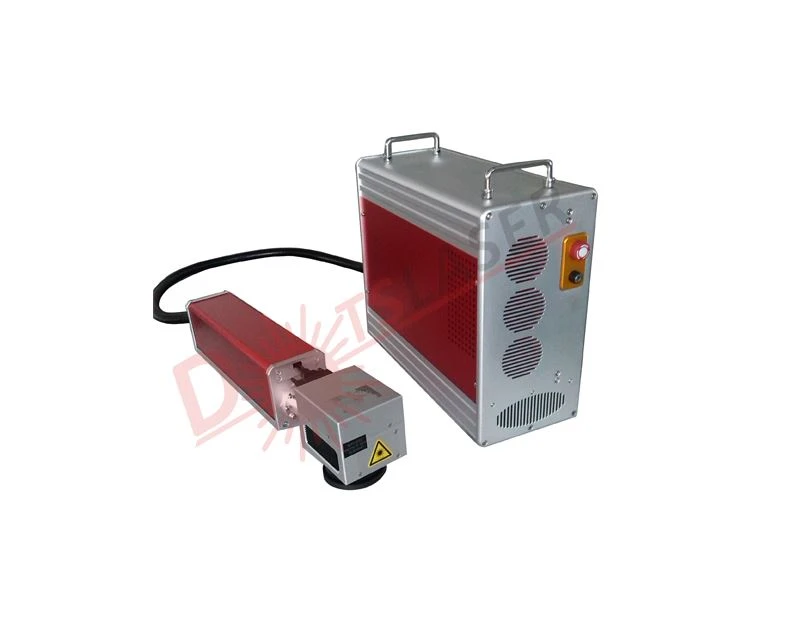

Portable laser engravers are compact, lightweight, and easy-to-carry laser marking systems. These devices provide the convenience of bringing engraving capabilities on-the-go and are perfect for small businesses, DIY enthusiasts, and artists who need a flexible and versatile engraving tool.
Key features of portable laser engravers
Compact design
Lightweight and easy to transport, they can be used in various locations without any difficulty.
Ease of use
User-friendly software and intuitive controls make them suitable for both beginners and professionals.
Power
Portable laser engravers offer varying power levels to accommodate different material types and engraving depths.
Speed
The engraving speed can range from slow to fast, depending on the laser's power output and the material being engraved.
Versatility
Capable of engraving on various materials with suitable settings.
Customizable Settings
With adjustable etching depth, speed, and power settings, you can achieve optimal results tailored to your specific materials and requirements.
Technical parameters
|
Model |
DS-LM20/DS-LM30/DS-LM50 |
|
Laser type |
Fiber Laser, 1064nm wavelength |
|
Laser power |
20W/30W/ 50W |
|
Cooling system |
Air cooling |
|
Beam quality |
M2< 1.5 |
|
Laser wavelength |
1064±1nm |
|
Power adjustment range |
10~100% |
|
Frequency of pulse |
1~4000KHz |
|
Power supply |
220V/50Hz /8A (110V/60Hz /15A can choose) |
|
Control system |
Original BJJCZ |
|
Software |
EZCAD |
|
Graphic format supported |
PLT,DXF,DST,SVG,JPC,NC,G,BOT,GBR, |
|
Working area |
Standard 110x110mm, optional 150*150mm, 175x175mm, 200x200mm, 300x300mm, 400x400mm |
|
Marking depth |
single mark <1mm |
|
Marking speed |
<8000mm/s |
|
Min. line width |
0.05mm |
|
Repeatability accuracy |
0.003mm |
|
Operation temperature |
0~40°C |
|
Operation system |
Standard with Windows 10 PC |
|
Operating environment |
Clean and free of dust |
|
Warranty for fiber laser source |
Two years |
When selecting a portable laser engraver, consider the following factors：
Material compatibility: Ensure the selected laser engraver is compatible with the materials you plan to engrave on.
Laser power: Determine the appropriate power needed for your specific engraving tasks.
Work area size: Choose an engraver with a work area size suitable for your projects.
Software compatibility: Verify that the engraver's software is compatible with your computer's operating system.
Budget: Portable laser engravers come at various price points, so find one that fits your budget while meeting your requirements.
Portable laser engravers are greatly suitable for hobbyists, small businesses, and artists due to their ease of use, flexibility, and convenience. However, they are generally not ideal for large-scale industrial projects or particularly heavy-duty applications.
Our Products Details

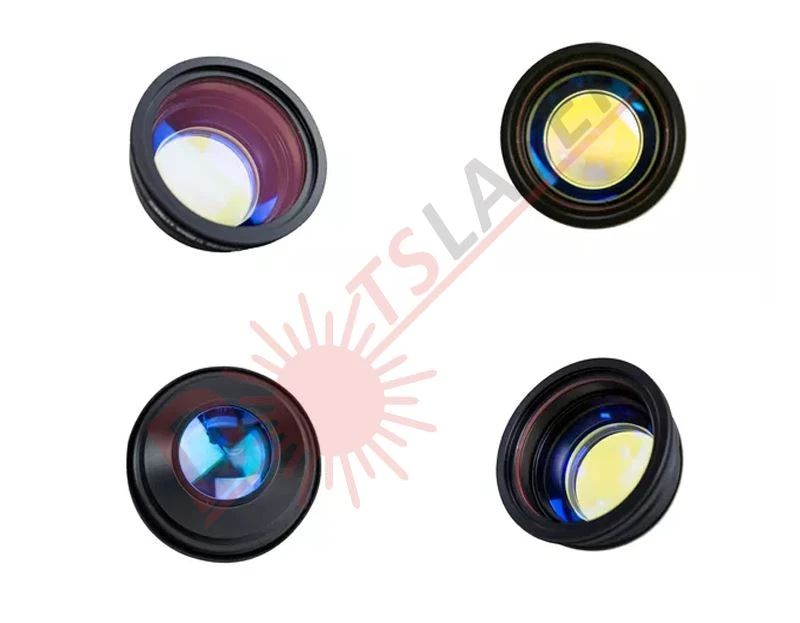

Digital fast speed scanner head
It applies silicon-plated protective lens and imported material, which can withstand higher power.
High standard wiring and connectors

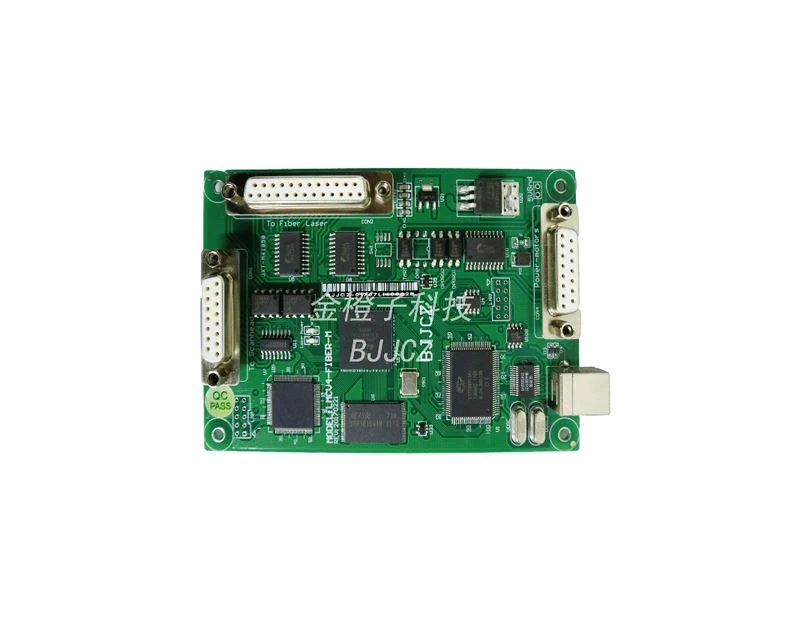

Top brand control board -EZCAD
Frequently Asked Questions
Q1:I know nothing about this machine, which type of laser machine should I take?
+
-
We will help you choose the suitable machine and make the solution for you ; you can show us what material will you marking / engraving and the depth of MARKING/ ENGRAVING.
Q2: When I got this machine, but I don't know how to use it. What should I do?
+
-
We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
Q3: What's consumables of laser marking machine?
+
-
It does not have consumable. It's very economical and cost effective.
Packing
-Three-layer packaging, plus thick plywood wooden box packaging, ensuring all-round protection of the machine from environmental influences in sea and air transportation.
