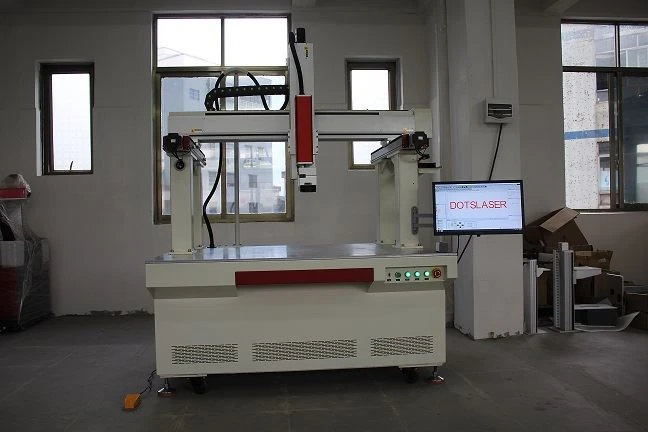

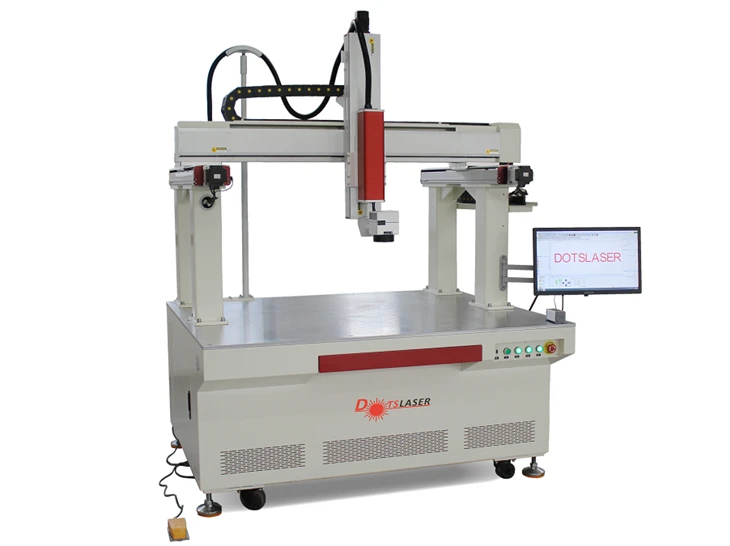

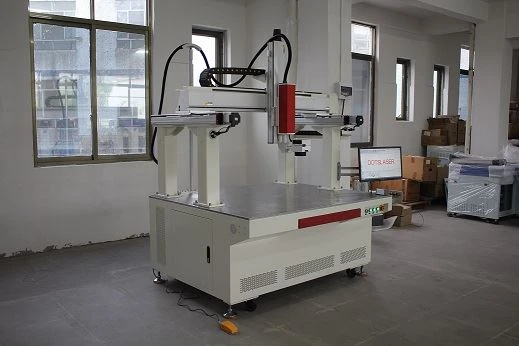

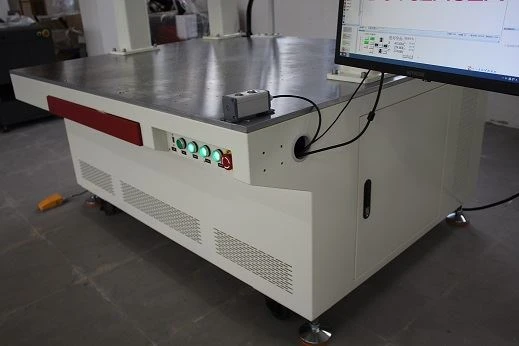

Decorative Mobile Phone Marking Machine
Decorative mobile phone engraver
Products Description
With a laser machine you can mark a mobile phone made of aluminum or with a plastic housing directly. You can achieve a nice color change when using the fiber laser.Use laser beam to creat you favorite pattern and characters,customized your personal mobile phone,makes your life and you ownerships are unique in the world!
machine features
Less Hazardous Waste
Decorative mobile phone marking machine less hazardous than traditional machine. Since lasers vaporize paint directly from the surface with no need for chemicals or abrasives, this method produces almost no secondary waste.
Precision and Control
Laser marker gives you precise control over the removal process. You can adjust the laser's intensity and focus to target specific layers of paint without damaging the material underneath the coat of paint.
Efficient and Cost-Effective
This machine is faster and more efficient than conventional methods. The worktable can put amount of phone cases or other objectives marking at the same time,it is greatly save you time and your labor cost.
Versatility
It can be used on a wide range of materials, including metal, plastic, and composites, without causing damage. Laser systems are also quite low-maintenance, with fewer consumables and only occasional servicing compared to traditional paint removal equipment.
Main parameter
| Marking Accuracy | ±0.001mm |
| Laser Power | 100W/200W |
| Laser wavelength | 1064nm |
| Marking Depth | 0-1mm |
| Marking Speed | 0-7000mm/s |
| Core Components | Motor, PLC, laser source, galvo scanner |
| Marking Head Brand | High Speed Galvo Scannerv |
| Mode of Operation | Pulsed |
| Working Area | 1300x2500mm/1500x3000mm |
| Warranty | 1 year |
| Weight (KG) | 1500KG |
| Cooling Mode | Air |
| Laser Type | Fiber Laser |
| Graphic Format Supported | AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP |
| Lifespan of laser device | 100000 hours |
Applicable samples In The Mobile Phone

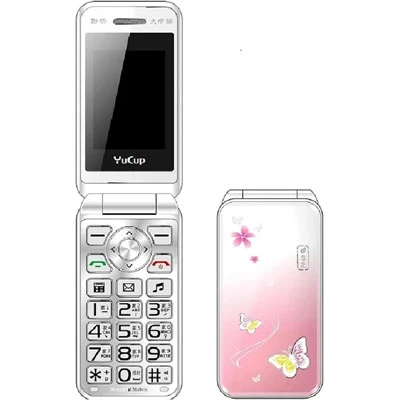

1. Mobile phone case
The laser marking machine can not only mark the LOGO, product information, but also can mark on the metal decorative piece and the outer casing, and its curve marking effect also perfect, and the marked lines are more refine and the pattern is more refine.

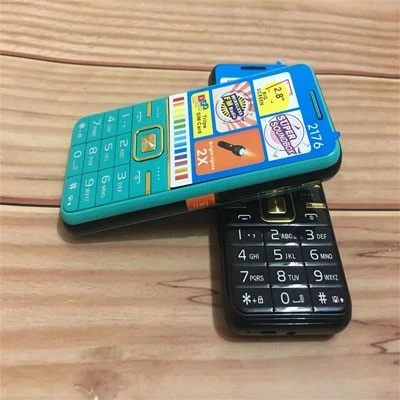

2. Mobile phone light button

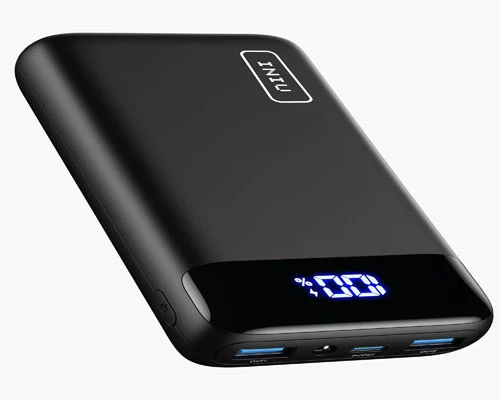

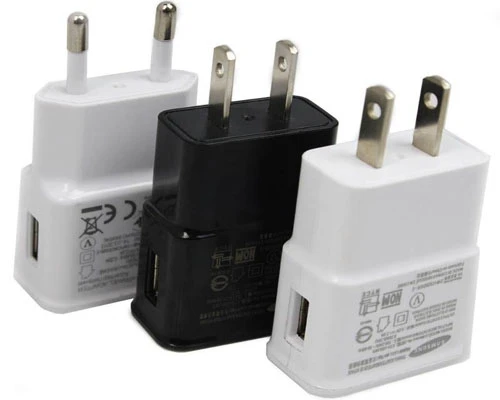

3. Charger and battery and other finished products
1.Many people prefect online shopping
The rate of mobile phone purchases has been rising over time. The fact is, shoppers are becoming more comfortable making purchases from their phones.
2.Developing of 5G technology
5G technology is developing quickly in the mobile communications industry. It can enable quicker downloads, more efficient communication, and support for emerging augmented reality and virtual reality games and other content.
3.More short video platforms rising
TikTok is popular around the world, with short videos spreading over the internet. Mobile marketers are tapping into this trend with video ads and short educational videos. Customers also enjoy their time watching videos.
4.Mobile phone bring more conveniences
Customers can do many things on the phone, such as learning, playing games, shopping, and having classes. Mobile phones offer great conveniences to people.
Shipping and package
Some problems might occur in laser marking machine:
Fault 1: Laser intensity decreased, marking is not clear
The solution:
1 Whether the laser resonator changes; Fine tuning resonator lenses. Make the output light spot best;
2 acousto-optic crystal offset or acousto-optic power supply output energy is low; Adjust the position of acousto-optic crystal or increase the operating current of acousto-optic power supply;
3 The laser entering the galvanometer is off-center: adjust the laser;
4 If the current is adjusted to about 20A, the sensitivity is not enough: krypton lamp aging, replace the new lamp.
Fault 2: Krypton lamp does not trigger (refer to the NTP power supply manual)
The solution:
1 Check all power cables.
2 High voltage krypton lamp aging, replace the krypton lamp.
Precautions for operating laser marking machine
1 It is strictly prohibited to start the laser power supply and Q-switching power supply without water or abnormal water circulation;
2 Do not allow the power supply to work no-load (that is, the output end of the Q power supply is suspended);
3 Abnormal phenomenon, first turn off the galvanometer switch and key switch, and then check;
4 Do not allow to start other components before the krypton lamp is lit, to prevent high pressure into the damaged components;
5 Note that the output end of the laser power supply (anode) is suspended to prevent ignition and breakdown with other electrical appliances;
6 Keep the internal circulating water clean. Clean the tank regularly and replace it with clean deionized or pure water.
Daily maintenance
● After finishing work, make sure the floor is clean. Then clean the machine including the surface of the machine, the case of the optical system, the surface of the monitor, the work table, and so on.
● Please turn off each part and main power supply when they are clean.
● Check the lens regularly for dust. When it's clean, use the cotton wool with greater than 95% medical grade alcohol to wipe clockwise from the center of the lens. When you need to move the machine to avoid bumps. Check the connection cable according to the cable list.
