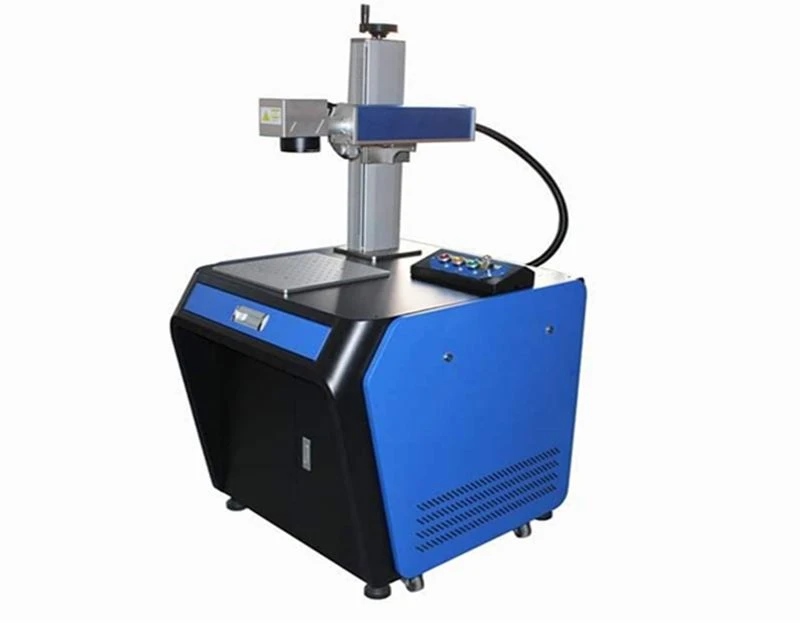

Laser Engraving Machine For Metal
Products Description
Laser engraving machine for metal is mainly composed of three parts: laser, galvanometer and marking card. It uses fiber lasers to produce laser marking equipment.Great beam quality. Its output center is 1064nm. longevity reachs 100,000 hours. Compared with other types of laser marking, the equipment has a longer life span and the electro-optical conversion efficiency exceeds 28%. Compared with other types of laser marking machines, the conversion efficiency of 2-10% has a great advantage, and it has superior performance in terms of energy saving and environmental protection.
key features
Flawless surface
1. The laser marking on the surface of the metal sign is clear and beautiful. Various logos, patterns, two-dimensional codes, texts can be marked, and the patterns are immediately hand-engraved on the metal signs. The abrasion resistance is outstanding.
Safe and environmentally friendly
2. Compared with traditional ink technology, laser marking technology has no organic waste gas or sewage, and it is not easy to cause harm to workers or cause environmental pollution.
faster speed
3. The laser marking speed of metal signs is faster. After the main parameters are set efficiently, it only takes a few to 10 seconds to mark the surface of the metal signs.
easy to operate
the customer only needs to set the main parameters on the computer to immediately start laser marking, without the need for silk screen ink, pad printing and other complex process of making the mold shell.
High machining accuracy
The size of the light spot emitted by the fiber laser generator is about 20um, which is very helpful for solving complex patterns and precision processing.
Customizable Settings
With adjustable etching depth, speed, and power settings, you can achieve optimal results tailored to your specific materials and requirements.
The characteristics of laser metal marking machine depend on the characteristics of high precision, high speed and good stability of laser marking. Metal surface layer Laser marking does not necessarily require printing ink or other substances to cover the surface layer. According to the laser, the surface layer of the metal sign is marked immediately. And only under computer control, the actual operation is simple, and various complicated pattern designs, text, two-dimensional codes, etc. can be printed out. According to this advantage, once the laser metal marking machine is sold, it immediately occupies the sales market with a large market share.
With many years of experience in laser product research and development, our product technology is perfect, and the equipment and machine parts are selected from high-quality well-known brands. It is characterized by stability and safety. We always adhere to the "quality first, service second, price third" mentality to provide customers with the best quality products.The laser metal marking machine is cost-effective and the product quality is not inferior to other well-known brands.
Parameters
|
NO. |
Name |
Laser engraving machine for metal |
|
1 |
Machine model |
DS-LM20/DS-LM30/DS-LM50 |
|
2 |
laser power |
20W/30W/50W |
|
3 |
laser wavelength |
10640 nm |
|
4 |
Laser level |
Class 4 |
|
5 |
Repeat accuracy |
±0.001mm |
|
6 |
Min.line width |
0.01mm |
|
7 |
Min.character size |
0.15mm |
|
8 |
Max marking speed |
8000mm/s |
|
9 |
Working area |
100x100mm(standard)/200x200mm/300x300mm |
|
10 |
Cooling |
Air cooled |
|
11 |
Working environment temperature range |
5~35 ℃ |
|
12 |
Humidity range of working environment |
< 70% No condensation |
|
13 |
working voltage |
220V,50/60Hz |
How does Laser engraving machine work for metal ?
The fiber laser used in the fiber laser marking machine refers to a laser that uses glass fiber doped with rare earth elements as the gain medium. The beam produced is 1064nm. The advantages of fiber lasers are low cost, mature technology, more miniaturization, intensive advantages, as well as the advantages of no adjustment, no maintenance, and high stability.
What is the application of laser engraving machine?
It is mainly used for metal materials.
In fact, some non-metallic materials can also be marked, such as high-hardness alloys, oxides, electroplating, coatings, ABS, epoxy resins, inks, engineering plastics, etc.
It is widely used in plastic translucent buttons, IC chips, digital product parts, jewelry, sanitary ware, measuring tools, clocks and glasses, electrical appliances, electronic components,
hardware accessories, hardware tools, mobile phone communication components, automobile and motorcycle accessories, plastic products, medical equipment, building materials, pipelines and other industries.
Samples
Shipping

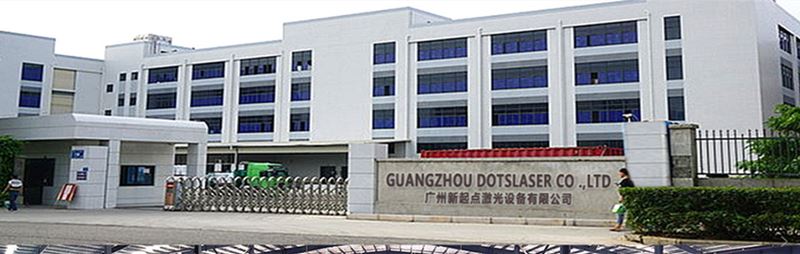

Factory
