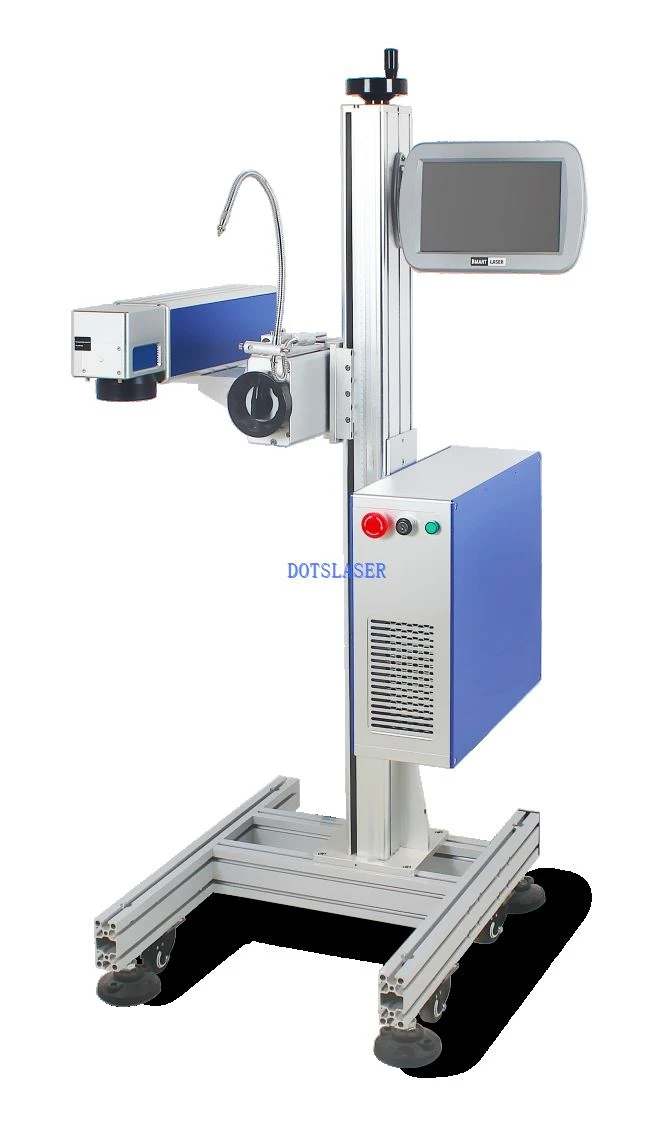

Flying Laser Marking Machine
Flying Laser Marking Machine
Products Description
The DOTSLASER fiber flying laser printer is a high-speed continuous tool designed to improve productivity. It adopts MAX industrial-grade high-performance laser source which are with stable performance, fast processing efficiency and speed on the production line. It can reach high speed up to 200 meters per minute (single-line 2MM-high numbers and letters) with high-yield application identification requirements, it mainly used in production date, anti-counterfeiting, medical and food packaging industries.
Machine Information:
Fiber flying laser machine series Average output power: 20W/30W/50W/80W/100W
Marking speed: 200m/min No consumables,
Long-term maintenance-free
Key Features of Flying Engraver:
- High-Speed Marking: Flying laser machines are designed to operate at high-speed production lines, allowing for rapid and engraving without slowing down the overall process.
- Excellent Quality: These machines provide consistent, high-quality engraving, even while working on products moving along a production line, ensuring uniform results across all items.
- Seamless Integration: Flying laser markers can easily integrate into existing production facilities, working alongside other manufacturing equipment without causing disruptions.
- Wide Range of Materials: These machines are compatible with various material types, such as metals, plastics, ceramics, and more, catering to diverse manufacturing requirements.
- Automation and Control: Equipped with intelligent software and controls, flying laser machines enable you to manage and automate production processes while maintaining ultimate precision and quality control.
Applications of Flying Engraving:
- Flying laser machines are utilized across various sectors for applications, including:
- Automotive industry: Marking components, vehicle identification numbers (VINs), and barcodes.
- Electronics manufacturing: Adding serial numbers, logos, and traceability information on products like PCBs, chips, and device casings.
- Medical device manufacturing: Engraving barcodes, serial numbers, or other identifying information on medical devices and tools to ensure traceability and compliance.
- Metal processing: Engraving logos, part numbers, and other vital information on turned or machined components.
- Packaging and labeling: Marking product packaging, labels, and containers with batch numbers, expiration dates, and other essential data.

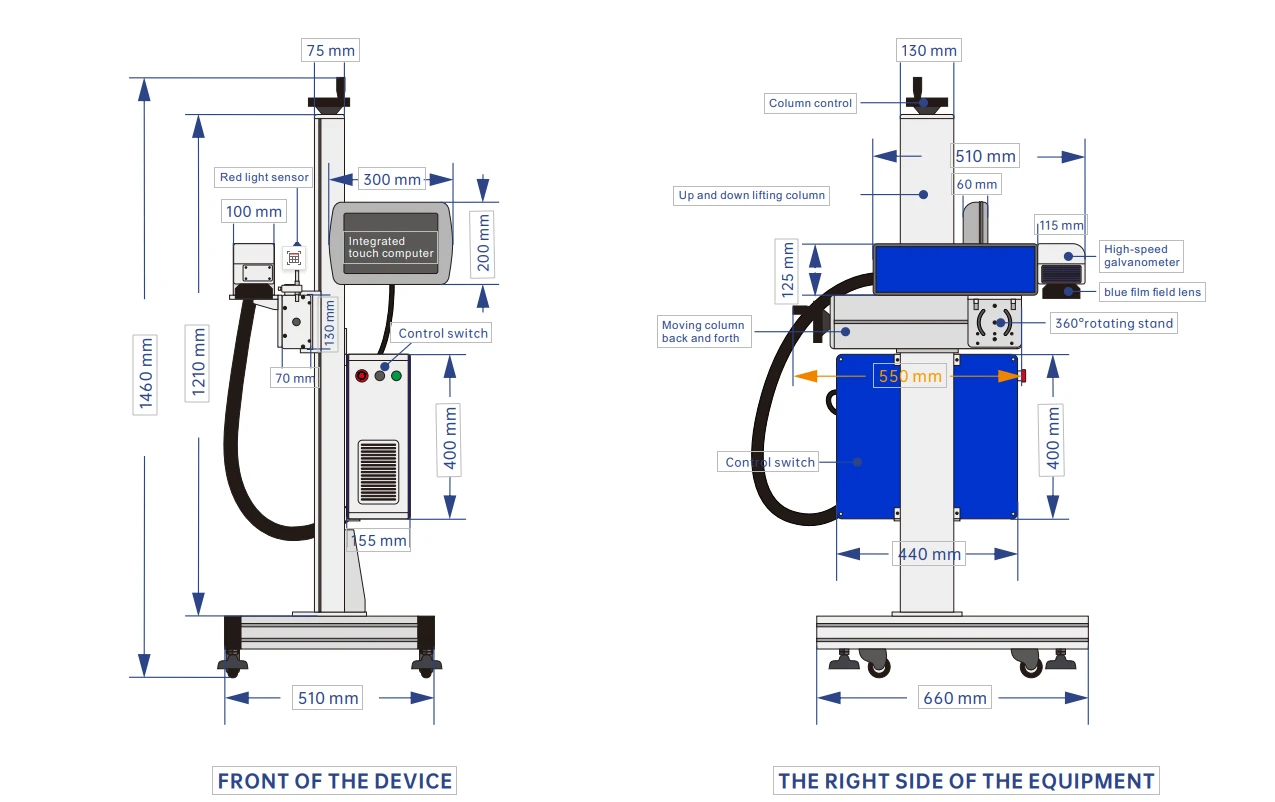

Product Size
Configuration
| Model serials | DS serial (MAX laser source) | |||||||||
| Model | T200 | T201 | T300 | T301 | T500 | T501 | T700 | T701 | T1000 | |
| Laser parameters | Laser source model | MFP-20G/20x | MFP-20W | MFP-30X | MFP- 30W | MFP-50X | MFP-50W | MAC-70M | MFP-70W | MFP-100W |
| Output Power | 18.5W | 20.5W | 30W | 30W | 50W | 50W | 70W | 70W | 100W | |
| Beam quality M2 | ≤1.4 | ≤1.4 | ≤1.4 | ≤1.6 | ≤1.6 | ≤1.6 | ≤1.6 | ≤1.6 | ≤2 | |
| Pulse repetition frequency | 27-60kHz | 30-60kHz | 30-60kHz | 30-60kHz | 50-170 kHz | 45-170 kHz | 50-170 kHz | 50-170 kHz | 20-200 kHz | |
| Laser wavelength | 1064±5 | |||||||||
| Output pawer stabllity | <3% | |||||||||
| Working life | About100,000 woring hours (non-lifetime) | |||||||||
| Optical properties | Marking range | 100-300mm (range optional) | ||||||||
| Engraving depth | ≤1mm (depending on power and time) | |||||||||
| Engraving speed | ≤10000mm/s | |||||||||
| Repeat accuracy | ±0.002 | |||||||||
| Minimum line width | 0.1mm | |||||||||
| Minimum character height | 0.15mm | |||||||||
| Use environment |
Cooling way | Built-in air cooling | ||||||||
| System power supply | 500W / 220V/ 50Hz (110V can be connected) | |||||||||
| Temperature humidity | 0-40°, 30% RH 85%, air conditioner should be installed when used outside the range | |||||||||
| Oil mist condensation | Not allowed | |||||||||
| Other parameters |
Operating system | Fly control system | ||||||||
| File fommat | The software supports text, QR code, barcode, serial number, graphics and other content | |||||||||
| Dimensions | 660X510X1460 mm | |||||||||
| Packing size | Host: 790x740x350mm Column:1350X350x280mm | |||||||||
| Total Weight | About 66kg | |||||||||
Applications
Electrical components and electronic devices
Electrical components
Cosmetics,personal and home care products
Food and beverages and fast moving consumer goods
Medicines and medical devices
Aviation and automobile
product strengths

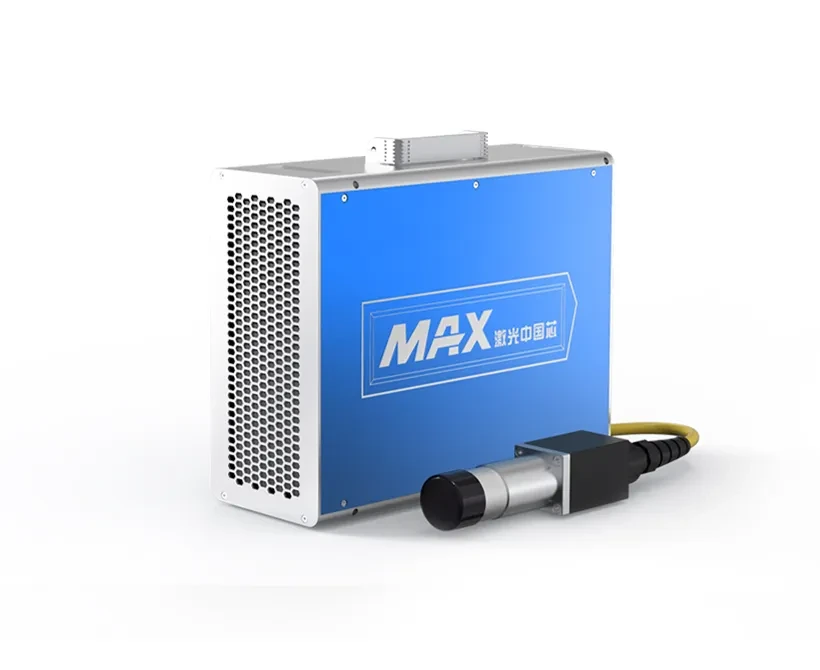

Fiber flying laser machine

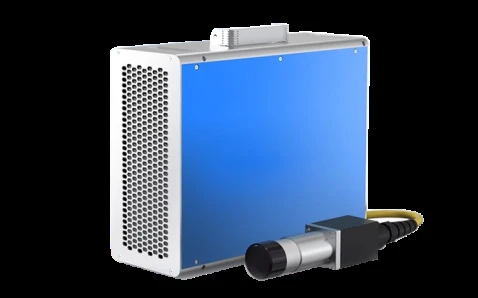

The T sub-series uses MAX Laser's Q-switched pulsed fiber laser source. This laser source is a high-efficiency, high-reliability, and high-performance pulsed fiber laser series developed by MAX Laser. It has the characteristics of short start-up time, narrow light pulse, high peak power, wide repetition frequency range, and no shadows and false breaks in special material processing, which can meet the needs of most users.

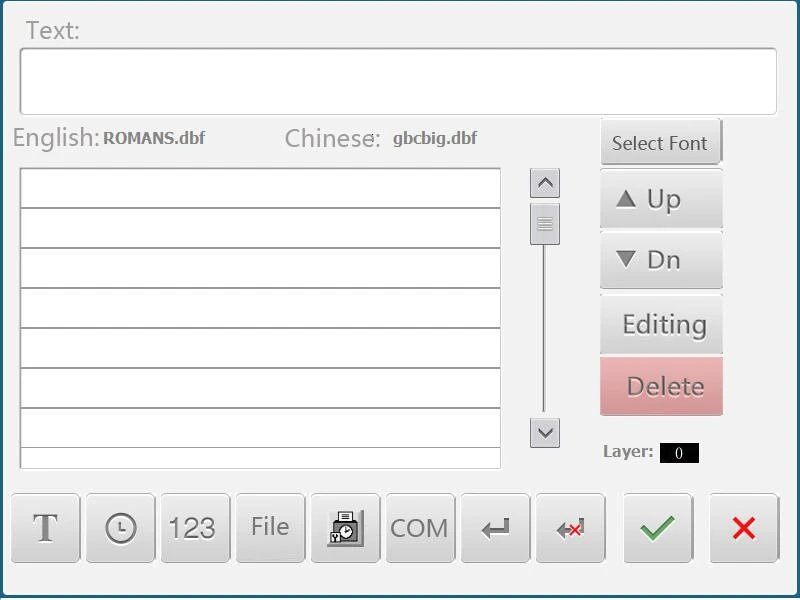

User-Friendly Interface
The T Series Flying engraver has an intuitive and user-friendly interface that makes it easy for even non-technical staff to use. The touch screen display is easy to navigate, and the software is straightforward to operate. This feature ensures that you won't need to invest in extensive training programs for your employees, saving you time and money.
Products Characteristics
Marking Speed Up To 200 Meters Per Minute
This is the industry's fastest laser coding system, with a speed of up to 200 m/min (single line of 2MM-high numbers and letters), which can be used in medium-speed or high-speed production lines.
Reliable And Durable Fiber Laser Source
It adopts MAX high-quality fiber laser light source, which has uniform laser power density and highly focused laser beam, achieving better logo contrast. The working life of the laser can reach 100,000 hours.

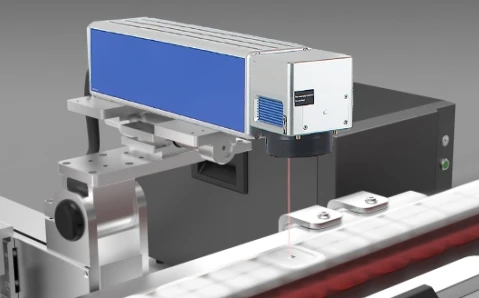

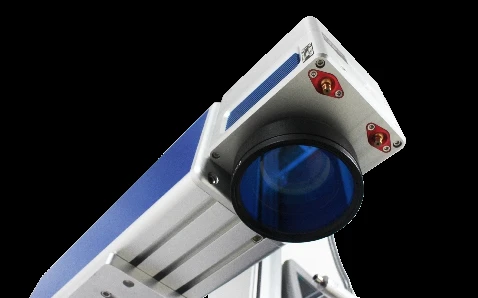

Compact Design And Flexible Configuration
This model uses compact laser printer head to achieve simple integration, reducing installation costs, and improving positioning flexibility.

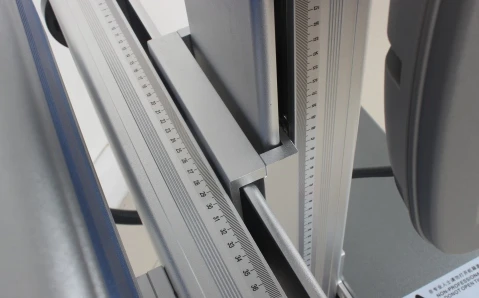

Flexible Installation Way, Convenient Installation Position Adjustment
The flying model is specially designed for high-speed production lines, which can be flexibly combined with production lines for installation and use. The frame support adjusting up / down / left /right , and the head can also be rotated 360° for.
Samples display

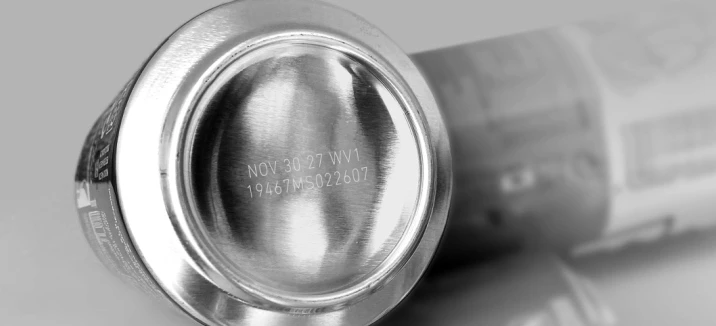

Marking of soda cans

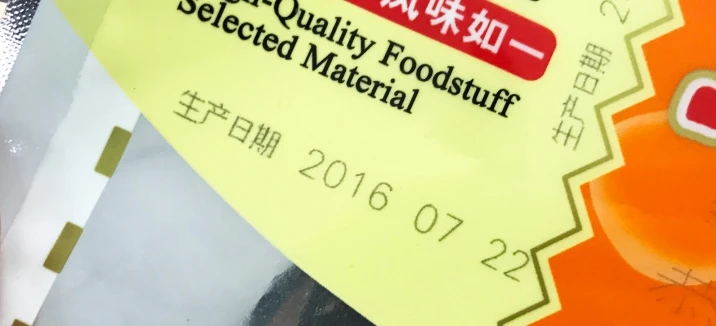

Plastic bag production date

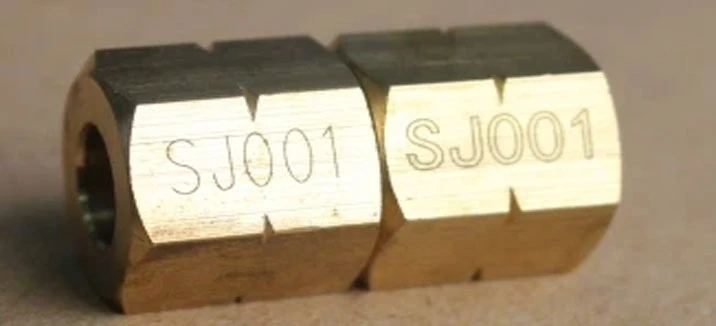

Marking of hardware parts

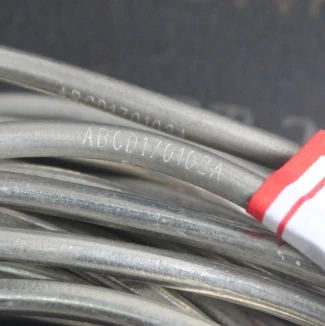

Marking of iron wire

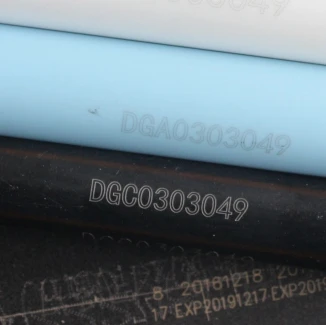

ABS horse

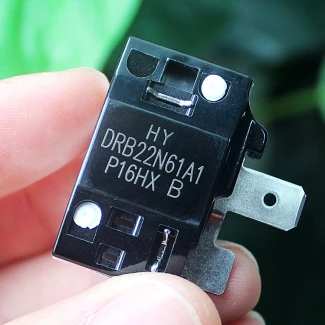

Eletronic components

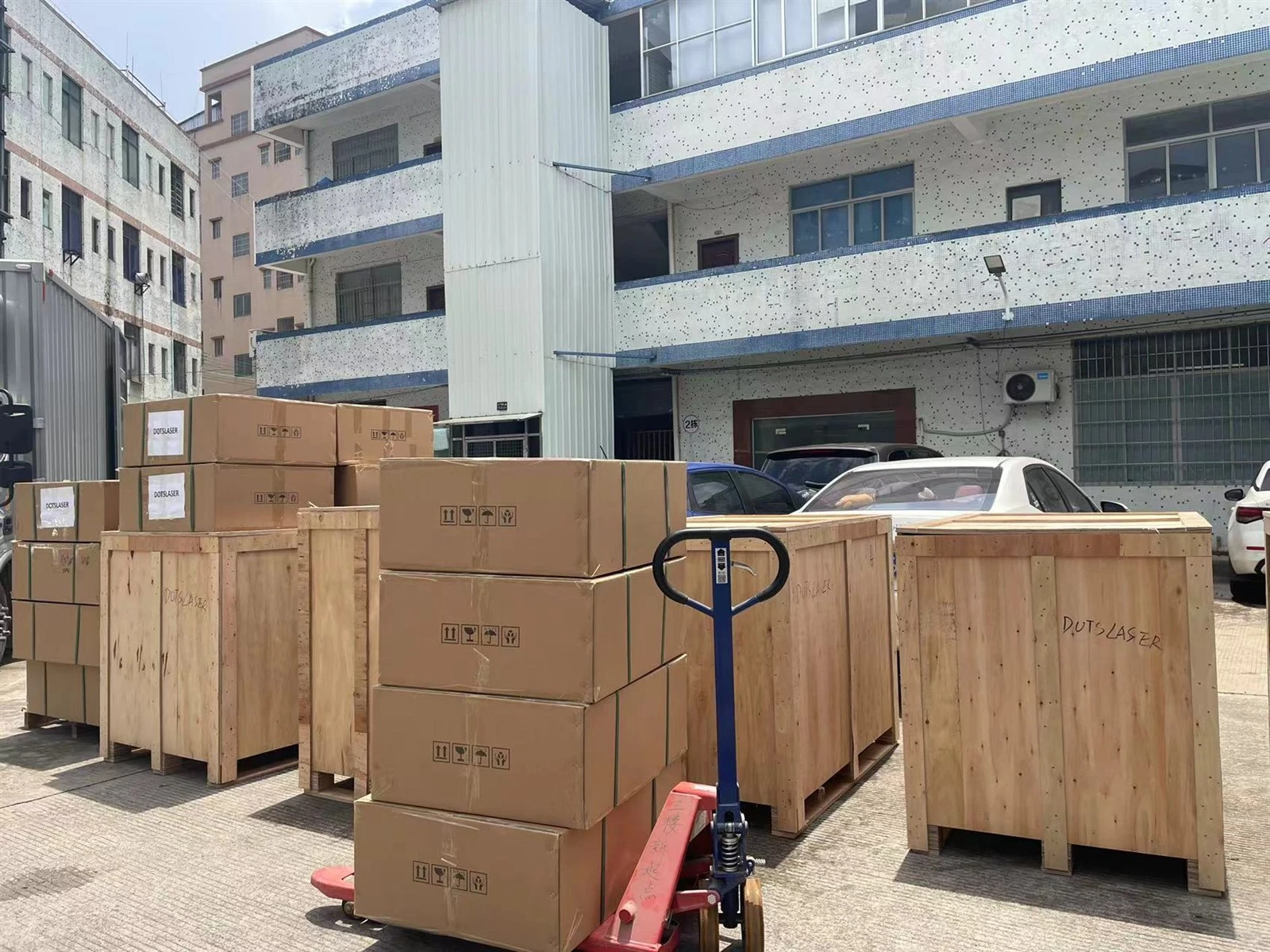

Cargo delivery
1. Quality assurance and after-sales service
The warranty period of the equipment shall be 12 months since the equipment be used by the customers, the installation and debugging is completed and the equipment is accepted by the demander. Dotslaser attaches great importance to the after-sales service work of the product, once the product is delivered to the user, the company immediately established the user after-sales service file, and regularly track the user's product use status, solve and answer all the problems of the user, received the user's notification information about the equipment failure, the company's workers can make a rapid response within 2 hours. If the telephone guidance is difficult to troubleshoot, our company's technical staff can arrive at the customer site within 24 hours to provide support.
2. Installation and debugging
Before machine installation, our factory will offer you a basic structure installation file,the good need 2 weeks delivery to you there , the engineers of Dotslaser will arrive at your site and inspect the machine again. Comfirm all the conditions meet the installation and commissioning requirements of the equipment, the equipment will transport in time. The installation and commissioning time of the equipment is about five working days, the first three days are connected to the use of the system, and the system is operational after the service project. The engineer will train qualified operators on basic maintenance procedures and general operating characteristics of the equipment in the next two days
3. Service support
If there has any problem with any part of the system during the warranty period, Dotslaser well-trained service engineers are ready to provide cellphone call or begin on-site service,if the machine has any problem during the warranty period,please contact us directly !
