With the development of the aluminum industry, everyone's requirements for aluminum products are getting higher and higher. Do you want your products to be inimitable in terms of anti-counterfeiting capabilities? Do you want to enhance the product grade and brand sense, and increase the added value of the product? The laser marking machine has high speed and high efficiency in aluminum marking, and the pattern effect is fine and beautiful, so it is very popular.

Send Inquiry

Product Introduction

Laser Engraving Machine For Aluminum

Products Description

With the development of the aluminum industry, everyone's requirements for aluminum products are getting higher and higher. Do you want to enhance the product grade and brand sense, and increase the added value of the product? The laser marking machine has high speed and high efficiency in aluminum marking, and the pattern effect is fine and beautiful, so it is very popular. It is suitable for light metal engraving such as aluminum veneer, copper plate, cast aluminum mold, aluminum curtain wall panel and so on.

Parameters

Model	DS-LM30/DS-LM60/DS-LM80
Laser power	30W/60W/80W
Pulse Repetition Frequency	1-1000kHz
Beam quality(㎡	<1.6
Depth of engraving(depend on material)	<5mm
Power consumption	≤1200W
Operating voltage	Single phase AC 220V/110V 50/60HZ 5A
Laser wavelength	1064nm
Working area	100×100mm,150×150mm,200×200mm
Repetition precision	±0.003mm
Max engraving speed	≤8000mm/s
Minimum line width	0.01mm
Marking method	Stationary Marking , disc rotary, Rotary Marking
Character size	0.5-110mm
Cooling System	Air Cooling
Direction of Installing equipment	Any
Cable of Length	3m (5m optional)
Working Temperature Range	5-38℃
Working Humidity	20%-80%
Net Weight of machine	205kg
Dimension of Main Body(L×W×H)	1100mm×85mm×185mm

Aluminum is a relatively abundant metal material. Because of its low density, corrosion resistance, low temperature resistance, good heat dissipation, and strong thermal conductivity, it is widely used in industry and life.

The aluminum blackening adopts pulse output, and the marking performance is diverse. Both static marking and mobile marking can be used, and the marking speed is fast. However, there are also a small number of people marking, the alumina is not black enough to turn black, and the white is not white enough. In fact, this is mainly caused by improper manual operation. Aluminum is because of its material. It may be unstable during processing, so the setting of machine parameters is very important. The blackening effect of the blue pigment laser marking machine will not fade due to contact, high temperature, low temperature, acid and alkali and other environmental relations; the marking information cannot be tampered with, and the anti-counterfeiting is strong.

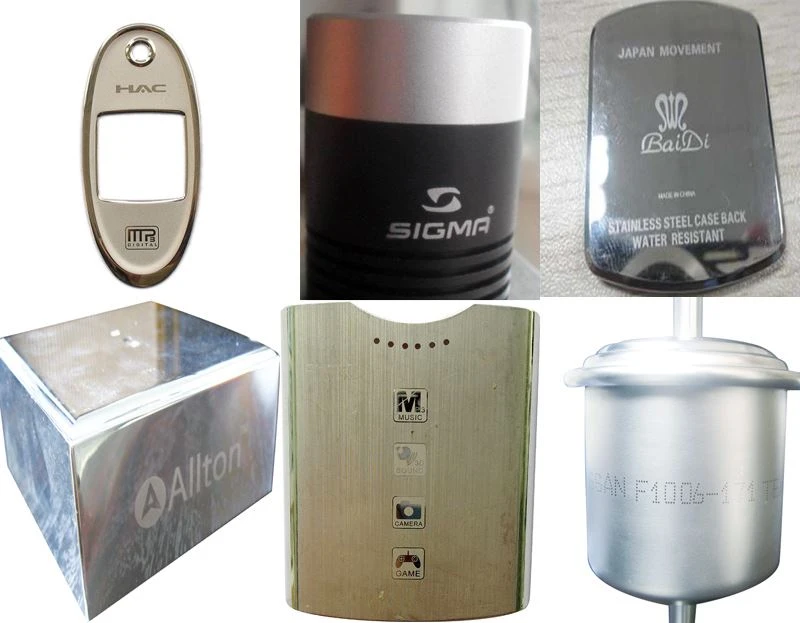

The marking sample of Laser engraving machine for aluminum

Laser marking for aluminum

Shipping

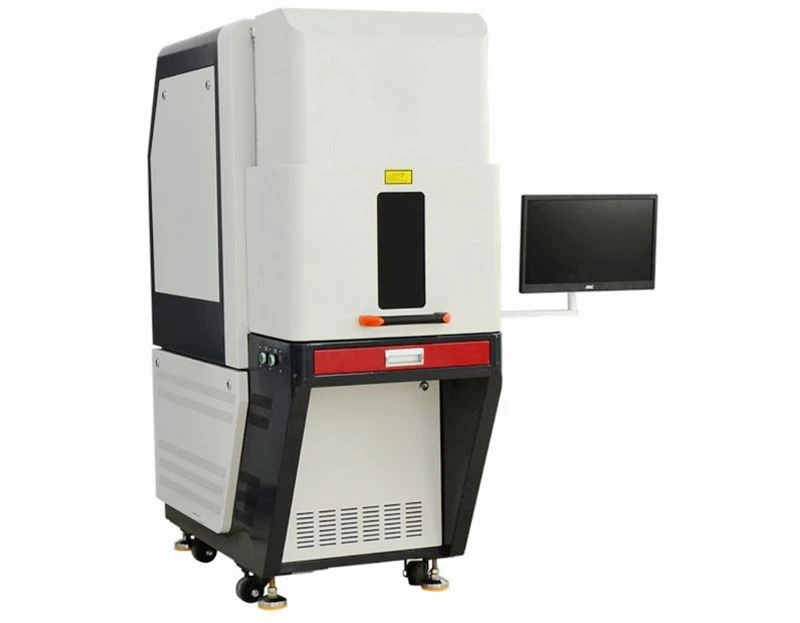

Laser marking cutting machine

FAQ

Q1: How to get a suitable lasers ?

A: We will help you choose the suitable machine and make the solution for you ; you can show us what material will you marking / engraving and the depth of MARKING/ ENGRAVING.

Q2: If i got the machine donot know how to use , how should we do ?

A: We will send operation video and manual for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.

Q3:Are there any consumables of laser marking machine?

A: It does not have consumable. It's very economical and cost effective.

Q4: How do you make the package of lasers ?

A: We have 3 layers package. For the outside, we adopt wooden cases free of fumigation. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic film.
