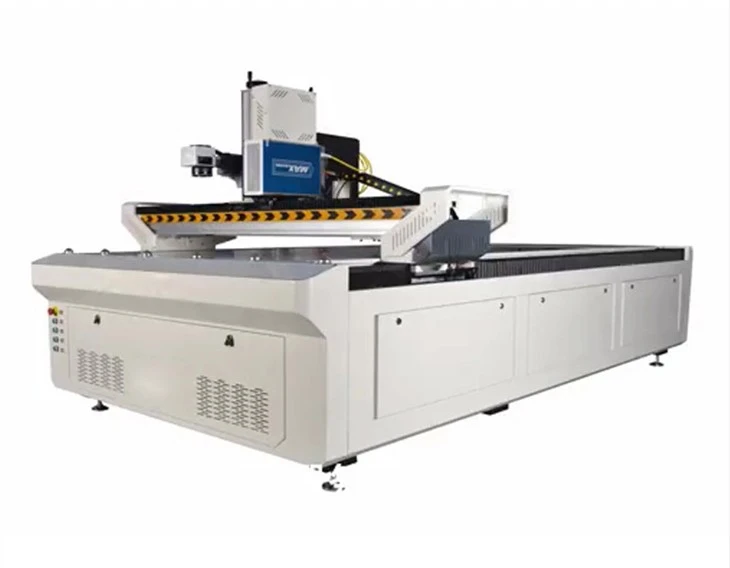

Large Sheet Metal Laser Marker
Large Sheet Metal Laser Marker
Products Description

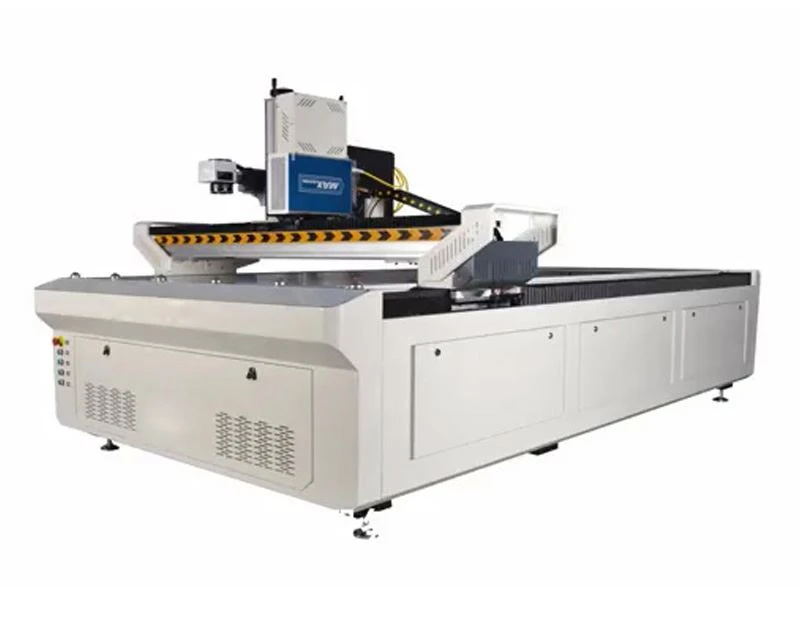

Large Sheet Metal Laser Marker is a very popular equipment in the processing field. It has the advantages of high beam quality, easy operation, simple maintenance, and low operating cost. Our product is selected with high-quality raw materials and advanced cutting technology, which have obvious advantages compared with similar products. Large Sheet Metal Laser Marker is widely used for cutting carbon steel plates, galvanized plates, thin aluminum plates, thin copper plates, etc.
machine Advantage
Wide working area: 600x600mm as a whole,suitable for handling large and heavy objects. Support customized size workspace.
Special functions: our equipment has smaller splicing and folding area, shorter focal length, stronger energy, and better processing results.
Power servo motor：professional motion control program, high precision, high speed, and higher efficiency, which is conducive to processing many small objects in one work area.
Simple to operate：with high precision, thinner lines, and no need to replace parts for long-term use.
Longlife: Large Sheet Metal Laser Marker has a long service life and supports different file formats, such as PLT, AL, DXF and so on.
Parameter
|
NO. |
Name |
Wide area fiber laser marking machine |
|
|
1 |
Machine model |
DS-LMW60 |
DS-LMW80 |
|
2 |
laser power |
60W |
80W |
|
3 |
laser wavelength |
1064 nm |
1064 nm |
|
4 |
Max single pulse energy |
1.5mj |
2mj |
|
5 |
Frequency range |
1-4000Khz |
1-4000Khz |
|
6 |
Pulse width |
2-350ns |
2-500ns |
|
7 |
Laser level |
Class 4 |
Class 4 |
|
8 |
Repeat accuracy |
±0.003mm |
±0.003mm |
|
9 |
Min.line width |
0.02mm |
0.02mm |
|
10 |
Min.character size |
0.35mm |
0.35mm |
|
11 |
Max marking speed |
8,000mm/s |
8,000mm/s |
|
12 |
Working area |
600x600mm(standard), more wide area is optional |
|
|
13 |
Cooling |
Air cooled |
|
|
14 |
Working environment temperature range |
5~35 ℃ |
|
|
15 |
Humidity range of working environment |
< 70% No condensation |
|
|
16 |
working voltage |
220V,50/60Hz |
|
What Is Laser Metal Engraving?
Laser metal engraving is utilize foucs laser beams to engrave designs or patterns onto the projects, this is a high-quality and precious technology,enabling businesses and individuals to customize their products with logos, text, or intricate patterns. Laser metal engraving is an efficient and cost-effective method, and it can be used on a range of metals, including aluminum, brass, copper, stainless steel, and more. This technology has revolutionized the world of customization, allowing people to create unique and personalized items for themselves or their businesses.
Fiber laser marking machine is applicable for so many metallic materials like steel, stainless steel, iron, aluminum,titanium,brass,copper,silver,gold,alloy, ABS,PVC,PC, and so on.
It is used in gifts, advertising decoration, toys, electronic appliances, medicine, food,automobile,packaging, and other industries.

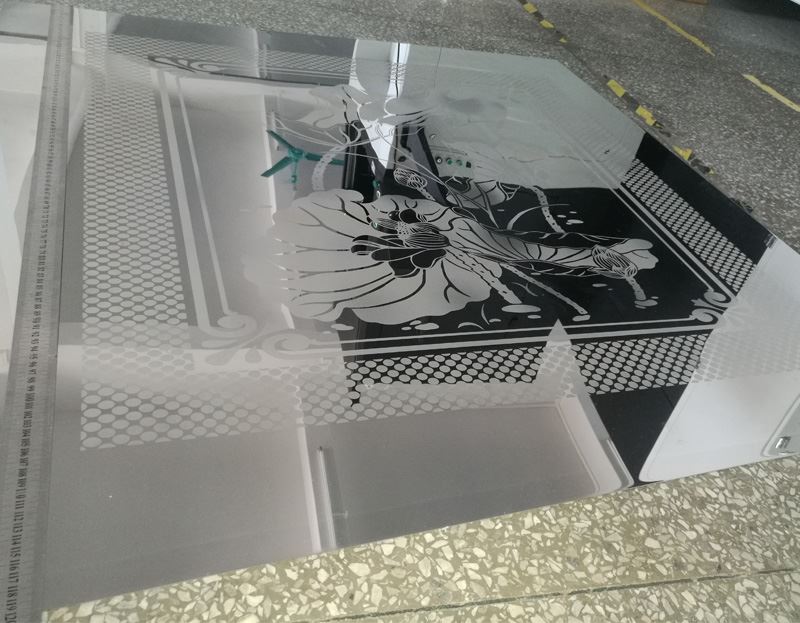

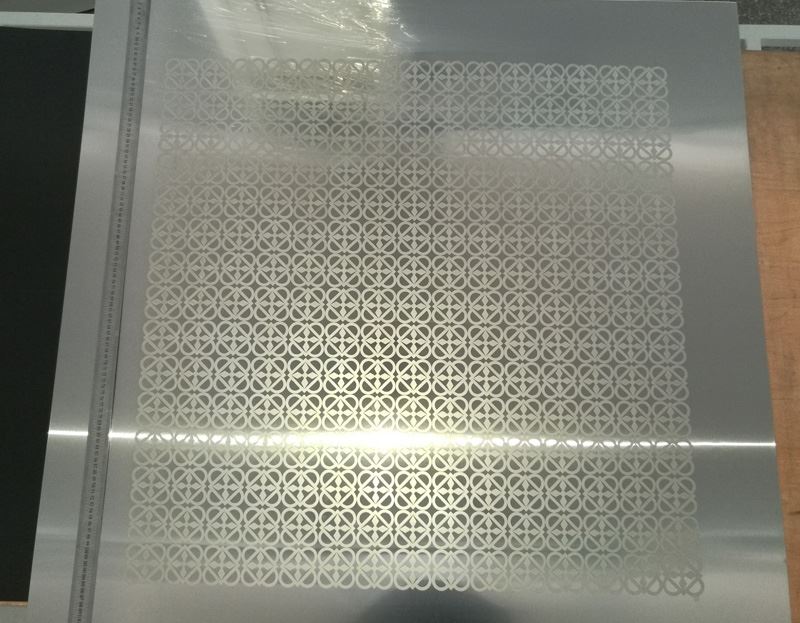

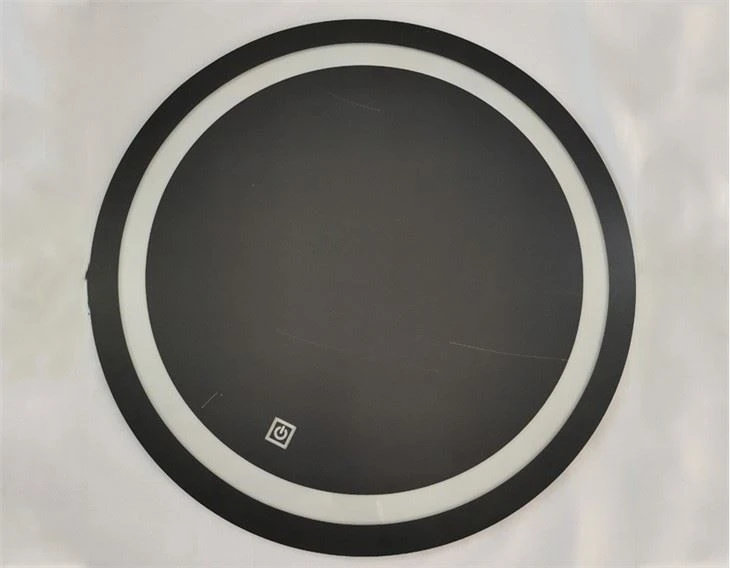

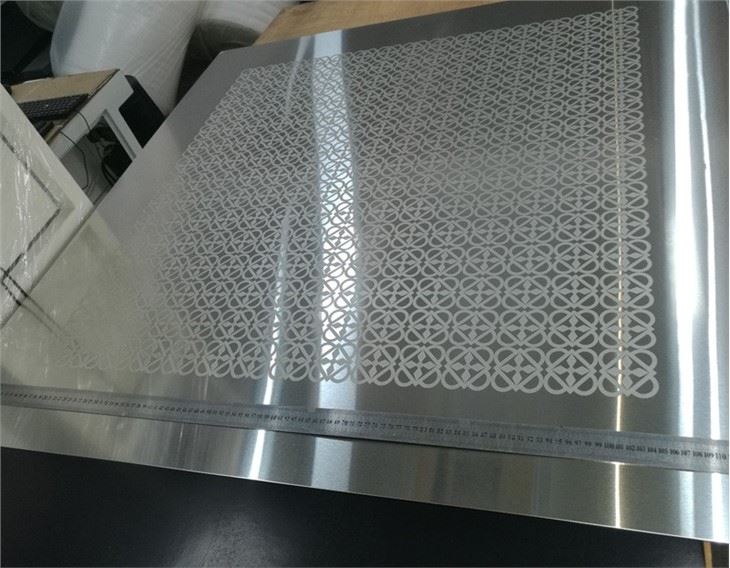

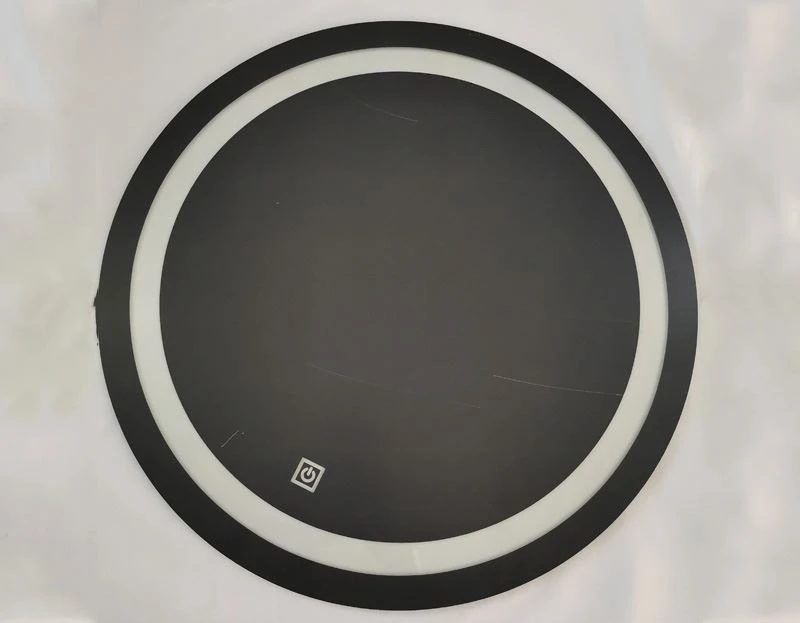

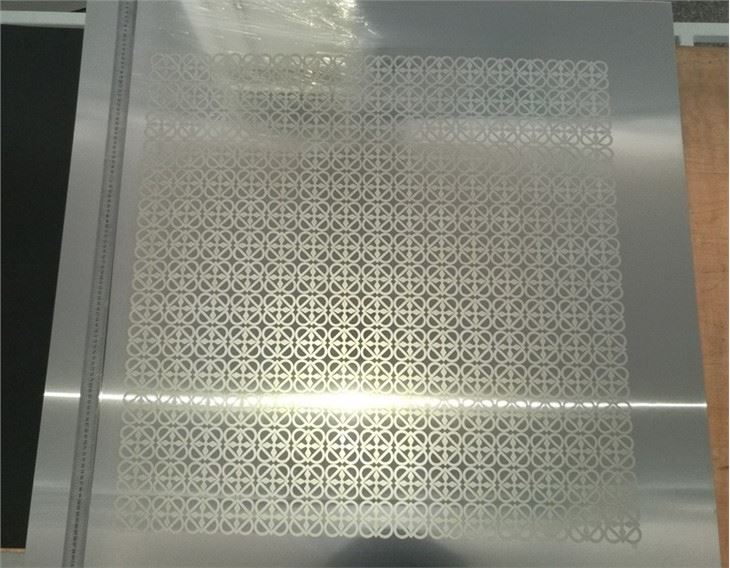

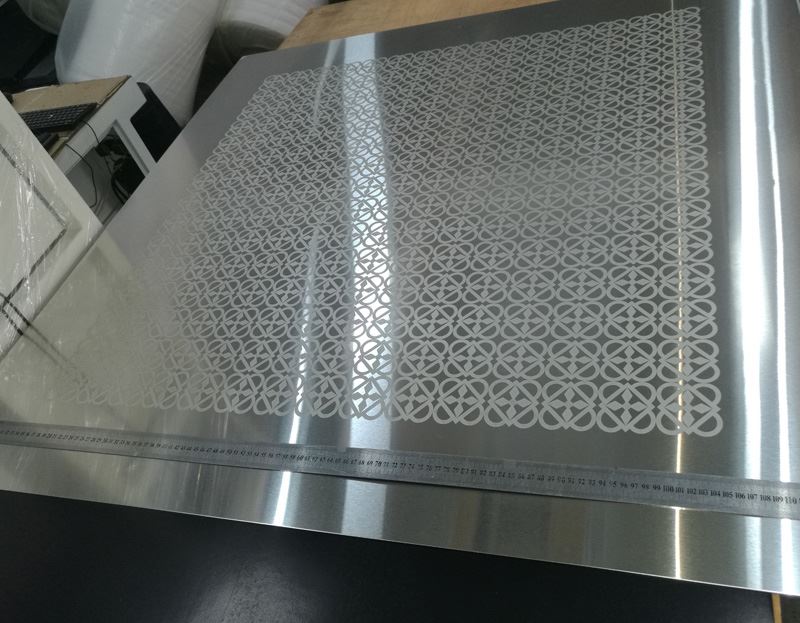

Samples
Shipping and Package
FAQ
Q1: How does the package?
Q2: Will the package damaged during transportation?
Q3: How to install and run the machine?
Q4: How can i do if the machine goes wrong?
