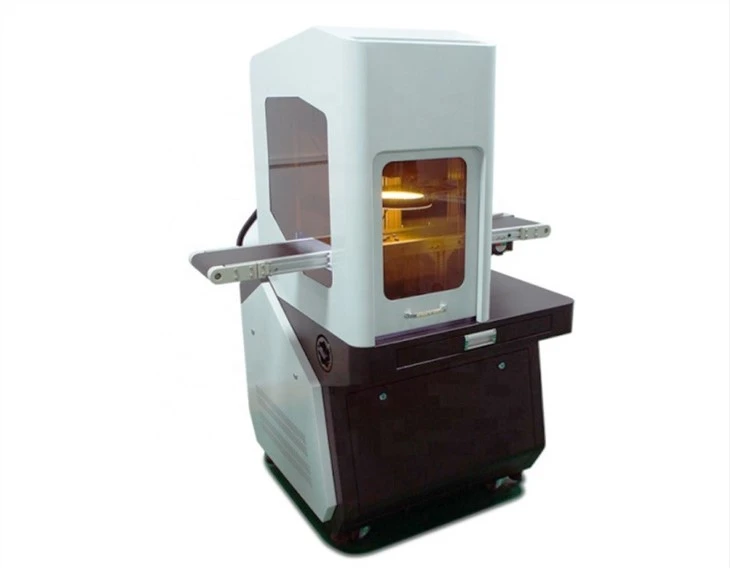

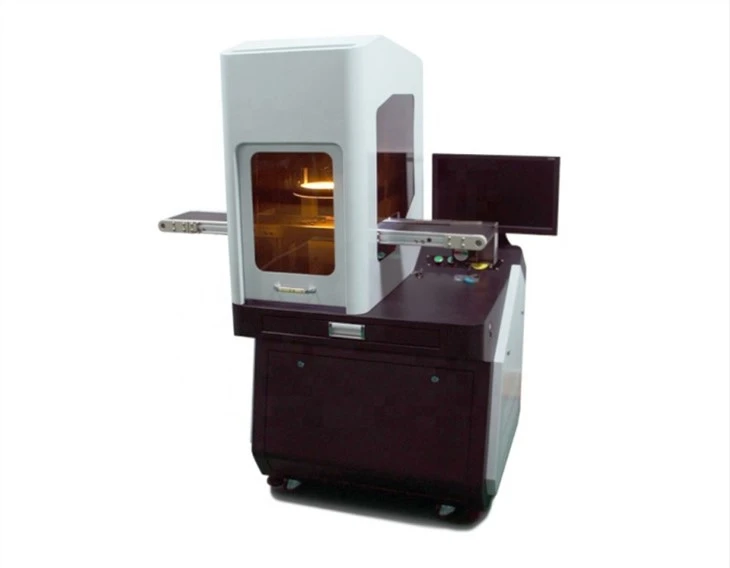

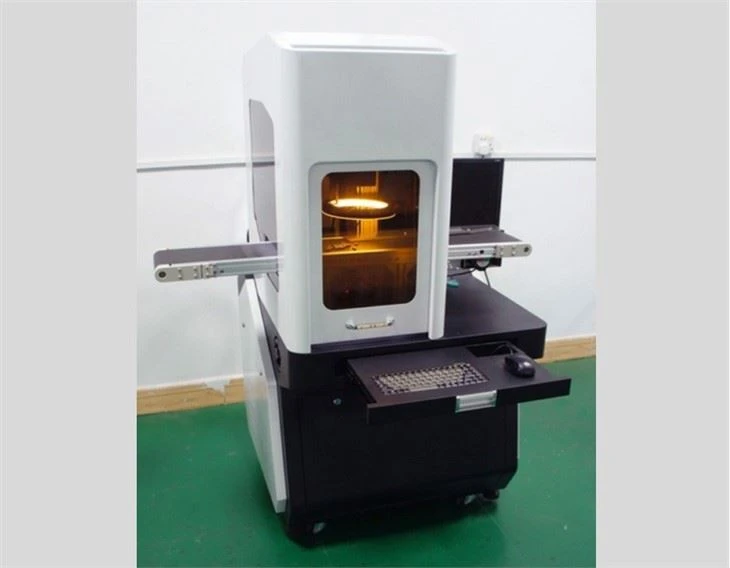

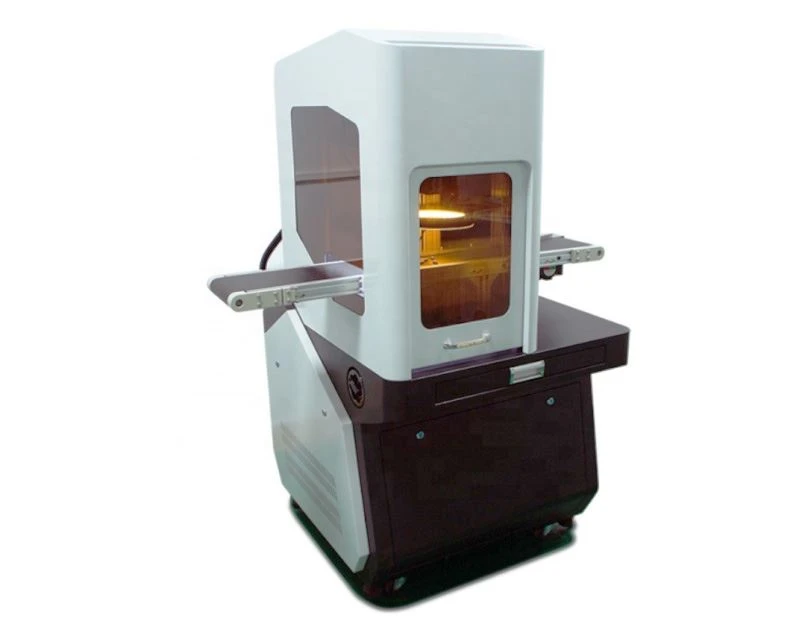

30w Fiber Laser Engraver
30w Fiber Laser Engraver
Products Description
30w Fiber Laser Engraver is mainly composed of three parts, which is laser, scanning head, and control card. Its beam quality is good, the output center is 1064nm, and the life of the whole machine is about 100,000 hours. Compared with other types of laser marking, the machine has a longer life span and the electro-optical conversion efficiency exceeds 28%. Compared with other types of laser marking machines, it can reach the conversion efficiency of 2%-10%, which has a great advantage. It has outstanding performance in energy saving and environmental protection.
Our advantage
Speed
This determines how fast the laser moves while engraving. Slower speeds allow the laser to impart more energy into the material, allowing for deeper engraving. Faster speeds result in lighter engraving.
Power
The laser power setting controls how much energy is delivered to the material. Higher power settings engraves deeper but can also increase heat and the risk of fire and damage to the material. Lower power is good for annealing and surface marking.
Frequency
The laser pulses on and off rapidly during engraving. The frequency setting controls how fast it pulses. Lower frequencies allow more heat dissipation while higher frequencies can help limit excess heating on sensitive materials.
Focus
Proper laser focus is critical for good engraving quality. The focus needs to be set precisely at the surface of the material being engraved. Inaccurate focus will result in poor detail and excess heating.
Basic feature
|
30w Fiber Laser Engraver can process a variety of metal and non-metal materials, especially for high hardness, high melting point, brittle materials. |
| It belongs to non-contact processing, which does not damage the product, has no tool wear, and has good marking quality. |
| The laser beam is thin, the processing material consumption is small, and the processing heat-affected zone is small. |
|
Controlled by computer, it also has high processing efficiency and is easy to realize automation. |
Application
|
It is widely used in integrated circuit chips, computer accessories, industrial bearings, watches, electronic and communication products, aerospace devices, various auto parts, home appliances, hardware tools, molds, wires and cables, food packaging, jewelry, tobacco, and military affairs, etc. Field graphics and text marking, and mass production line operations. |
Data sheet
|
Model |
DS-LM20 |
DS-LM30 |
DS-LM50 |
DS-LM80 |
|
Laser power output |
20W |
30W |
50W |
80W |
|
Engraving depth |
≤0.2mm(depends on material) |
≤0.3mm(depends on material) |
≤0.5mm(depends on material) |
≤0.8mm(depends on material |
|
laser wavelength |
1064±10 nm |
|||
|
Marking area |
100x100mm(standard)/175x175mm/200x200mm |
|||
|
Pulse frequency |
20~80KHZ/1~600KHZ/1~2000KHZ/1~4000 |
|||
|
Max marking speed |
9000mm/s |
|||
|
Repeat accuracy |
±0.001mm |
|||
|
Min.line width |
0.01mm |
|||
|
Min.character size |
0.2mm |
|||
|
Cooling |
Air cooled |
|||
|
Working temp |
10~35 ℃ |
|||
|
Humidity range |
< 70% No condensation |
|||
|
Power supply |
AC220V±10%,50Hz or AC110V±10%,60Hz |
|||

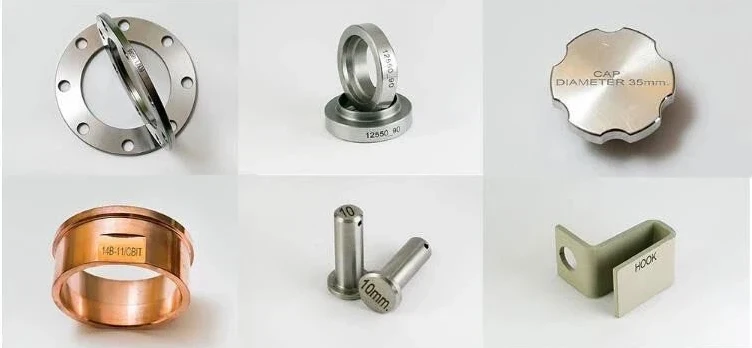

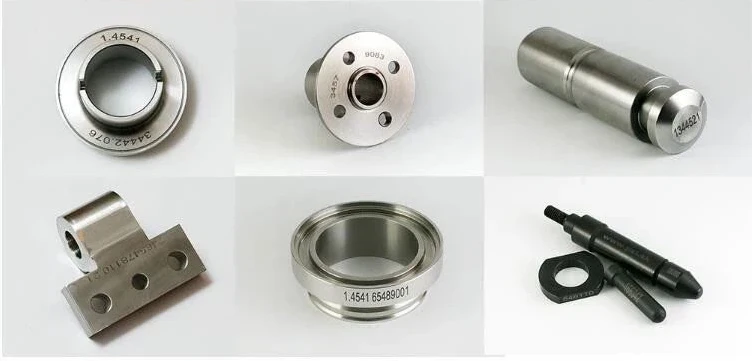

Sample show

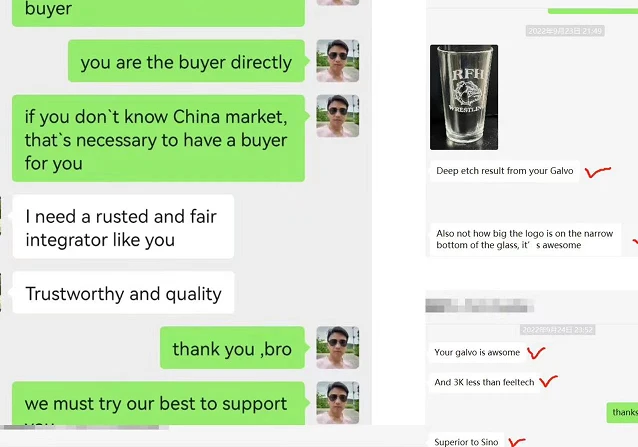

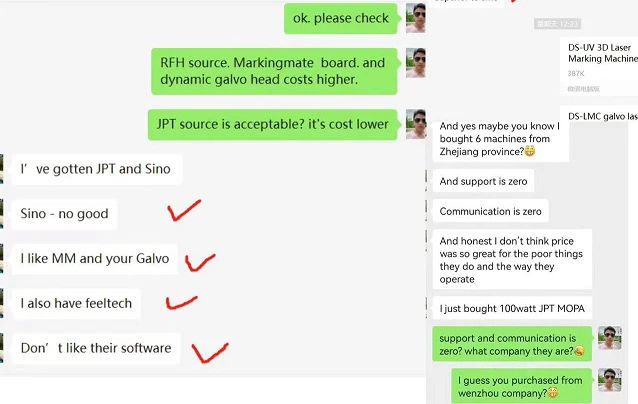

Customer's feedback
The customer received our machine and said that
our products are good quality !
