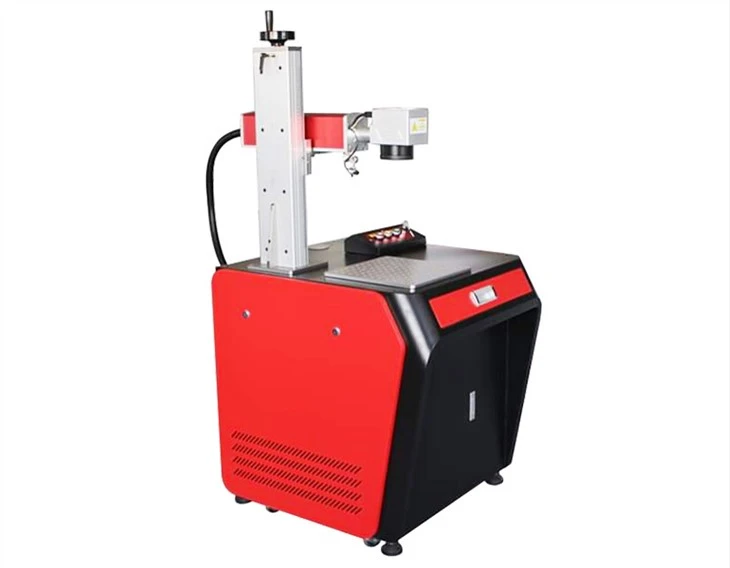

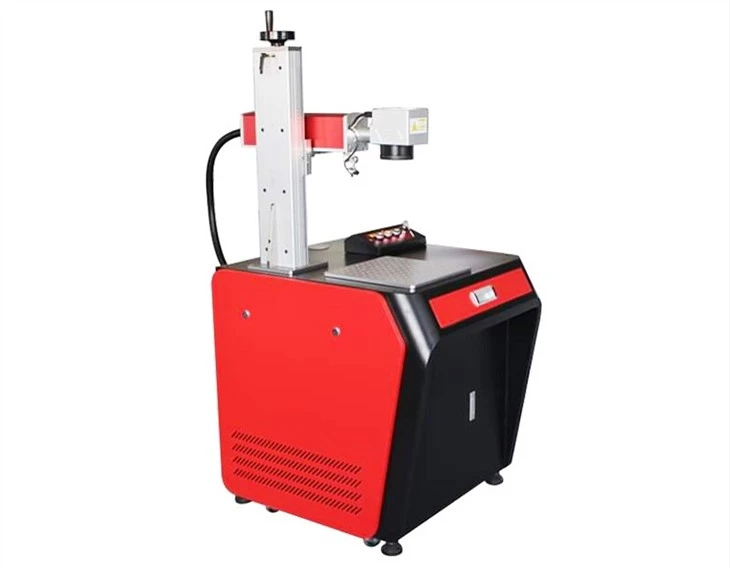

Metal Etching Machine
Products Description
The metal etching machine uses a laser beam to engrave durable marks on the surface of the material or inside the transparent material. The laser beam can produce two kinds of chemical effects and special effects on substances! When a substance instantly absorbs the laser, it will produce a physical or chemical reaction, which will engrave traces or display patterns or text! So it is also called laser marking machine and laser engraving machine. Laser engraving machine is a process equipment that uses laser to engrave materials that need to be engraved.
Parameter
|
NO. |
Name |
Fiber laser marking machine |
|
1 |
Machine model |
DS-LM20/DS-LM30/DS-LM50 |
|
2 |
Laser power |
20W/30W/50W |
|
3 |
Laser wavelength |
10640 nm |
|
4 |
Laser level |
Class 4 |
|
5 |
Repeat accuracy |
±0.001mm |
|
6 |
Min.line width |
0.01mm |
|
7 |
Min.character size |
0.15mm |
|
8 |
Max marking speed |
8000mm/s |
|
9 |
Working area |
100x100mm(standard)/200x200mm/300x300mm |
|
10 |
Cooling |
Air cooled |
|
11 |
Working environment temperature range |
5~35 ℃ |
|
12 |
Humidity range of working environment |
< 70% No condensation |
|
13 |
working voltage |
220V,50/60Hz |
Metal etching machines are used in electronic components, integrated circuits (IC), electrical appliances, mobile communications, hardware products, tool accessories, precision equipment, glasses and watches, jewelry, auto parts, plastic buttons, building materials, PVC pipes, medical equipment and others industry.
Applicable materials for laser engraving machine include: ordinary metals and alloys (iron, copper, aluminum, magnesium, zinc and other metals), rare metals and alloys (gold, silver, titanium), metal oxides (all kinds of metal oxides are available), Special surface treatment (phosphating, aluminum anodizing, electroplating surface), ABS material (electrical housing, daily necessities), ink (transparent keys, printed matter), epoxy resin (electronic component packaging, insulating layer).
Carving metal and various non-metal materials. It is more suitable for the processing of some products that require fine and high precision.
Laser beam has four special laser processing characteristics of high brightness, high directivity, high monochromaticity and high coherence, it brings some characteristics that other processing methods do not have. Because it is non-contact processing, there is no direct impact on the material, so there is no mechanical deformation; there is no "tool" wear during the laser engraving process, and no "cutting force" acts on the material; in the laser engraving process, the energy density of the laser engraving beam is high, and the processing Fast speed, local processing, no or little influence on non-electrically carved parts.
Application of laser engraving technology in prototype manufacturing scenarios:
1. It is suitable for places where the product surface needs light transmission. (Use transparent materials when making the prototype. After processing, spray paint on the surface, and then use laser engraving to remove the paint in the area that needs light transmission) as shown in the figure below. The digital keypad of the functional machine is laser engraved.
2. The surface of our commonly used aluminum alloy, zinc alloy, and plastic materials can be laser engraved with LOGO or numbers. Generally, the laser engraving depth is 0.05MM. The effect of laser engraving is generally faster than silk printing, mainly because it will not fade. For uncolored logos, laser engraving will be selected.

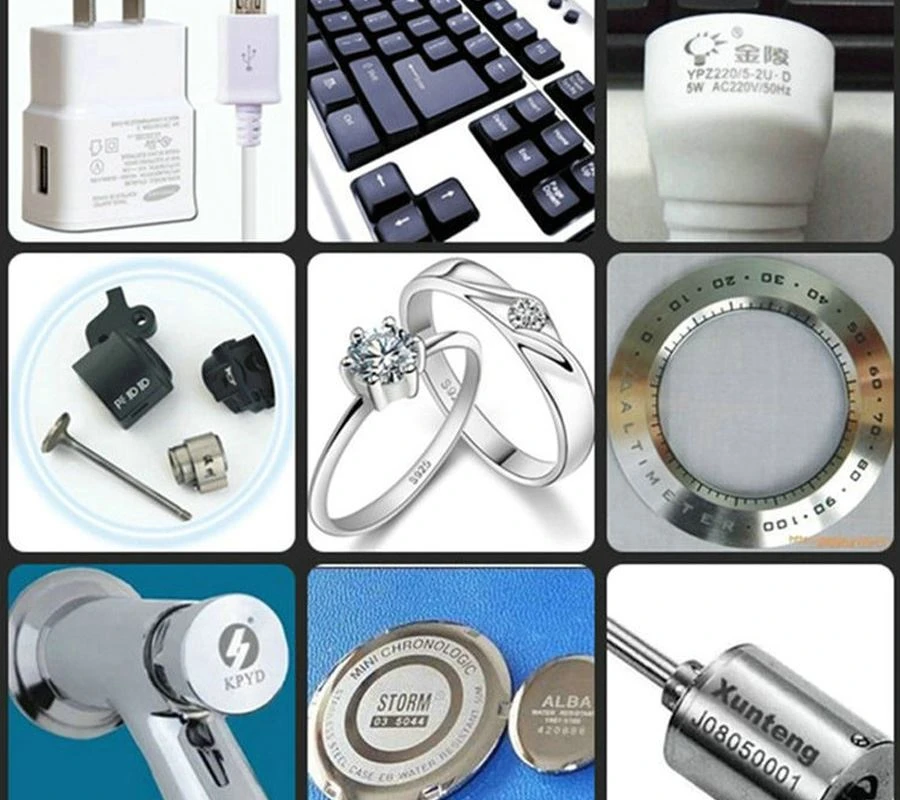

Samples
Package
