Laser Engraving Machine For Rubber Products

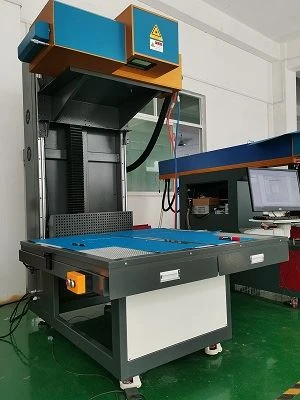

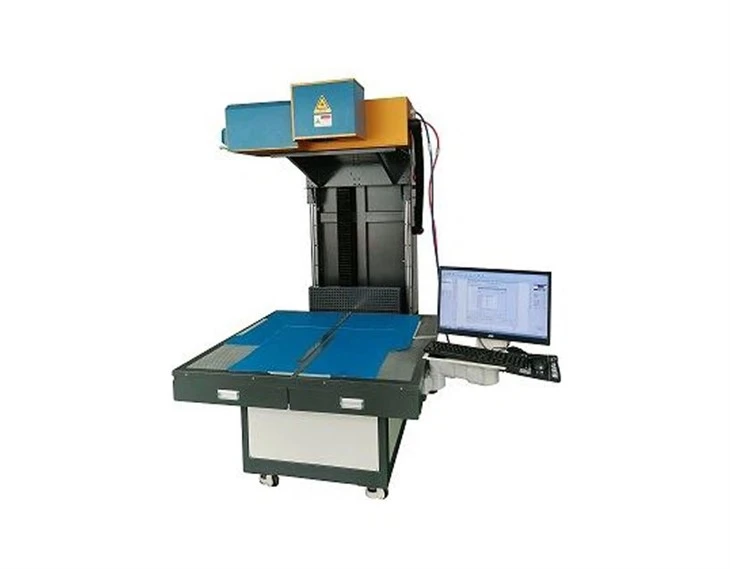

Laser engraving machine for rubber products
Products Description
With laser engraving machines, customization is easy, fast, and precise. The process of engraving is done through laser beams that subtly vaporize the top layer of rubber without damaging the product. The results are clean and sharp designs that will not fade or peel away. As consumers demand unique and personalized products, laser engraving machines for rubber products provide a simple solution to meet these needs. From packaging to promotional items, a laser engraver machine can enhance the look of any rubber material, thereby increasing its value.
machine features

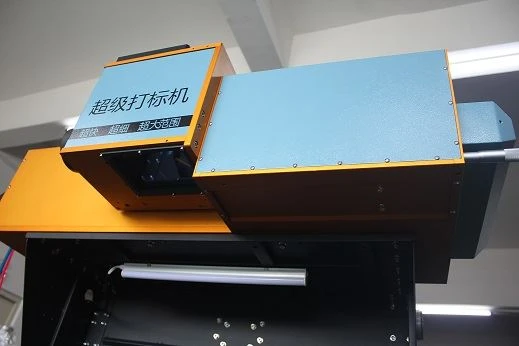

The three dimension focus system
CO2 marking machine equipped with bigger working area and finer optical spot diameter.The maximum marking area of the customizedsystem can reach 2mX 2m.
High accuracy
It has smaller focusing spot and higher energy density which are suitable forfiner cutting, punching and engraving.
Easy to operate
The Fully closed free-maintenance laser optical system is ready to use afterinstallation without adjustment.
High speed marking/cutting performance
Ensure smooth sharp cutting edge. The processing result is more average, without too high or too low energy injected in partial area.
Safer to opertate machine
Strict multi-protection control design is applicable to a wide range of ambient temperatures ensuring the continuous reliable work of the laser marking system.
Advanced software
The application system under Windows interface can be compatible with the file formats of AutoCAD, CorelDraw and other software, such as PLT, DXF,etc.
Parameter
|
Laser tube parameters |
Max Output Capacity | 250W |
| Nominal Peak Powe | ≥450W | |
| Mode Quality | M2≤1.2 | |
| Duty Cycle Limit | ≤70% | |
| Laser Type | CO2 | |
| Laser Wavelength | 10.6μm | |
|
Marking performance |
Marking Format |
Pattern,Word,Bar code,QRcode,Date,Serial Number |
| Marking Character Types | Pattern and words of vectordiagram & bitmap | |
| Marking Area | 400X400-700X700(mmXmm) Adjustable | |
| Marking Depth | 0-5mm (According to the materials) | |
| Marking Speed | <7000mm/s | |
| Min Line Width | 0.3mm(According to the materials) | |
| Min Character | 0.4mm | |
| Repeat Positioning Accuracy | 0.01mm | |
| Machine information | Total Power | ＜6KW |
| Power Supply | AC220V/50Hz/30A | |
| Cooling Way | Constant temperature water cooling unit | |
| Working Temperature | 15-30℃ | |
| Working Humidity | <75 No condensation | |
| Working Environment | Without dust, without vibration | |
| Machine Packing Size | 1010*1340*1740mm | |
| Control cabinet packing size | 1060*660*1100mm | |
| Chiller packing size | 660*760*1080mm |
Three Axis Dynamic CO2 Laser Marking Machine is widely suitable for the industries, such as Heat Transfer film (paillette, TPU materials, Reflective transfer film, etc.), leather, wooden box, paper card, clothes denim, illuminator,Mobile communications, mould, precision machinery, IT Digital shell, Military aviation components, handicrafts, Advertisement decoration, etc.
Various types of rubber that suitable for laser marking
Laser rubber.
Silicone rubber.
Natural rubber.
Odorless rubber.
Synthetic rubber.
Foam rubber.
Oil resistant laser rubber.

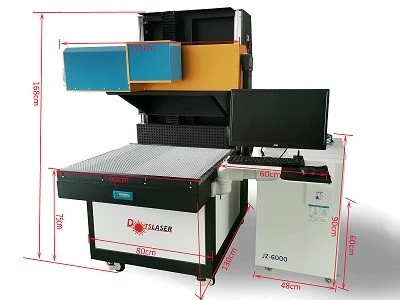

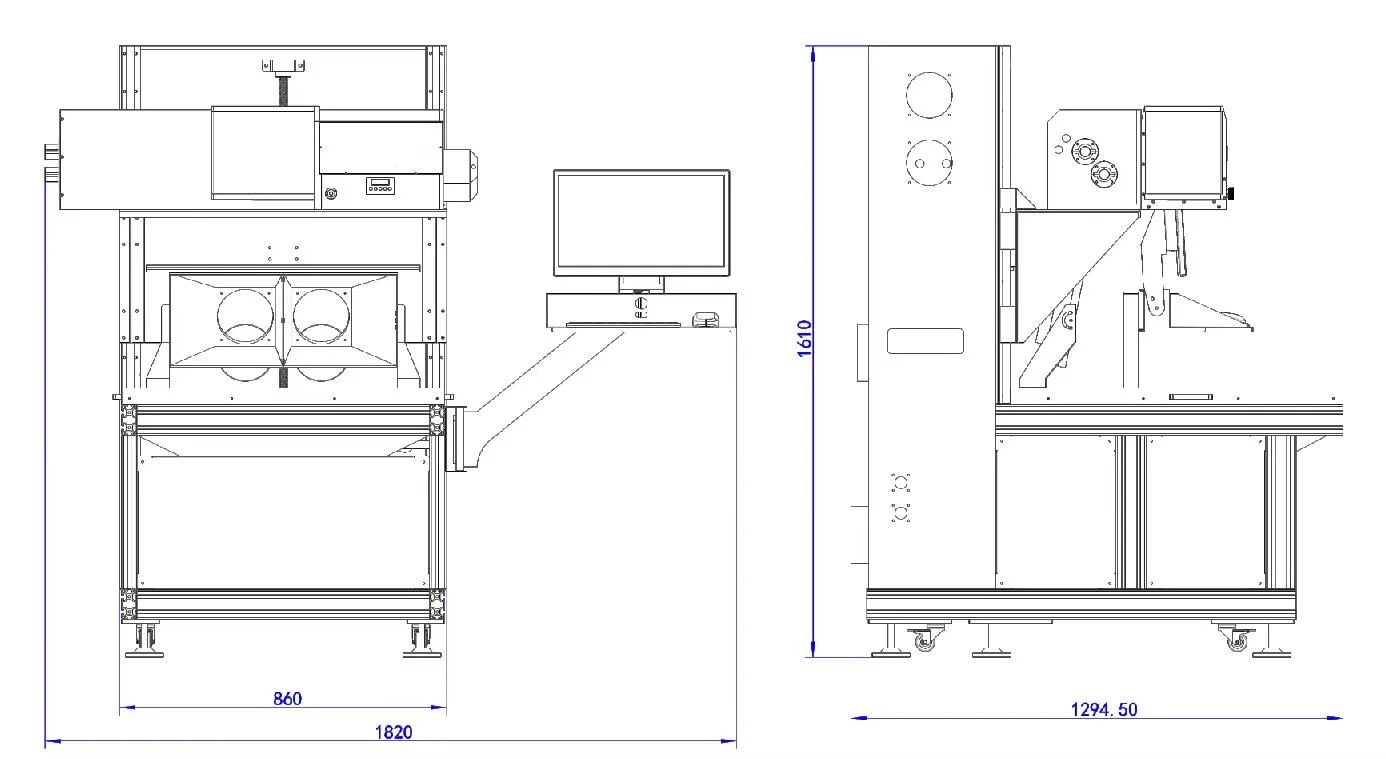

Machine's size

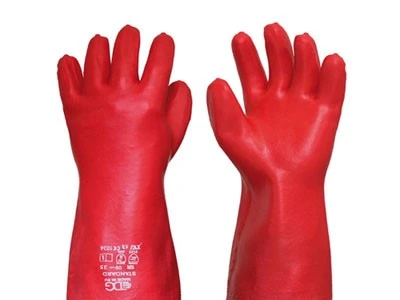

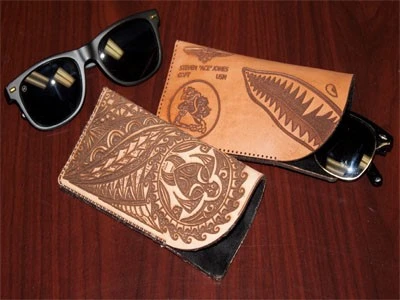

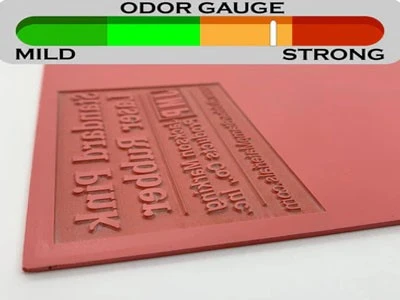

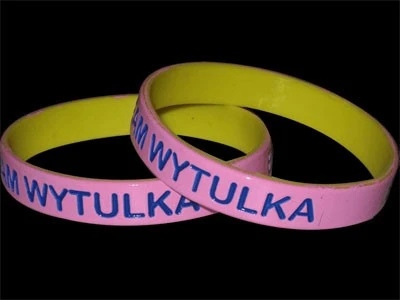

Samples Of Laser Marking Machine
Shipping and package
Daily maintenance
● After finishing work, make sure the floor is clean. Then clean the machine including the surface of the machine, the case of the optical system, the surface of the monitor, the work table, and so on.
● Please turn off each part and main power supply when they are clean.
● Check the lens regularly for dust. When it's clean, use the cotton wool with greater than 95% medical grade alcohol to wipe clockwise from the center of the lens. When you need to move the machine to avoid bumps. Check the connection cable according to the cable list.
Applications of Laser Engraving Machine for Rubber
Rubber has been used for laser marking. The machines can be used for marking and engraving rubber materials such as gaskets, seals, belts, o-rings, and other components used in the automotive, aviation, and manufacturing industries.
Rubber materials can be used in high temperatures and harsh conditions, what's more,it is also apply to extreme temperatures, chemicals, and abrasion. Laser engraving machines provide the perfect solution for this need. They create precise and permanent markings that are resistant to wear and tear, making them ideal for applications in industrial settings.
FAQ
Q1: How does the package?
Q2: Will the package damaged during transportation?
Q3: How to install and run the machine?
Q4: How can i do if the machine goes wrong?
