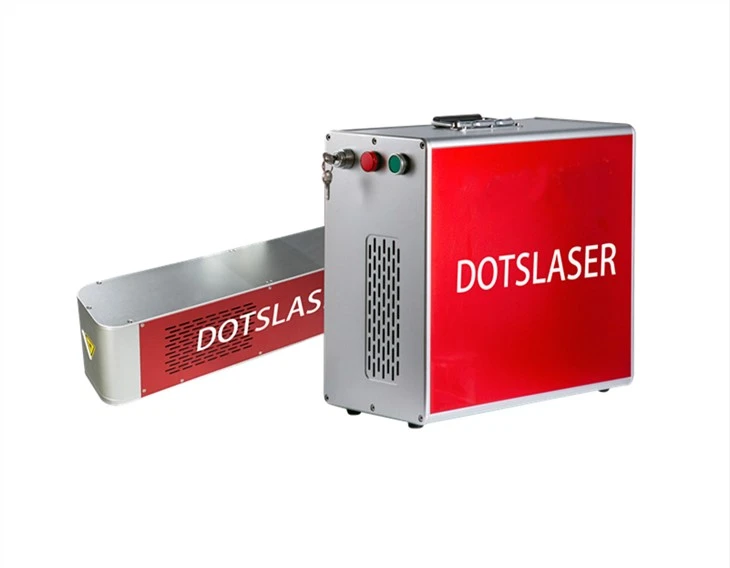

Mould Engraving Machine
Mould Engraving Machine
Products Description
The surface welding technology of traditional mold materials can no longer meet the higher performance requirements of molds. Laser welding gradually replaced the traditional welding technology. The most typical example of the application of Mould Engraving Machine. It is the laser welding machine for mold repair. The equipment is easy for operators to use, can greatly increase the welding repair speed, and the repair effect and accuracy are close to perfect, so that the equipment is widely used in the field of mold welding.
The repair welding heat affected zone of this kind of Mould Engraving Machine is very small. The advantage is that it does not need to be pre-heated, and the workpiece after welding will not be annealed. This laser welding repair technology can not only be used to repair the wear of the mold, but also can realize the precision welding of small and precise areas, and there will be no deformation and pores after the repair, which greatly improves the aesthetics and performance of the mold.
In addition, this laser welding machine can be perfectly combined with computer technology, which improves the degree of automation and can achieve more precise and efficient operations.
Parameters
|

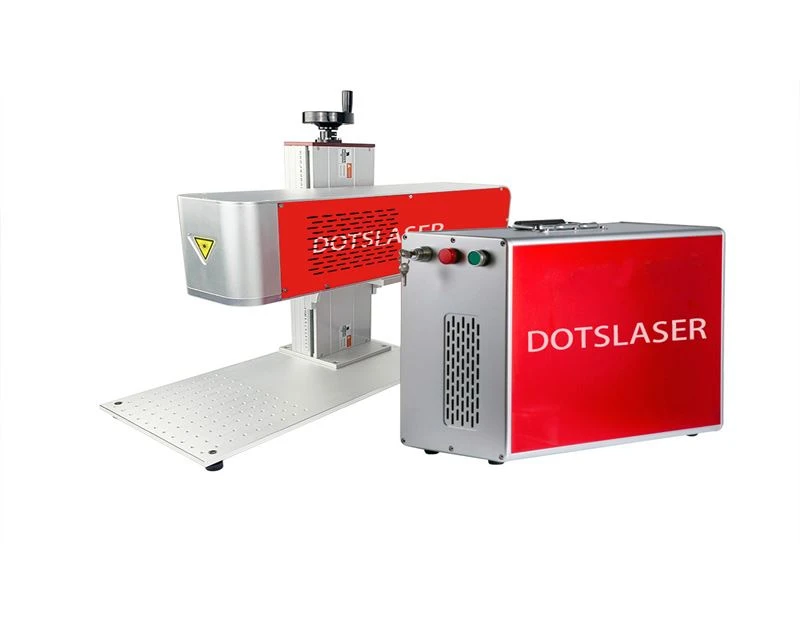

Model |
DS-LM60-3D/DS-LM80-3D |
|
Laser power |
60W/80W |
|
Pulse Repetition Frequency |
1-1000kHz |
|
Beam quality(㎡) |
<1.6 |
|
Depth of engraving(depend on material) |
<5mm |
|
Power consumption |
≤1000W |
|
Operating voltage |
Single phase AC 220V/110V 50/60HZ 5A |
|
Laser wavelength |
1064nm |
|
Working area |
100×100×60mm,150×150×60mm, |
|
Repetition precision |
±0.003mm |
|
Max engraving speed |
≤8000mm/s |
|
Minimum line width |
0.01mm |
|
Marking method |
Stationary Marking , Flying Marking , Rotary Marking |
|
Character size |
0.5-110mm |
|
Cooling system |
Air Cooling |
|
Direction of Installing equipment |
Any |
|
Cable of Length |
3m (5m optional) |
|
Working Temperature Range |
5-38℃ |
|
Working humidity |
20%-80% |
|
Net weight of machine |
46kg |
|
Dimension of main body(L×W×H) |
480mm×215mm×450mm700mm×320mm×700mm |
Samples
Shipping & package
FAQ
Q1:Why we use mould engraving machine?
Q2:Why choose us?
Q3: How we choose the material for mould engraving machine?
