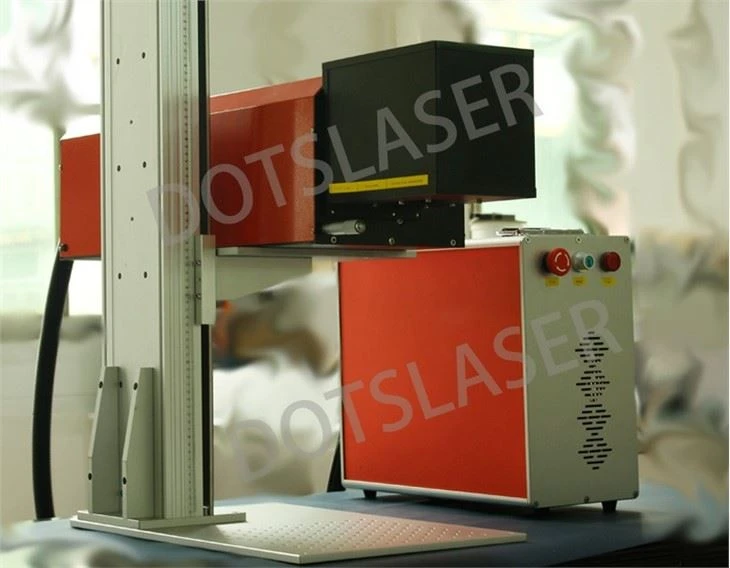

dynamic focus laser

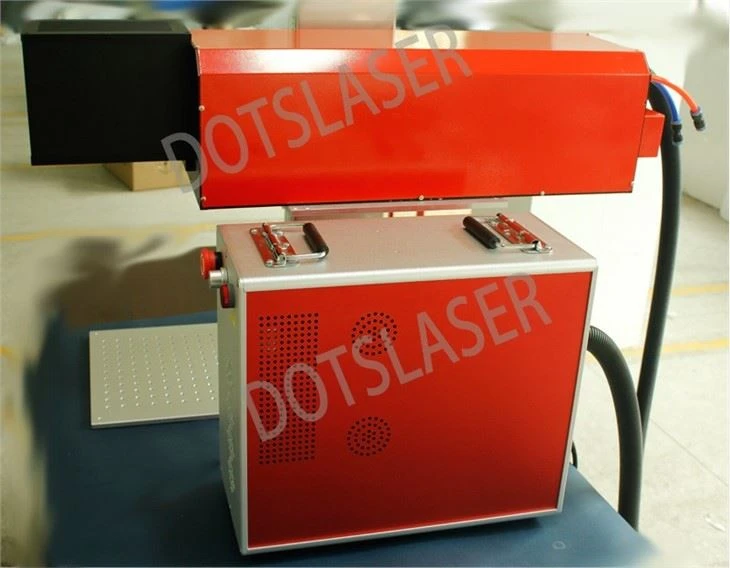

portable galvo laser machine

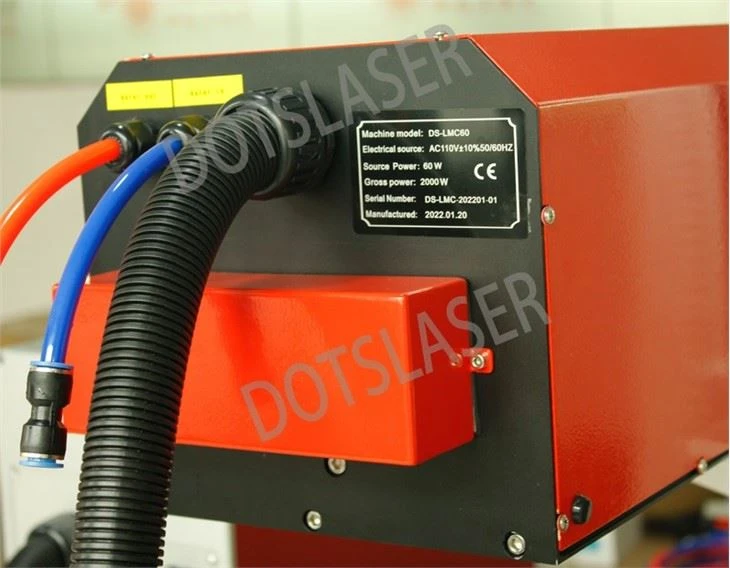

small galvo laser

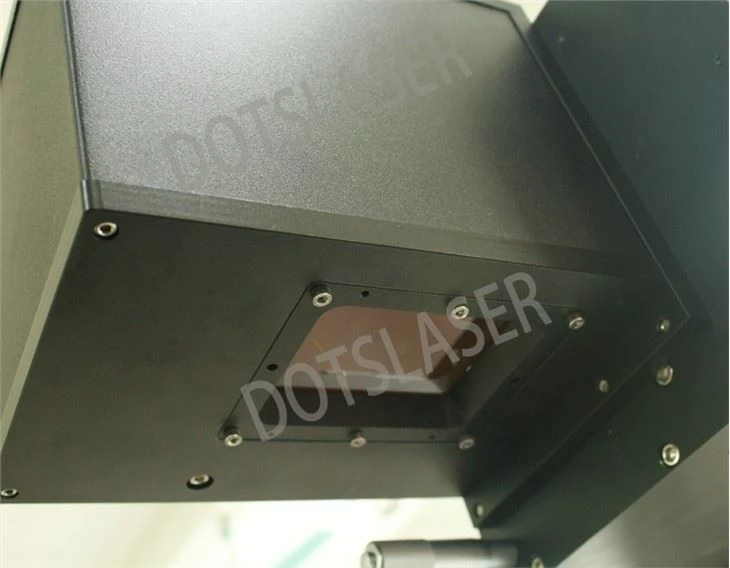

split CO2 galvo laser machine

3D 60W Dynamic Focus CO₂ Laser

Name: China 3D 60W Dynamic Focus CO₂ Laser Manufacturers Suppliers Factory - Customized Service - Dotslaser
Brand: DOTSLASER
SKU: 169259042

3d 60W dynamic focus CO2 laser with 60W power, 3D dynamic focus galvo-type based system,400x400mm working area.small volume and light weight,suit for most marking or engraving or some cutting work. cost effetive.

Send Inquiry

Product Introduction

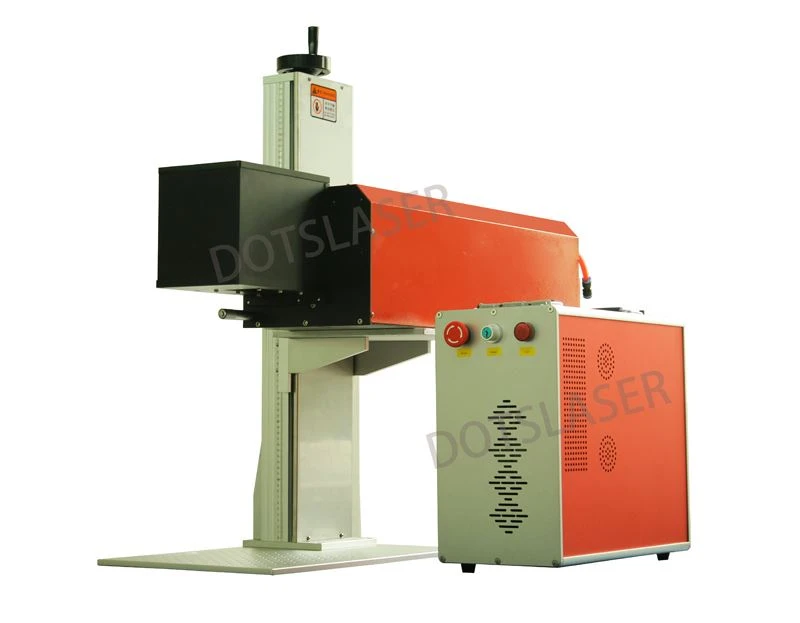

3D 60W Dynamic Focus CO₂ Laser

Products Description

The 3d 60W dynamic focus CO₂ laser is controlled by a computer with special controller. It uses a 10.64um laser beam to expand, focus, and then control the deflection of the galvanometer, and fired on the surface of the workpiece according to a predetermined trajectory, so that the working surface is vaporized to achieve the marking effect. The 3d 60W dynamic focus CO₂ laser produced by our company has good beam pattern, stable system performance and maintenance-free, and is suitable for industrial processing sites of large-scale, multi-variety, high-speed, high-precision continuous production.

A 3D 60W Dynamic Focus CO₂ Laser is a versatile laser system that utilizes a carbon dioxide (CO₂) laser source with a power of 60 watts and combines it with dynamic focusing technology. This technology allows the laser system to adjust its focus quickly and accurately for 3-dimensional engraving, marking, and cutting on various non-metal materials that have uneven or curved surfaces.

Key features and benefits of a 3D 60W Dynamic Focus CO₂ Laser

Dynamic Focusing: This system adapts to irregular or uneven surfaces and adjusts the laser focus accordingly, allowing for precise and consistent results when working on curved or complex objects without manual intervention.

Versatility: CO₂ lasers are capable of engraving and cutting a wide variety of non-metallic materials, including wood, leather, acrylic, fabric, glass, rubber, and some plastics.

Non-contact process: Laser engraving and cutting is a non-contact process, reducing the risk of mechanical damage to the material and producing cleaner results with minimal debris.

Ease of use: Modern CO₂ laser systems come with user-friendly graphic interfaces and software, allowing users to design and manipulate projects easily before exporting the file to the laser system for execution.

Applicable materials

3D 60W dynamic focus CO₂ laser is suitable for laser engraving and laser cutting of various non-metallic materials, such as leather, cloth, paper, PVC, rubber, wood, ceramics, glass, plastic, etc.

3D 60W dynamic focus CO₂ laser is widely used in shoe materials, clothing, packaging, toys, food, beverages, medicine, daily cosmetics and other industries.

Potential applications of 3D 60W Dynamic Focus CO₂ Lasers

Signage and decor: Designing and cutting of acrylic signs, wooden plaques, or decorations for home and business.

Leather products: Producing personalized leather goods, such as bags, wallets, or belts, by engraving intricate designs.

Arts and crafts: Creating detailed artwork and intricate designs on materials like wood, glass, or fabric.

Textile and apparel: Cutting and patterning fabric for clothing, accessories, and home furnishings.

When choosing a 3D 60W Dynamic Focus CO₂ Laser, consider factors such as the system's compatibility with material types, workspace requirements, precision, processing speed, ease of use, available software, and support from the manufacturer. These factors ensure that the laser system meets your specific needs and provides the optimal performance for your projects.

Technicial parameters

Model	DS-LMC30	DS-LMC60
Laser power output	>30W	>60W
laser wavelength	10640±10 nm
Aperture of galvo head	30mm
Marking area	300x300mm/400x400mm
Z axis focus	±20mm
Pulse frequency	1~100KHZ
Max marking speed	8000mm/s
Repeat accuracy	±0.001mm
Min.line width	0.22mm
Min.character size	0.35mm
Cooling	Air cooled
Working temp	5~35 ℃
Humidity range	< 70% No condensation
Gross weight	65KG
Power supply	AC220V± 10%,50Hz or AC110V±10%,60Hz

Core advantages

DOTSLASER has teamed up with the top European laser R&D and manufacturing giants. On the basis of the original hot-selling models, it has concentrated on research and development, and has launched a laser marking machine for leather, wood and cloth. 10 technical upgrades of DOTSLASER will bring you into a new era in the field of laser processing in the world.

Samples show

3d 60W dynamic focus CO<sub>2</sub> LASER

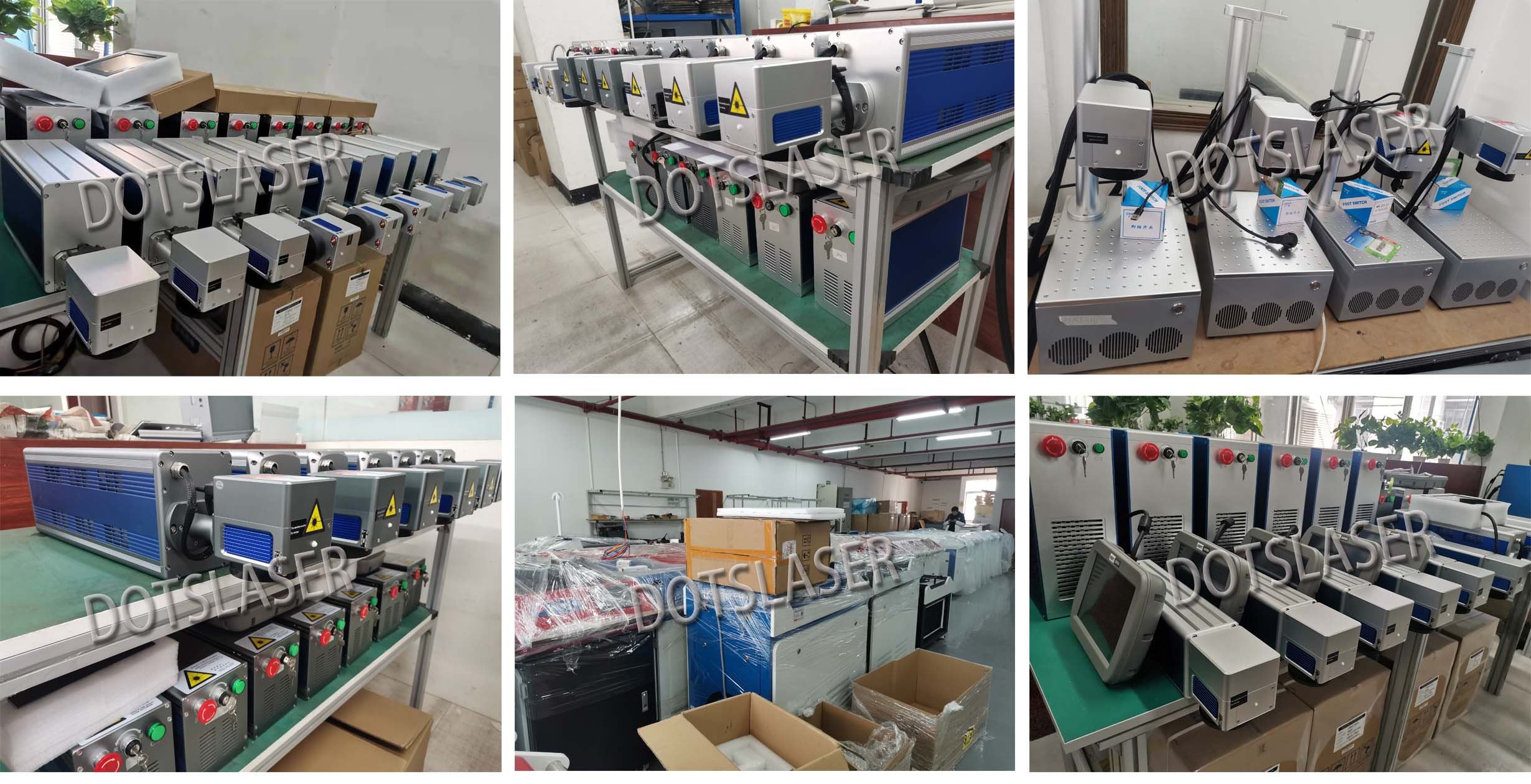

Company products view

DOTSLASER CO<sub>2</sub> LASER MACHINE

FAQ

Q1:What warranty of the 3d 60W dynamic focus CO₂ laser?

A1: Two years warranty of laser source, one year warranty of galvo head, controller,power supply,consumable parts are not in warranty, DOTSLASER promise to support you service all the time for free.

Q2: Do you have manual about the 3d 60W dynamic focus CO₂ laser?

A2: Yes, we can send you detailed manual and videos about how to operate this system, and our professional technician will instruct you if you have any question. all these support is free.

Q3: Do you have any certificate to support import&export the systems?

A3: Yes, we have CE, FDA, and other certificate which can help you import the products.

Shipping and Package
