UV Laser Engrave Ceramic Products
UV laser engrave ceramic products
Products Description

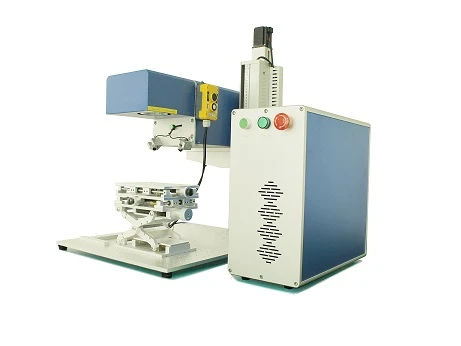

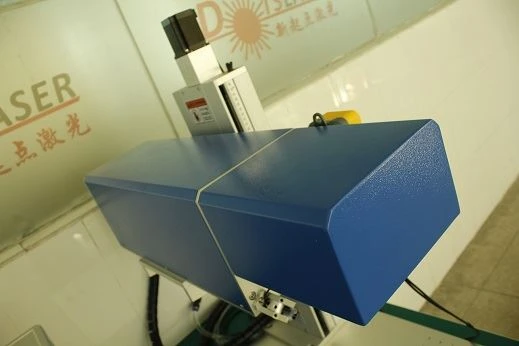

Dotslaser 3D 10W UV laser machine needs less energy consumption, with the property of water-cooled, portable split image cavity structure, it is easy to disassemble, tightly fitting, high photoelectric conversion rate, many people are satisfied with its marking effect, fast engraving speed suitable for mass productions, it saves a lot of processing time and labor cost.
3D UV laser advantages
Precision and Detail
3D UV laser machine adopts smaller focusing light spot, better optical mode, marking effect more delicate and detail, precise marking on the ceramic products.
Material Integrity
We have full air-cooled UV laser technology with high control precision and good laser stability. Our machines can work continuously for 24 hours at room temperature;
Less consumables
Stable marking performance, compact machine size,easy to move and easy to operate,non-contact laser processing, saving cost,no waste consumables.
Permanent marking
UV laser marking keep long lasting, it won't fade even in a hash environment, it has anti-fake functions,keep your products are unique in the market.
Parameter
| Model | DS-UV10 |
| Marking area | 100x100mm--180x180mm |
| Min. line width | 0.01mm (According to the material) |
| Minimum character size | 0.3mm (According to the material) |
| Laser power | 10W |
| Wavelength | 355nm |
| Standard marking area | 180x180mm |
| Power supply | Single phase 200-240 VAC 50/60 HZ |
| Cooling | water cooled |
| Core Components | Laser Source |
| Marking Depth | 0.01-2mm |
| CNC or Not | Yes |
| Warranty of core components | 1 year |
| Machinery Test Report | Provided |
| Video outgoing-inspection | Provided |

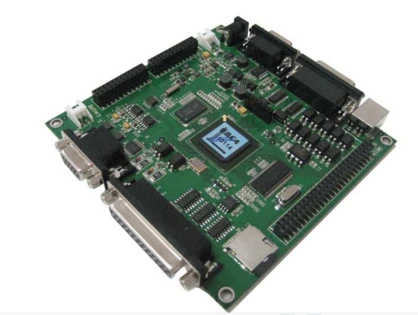

PCB board, LCD screen, electronic appliance keyboards, plastic push-button marking, liquid cystal galsss/QR code marking, silicon products, conmunicate devices.
Daily maintenance of UV Laser Machines:
After finishing work, make sure the floor is clean. Then clean the machine including the surface of the machine, the case of the optical system, the surface of the monitor, the work table, and so on.
Please turn off each part and main power supply when they are clean.
Check the lens regularly for dust. When it's clean, use the cotton wool with greater than 95% medical grade alcohol to wipe clockwise from the center of the lens.
When you need to move the machine to avoid bumps. Check the connection cable according to the cable list.

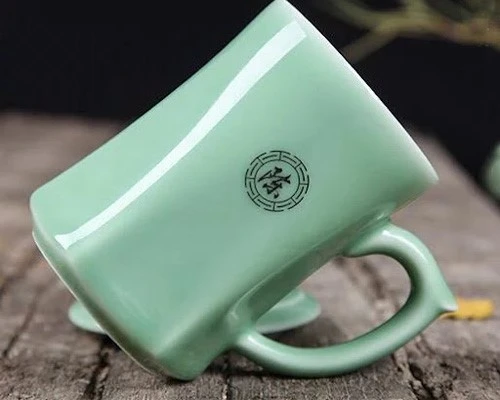

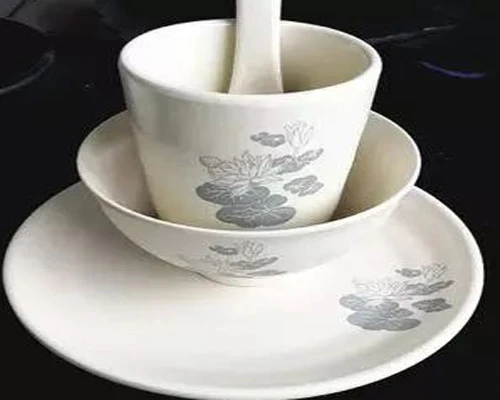

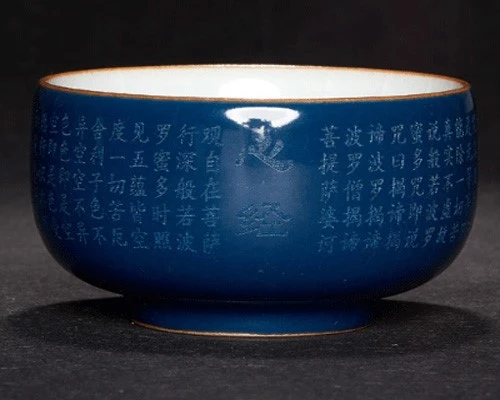

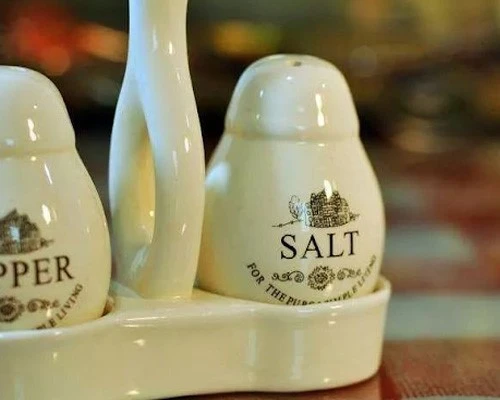

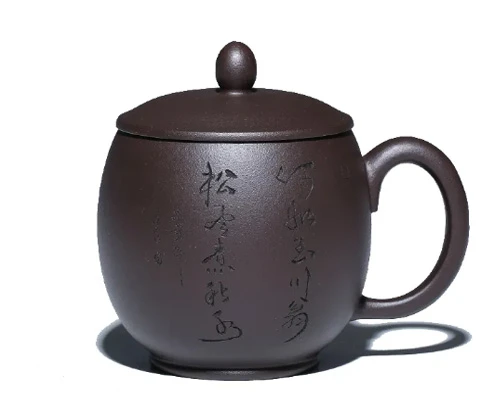

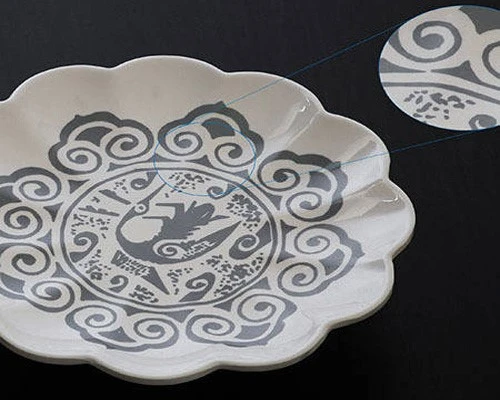

Samples Of UV Laser Marking
Shipping and package
The short wavelength 355nm allows for high absorption, it is cold marking process,it means excessive heat is not required, even when marking ceramics. This results in a high-contrast mark, without the risk of damage to the ceramic.

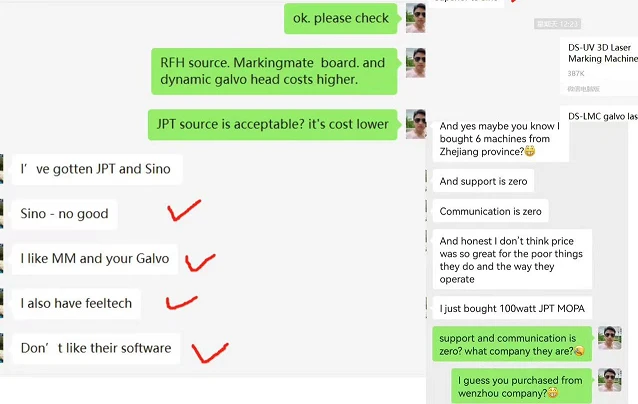

Customer's feedback
After-sales service
1. Quality assurance and after-sales service
The warranty period of the equipment shall be 12 months since the equipment be used by the customers, the installation and debugging is completed and the equipment is accepted by the demander. Dotslaser attaches great importance to the after-sales service work of the product, once the product is delivered to the user, the company immediately established the user after-sales service file, and regularly track the user's product use status, solve and answer all the problems of the user, received the user's notification information about the equipment failure, the company's workers can make a rapid response within 2 hours. If the telephone guidance is difficult to troubleshoot, our company's technical staff can arrive at the customer site within 24 hours to provide support.
2. Installation and debugging
Before machine installation, our factory will offer you a basic structure installation file,the good need 2 weeks delivery to you there , the engineers of Dotslaser will arrive at your site and inspect the machine again. Comfirm all the conditions meet the installation and commissioning requirements of the equipment, the equipment will transport in time. The installation and commissioning time of the equipment is about five working days, the first three days are connected to the use of the system, and the system is operational after the service project. The engineer will train qualified operators on basic maintenance procedures and general operating characteristics of the equipment in the next two days
3. Service support
If there has any problem with any part of the system during the warranty period, Dotslaser well-trained service engineers are ready to provide cellphone call or begin on-site service,if the machine has any problem during the warranty period,please contact us directly !
Unpacking Caution
Every marking machine has been rigorously tested at the factory, only qualified product for shipment. When you receive the freight, please check as follows. If you have any questions, please contact the agent or staff at DOTSLASER.
● Whether there is damage or deformation during transport.
● Confirm that all of the items on the packing list are correct.
● Confirm that the model of the product matches the nameplate(Operating voltage and KVA number).
● Make sure that all clamps are tight and that there are no foreign objects in the device.
● Confirm the operation buttons, switches are normal.
