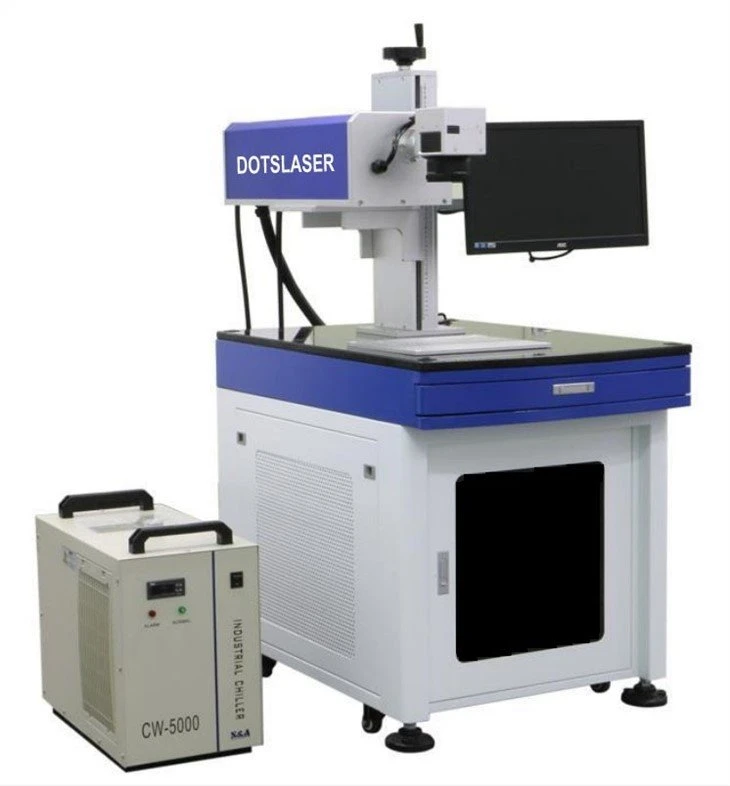

2D UV Laser Marking Machine

2D UV laser marking machine is developed by using a 355nm UV laser source and supported optical components. The machine adopts a third-order intracavity frequency doubling technology.

Send Inquiry

Product Introduction

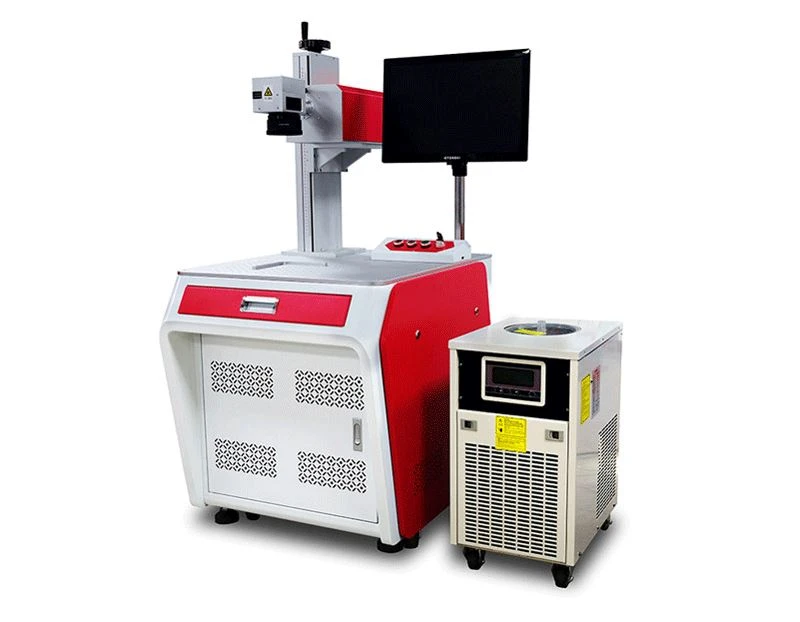

2D UV Laser processing Machine

Products Description

The 2D UV laser processing machine is an outstanding choice for processing materials with the help of ultraviolet (UV) light. Unlike other laser types, this machine uses a non-invasive processing process that prevents heat damage. This makes it ideal for processing sensitive materials that require high-precision and high-speed processings. Thanks to its innovative design, the 2D UV laser processing machine is an excellent option for anyone looking for a reliable and efficient laser processing equipment.

key features of a 2D UV laser processing machine

Wavelength: UV laser processing machines use a shorter wavelength (typically around 355 nm) compared to other lasers, like infrared lasers (e.g., 1064 nm for fiber lasers and 10,600 nm for CO₂ lasers). This shorter wavelength allows for incredibly fine and precise processings.

Non-contact processing: Like other laser processing machines, UV laser markers work without direct contact with the material, which reduces stress on the material and eliminates the need for consumables like inks, solvents, or masks.

Cold processing: UV lasers generate minimal heat during the processing process. This characteristic makes them ideal for materials that are sensitive to heat, such as polymers, plastics, and thin films, or applications where precise control of processing depth is crucial.

High-resolution processing: 2D UV laser processing machines can produce high-resolution processings of complex patterns, including small text, QR codes, serial numbers, barcodes, logos, and graphics, quickly and accurately.

Material compatibility: They are suited for a wide range of materials, including plastics, glass, ceramics, metals, and more. UV lasers are especially useful for processing materials that are normally difficult or impossible to mark with other laser types.

Clean and environmentally friendly: UV laser processing is a clean process, producing no toxic gases or chemicals that could be harmful to the environment or humans.

Application Materials:

Glass, ABS, Nylon, PES, PVC, Makrolon, leather,rubber,wood,bamboo,ceramics,film,paper board.

When considering a 2D UV laser processing machine, it is essential to evaluate factors like the intended applications, material compatibility, processing resolution, desired processing speed, and budget. UV laser processing machines may be more expensive than other laser types, but their precision and ability to mark sensitive materials can make them a valuable investment for certain industries.

Advantages

1) Compact structure, easy to move around.
2) Long lifespan of laser source: 20 000 hours.
3) Fast scanning head, speed can be 8000mm/s.
4) good controller.
5) High Precision: upto 0.012mm,to make sure good processing effect.
6) Superior Laser Beam: the definition is 1 micron, 10 times as that of traditional products.
7) No Consumables: UV LASER marker can work more than 5 years without any consumables.
8) High efficiency: 80 standard characters per second, it is 3 to 5 times than traditional tools.
9) The laser beam no need to adjust .
10) Low consumption: <600W, is 1/25 ~ 1/10 times as that of Diode and YAG, more economized and environmental.
11) Strong Compatibility: JPG, BMP, DXF, AI, PLT and other format files output from CorelDraw, PS, AutoCAD, etc..
12) Integrated Air Cooling System: The cooling effect is more excellent than the water cooling effect in YAG laser, no maintenance.
13) Deeper processing: Max. 1.2mm stainless steel, suitable for the industries which needs high precition and depth processing effect.

Technical parameter

Model	DS-UV3	DS-UV5	DS-UV10
Laser power output	>3W	>5W	>10W
Laser wavelength	355nm
Optional method	2D/3D/flying processing
processing area	100x100mm/150x150mm/200x200mm
Pulse energy	＞200µJ
Repetition rate	20~150KHz
Max processing speed	10,000mm/s
Beam quality	＜1.2 ㎡
Min.line width	0.01mm
Repeat accuracy	±0.003mm
Cooling	Air/Water cooled
Working temp	15~35 ℃
Gross weight	190KG
Size of machine	1000x735x1630mm
Power supply	AC220V±10%, 50Hz or AC110V±10%,60Hz
