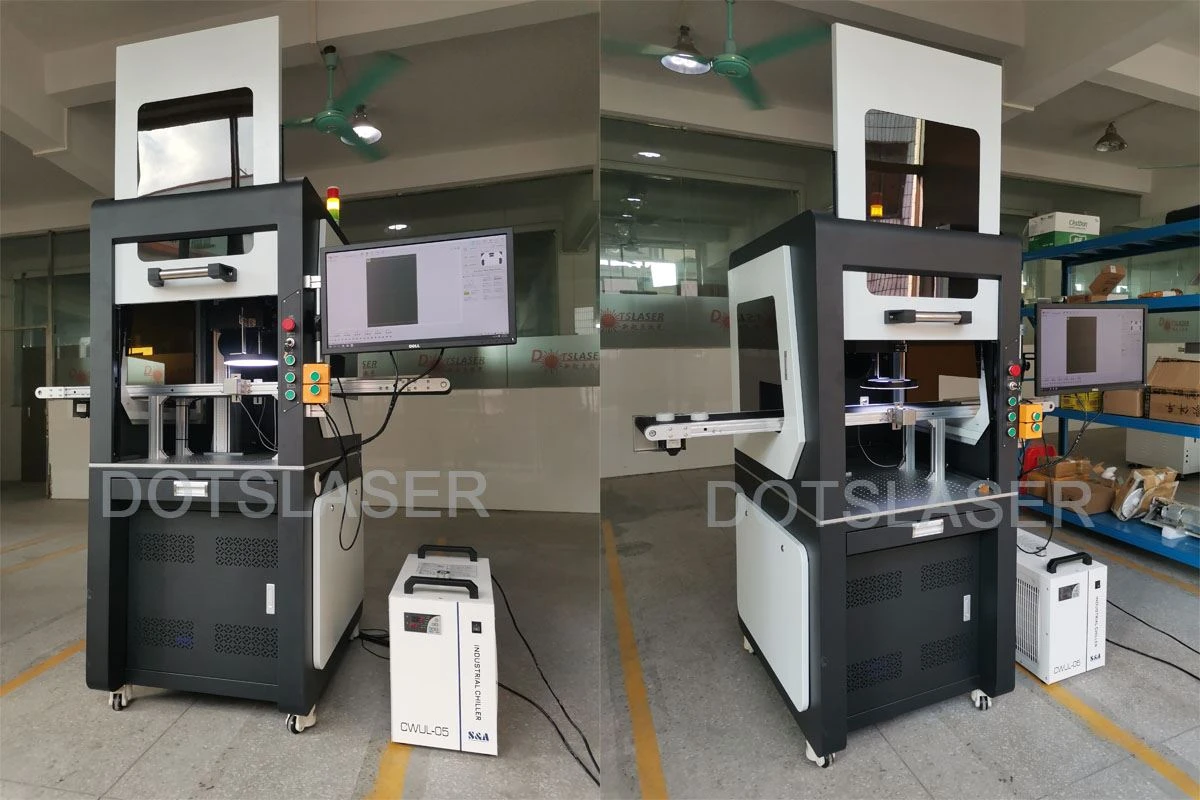

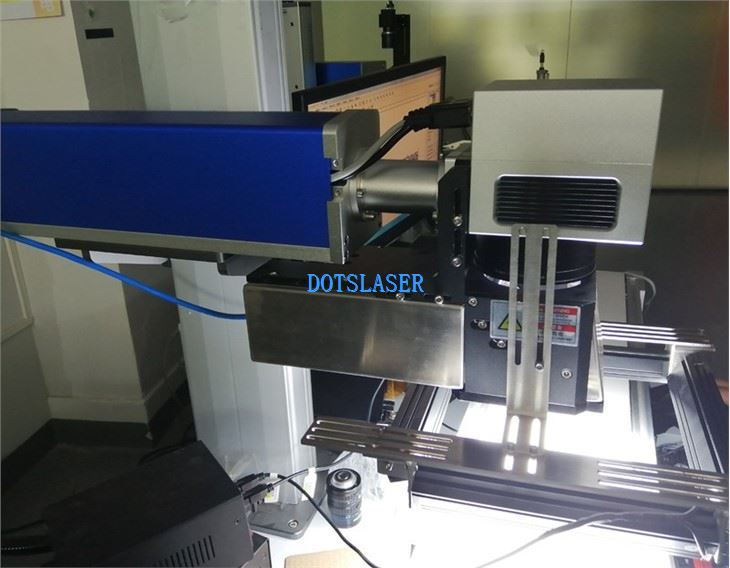

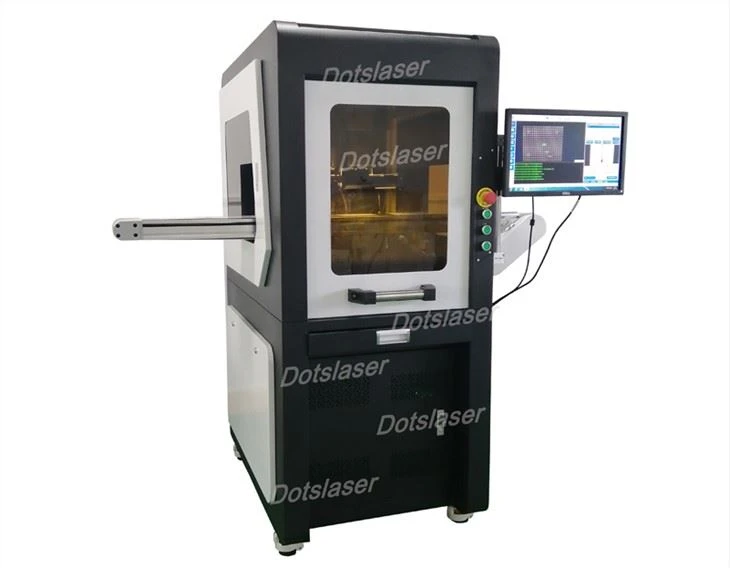

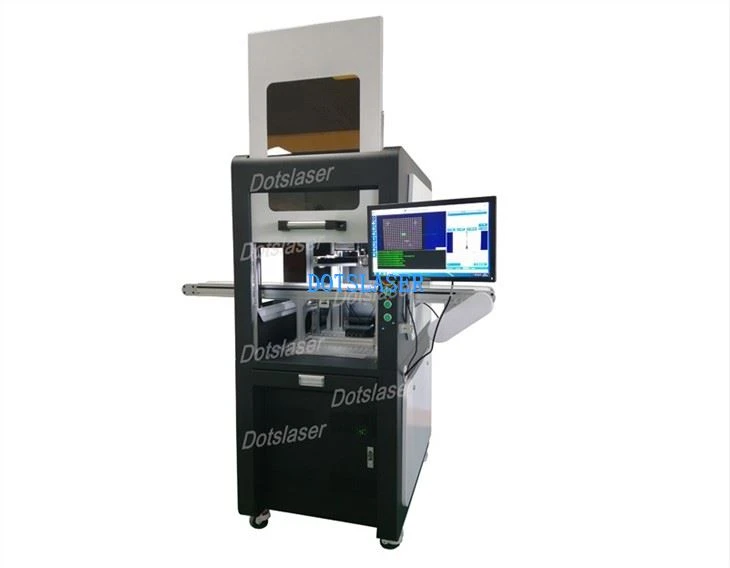

CCD Camera Positioning Laser Marker
CCD Camera Positioning Laser Marker
Products Description

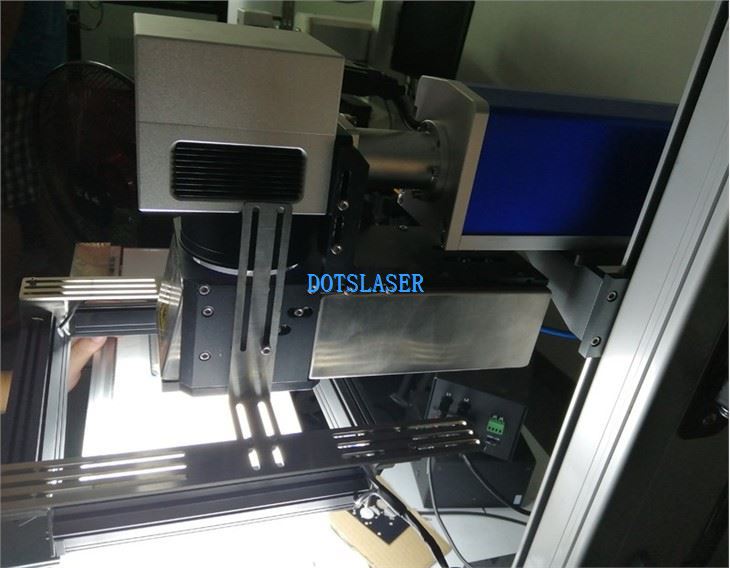

CCD Camera Positioning Laser Marker can achieve the effect of precise marking as long as the product is within the processing range of the laser marking scanning oscillator. It uses the principle of visual positioning, first formulates the template for the product, saves it as a standard template, takes a picture of the product during processing, compares the position positioning by the computer, and adjusts it for precise processing of the product. It greatly saves the processing cycle of laser marking.

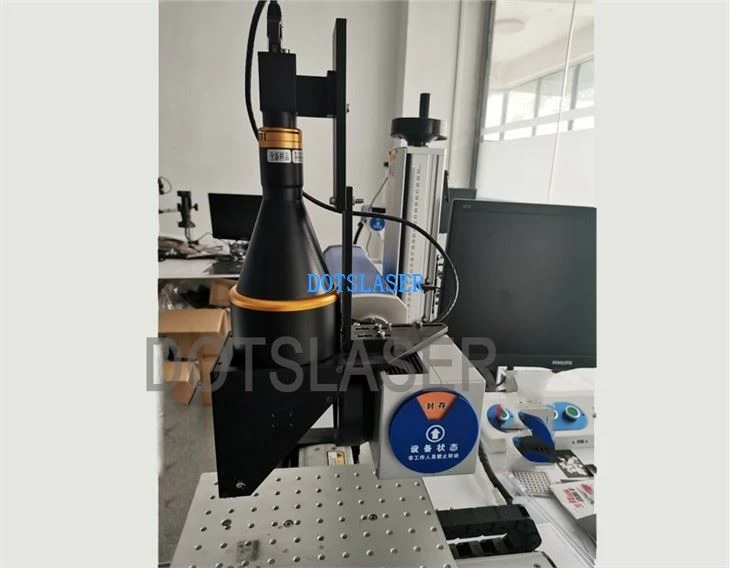

1. CCD Camera Positioning Laser Marker adopts high-precision visual positioning system, precise position and fast corresponding speed.

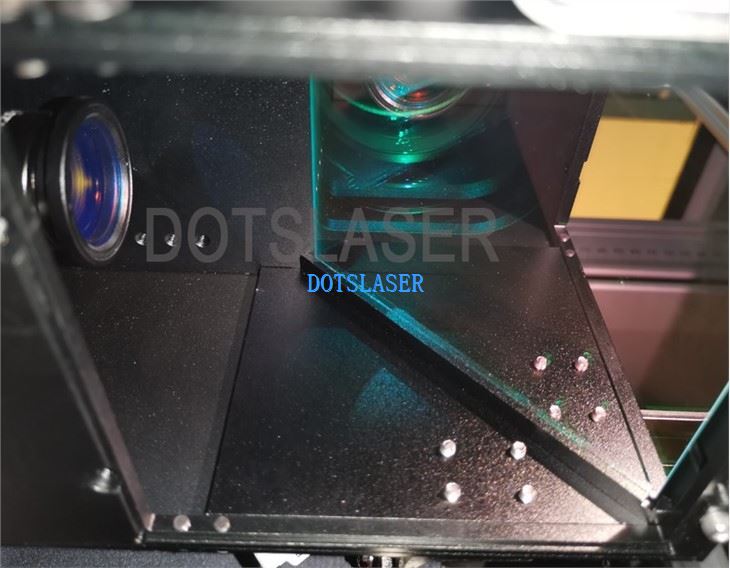

2. The large coaxial vision system supports mainstream lasers source such as ultraviolet, fiber, CO2, etc., and is suitable for marking products with a variety of materials.
3. Any position, any angle, and any number of products, the visual positioning system automatically recognizes, automatically detects and position, and automatically laser marks.

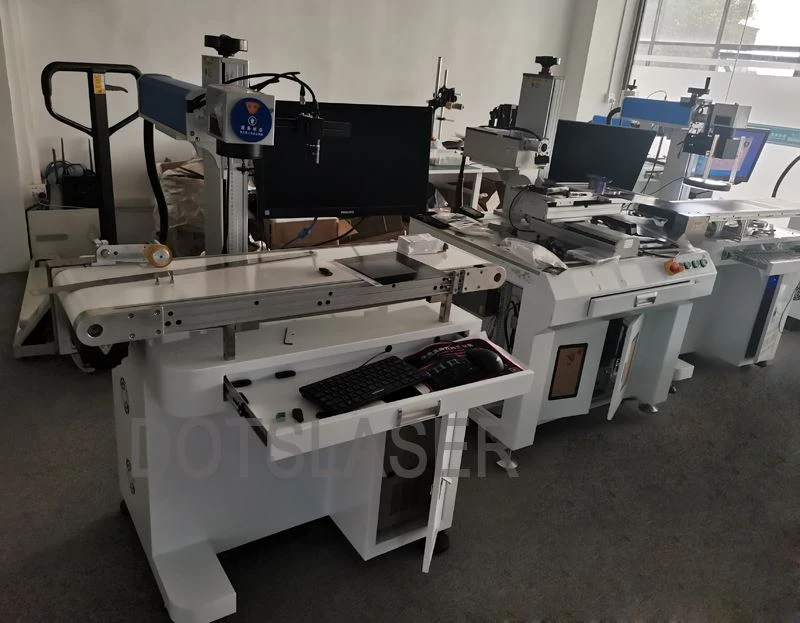

4. Dedicated precision synchronous conveyor belt supports stepping mode and photoelectric induction mode, which can be switched as required.
5. Self-developed visual positioning software system, after years of optimization and verification, the interface is more friendly and easy to operate.
6. The conveyor belt can be customized according to the product size and product characteristics.
Parameters
| Wavelength of laser | 355nm |
| Laser output power | 3W,5W,10W,15W |
| Marking speed | 400 characters per second |
| Beam quality | <1.1 |
| Repeated accuracy | ±0.001mm |
| Working area | 70*70MM,110*110mm 150*150mm 175*175mm 200*200mm optional |
| Machine power | 800W |
| Minimal character | 0.1mm |
| Cooling ways | Force-air Cooling |
| Power supply | 220V/ 50Hz/2kVA |
| Minimum line width | 0.015mm |
| Support format | PLT, BMP, DXF, JPG, TIF, AI etc |
| Process Material | Glass Plastic Crystal Non-metal Materials etc. |

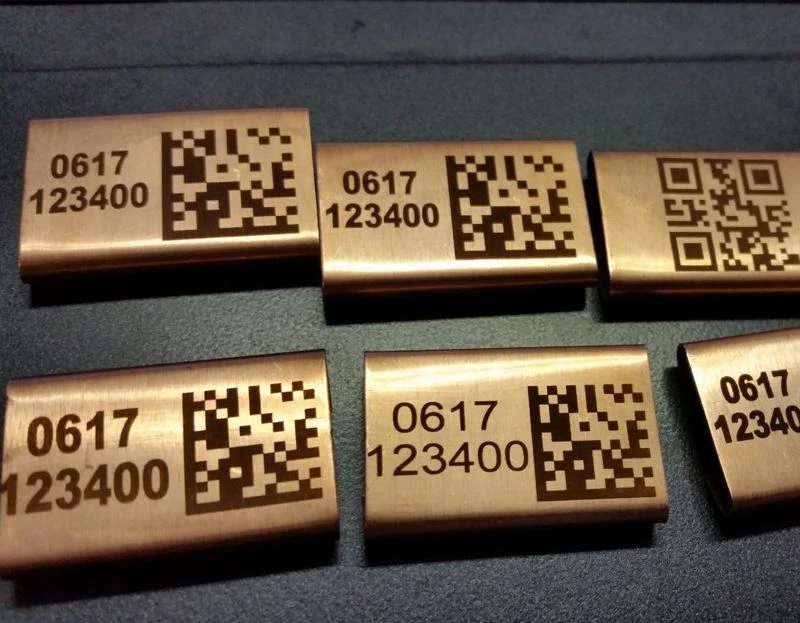

Samples show

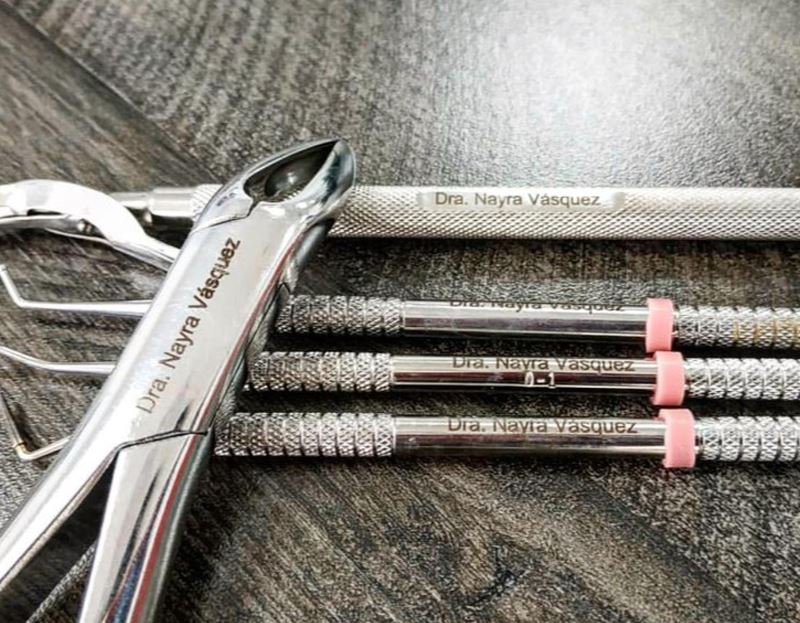

Tools marking
We are always at your service when you need
The CCD camera positioning laser marker developed and produced by DOTSLASER provides a full range of technical training and support to ensure that customers' operators can operate independently.
In addition, it will also provide video operation instructions, remote operation demonstrations, etc. Ensure the timeliness of customers.

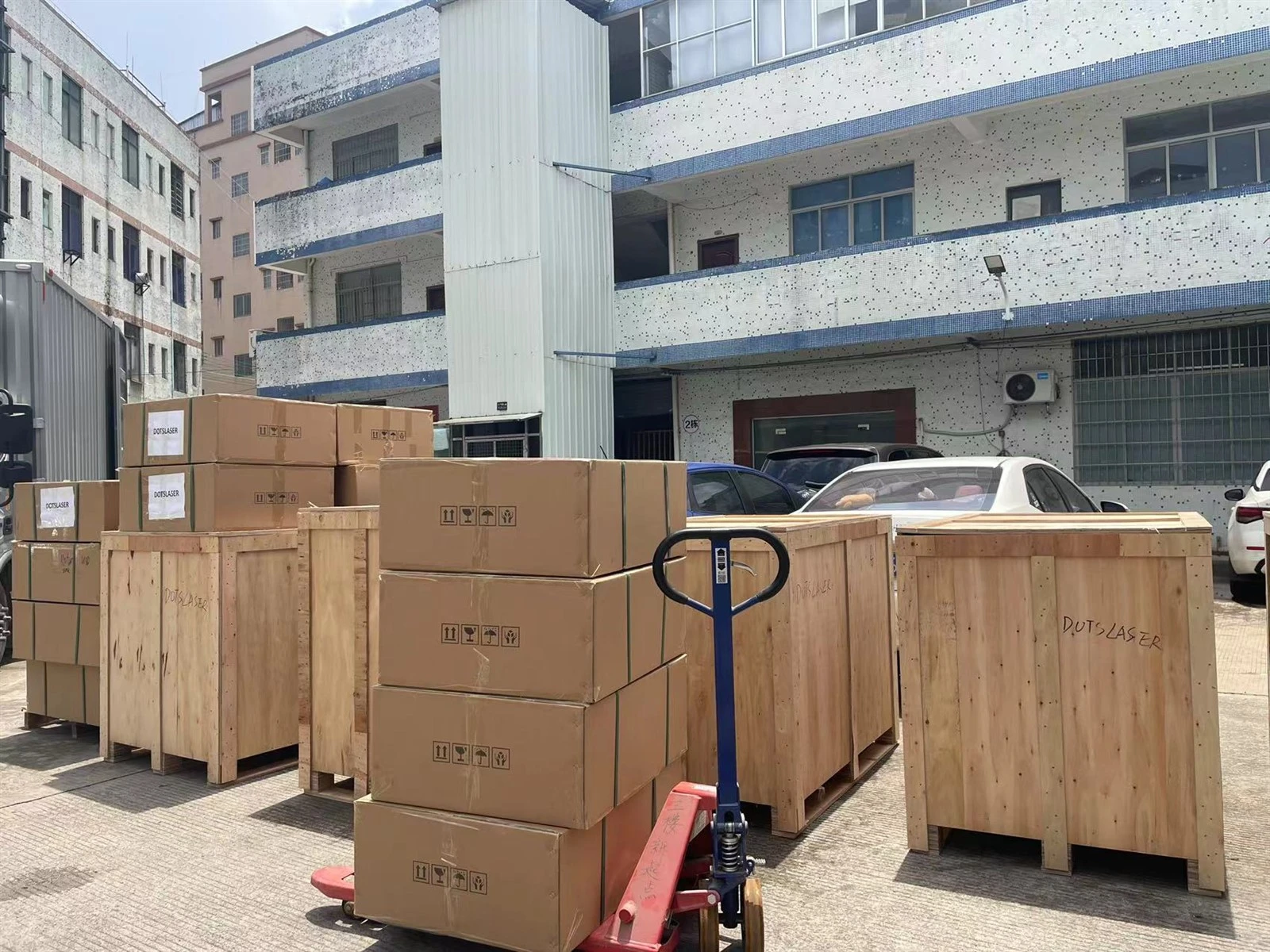

Shipping and Package
Unpacking Caution:
Every marking machine has been rigorously tested at the factory, only qualified product for shipment. When you receive the freight, please check as follows. If you have any questions, please contact the agent or staff at DOTSLASER.
● Whether there is damage or deformation during transport.
● Confirm that all of the items on the packing list are correct.
● Confirm that the model of the product matches the nameplate(Operating voltage and KVA number).
● Make sure that all clamps are tight and that there are no foreign objects in the device.
● Confirm the operation buttons, switches are normal.
