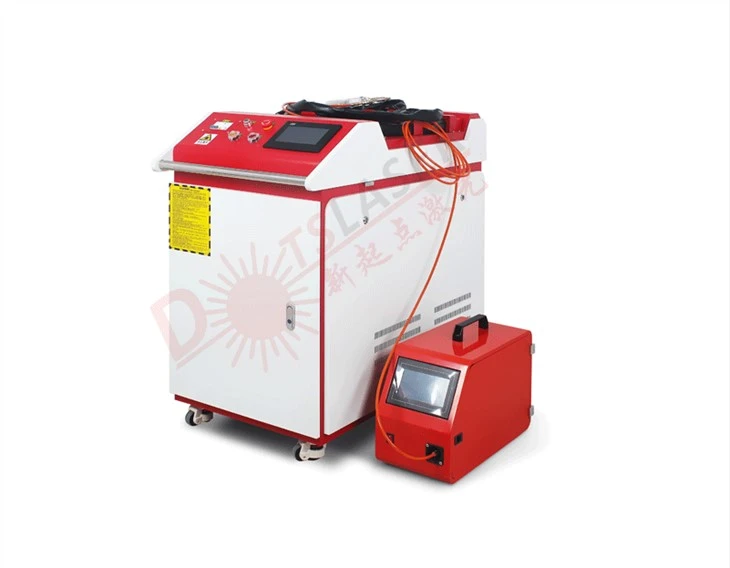

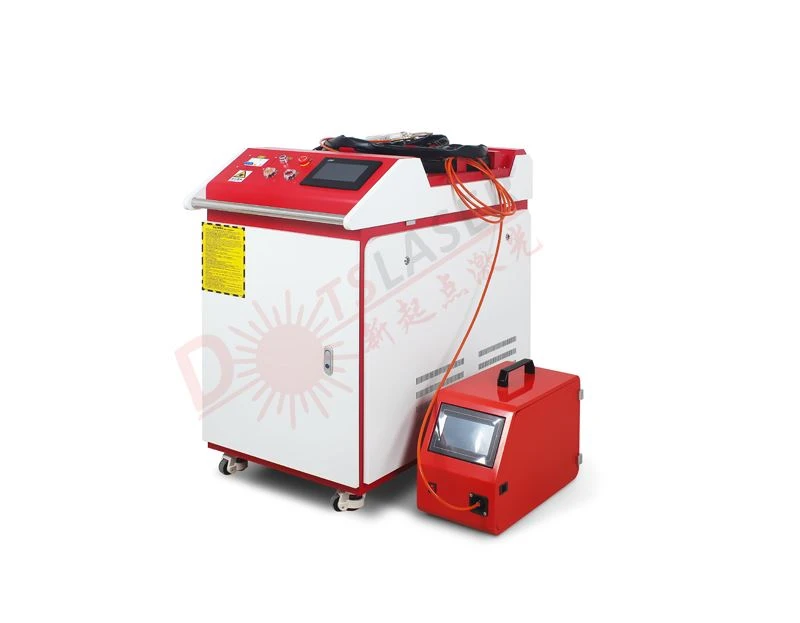

1000W Fiber Laser Welding Machine

1000W Fiber Laser Welding machine mostly used for metal sheet welding .Metal sheet ,metal pipe ,auto parts etc.

Send Inquiry

Product Introduction

1000W Fiber Laser Welding Machine

Products Description

The 1000W Fiber Laser Welding Machine is a cutting-edge welding system that provides an efficient and precise solution for various industrial applications. With its exceptional power, speed, and accuracy, this state-of-the-art machine is ideal for industries such as aerospace, automotive, shipbuilding, electronics, heavy machinery, and many others that require strong, durable, and high-quality welds.

Key Features

High-Speed Welding

The 1000W Fiber Laser Welding Machine offers rapid welding speeds, enabling increased productivity and reduced welding times compared to traditional welding methods

Top-Quality Welds

This machine provides high-precision welding with minimal distortion and consistent results, ensuring the successful and reliable joining of components

Deep Penetration Capability

The 1000W fiber laser is capable of producing deep penetration welds that result in robust and long-lasting connections

Flexible Process Control

The machine's user-friendly control interface allows operators to easily adjust and customize laser parameters to suit specific welding requirements for varied materials and applications

Compatible with Multiple Materials

The 1000W Fiber Laser Welding Machine can seamlessly handle a wide range of metals, including stainless steel, carbon steel, aluminum, copper alloys, and more.

Enhanced Safety Measures

The machine incorporates protective enclosures, interlocks, and automated safety features to minimize risks to operators during the welding process

Applications

The 1000W Fiber Laser Welding Machine is an excellent .efficient, precise machine with versatile welding capabilities. This advanced system allows you to streamline your welding processes, ensuring optimal weld quality and structural integrity for your projects while benefiting from improved productivity and reduced costs

Aerospace

Precision welding of aircraft components, such as engine parts, airframes, and landing gear

Automotive

Joining essential vehicle components, like chassis, body panels, and exhaust systems

Shipbuilding

Assembling structural components of ships, such as hulls, decks, and superstructures

Electronics

High-precision welding of electronic components, circuit boards, and connectors

Heavy Machinery

Joining key structural elements and components for cranes, excavators, bulldozers, and other heavy-duty equipment.

Parameters

NO.	Name	Parameter
1	Machine model	Hand-held fiber laser welding machine
2	laser power	1000W,1500W,2000W,3000W
3	laser wave length	1070 NM
4	Fiber length	standard10M / Maximum 15M
5	operate mode	continuation/ modulate
6	Welding speed range	0~120 mm/s
7	Cooling chiller	Industrial water chiller
8	Working environment temperature range	15~35 ℃
9	Humidity range of working environment	< 70% No condensation
10	Welding thickness recommendations	0.5-3mm
11	Welding gap requirements	≤0.5mm
12	working voltage	220 V

Professional Technics

Laser spot focusing diameter.

The diameter of the laser spot focus is an extremely important parameter that reflects the design performance of the laser, and the unit is mm (mm), which determines the power density and processing range of the laser. The laser optical design is reasonable and advanced, the laser energy is concentrated, the focus is accurate, and the laser spot diameter is controlled within the range of 0.2mm-1.5mm. Whether the laser focus diameter can be controlled within 0.2mm is a strict test for the laser generator

The frequency of the laser pulse.

The frequency of the laser pulse reflects the ability of the laser to emit how many pulses in one second.

Example 1: metal welding. The welding metal uses the energy of the laser, and when the laser power is constant, the higher the frequency, the smaller the energy output of each laser, therefore, we need to ensure that the energy of the laser is sufficient to melt the metal.

Example 2: Welding machine produced by HGLASER. the laser pulse frequency is adjustable from 1 to 100Hz, which can fully meet the precision welding of different materials and different shapes of molds. The welding points are smooth and beautiful, and the welding seams are flat. No pores, the strength and toughness of the weld at least equal to or even exceed that of the base metal.

To consider the corresponding configuration and use

The configuration of the laser welding machine involves many aspects. The different configuration of the laser welding machine for different purposes, such as the mold welding machine for welding mold, the jewelry welding machine for welding jewelry, and the galvanometer welding machine and the fiber transmission laser welding in the automatic welding machine. Machines, etc., the configuration of the equipment is different, the price will naturally be different.

FAQ

Q:What kind of metal can weld by 1000W Fiber Laser Welding Machine ?

A: Depending on the material, the absorption of light is different, and the thickness of the material is also different. The price of metal laser welding machines also ranges from tens of thousands to hundreds of thousands. The laser welding machine is a non-contact welding method, which maximizes the welding and molten pool by concentrating the energy of the light when it is in focus. The root laser welding machine can weld stainless steel, alloy steel, copper, aluminum, gold, silver, titanium, die steel and other metals and their alloys

Q: How to consider a 1000W Fiber Laser Welding Machine?

A:The laser is the core of the laser equipment, the higher the power, the higher the price. Because the higher power, thee laser rod and the cooling system need higher requirements; usually, the deeper the welding depth is required, the higher the power of the corresponding laser welding machine. In the case of a certain power, the higher the laser single pulse energy, the lower the emission frequency. The energy of the laser pulse is the main parameter of the laser and determines the maximum energy produced by the laser.
