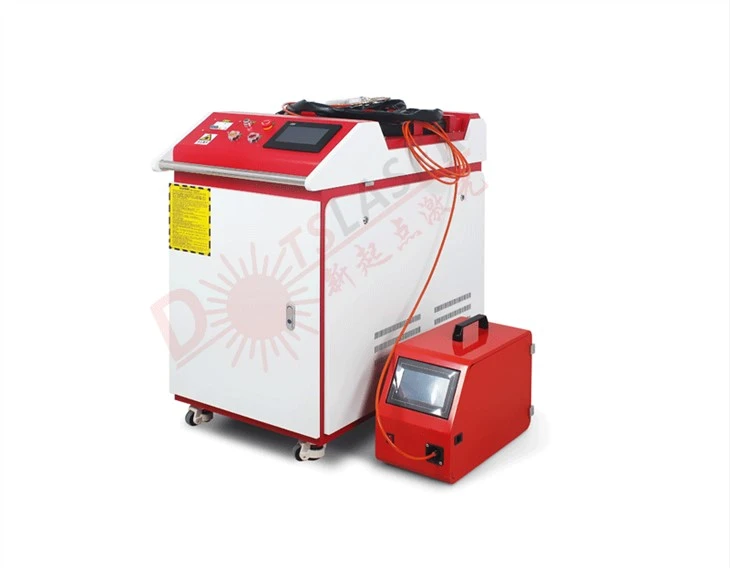

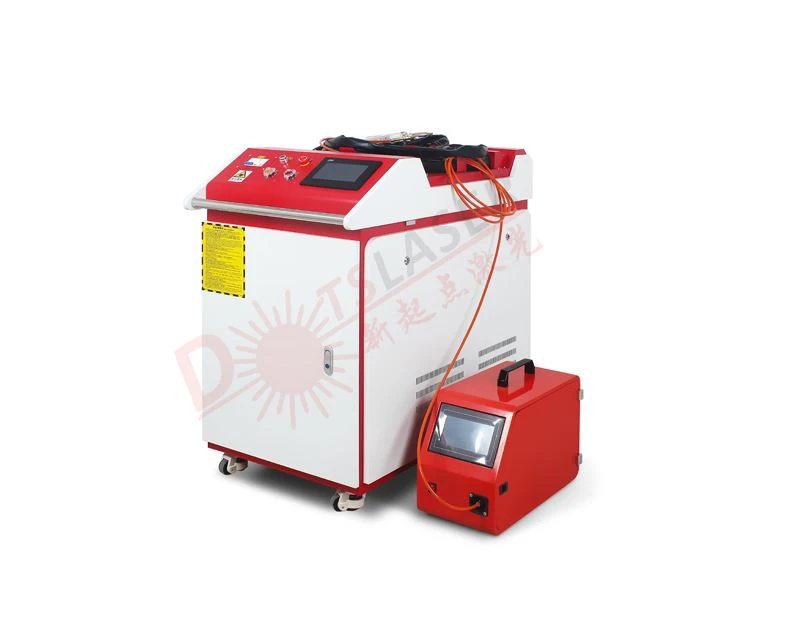

Handheld Fiber Laser Welding System
Handheld Fiber Laser welding System
Products Description
A handheld welder is a portable and easy-to-use processing solution that utilizes a fiber laser as its energy source. This technology offers flexibility and convenience thanks to its handheld design, allowing users to perform precise processing tasks on a variety of materials, such as stainless steel, carbon steel, aluminum, and more.
Machine features
Portability
The handheld design allows for easy transportation and operation and hard-to-reach areas, making it suitable for a wide range of applications in diverse environments.
Flexibility
Dotslaser independent R&D welders cater to different metal types and thicknesses, accommodating the needs of various industries and applicable materials.
Accurate processing
The concentrated laser beam produces high-quality welds with minimal heat distortion and deformation, ensuring accuracy and clean results.
Fast processing
The laser energy source can heat materials rapidly, leading to faster processing times compared to traditional processing methods.
Low maintenance
The fiber laser typically requires less maintenance compared to other types of lasers, saving time and resources in the long run.
Good experience
Many handheld fiber laser processing systems feature simple interfaces and controls, making them easy to use even for operators with limited processing experience.
Advantages of handheld fiber welder
|
* The internal design is dexterous, and the good interactive control system expands the tolerance range of the processed parts and the width of the weld seam, solves the disadvantage of small light spot, and makes the weld seam better; |

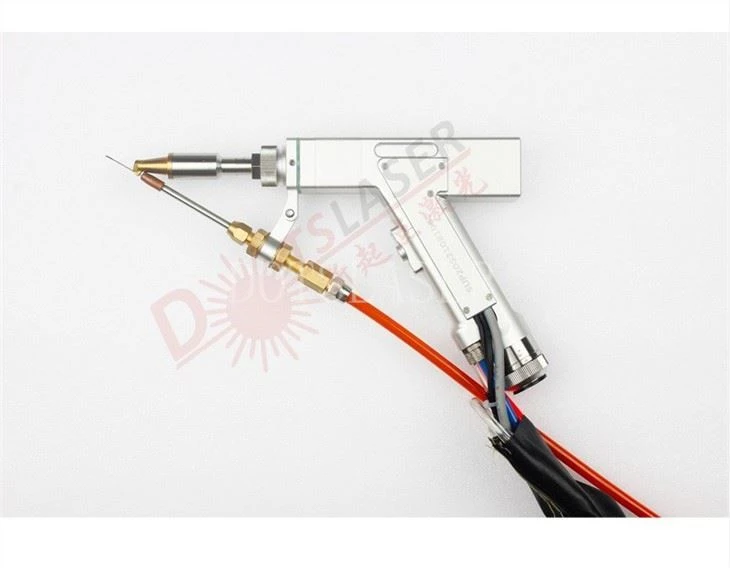

| * The shape is light, the design method of body engineering is adopted, and the grip is comfortable; it is easy to control with one hand, and the operation is simple and easy to use; |
|
* With multiple safety alarms, the light will be automatically locked after the workpiece is removed, and the safety is high; |
| * Beautiful processing seam, fast speed, no consumables, no processing marks, no discoloration, no need for later polishing; |
| * A variety of angle nozzles can be configured to meet the processing needs of different products. |
Technical paramter
| Model series | DS-LW series (RAYCUS laser source) | ||
| Model | DS-LW1000 | DS-LW1500 | DS-LW2000 |
| Laser source model | RFL-QCW 1000 | RFL-QCW 1500 | RFL-QCW 2000 |
| Output power | 1000W | 1500W | 2000W |
| Laser wavelength | 1080±5 nm | ||
| Operating mode | Continuous/Modulation | ||
| Power adjustment range |
10~100% | ||
| Fiber core diameter | 50 (25,100,200 optional) | ||
| Aiming and positioning | Red light | ||
| Fiber length | 10 m | ||
| processing speed | 0~120 mm/s | ||
| Applicable thickness | <3.5mm (depending on the material) | ||

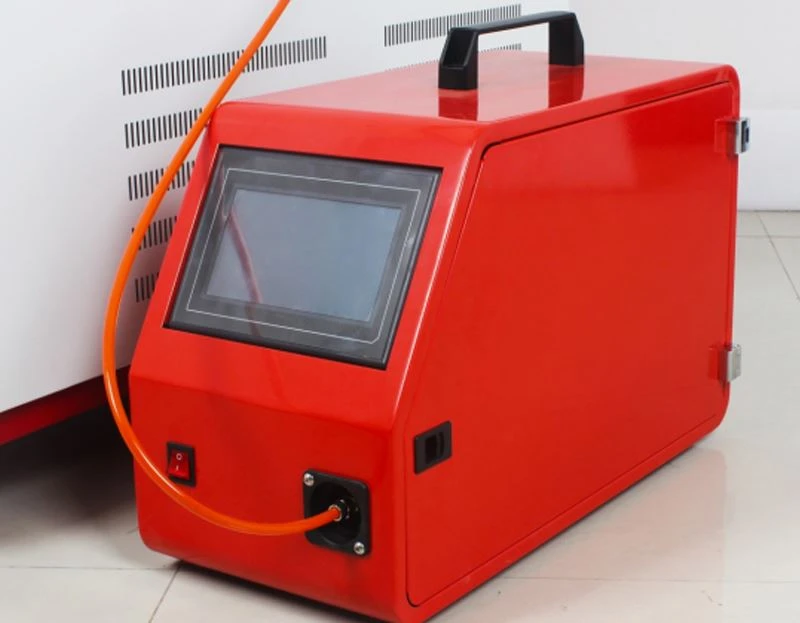

| Wire feeder | Standard wire feeding speed 38~600mm/min | ||
| Wire feed diameter | 0.8/1.0/1.2/1.6/2.0mm | ||
| Cooling way | Water cooling | ||
| Working environment | 10~40°c,humidity 10~85%, no condensation | ||
| Rated power | 4KW | 6KW | 8KW |
| Operating Voltage | 380+10% VAC,50/60Hz | ||
| Dimensions | 1150X630X1080 mm | ||
| Total Weight | About 250kg | ||

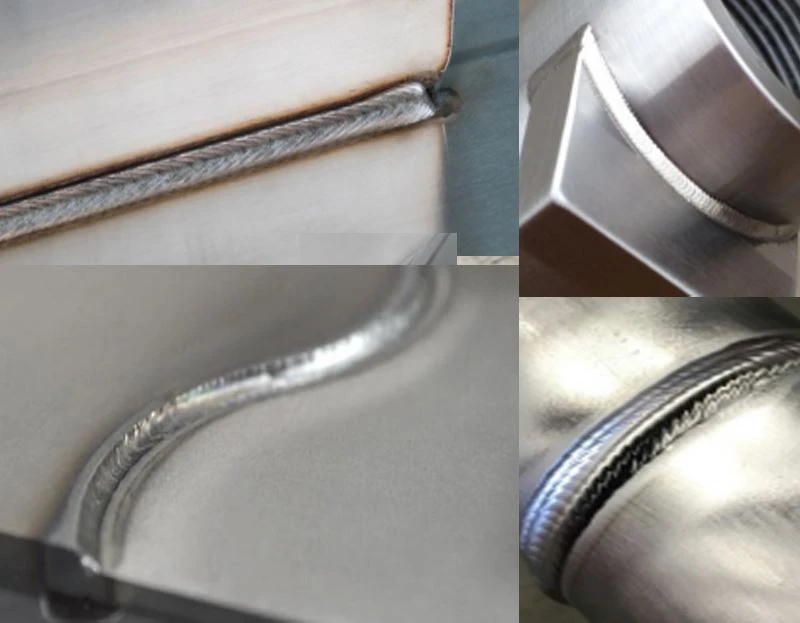

processing samples
FAQ
Q1: How can get the laser machine from your company ?
Q2: Where is the laser source ?
Q3: How to achieve a good result with welder laser ?
Shipping and Package
1. Quality assurance and after-sales service
The warranty period of the equipment shall be 12 months since the equipment be used by the customers, the installation and debugging is completed and the equipment is accepted by the demander. New start laser attaches great importance to the after-sales service work of the product, once the product is delivered to the user, the company immediately established the user after-sales service file, and regularly track the user's product use status, solve and answer all the problems of the user, received the user's notification information about the equipment failure, the company's workers can make a rapid response within 2 hours. If the telephone guidance is difficult to troubleshoot, our company's technical staff can arrive at the customer site within 24 hours to provide support.
2. Installation and debugging
Before machine installation, our factory will offer you a basic structure installation file,the good need 2 weeks delivery to you there , the engineers of Dotslaser will arrive at your site and inspect the machine again. Comfirm all the conditions meet the installation and commissioning requirements of the equipment, the equipment will transport in time. The installation and commissioning time of the equipment is about five working days, the first three days are connected to the use of the system, and the system is operational after the service project. The engineer will train qualified operators on basic maintenance procedures and general operating characteristics of the equipment in the next two days
3. Service support
If there has any problem with any part of the system during the warranty period, Dotslaser well-trained service engineers are ready to provide cellphone call or begin on-site service,if the machine has any problem during the warranty period,please contact us directly !
