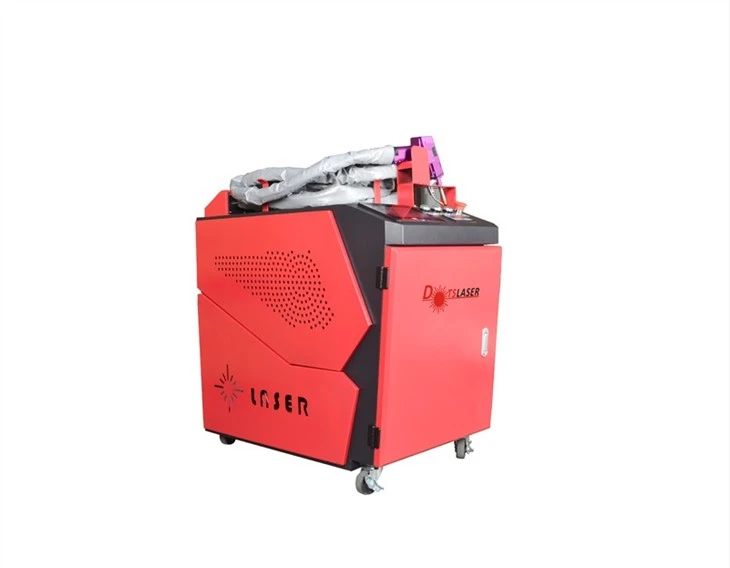

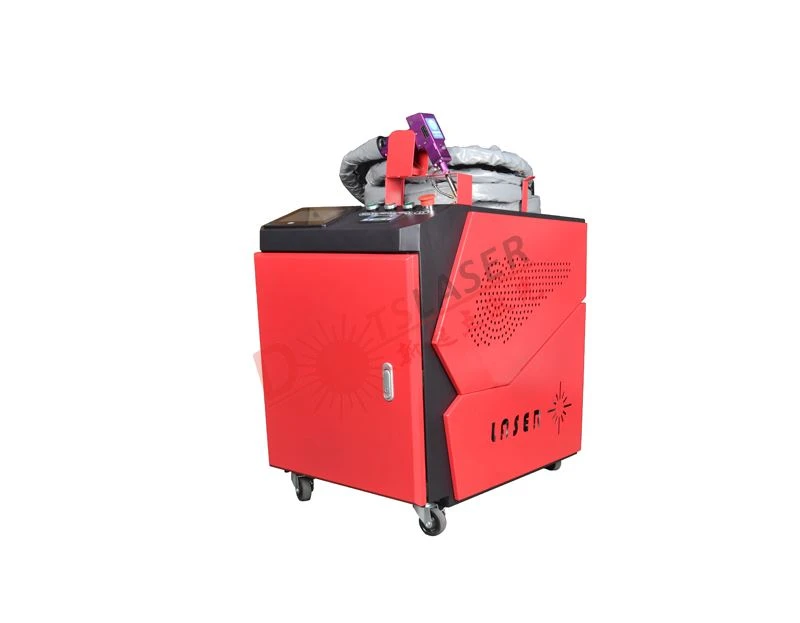

1500W Fiber Laser Welding Machine
1500W fiber welder
Products Description
A 1500W welder is a high-powered laser system that utilizes a 1500-watt laser source to perform welding tasks on various materials. DOTSLASER welder are known for its high precision and efficiency and works through a non-contact process, making it ideal for several industries, including automotive, aerospace, electronics, and medical device manufacturing.
Key features of a 1500W welder
| Strong power: The 1500-watt laser source empowers the machine to operate efficiently on a broad spectrum of materials, comprising metal sheets, pipes, and diverse metal alloys with fluctuating thicknesses. |
| Precise welding: welders are capable of producing high-quality welds with minimal thermal distortion and stress on the workpiece, which cuts down on the amount of post-weld processing required. |
| Low risk: The non-contact nature of the process provides a high level of safety, as it eliminates direct contact with the workpiece that may lead to accidents or injuries. |
| Efficiency: A high level of automation can be attained, resulting in reduced cycle times and increased overall productivity. |
| Flexible parameter: The welding parameters may be adjusted based on specific material requirements and predetermined welding paths, thus enabling a broad spectrum of welding applications. |
Potential Applications
| Automotive: Welding of car body parts, engine components, exhaust systems, and other metal parts. |
| Aerospace: Joining of structural components, sheet metals, and various alloys used in aircraft and spacecraft manufacturing. |
| Electronic devices: Welding components for electronic devices and assemblies, ensuring strong and reliable connections. |
| Medical device manufacturing: Joining precision components used in medical equipment, implants, and surgical instruments. |
| General manufacturing: Joining metal parts in a variety of industries, such as construction, machinery, and tooling applications. |
When choosing a 1500W welder, consider factors such as the machine's power, precision, welding speed, ease of integration with existing production lines, software compatibility, and required maintenance. Investing in a high-quality welder can lead to improved productivity, lower production costs, and higher-quality products.
Parameters
|
Model
|
DS-LW1000,DS-LW1500,DS-LW2000,DS-LW3000
|
|
Laser Source Options
|
Raycus,Max,BWT&JPT
|
|
Power Options
|
1000W,1500W,2000W,300W
|
|
Laser Wavelength
|
1080nm
|
|
Cooling Mode
|
Water cooling
|
|
Power Consumpation
|
4KW-7.5KW
|
|
Laser Pulse Frequency
|
1-20HZ
|
|
Pulse Width
|
0.1-20ms
|
|
Spot Size
|
0.2-3mm
|
|
Power Supply
|
110/220V/380V, 50HZ/60HZ
|
|
Packing Dimensions
|
1165*710*1680mm
|
|
Gross Weight
|
250 kg
|
| Core Components | Pump, laser source, laser head |
| Work mode | CW & Pulse |
| Operating temperature | 25℃(-5℃~40℃) |
Details show

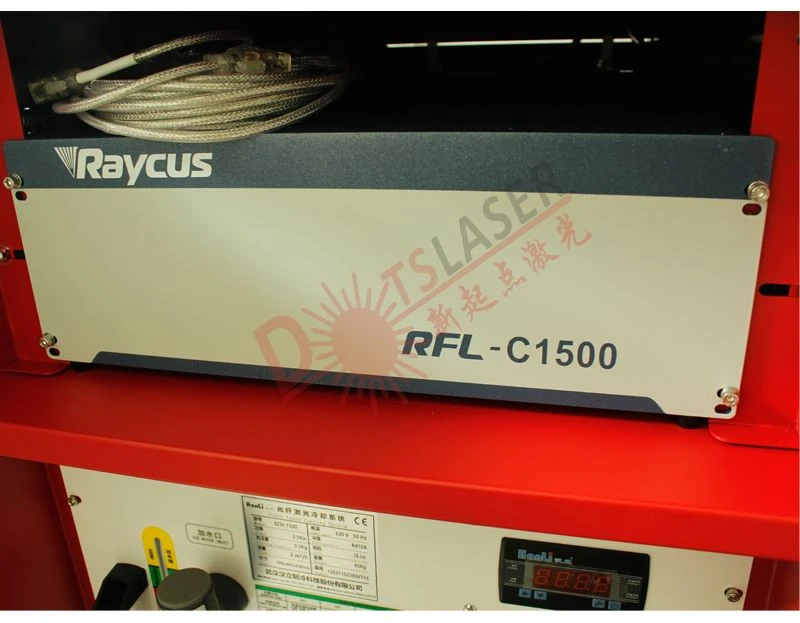

1500W welder which attached with top brand Raycus laser source,the 1500W high power ,with continuous pulsed laser welding effect is better and the service life is longer .

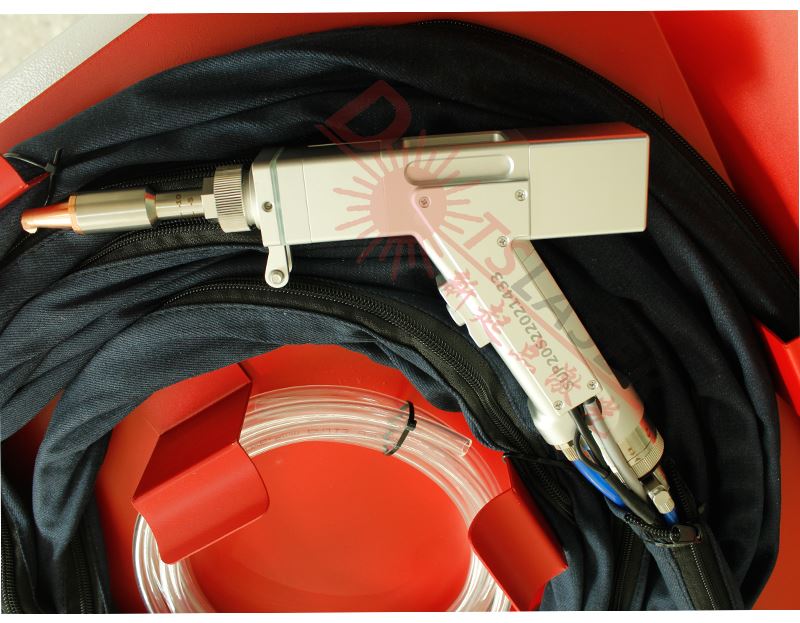

Using top brand welding gun,multi-layer protective lenses, water cooling can be stable for a long time using , so that the welding effect is guaranteed. Light welding head ,easy to move and control.

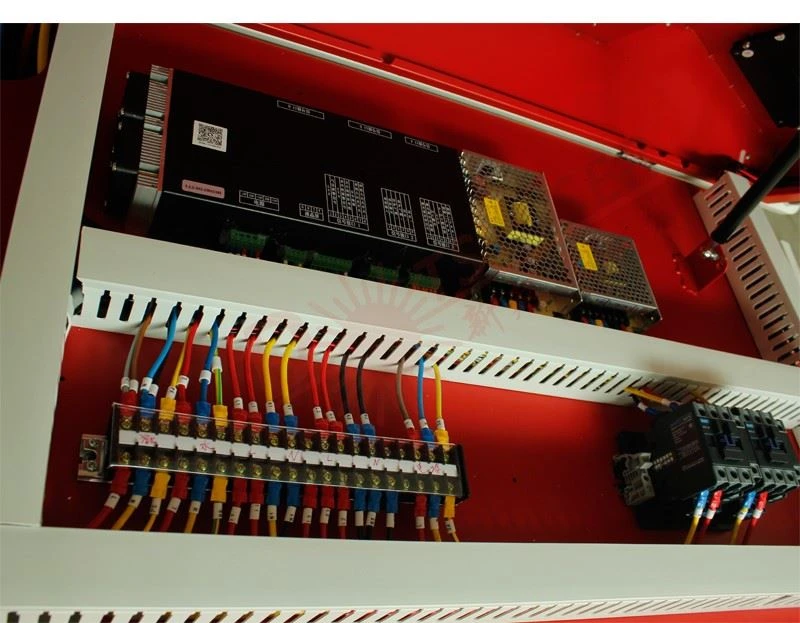

Hard accessories and strong power supply ensure the performance of the product and work stably for a long time. Each line is clear and easy to maintain and repair.

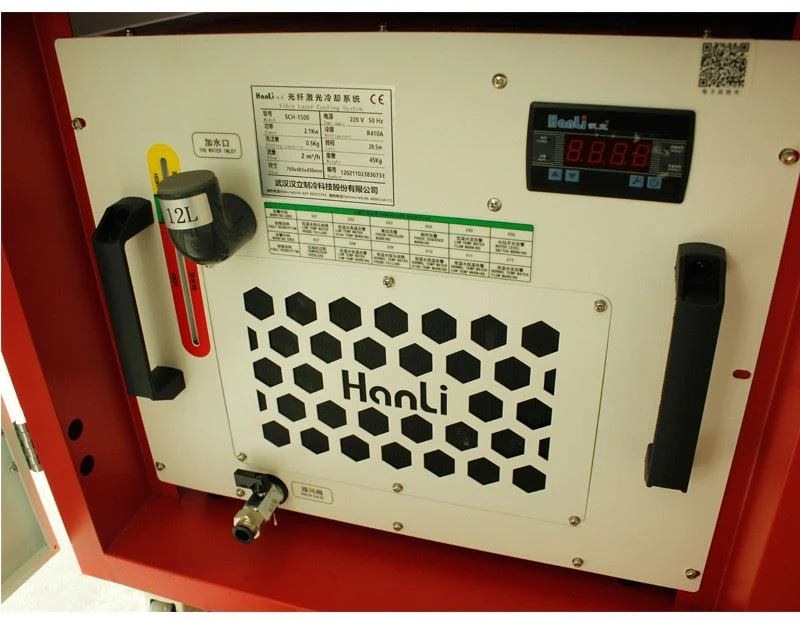

The laser chiller is a cooling device that mainly performs water circulation cooling on the generator of the laser equipment, and controls the operating temperature of the laser generator, so that the laser generator can maintain normal work for a long time. It is an individual industrial chiller for the laser industry.
Additional cooling may be required for the laser source, beam controller and electrical cabinet in a laser (laser) system. The cooling water temperature requirements are usually between 15 and 22 °C, and the cooling water accuracy requirements are usually ±1 °C or ±2 °C.

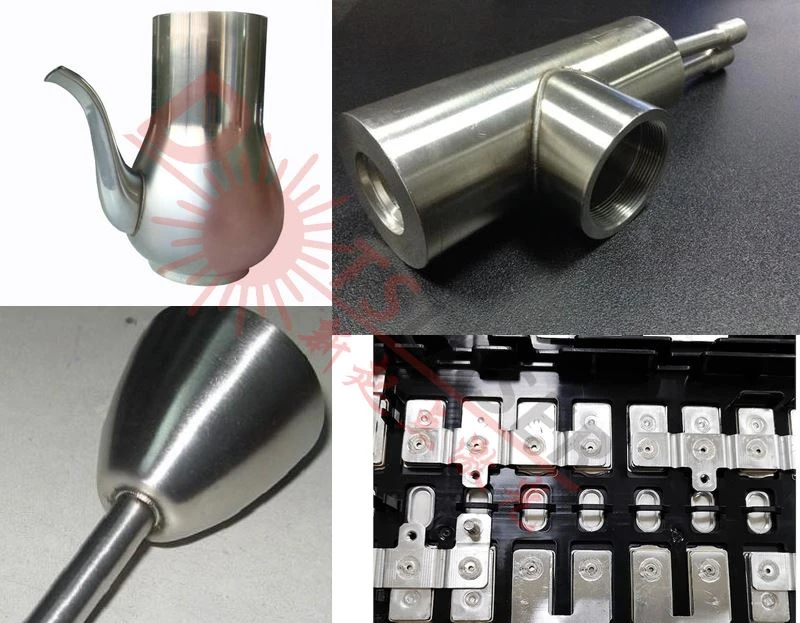

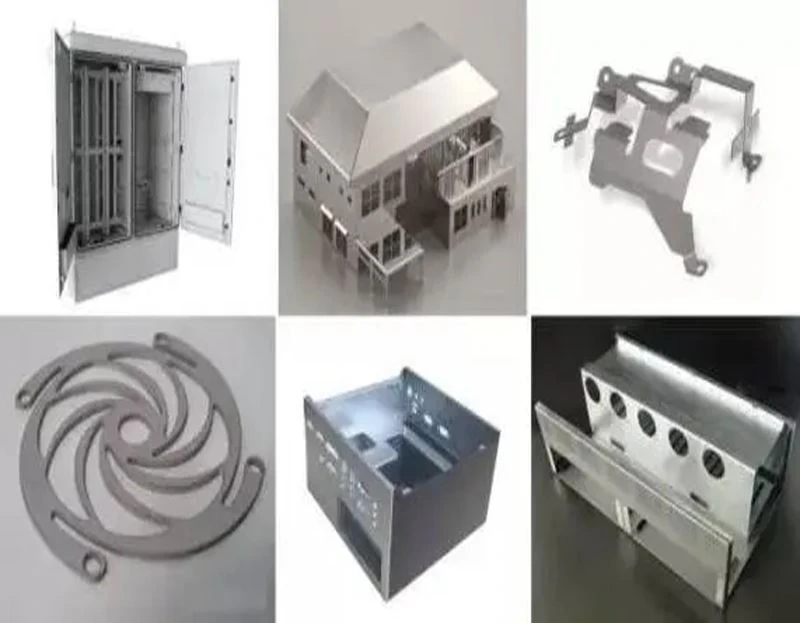

Samples display
FAQ
Q1: Are you trading company or factory ?
A: We are a factory,who is working in laser marking engraving cutting and welding machines more than 12 years ago. with much experience and technique.
Q2: How about your after sales support?
A: All of our customers are happy with our after sales support, we have a professional after sales team support oversea customers and partners. They can support you day and night for any technical issues.
Q3: How can I be sure this machine can do my work?
A: Don't worry,just tell us your needs and requirements, we`ll tell you if it is suitable or not for your work.
Q4: How should i do if the machine failed?
A: If there' s any problem from the machine,you can contact our sales. they will introduce you suitable after-sales guy to help you fix it up. Please contact us and don't try to fix the machine by yourself or someone else.We will response you within 1~2 hours.
