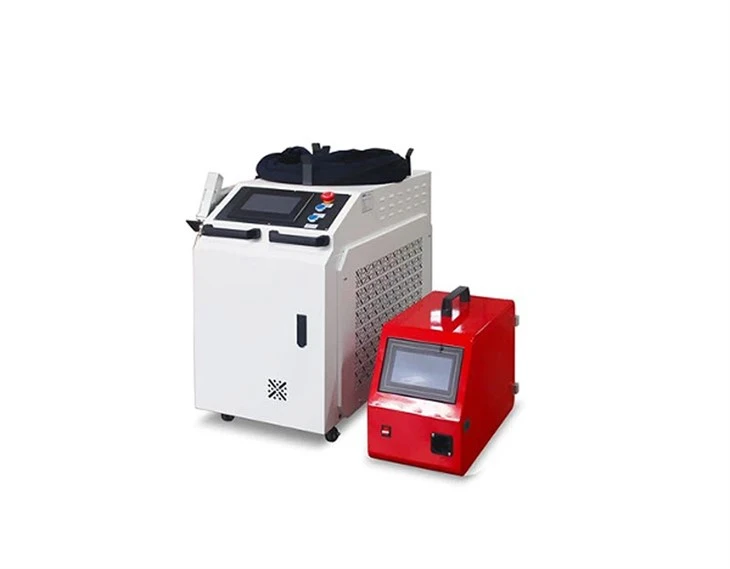

Copper Laser Welder Machine
Copper Laser Welder Machine
Products Description
Copper welding can be effectively performed by a fiber laser welder as copper is highly conductive and thermally conductive metal. The fiber laser beam is focused on the welding area that melts and fuses the copper parts together. The laser beam generates high energy that produces a narrow and deep weld seam.
our advantages
high-quality welds
This machine uses a laser beam to connect copper and other metal materials together, resulting in extremely precise and clean welds.
versatility
Wide range of applications, from industrial manufacturing to small-scale DIY projects. Suitable for welding various types of copper, including pure copper, brass, bronze, and more.
highly cost-effective
Due to efficient welding process reduces a significant amount of scrap materials, lower production costs. Minimal maintenance, less downtime and lower maintenance costs.
Products Parameters
|
Model |
DS-LW3000 |
DS-LW4000 |
DS-LW6000 |
DS-LW12000 |
|
Laser power output |
3000W |
4000W |
6000W |
12000W |
|
Laser wavelength |
1070±5nm |
|||
|
Laser type |
Fiber |
|||
|
Marking area |
800mmx300mmx300mm |
|||
|
Pulse frequency |
1~100KHZ |
|||
|
Beam quality |
1.1mm |
|||
|
Adjust power range |
5-95% |
|||
|
Output fiber length |
5/10/15m (Optional) |
|||
|
Weight |
500KG |
|||
|
Cooling |
Water cooled |
|||
|
Working temp |
10~35 ℃ |
|||
|
Humidity range |
< 70% No condensation |
|||
|
Power supply |
AC220V±10%,50Hz or AC380V±10%,60Hz |
|||

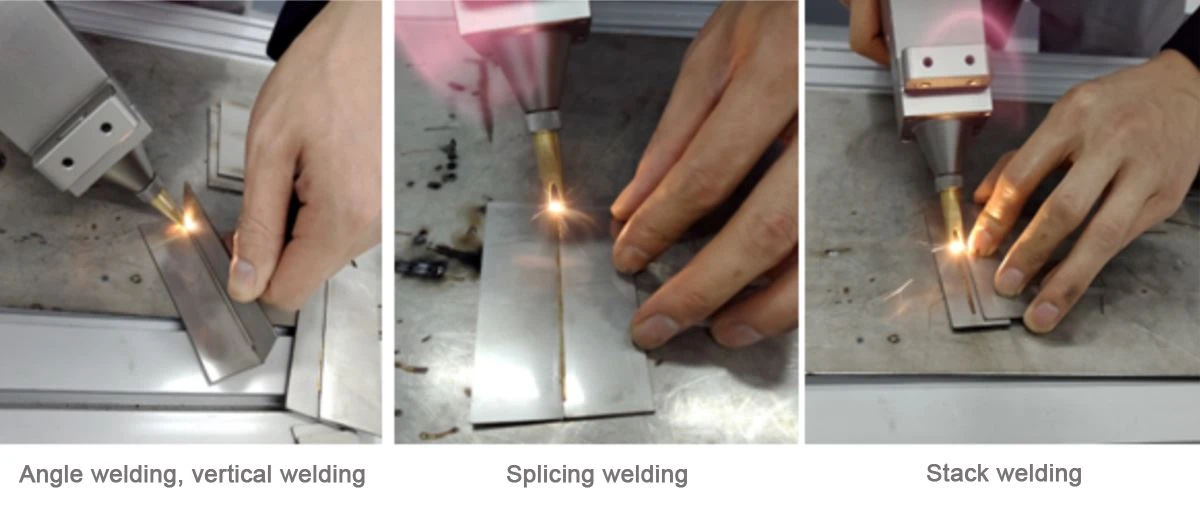

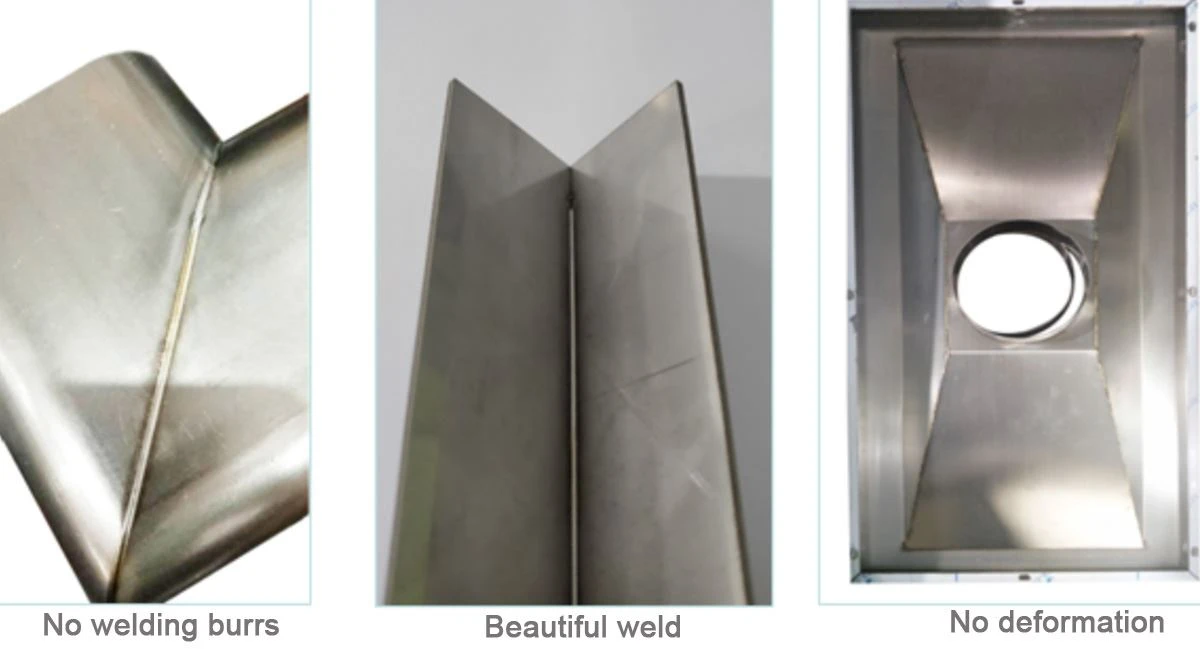

Welding Display

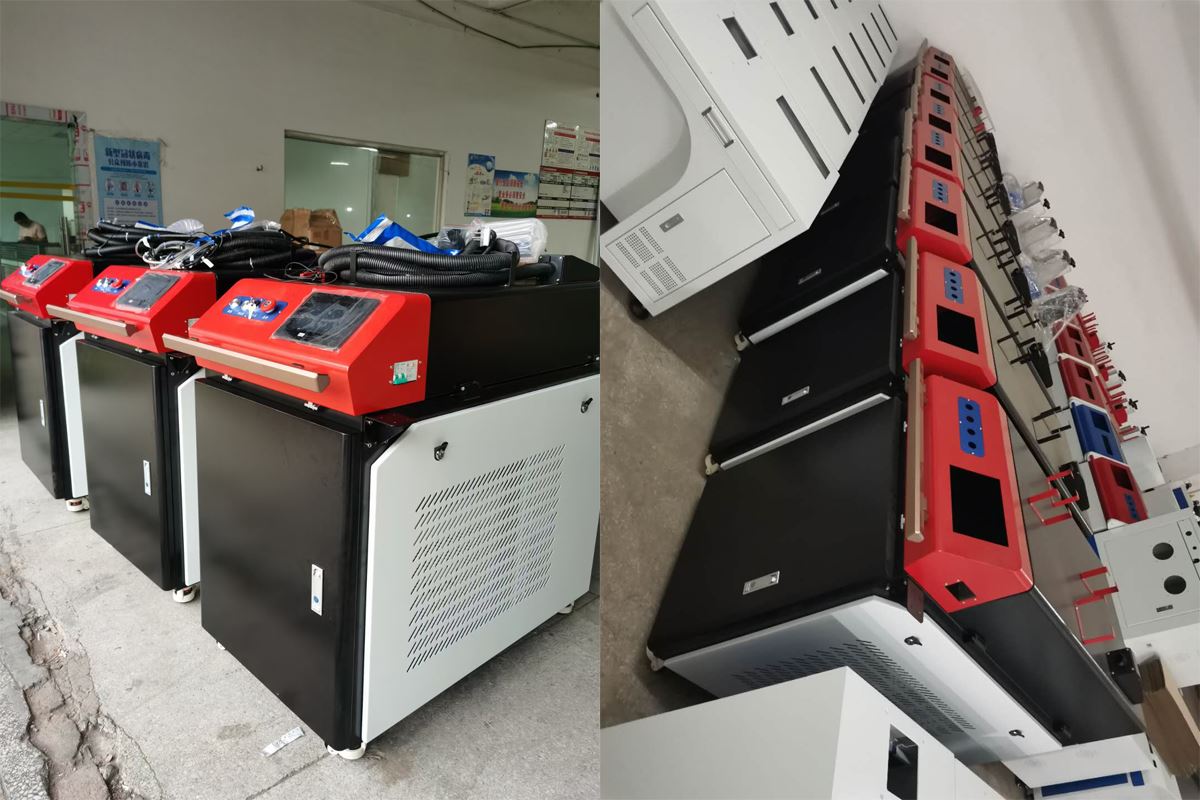

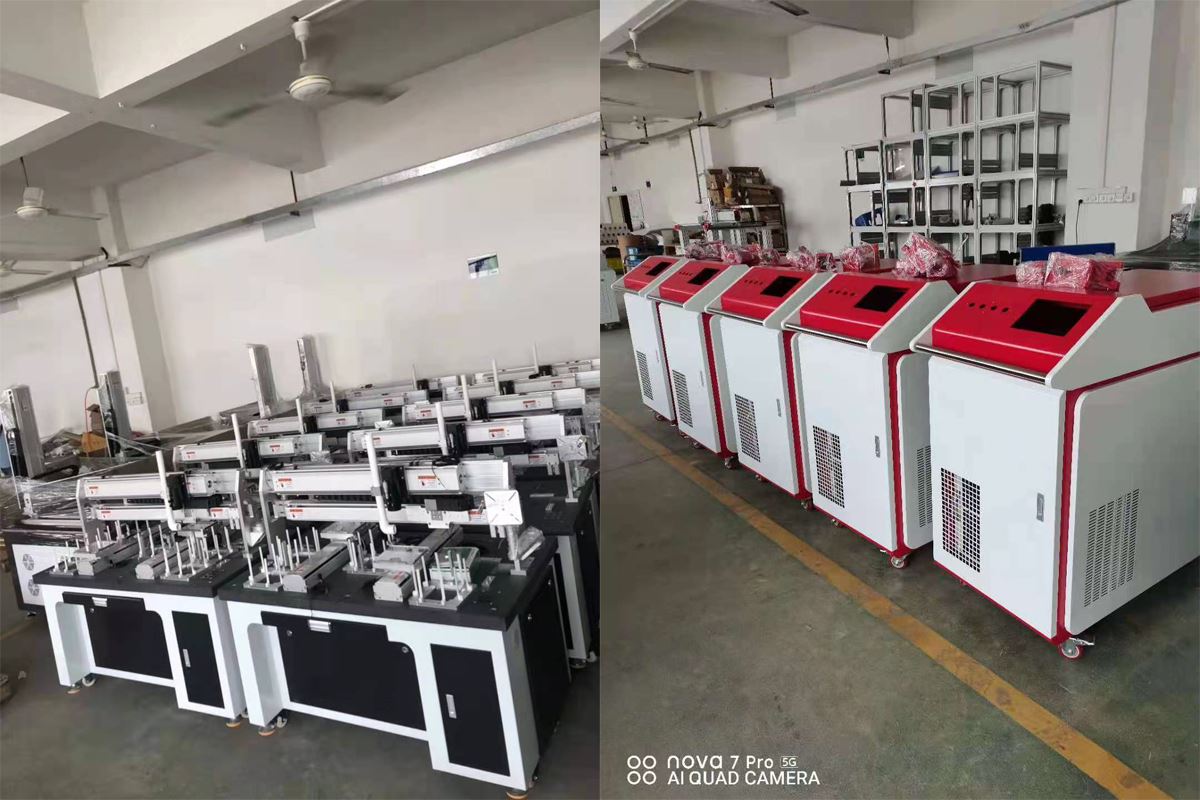

Workshop Of Dotslaser
Unpacking Caution
Every marking machine has been rigorously tested at the factory, only qualified product for shipment. When you receive the freight, please check as follows. If you have any questions, please contact the agent or staff at DOTSLASER.
● Whether there is damage or deformation during transport.
● Confirm that all of the items on the packing list are correct.
● Confirm that the model of the product matches the nameplate(Operating voltage and KVA number).
● Make sure that all clamps are tight and that there are no foreign objects in the device.
● Confirm the operation buttons, switches are normal.
