Laser Welding Stainless Steel
Laser Welding Stainless Steel
Products Description

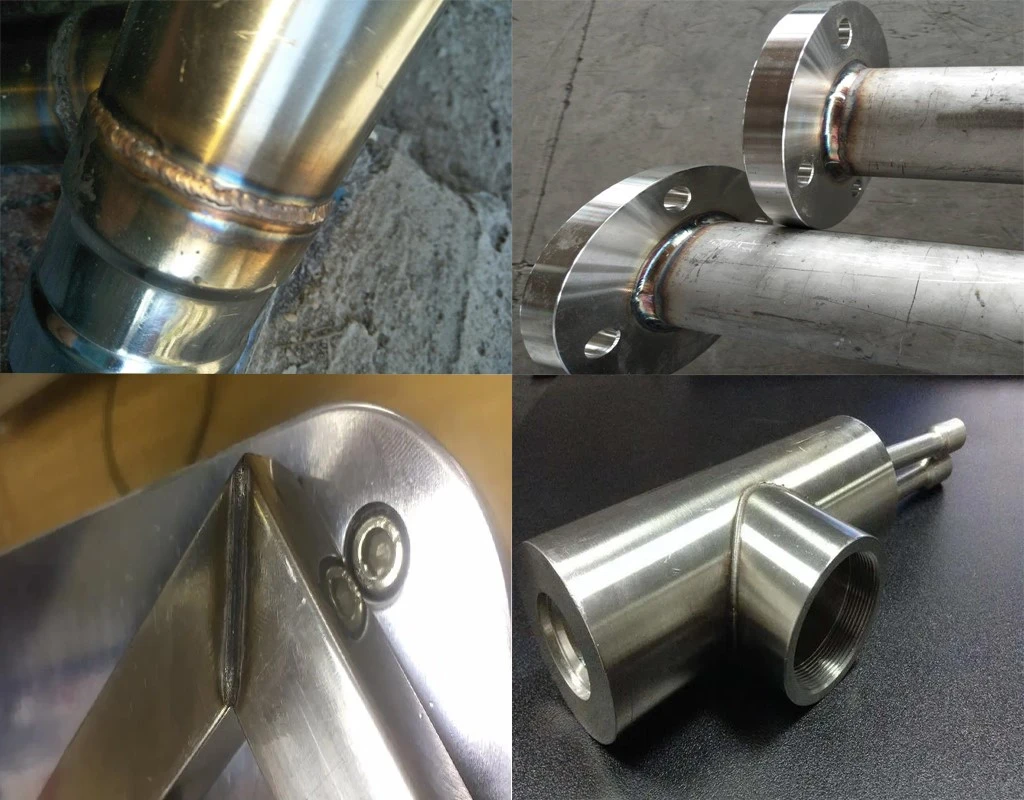

Laser welding stainless steel has emerged as a key joining technology in recent years owing to its ability to deliver precise, high-quality welds with minimal heat input. The process is increasingly used in a range of applications, from medical device manufacturing to aerospace production. This article provides an overview of the laser welding process for stainless steel and its key advantages and challenges.

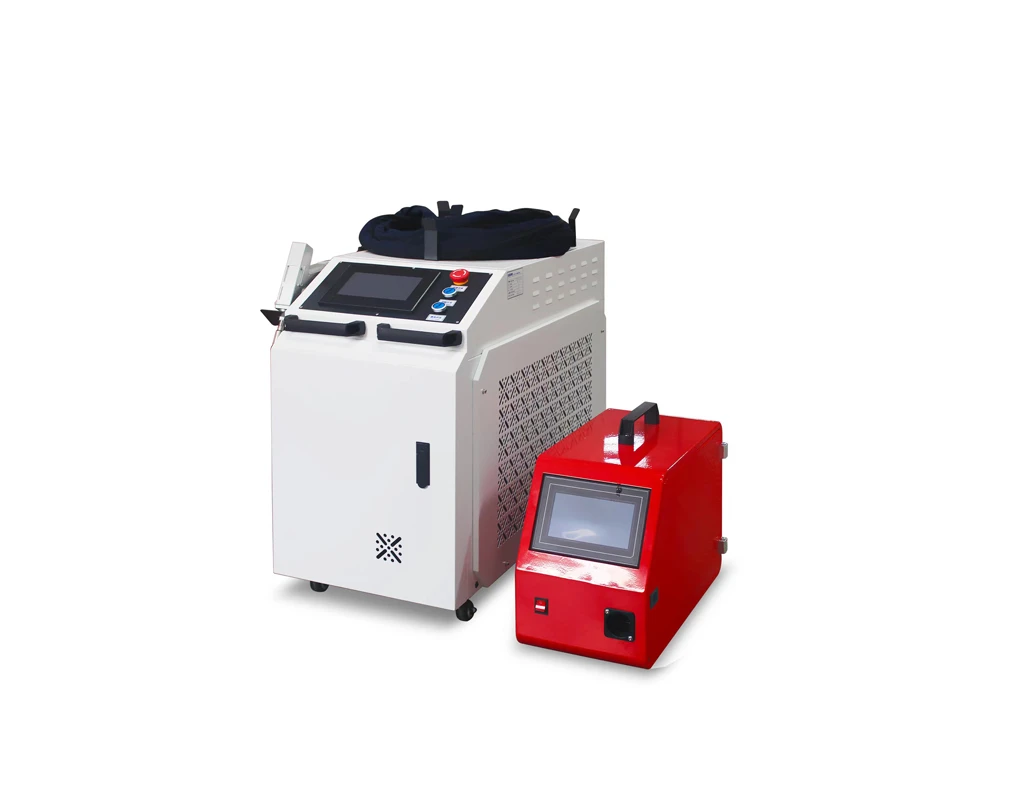

machine Features
Basic features
Self-developed control system, multiple safety alarms, smaller size, flexible operation and easy to use.
More stable
More convenient to troubleshoot and solve problems, to ensure the stable operation of the welding head.
Process
All parameters are visible, real-time monitoring of the status of the whole machine, to avoid problems in advance, the welding quality is more perfect, the deformation is small, and the penetration is high.
Stable parameters and high repeatability
The determined nozzle air pressure and lens state, as long as the laser power is stable, the process parameters must be repeatable. Greatly improve efficiency, while also reducing operator requirements.
Laser Welding Stainless Steel Paramters
| Model series | DS-LW series (RAYCUs laser source) | ||
| Model | DS-LW1000 | DS-LW1500 | DS-LW2000 |
| Laser source model | RRL-QCW 1000 | RRL-QCW 1500 | RRL-QCW 2000 |
| Output power | 1000W | 1500W | 2000W |
| Laser wavelength | 1080±5 nm | ||
| Operating mode | Continuous / Modulation | ||
| Power adjustment range | 10-100% | ||
| Fiber core diameter | 50 (25,100,200 optional) | ||
| Aiming and positioning | Red light | ||
| Fiber length | 10 m | ||
| Welding speed | 0-120mmks | ||
| Applicabie thickness | < 3.5mm (depending on he material) | ||
| Wire feeder | Standard wire feeding speed 38-600mm /min | ||
| Wire feed diameter | 0.8/1.0/1.2/1.6/mm | ||
| Cooling way | Water co oling | ||
| Working emvironment | 10-40'c,humidity 10-85%, no condensation | ||
| Rated power | 4KW/6KW/8KW | ||
| Operating Voltage | 380+10%VAC,50/60Hz | ||
| Dimensions | 1150X630x1080 mm | ||
| Total weight | About 250kg | ||

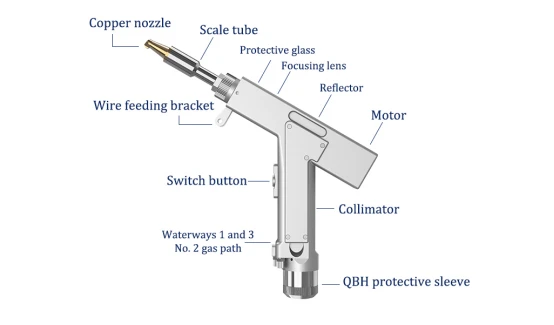

Laser Welding Stainless Steel's gun Parameters
| Supply Voltage (V) | 220±10% VAC 50/60Hz |
| Placement environment | Smooth, fee fom vibration and impact |
| Temperature of Working Environment | 10- 40 |
| Humidity of Working Envronment | < 70 |
| Cooling Method | Water-Cooling |
| Applicable Wavelength | 1064nm(±10nm) |
| Applicable Power | <2000W |
| Collimation | D20*5/F60 |
| Focus | D20*4.5/F150 |
| Refection | 30*14 T2 |
| Specifcations ofProtective Classes | 18*2 |
| Maximum of Support Pressure | 10 bar |
| Vertical Adjustment Range of Focus | ±10mm |
| Adjustment Range of Spot | Line 0-5mm |
| Weight | SUP15S 1.25KG/SUP20S 0.8KG |

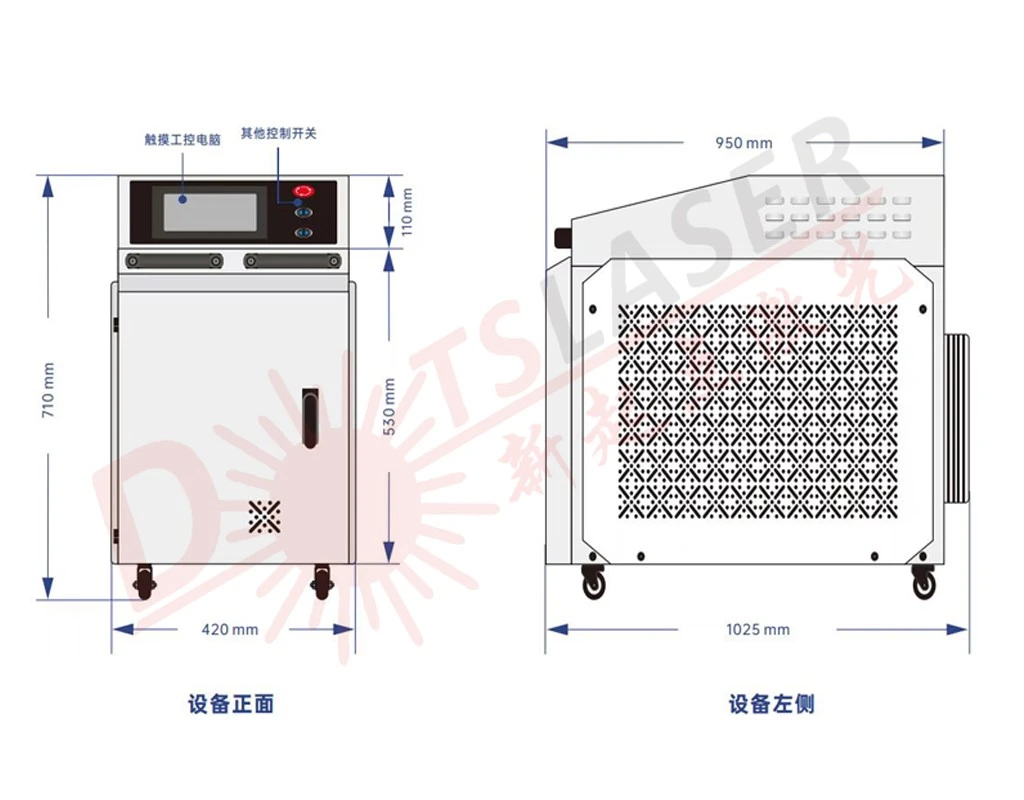

Laser Welding Stainless Steel machine's size
What is Laser Welding?
Laser welding is a process that uses a high-energy laser beam to fuse two metal surfaces together. The laser beam is focused on the workpiece using a lens or mirror to concentrate and direct the energy to a small area, creating a localized "melt pool" that joins the two metals. The process is typically controlled via computer software that adjusts the laser intensity, pulse duration, and spot size to achieve the desired weld properties.
Shipping and delivery
FAQ
Q1: How does the package?
Q2: Will the package damaged during transportation?
Q3: How to install and run the machine?
Q4: How can i do if the machine goes wrong?
