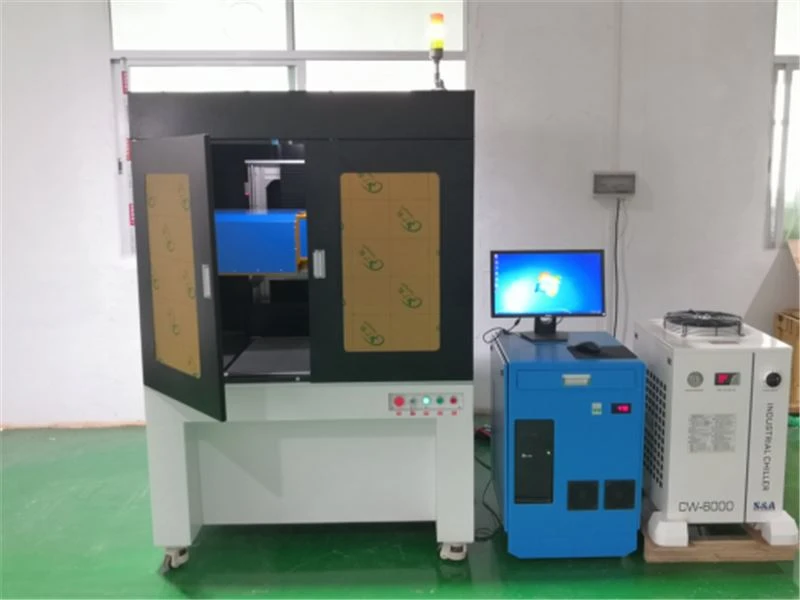

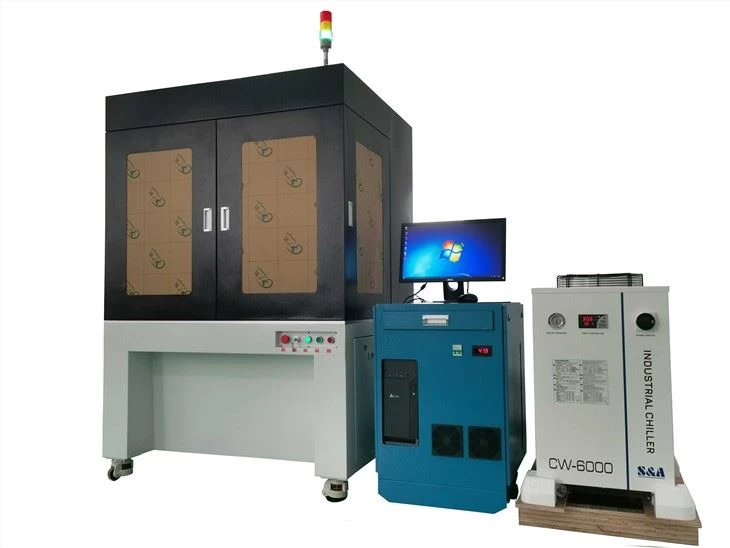

CO₂ Laser Engraving Machine

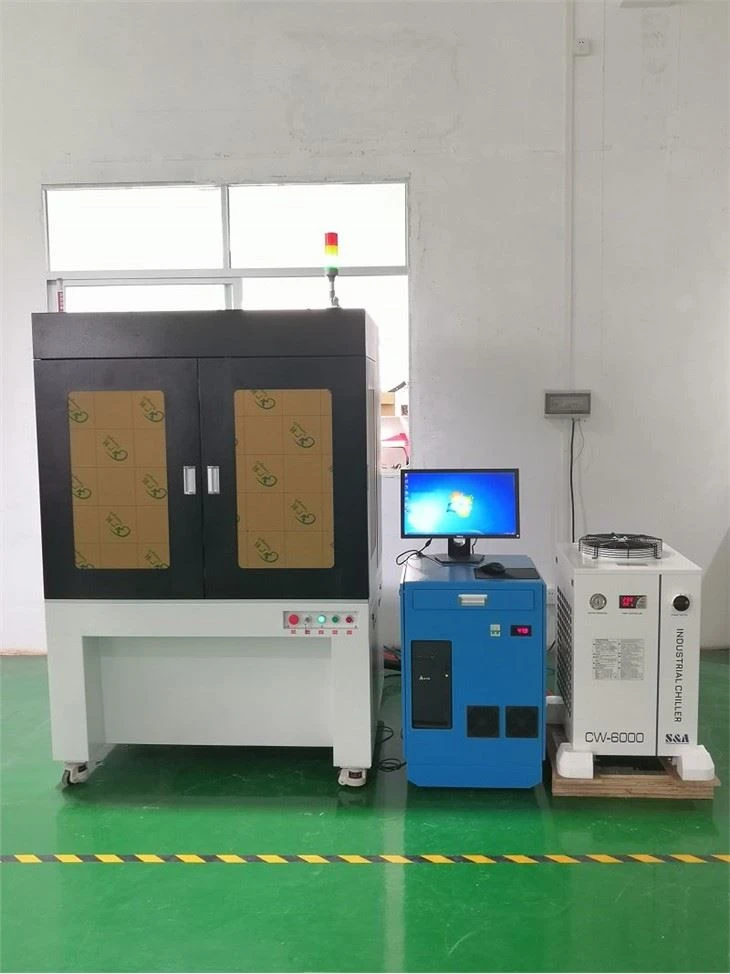

100 watt laser cutter

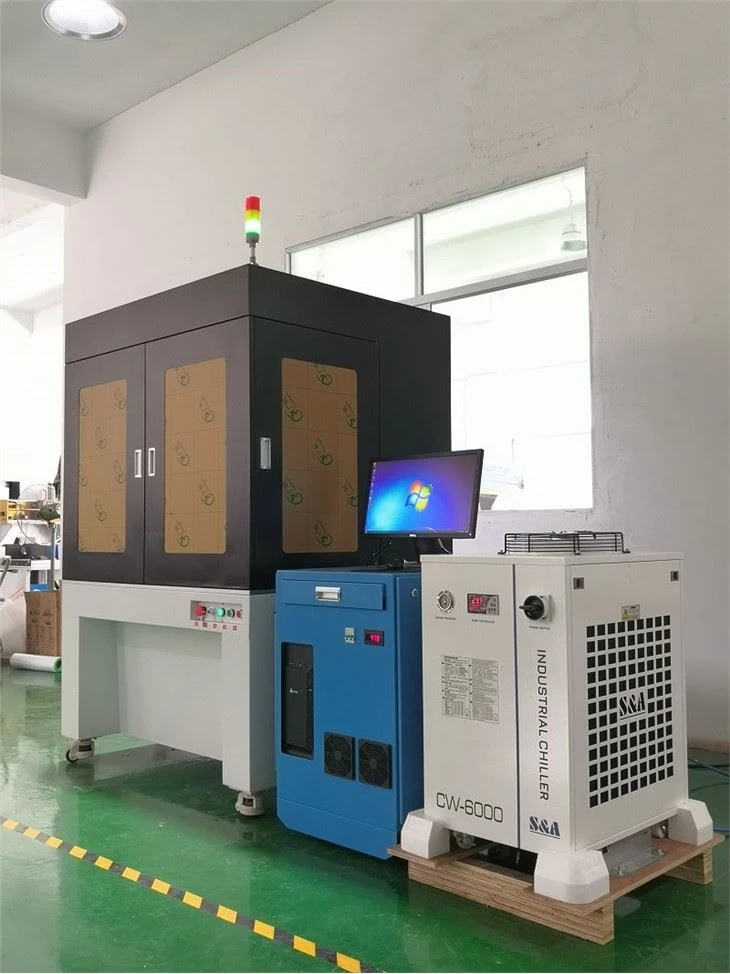

co2 laser engraving cutting machine

CO₂ Laser Engraving Machine

Name: China CO₂ Laser Engraving Machine Manufacturers, Suppliers and Factory - Wholesale Service - Dotslaser
Brand: DOTSLASER
SKU: 152544385

CO₂ Laser Engraving Machine uses the lens in front of the moving front focus lens to achieve within the range of the format, the focus spot of each point is the same thickness, so that it is within the swing range of the galvanometer.

Send Inquiry

Product Introduction

CO₂ Laser Engraving mMchine

Products Description

CO₂ laser engraving engravers come in a range of sizes and options, from small desktop models to large industrial units. CO₂ laser engravers are a revolutionary tool that has transformed the world of engraving and marking. This cutting-edge technology utilizes a high-powered laser beam to engrave designs, patterns, and text onto a wide range of materials with precision and speed.

engraver features

01/

Laser Power:Measured in watts, the power of the laser will significantly affect the engraving and cutting capabilities of the engraver. Higher power lasers can cut and engrave thicker and denser materials, but will also be more expensive.

02/

Work Area Size: Choose a engraver with a sufficient workspace to accommodate the intended projects. Work area size can range from small (approximately 8 x 8 inches) to very large (4 x 8 feet or more).

03/

Power Optics System: Invest in a engraver with high-quality optics to improve engraving precision and detail.

04/

Software Compatibility: Ensure the engraver is compatible with the desired software and computer operating system.

05/

Ease of Use: Some marking equipments are designed for beginners, with intuitive controls and user interfaces, while others may require a more experienced operator.

06/

Ventilation and Fume Extraction: CO₂ lasers generate fumes and smoke, so adequate ventilation and an efficient fume extraction system are essential to ensure a safe working environment.

Parameters

Model	DS-LMC150	DS-LMC250	DS-LMC350
Laser power output	150W	250W	350W
Laser wavelength	10.6μm
Marking area	400x400mm, 500x500mm, 600x600mm, 800x800mm
Pulse frequency	1~130KHZ
Max marking speed	10, 000mm/s
Control method	xyz 3axis dynamic focus
Min.line width	0.2mm
Cooling	Water cooled
Working temp	10~30 ℃
Gross weight	390KG
Size of engraver	1200x800x1580mm
Power supply	AC220V±10%/20A, 50Hz or AC110V±10%, 60Hz

Working Principle

The CO₂ equipment utilizes a lens in front of the moving front-focus lens to ensure uniform thickness of the focus spot at each point within the format range. This allows the engraver to stay within the galvanometer's swing range. The focus is automatically adjusted to meet the requirements of large-format laser marking, showcasing excellent spot uniformity and large format capabilities.

CO₂ marker are suitable for small businesses, hobbyists, and artists, as well as larger industrial applications.

Selecting factors:

1. Materials

Consider first the type of material you will be marking. We prefer to categorize materials into two main classifications: Organic or non-organic.

2. Marking type

Consider the deep mark or light mark, depending on the type of marking technology, you can create either a dark or a frosted mark.

3. Safety consideration

Consider the ideal location for your engraving engraver. Will it be situated on the plant floor where operators can easily access it, or will it have its own designated, enclosed area for maximum efficiency?

Applicable industries:

Clothing

Garments

Leather products

Bags, shoes

LED light, furniture

Craft, gifts

Packaging

Sign

Advertising

Marble stone

Ceramics

Paper board, and other industries

Applicable materials:

Wood

Acrylic

Glass

Paper

Leather

Stone

Rubber

Fabric

Ceramics (engraving only, not cutting)

Details showcase

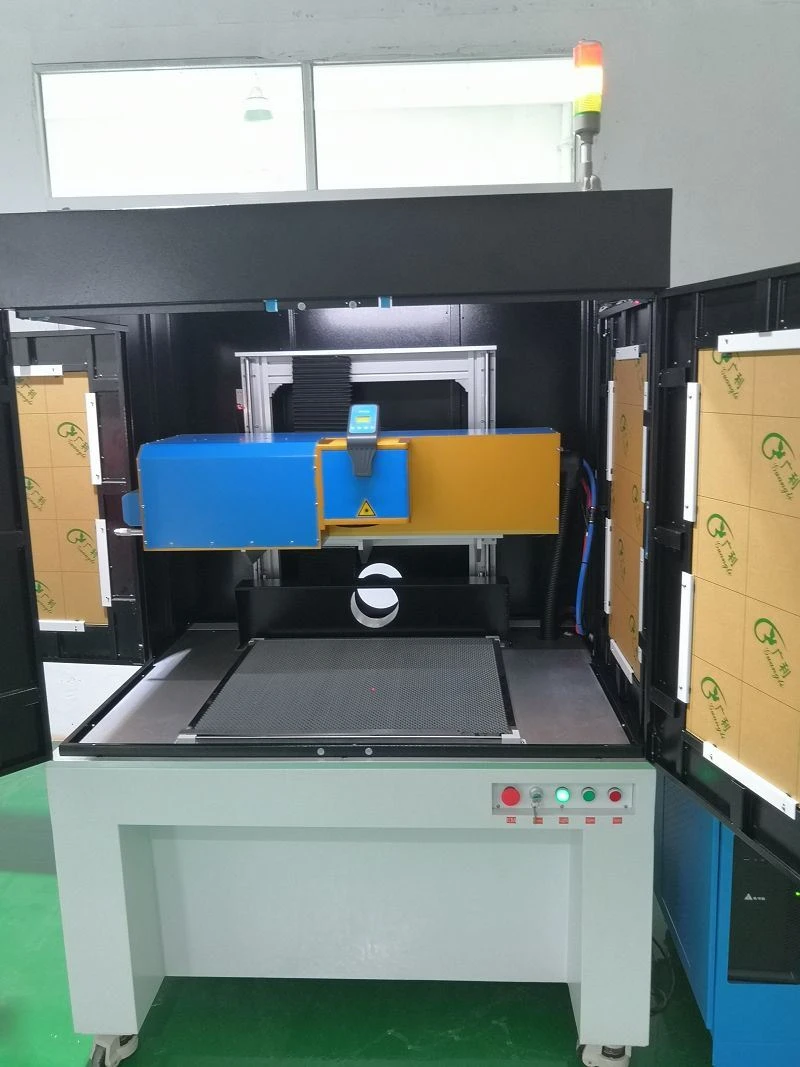

* Large working table for large area

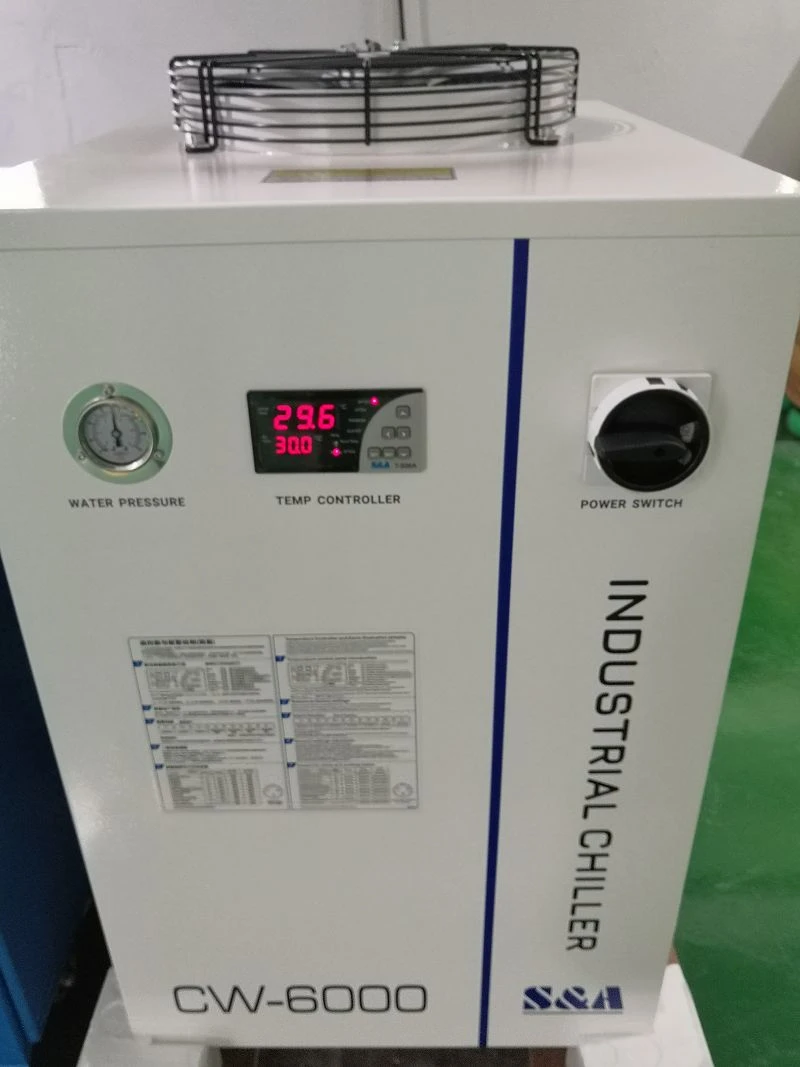

* Large-capacity and stable refrigeration water chiller make the laser work more stable

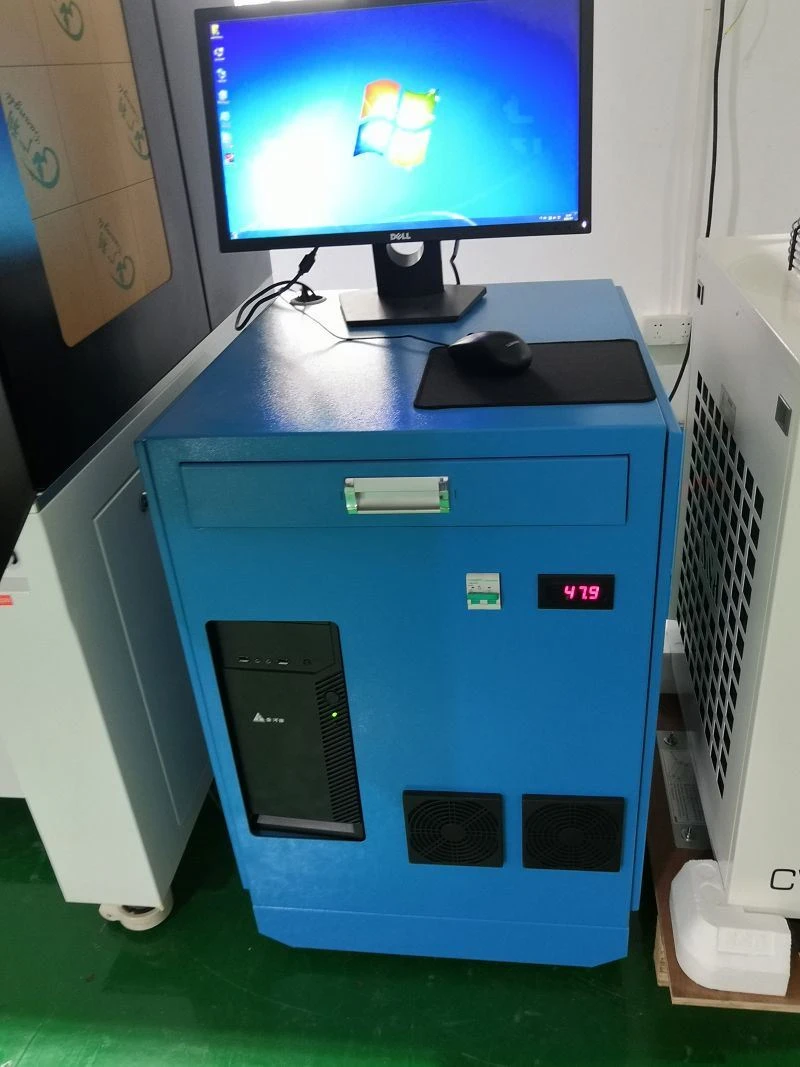

* Smart control working system

Samples

Samples show

Shipping

1. Installation and debugging

Before engraver installation, our factory will offer you a basic structure installation file,the good need 2 weeks delivery to you there , the engineers of Dotslaser will arrive at your site and inspect the engraver again. Comfirm all the conditions meet the installation and commissioning requirements of the equipment, the equipment will transport in time.

2. Service support

If there has any problem with any part of the system during the warranty period, Dotslaser well-trained service engineers are ready to provide cellphone call or begin on-site service,if the engraver has any problem during the warranty period,please contact us directly !

FAQ

Q1: This is my first time use CO₂ laser engraving engraver, will you help me out ?

A: We are laser manufacture, we will support you the full documents and videos about how to use the CO₂ laser engraving engraver, and online guide how to do sample engraving or testing.

Q2: How get a good power for laser engraving or cutting ?

A: Base on the material thickness, we do a small test with small area, after it did a good result, then we can do full job ;Or we will offer you some data for different materials.

Q3: What's consumables of laser marking engraver?

A: It does not have consumable. It's very economical and cost effective.

Q4: What's package, will it protect the products?

A: We have 3 layers package. For the outside, we adopt wooden cases free of fumigation. In the middle, the engraver is covered by foam, to protect the engraver from shaking. For the inside layer, the engraver is covered by waterproof plastic film.

Q5: What's delivery time?

A: Commonly, the lead time is within 10 working days after receiving the payment.

Q6: How is the shipping method?

A: As per your actual address, we can effect shipment by sea, by air, by truck or railway. Also we can send the engraver to your office as per your requirement.
